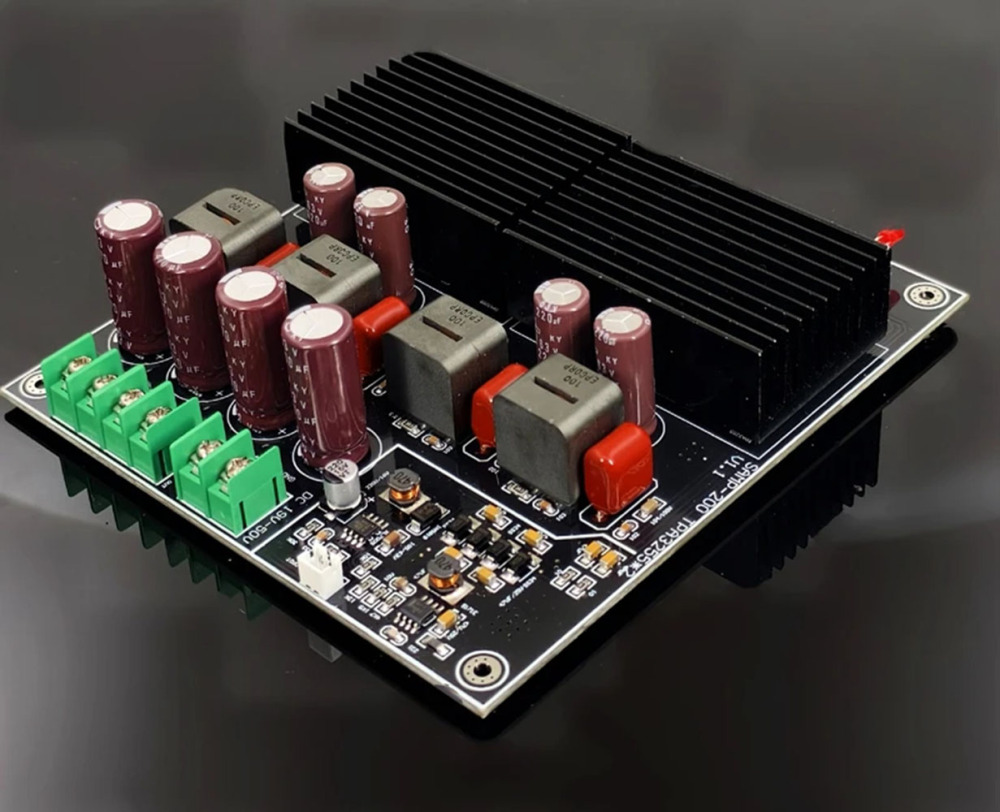

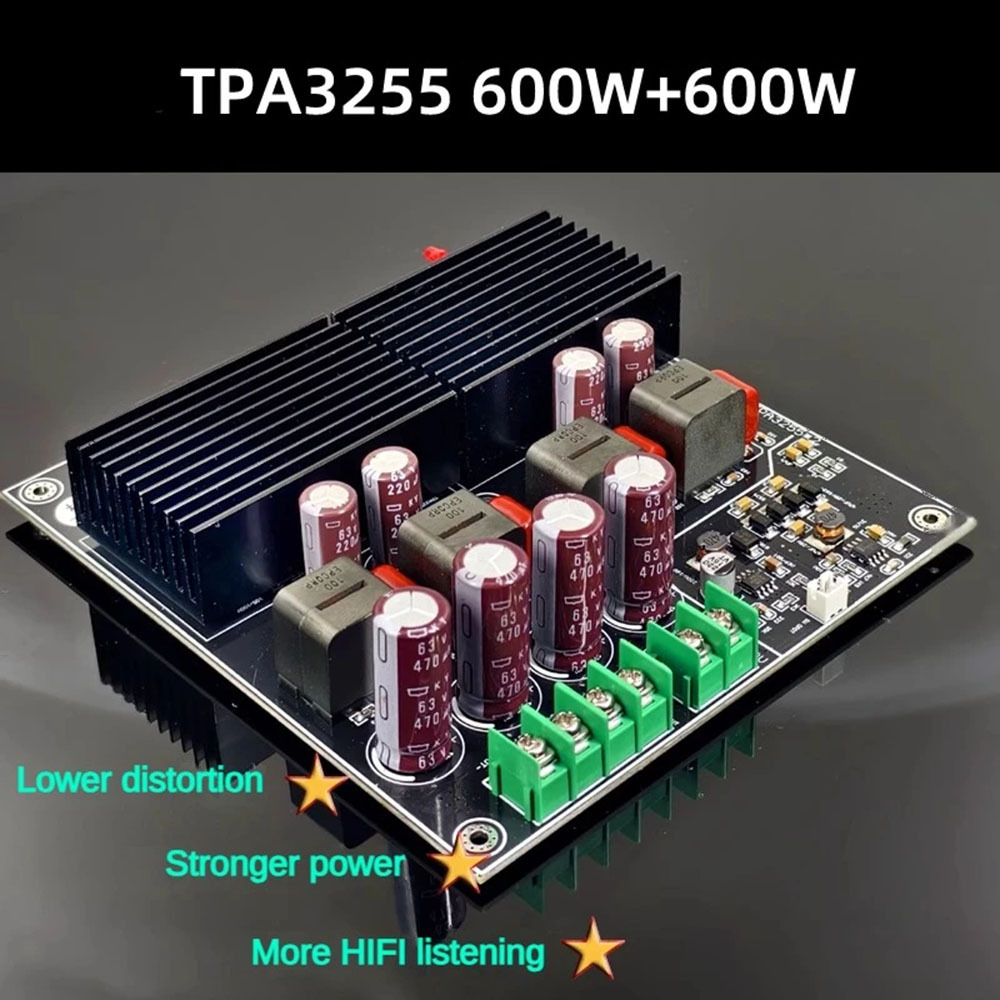

Dual Core TPA3255 High Power 2 Channel Amplifier Board 600W+600W Amp Module

1. Using 2 pieces of American TI-TPA3255 original power amplifier modules, the output power separation is much better than a single piece.

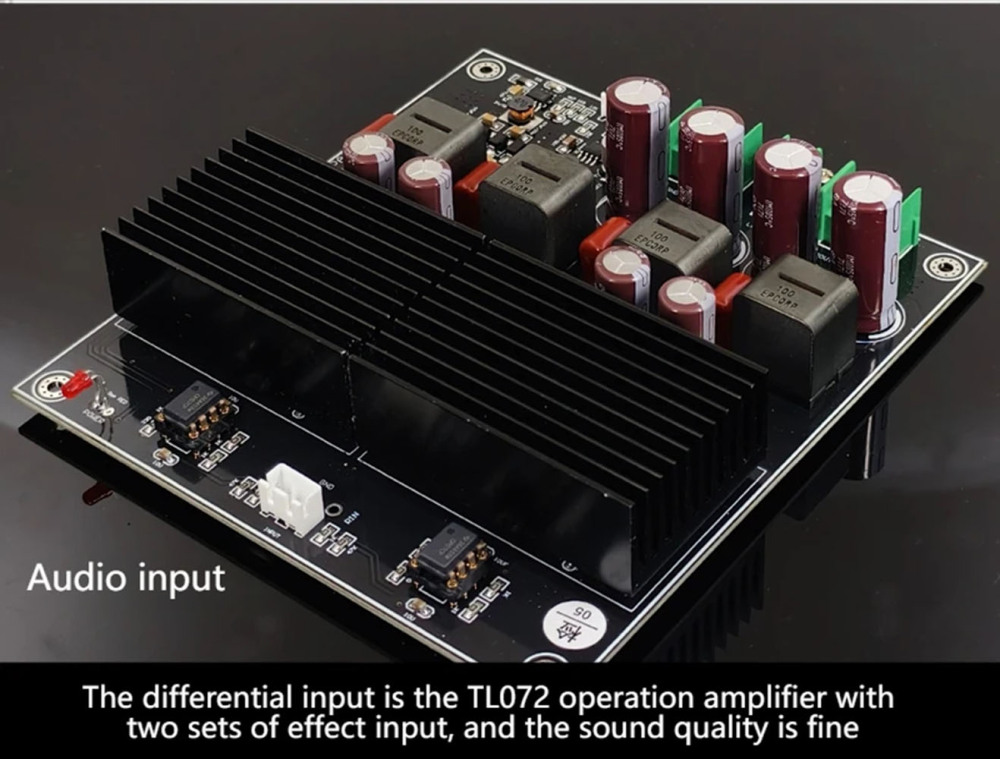

2. The front-end differential input circuit uses boost technology, which makes the listening experience more dynamic than the single 12V line.

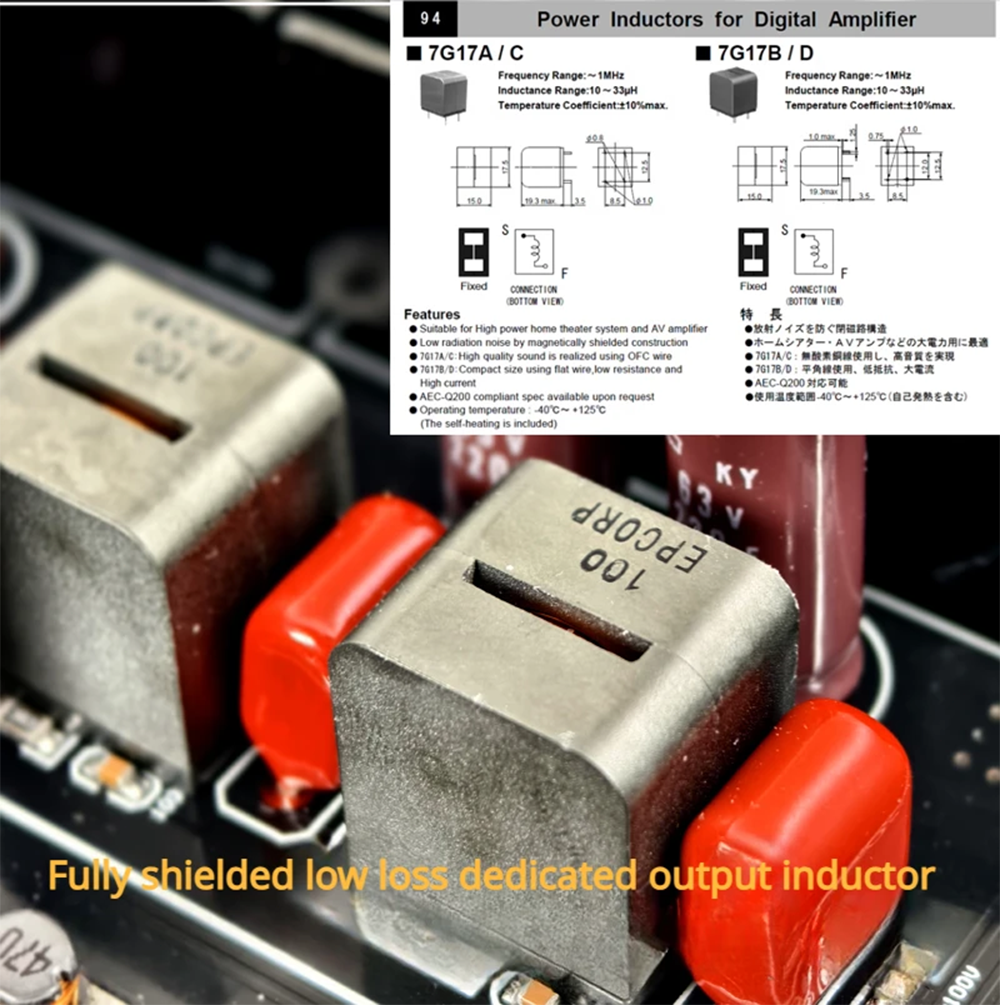

3. Fully shielded, low-loss sealed inductor, imported filter capacitor.

Output power: 200W+200W/8Ω 600W+600W/2Ω 315W+315W/4Ω

Frequency response:20HZ-30KHZ

THD+N: 0.006% at 1W/4; < 0.01% at clipping

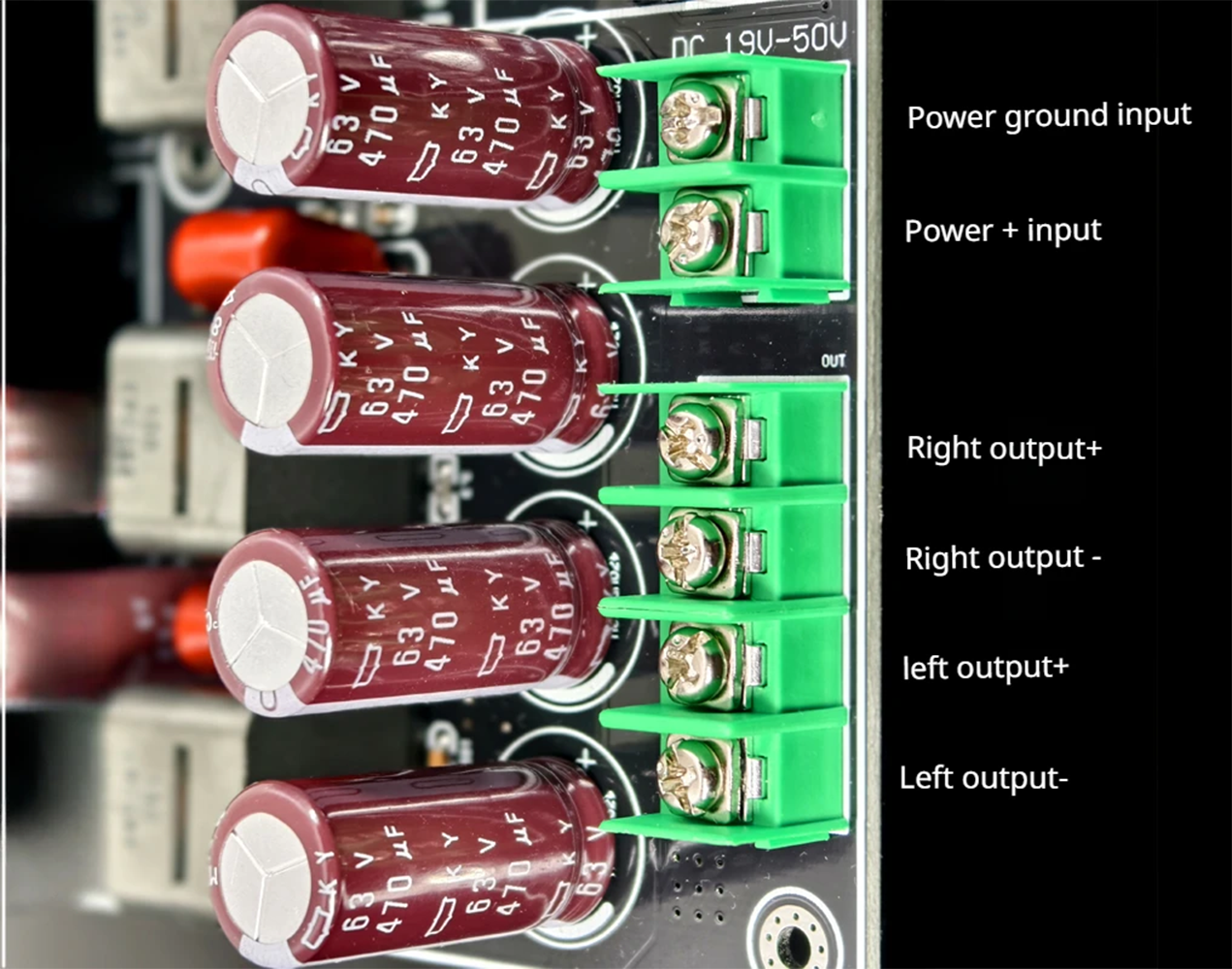

Supply voltage: positive 19V to positive 52V

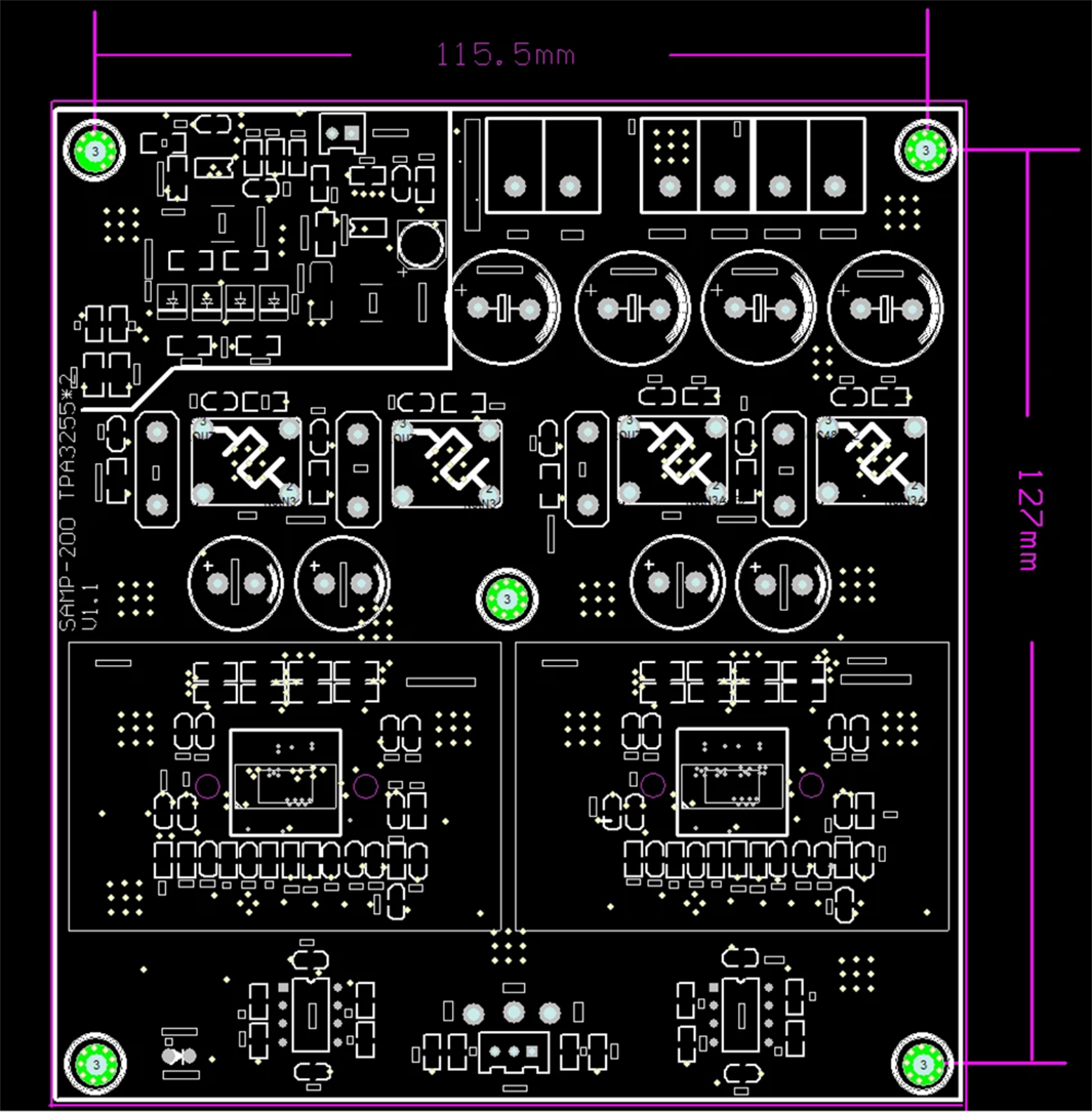

PCB size:138*128mm

Note: The higher the input power supply, the greater the power supply current and the greater the output. The power test is measured at 50V power supply. If you switch to a 24V 36 low voltage power supply, the output power will be reduced accordingly.
