  • Description

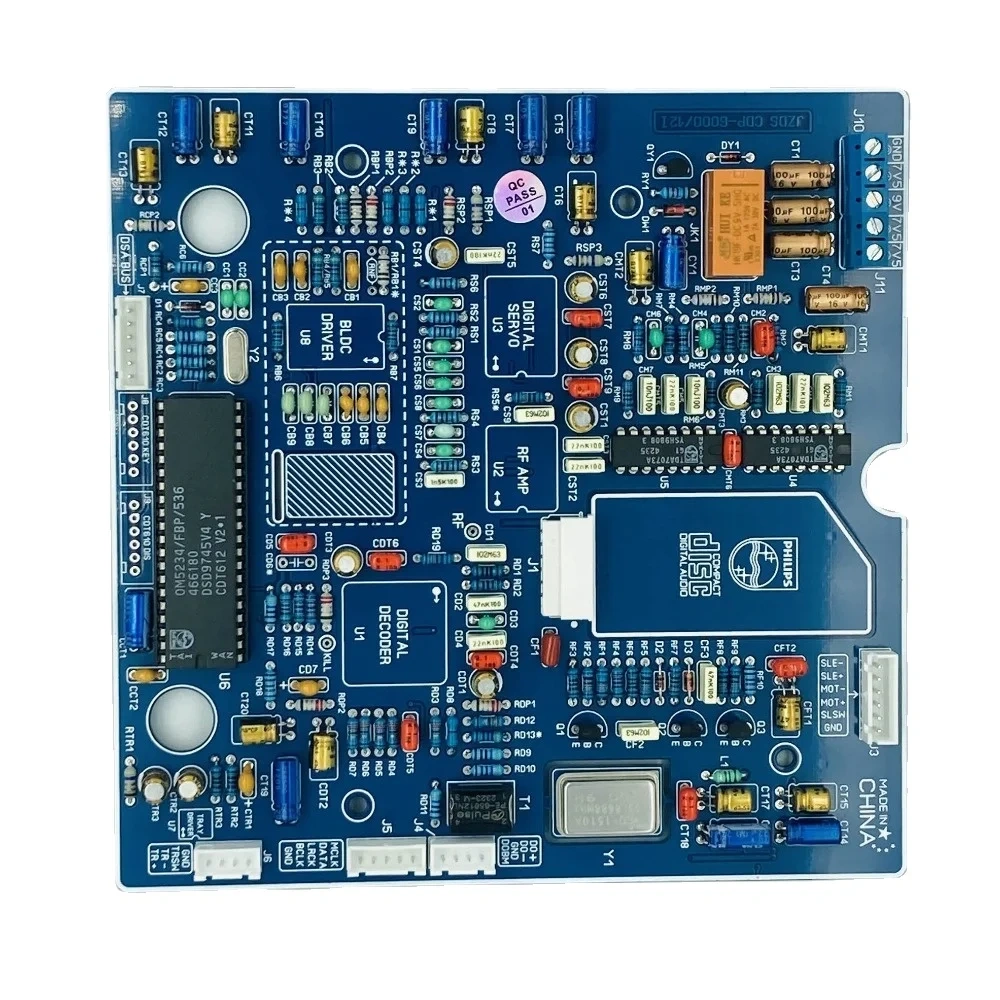

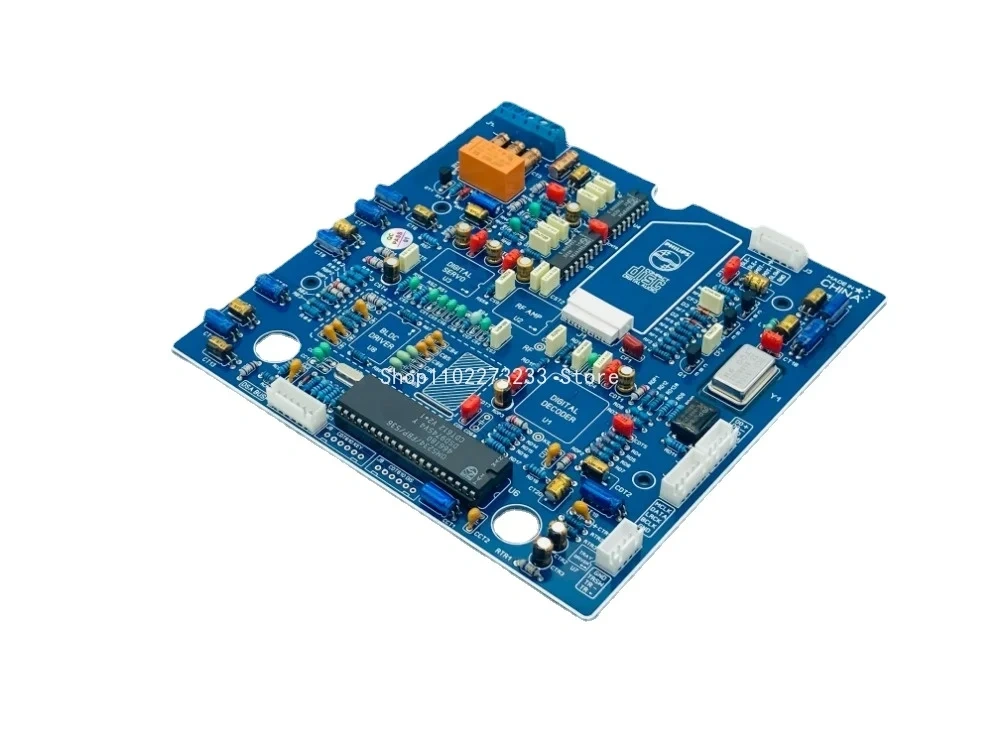

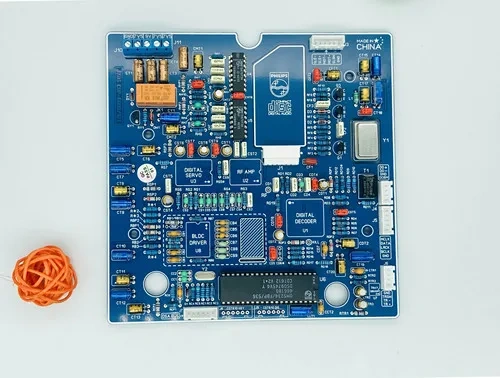

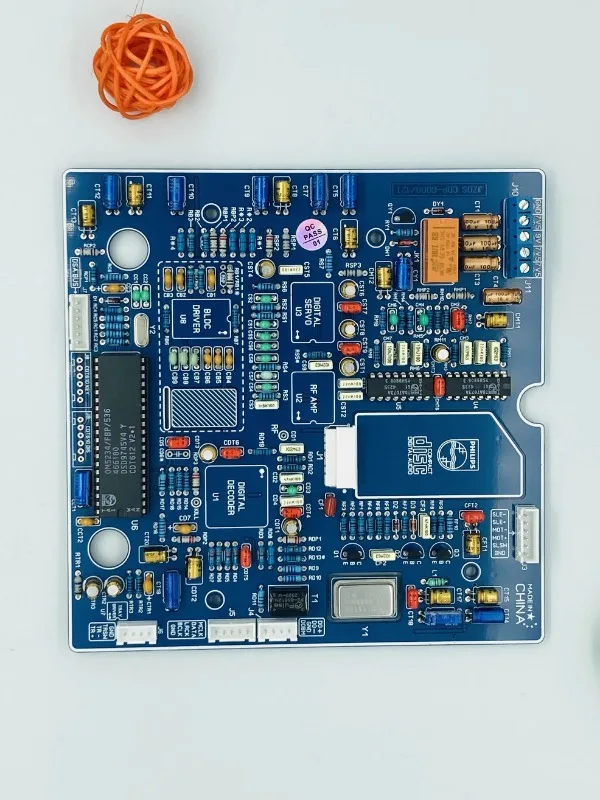

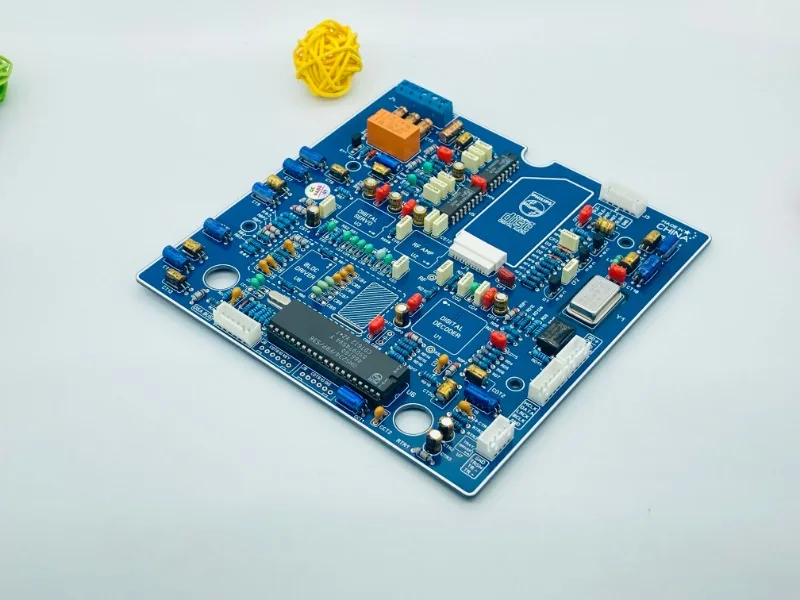

Product Name: CD Turntable motherboard sleeve (CDP-6000/12I)
Servo board power supply: DC9V(9V-11V), DC7V5*3(7V-9V).

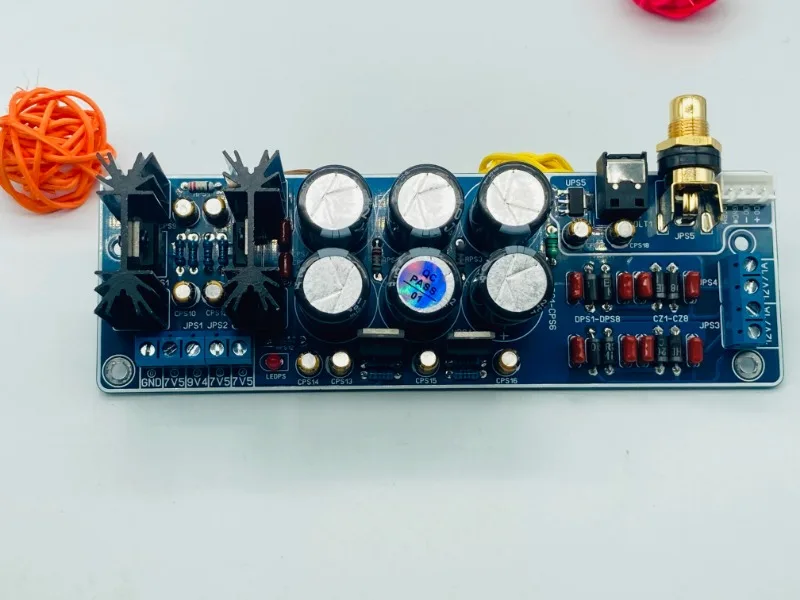

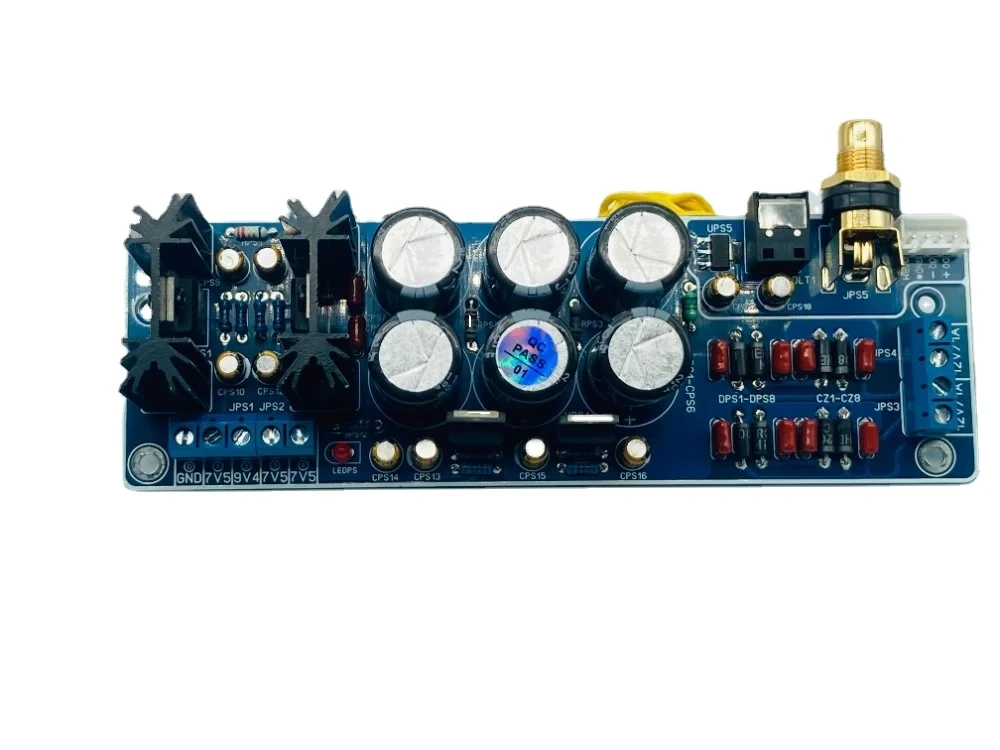

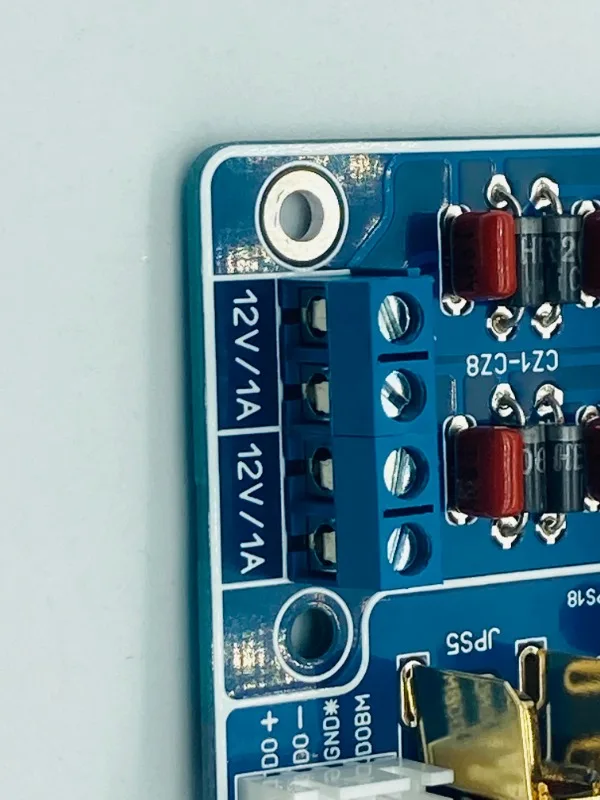

Power board input: AC12V two groups

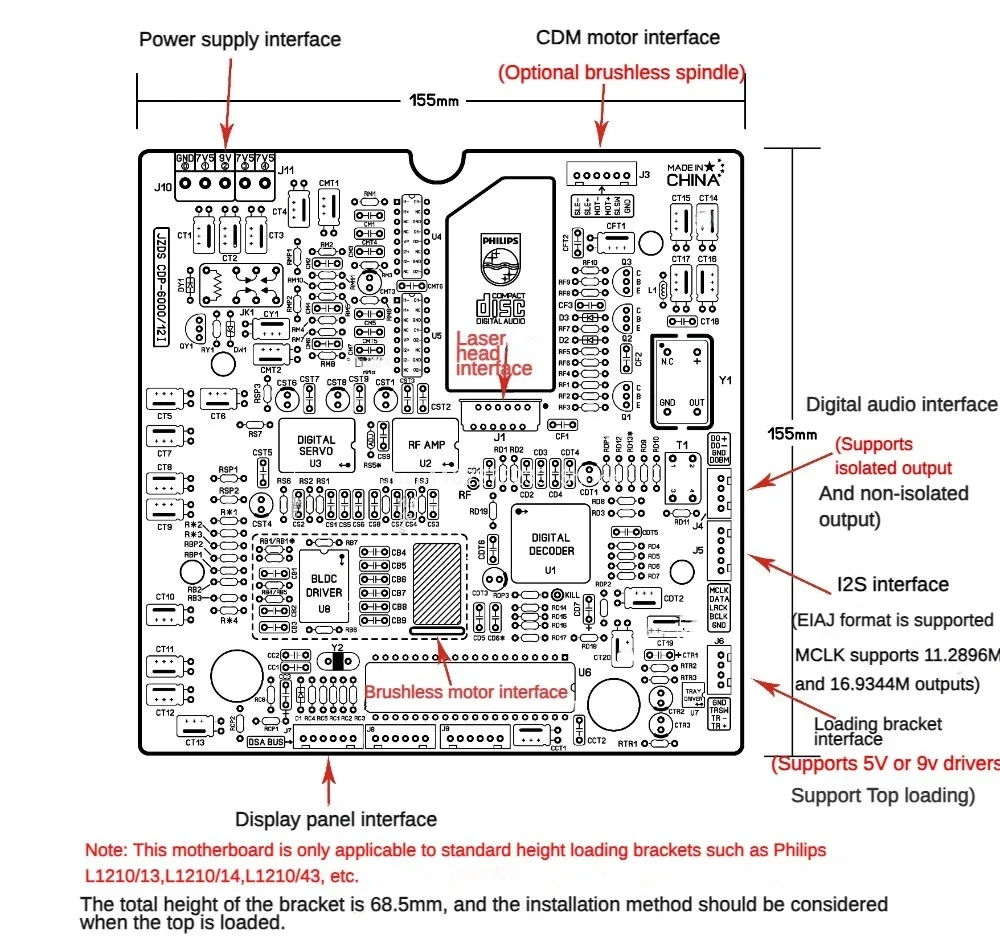

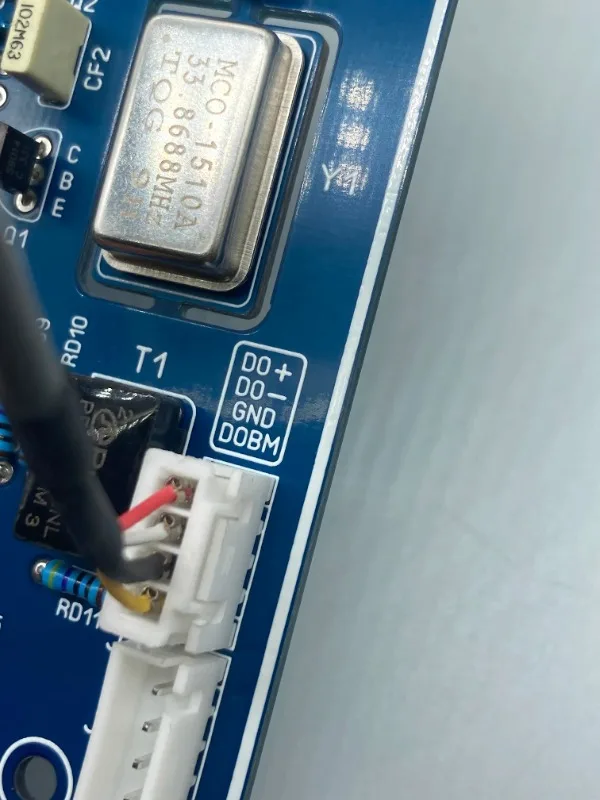

Output interface: coaxial, fiber, IIS(EIAJ)

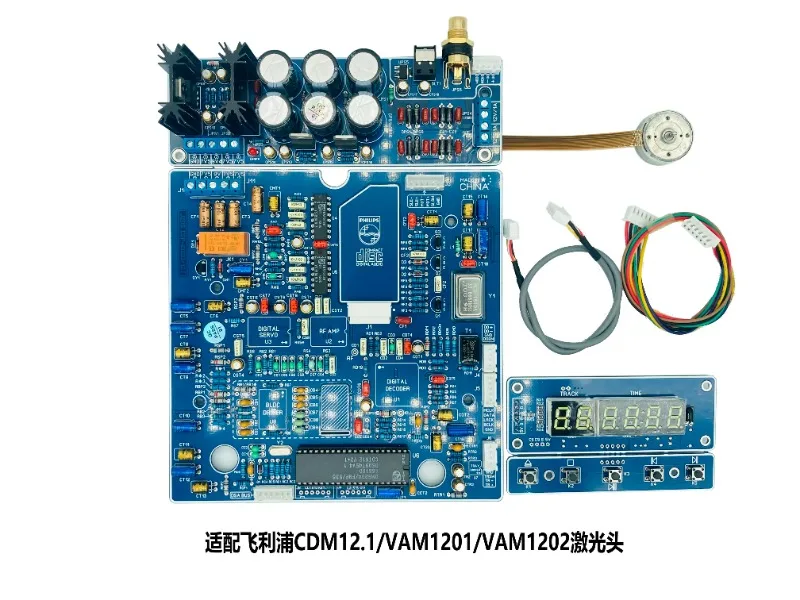

Adaptive laser head: CDM12.1/VAM1201/VAM1202
Adaptive remote control: Philips RC5, drive code group


Product description:

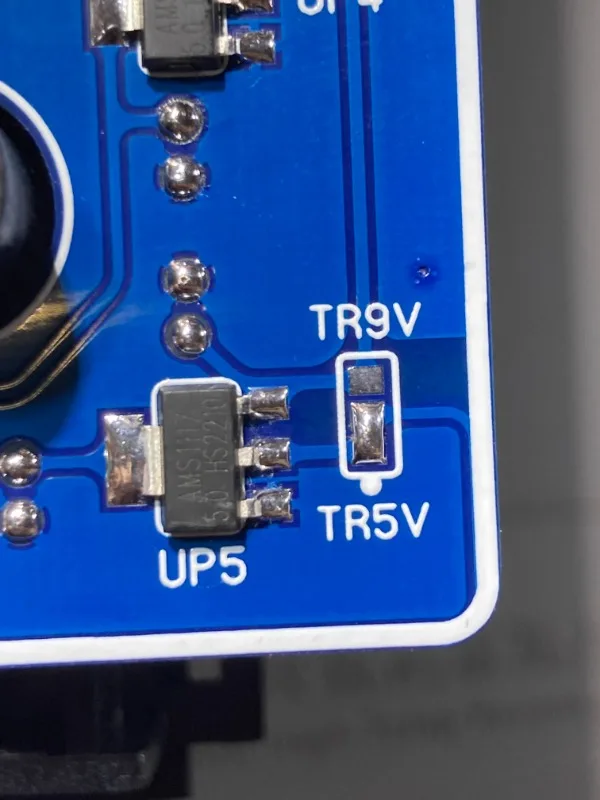

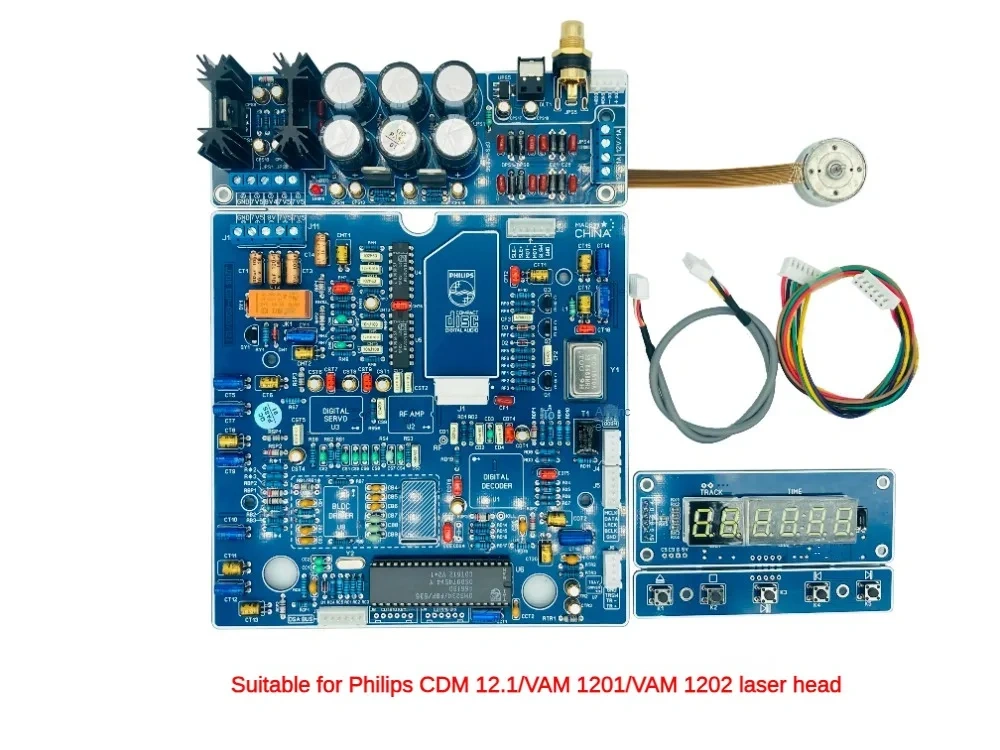

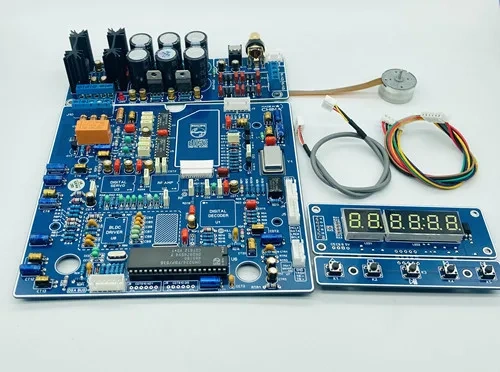

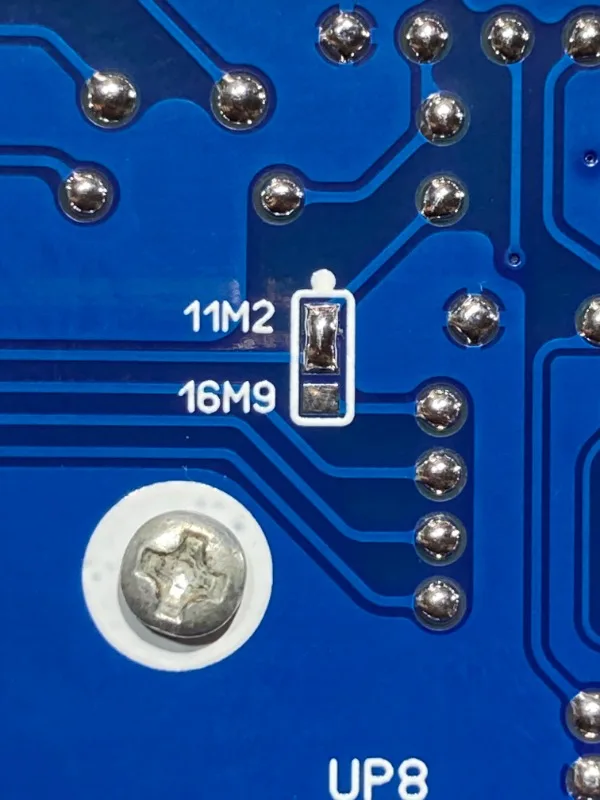

The whole set of board buyers only need to bring their own movement, remote control, transformer, you can work normally. Supports top open and drawer loading modes. Support to set output Philips format and SONY format, support 11.2896M or 16.9344M clock output. Support brushed and brushless spindle motor (brushless modification requires a certain hands-on ability). Support 9V and 5V drive in and out of the bin.



Shipping instructions:

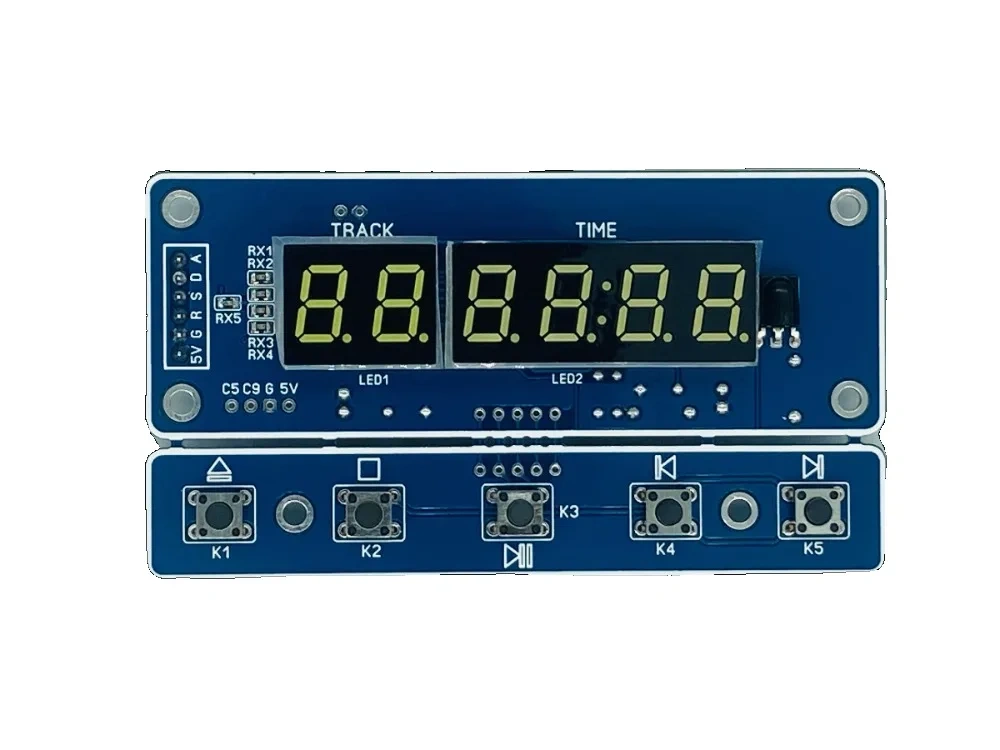

The entire board is equipped with two connecting wiring harnesses (the connection between the servo board and the power board and the display board), which is not standard for purchase.
By default, keys, RCA terminals, and optical fiber sockets are not welded. After the buyer hands the welding installation or lead installation according to the actual situation.
The buttons, RCA terminals, and optical fiber sockets are not pre-soldered. Buyers can solder or wire them based on their specific requirements after receiving the product.
The following is the description of the refitted brushless spindle, please read carefully and assess the risk by yourself.
Link: https://pan.baidu.com/s/1OyPOk3jwGuhMIV45ALD9vg?pwd=0000
Extraction code: 0000
