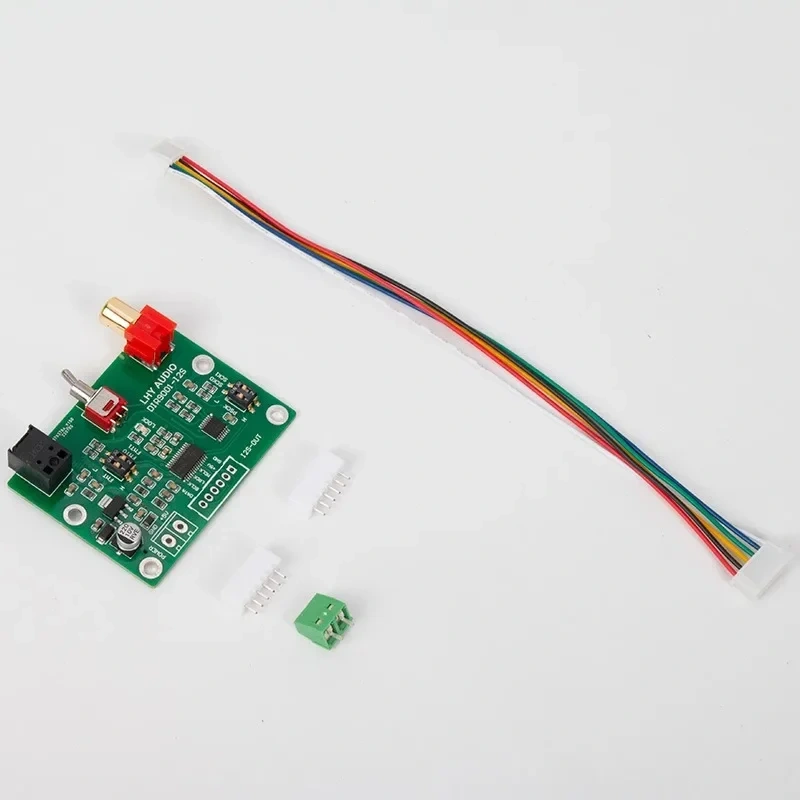

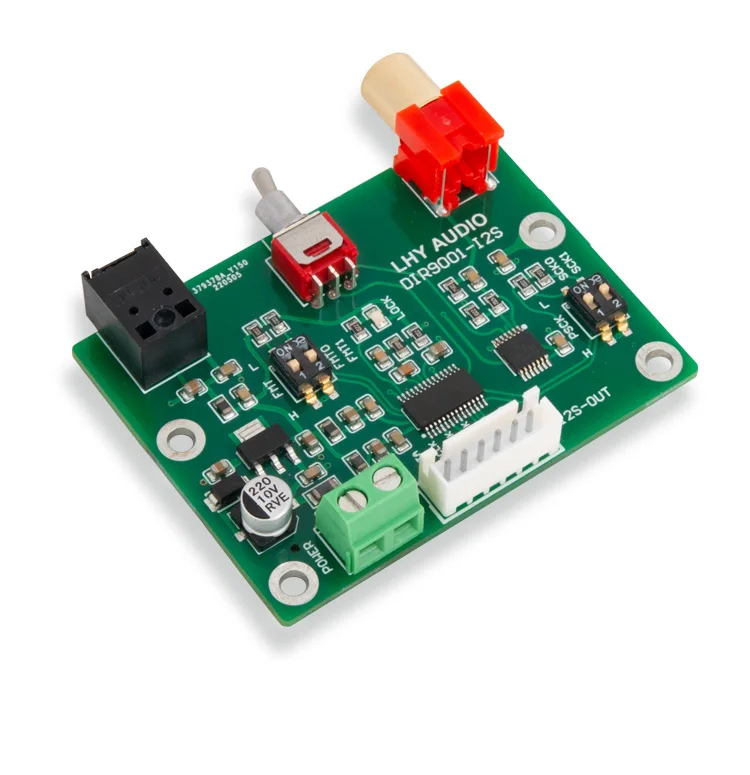

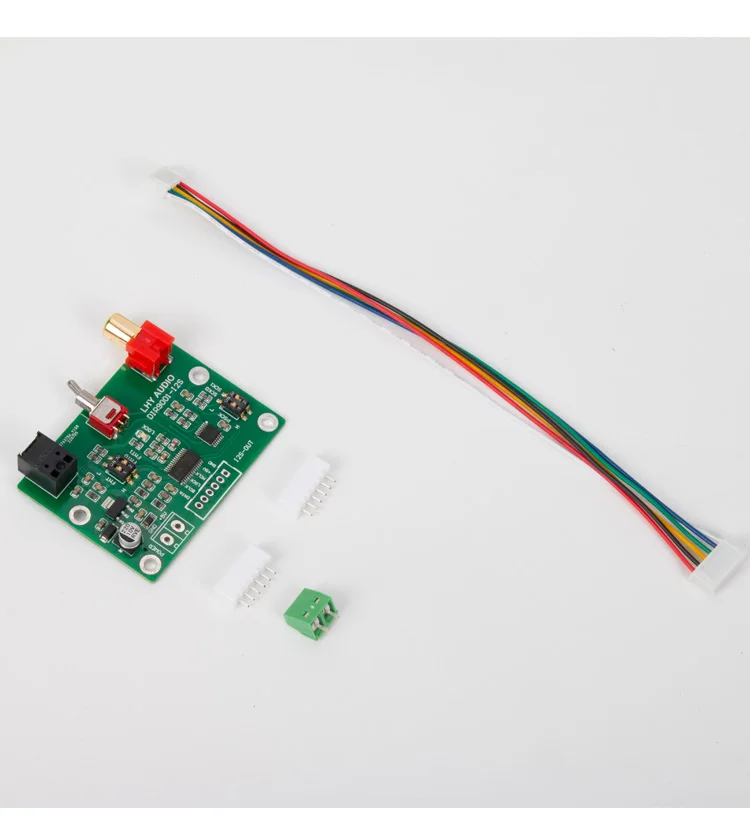

Conversion board information:

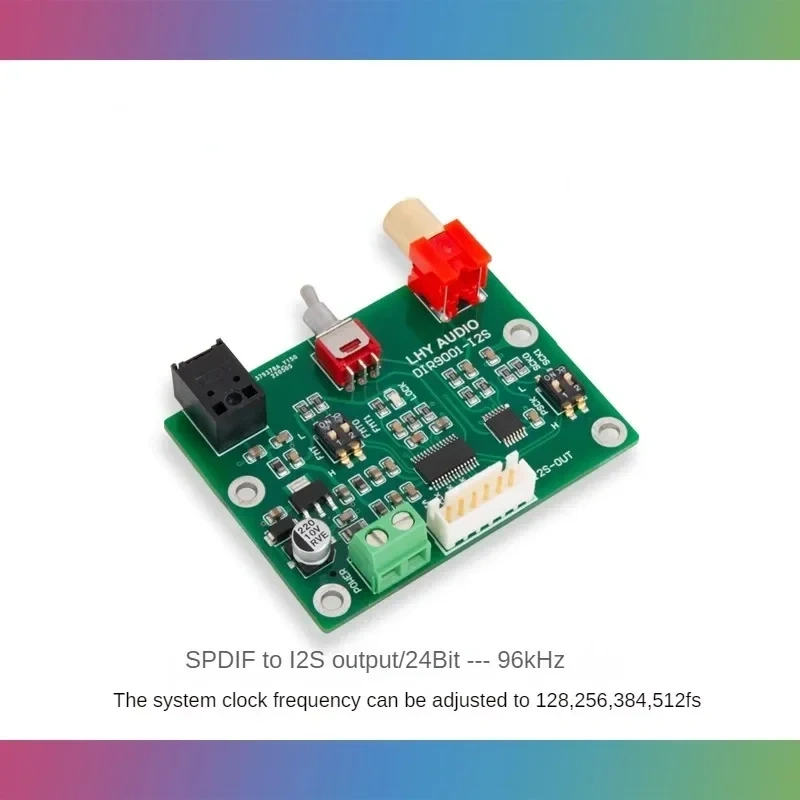

The highest sampling rate: 24Bit---96kHz
The system clock frequency can be adjusted to 128, 256, 384, 512 fs, (256fs by default)

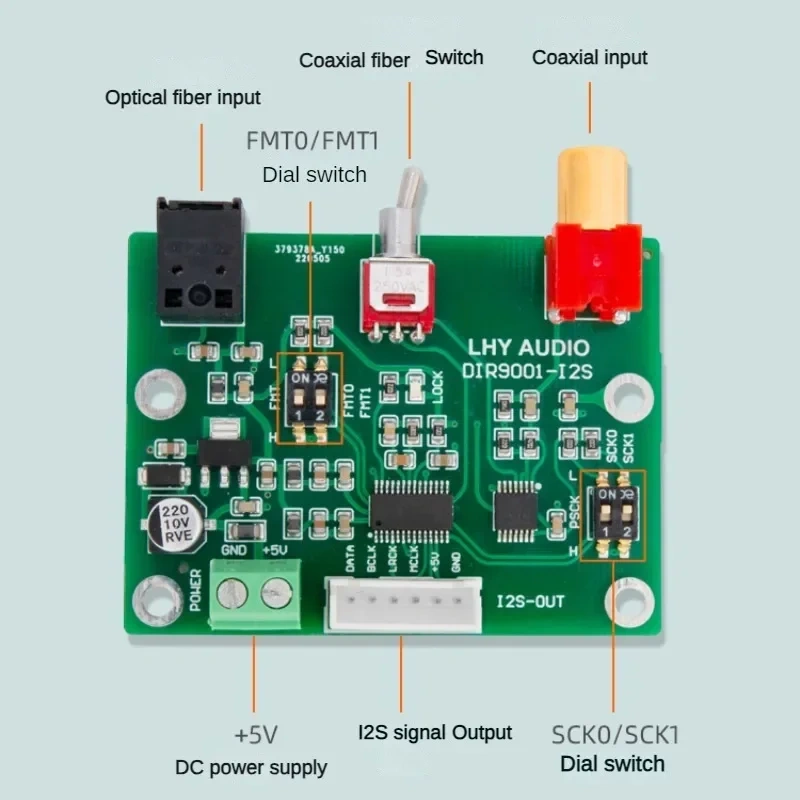

Input interface: coaxial RCA, optical (you can switch between coaxial and optical signals with the on-board DIP switch)

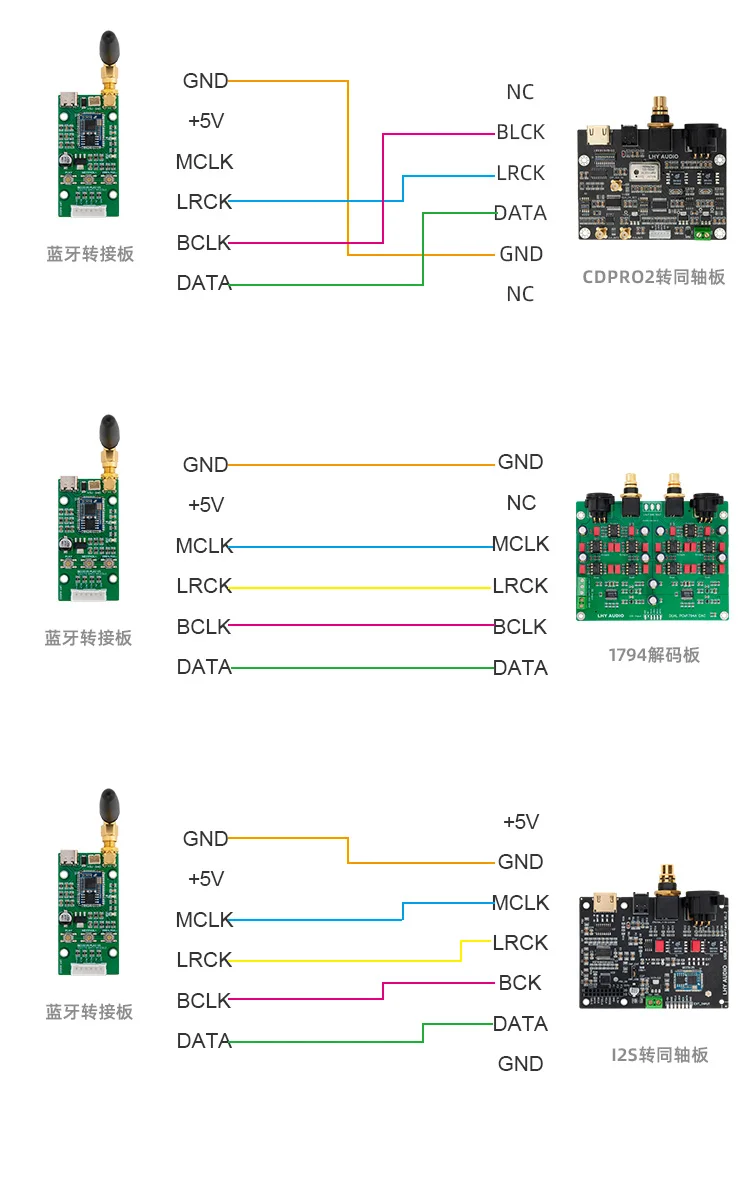

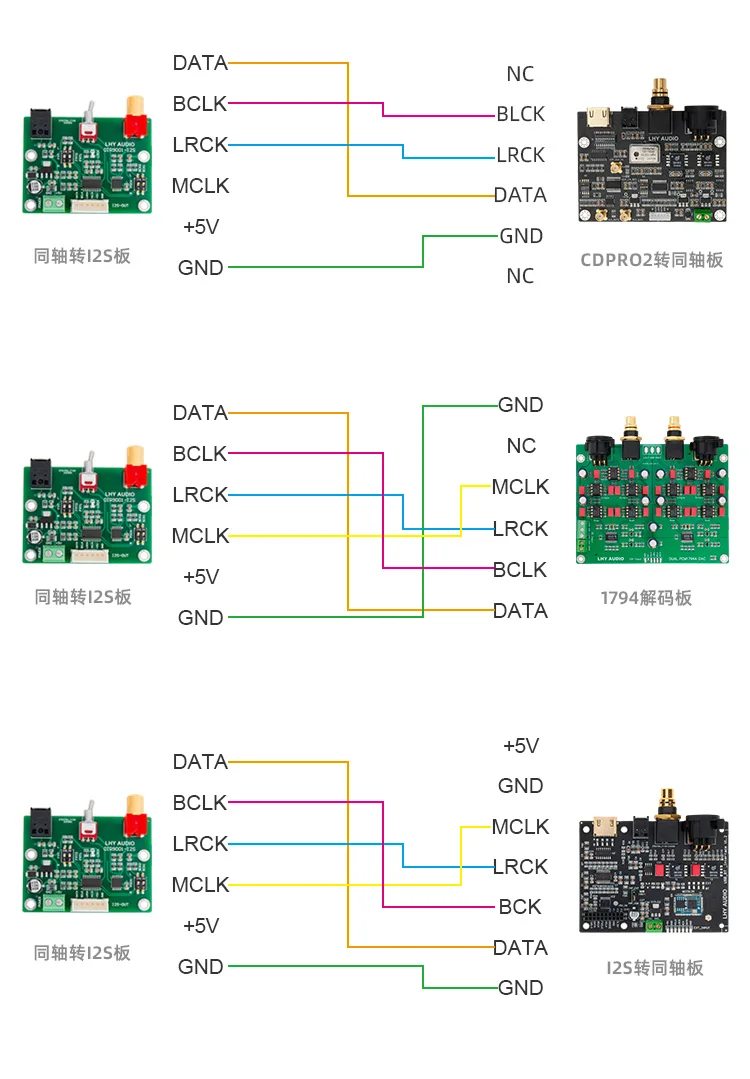

Output interface: standard IIS, left-aligned, right-aligned, the format can be changed by yourself
Supply voltage: 5V

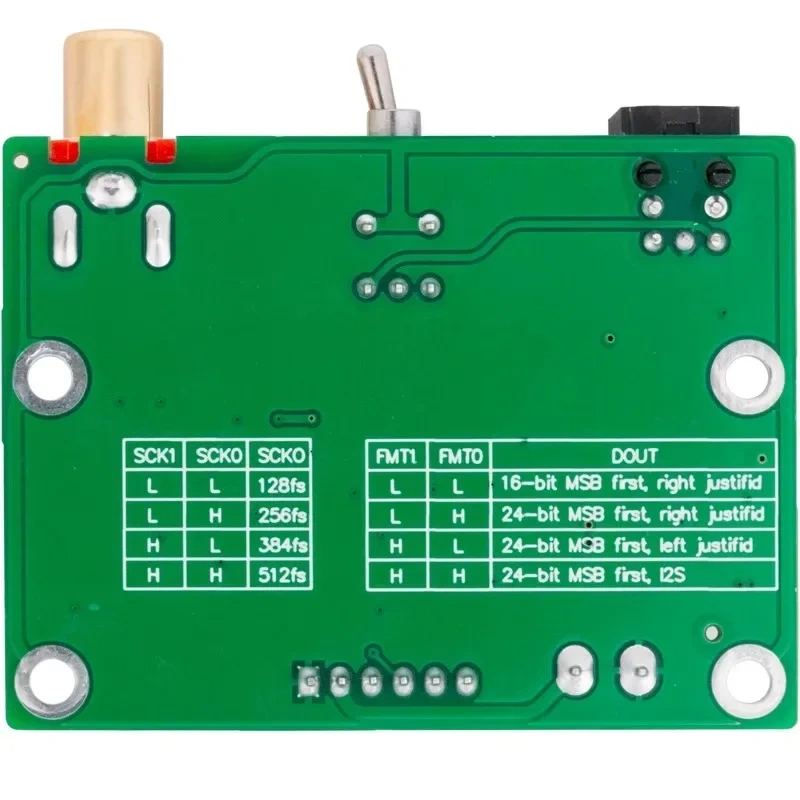

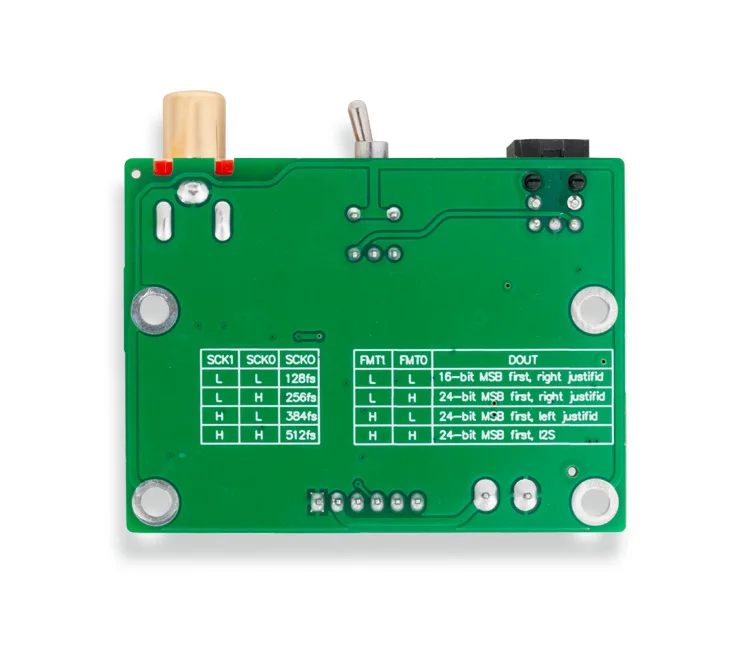

FMT1 | FMT0 | DOUT | SCK1 | SCK0 | SCKO | |
L | L | 16-bit,MSB-first,right-justified | L | L | 128fs | |
L | H | 24-bit,MSB-first,right-justified | L | H | 256fs | |
H | L | 24-bit,MSB-first,left-justified | H | L | 384fs | |
H | H | 24-bit,MSB-first,IIS | H | H | 512fs |
