XY-2 Discrete Ladder DAC Module | R2R DAC Audio Decoder Board | 24Bit PCM 384KHz

**Description:**

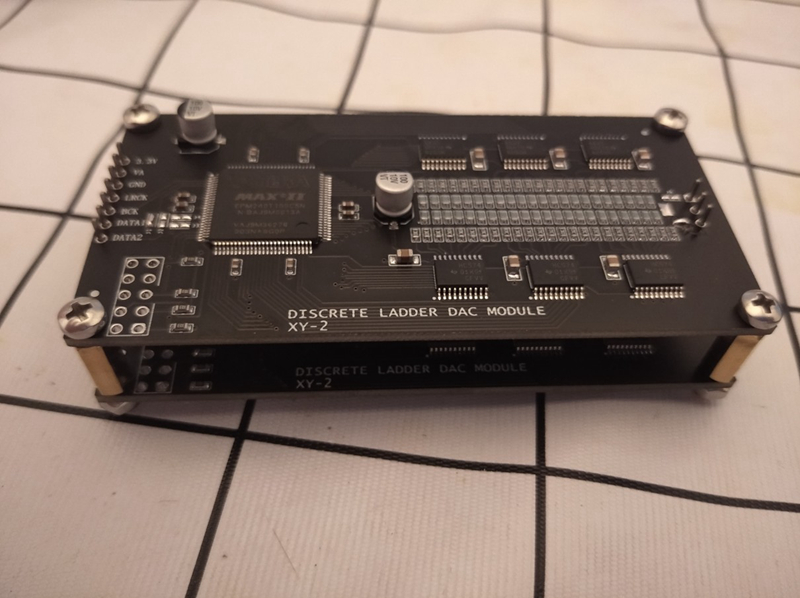

The XY-2 Discrete Ladder DAC Module is a high-performance R2R DAC designed for advanced audio enthusiasts. Inspired by the complementary design of ROCKNA, it incorporates a compensation algorithm to address zero-crossing distortion and resistance accuracy issues, delivering superior sound quality compared to conventional solutions.

This module supports 24-bit PCM audio with a sampling rate of up to 384KHz, ensuring high-resolution audio playback. It is available in left and right channel configurations, making it ideal for stereo setups.

**Note:** This module does not include IV (Current-to-Voltage) or LPF (Low-Pass Filter) circuits. It is designed for direct output and requires users to have a strong foundation in electronics and DIY skills. Technical support is not provided.

---

**Key Features:**
- **High-Precision R2R Design:** Ensures accurate audio reproduction with minimal distortion.
- **Compensation Algorithm:** Solves zero-crossing distortion and resistance accuracy issues for improved sound quality.
- **High-Resolution Audio:** Supports 24-bit PCM at up to 384KHz sampling rate.
- **Compact Size:** 86.21 x 42.42mm (3.4 x 1.7 inches), ideal for custom audio projects.

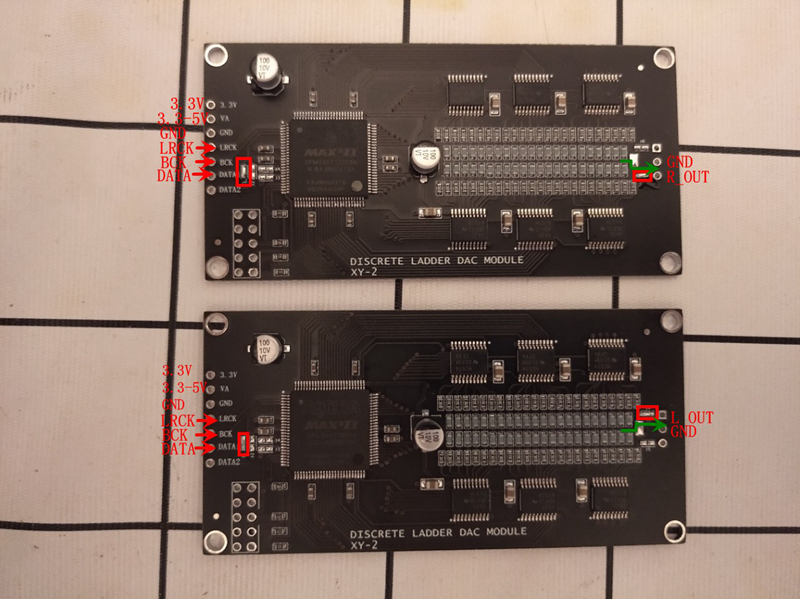

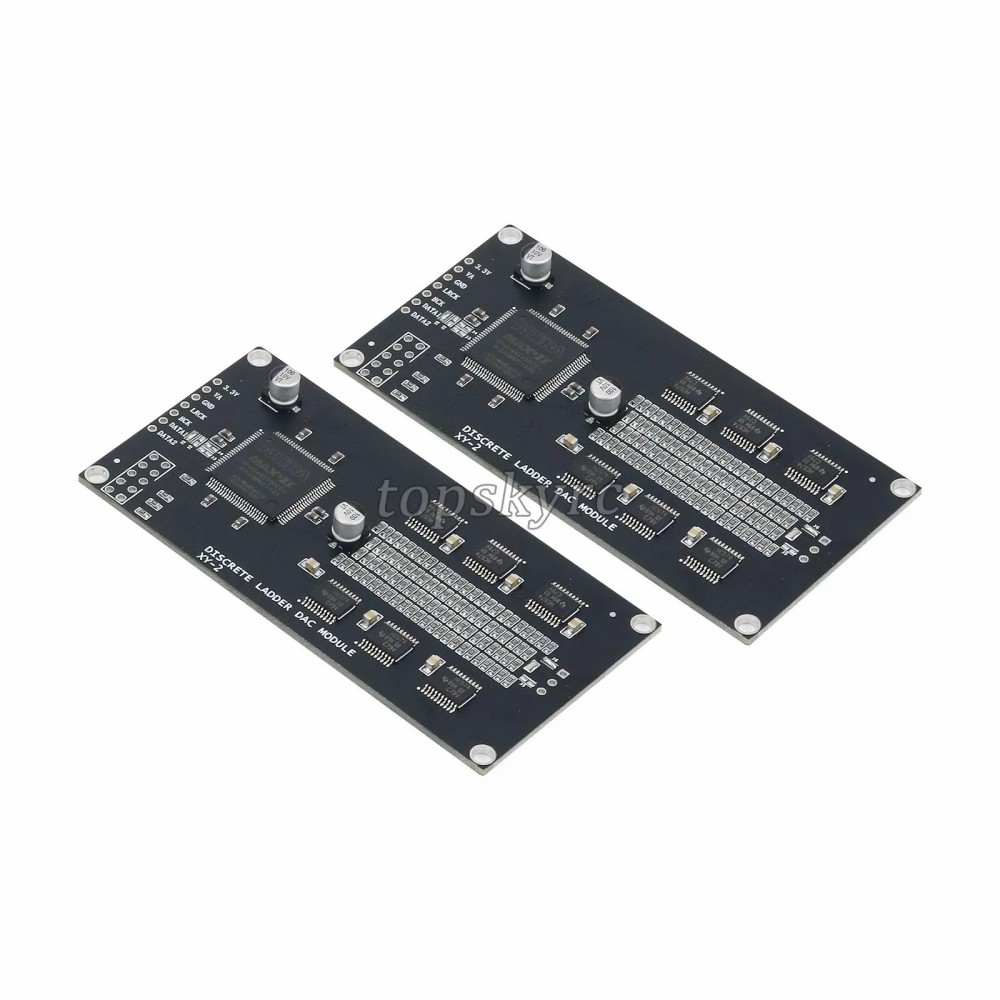

- **Channel Options:** Available in left and right channel configurations.

---

**Specifications:**
- **Model:** XY-2
- **Type:** Discrete Ladder DAC Module
- **Supported Format:** 24-bit PCM (non-left-justified and non-right-justified)
- **Sampling Rate:** Up to 384KHz

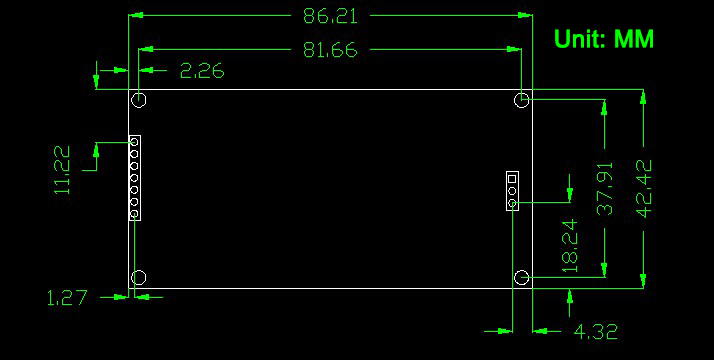

- **Dimensions:** 86.21 x 42.42mm (3.4 x 1.7 inches)

---

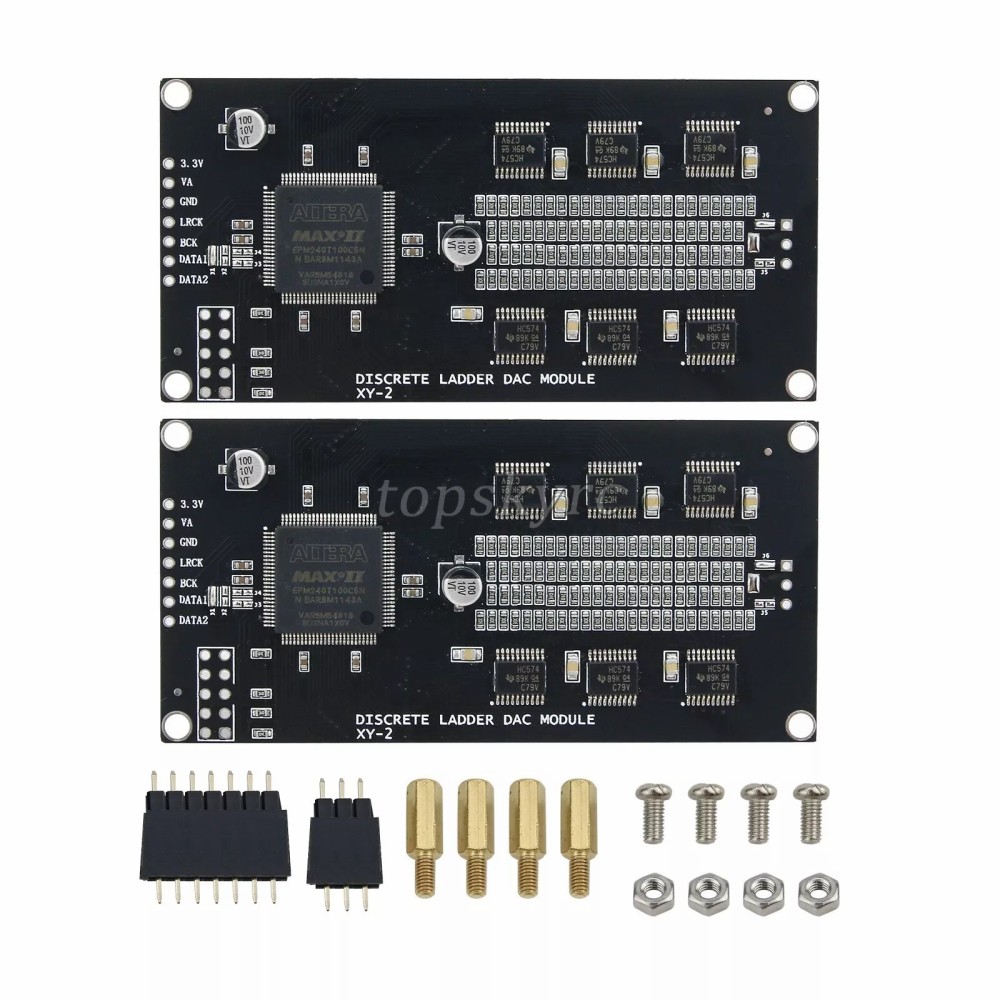

**Package Includes:**
- 1 x XY-2 DAC Module
