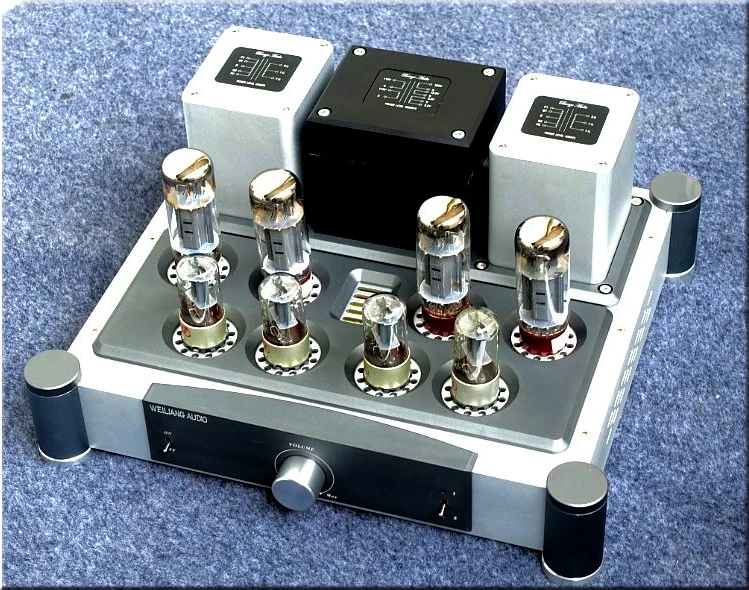

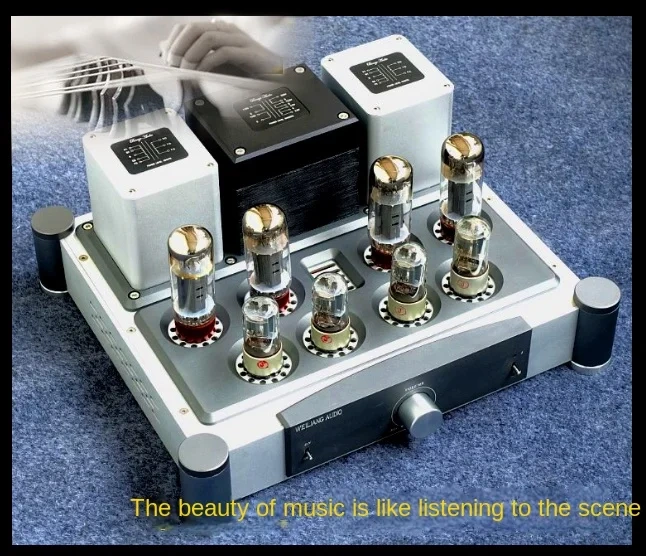

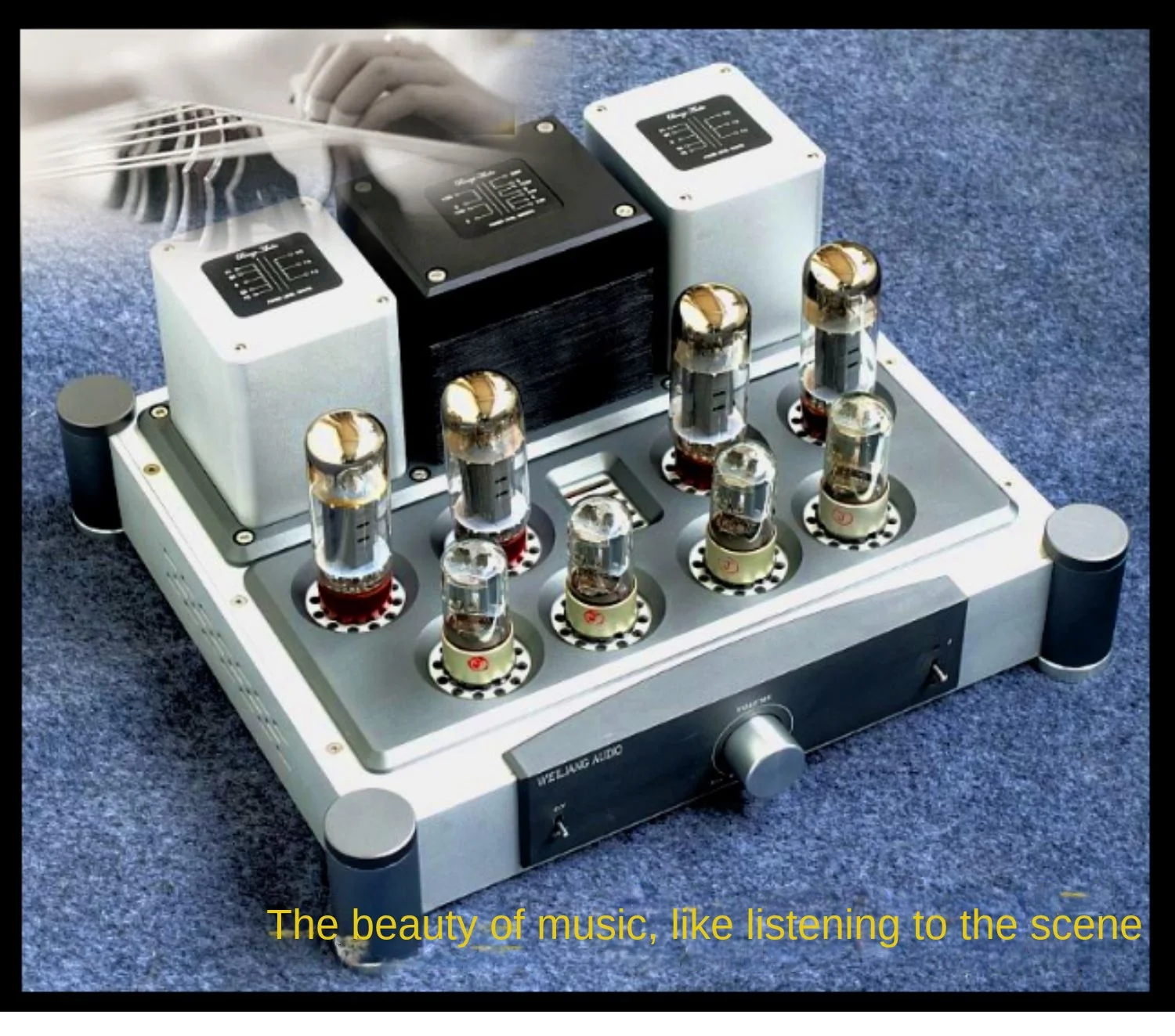

Discover the Weiliang A40 Pure Tube EL34 Push-Pull Hi-Fi Amplifier, a true vocal weapon designed to elevate your audio experience. With a powerful 40W X2 output, this amplifier delivers robust sound quality and exceptional clarity, making it an ideal choice for audiophiles seeking superior performance. Its strong drive capability ensures that every note is reproduced with precision, offering an unparalleled listening experience.
Options:
Version 1: Basic Unit (without 8 tubes)

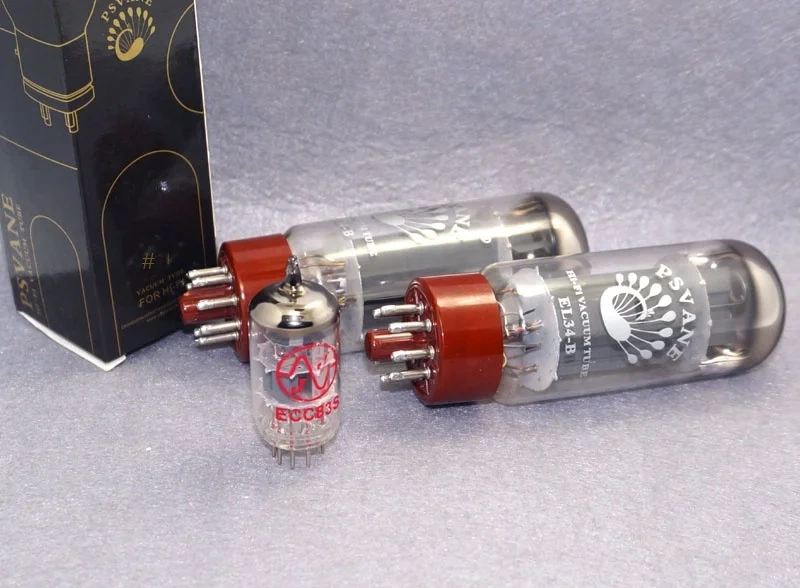

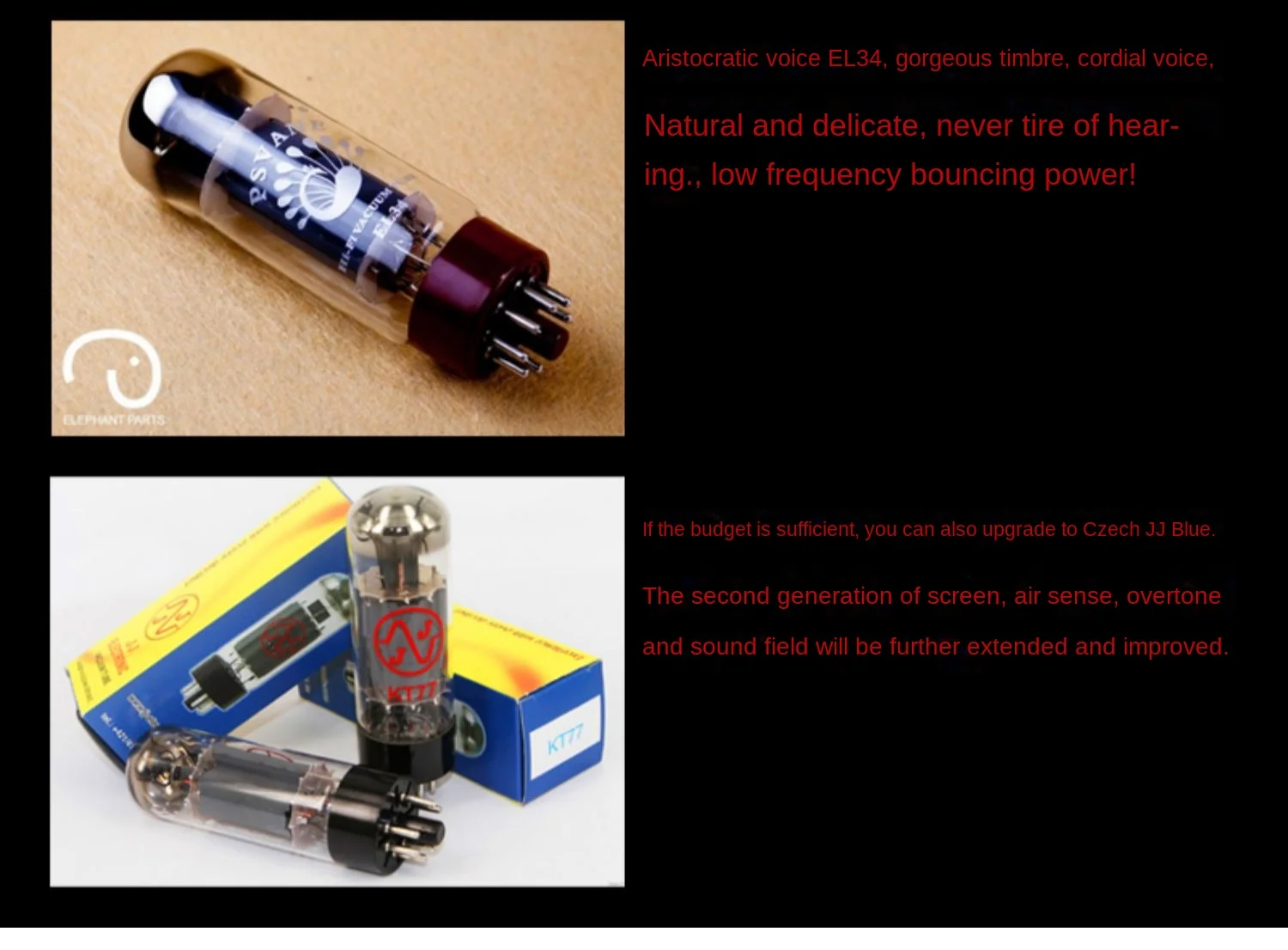

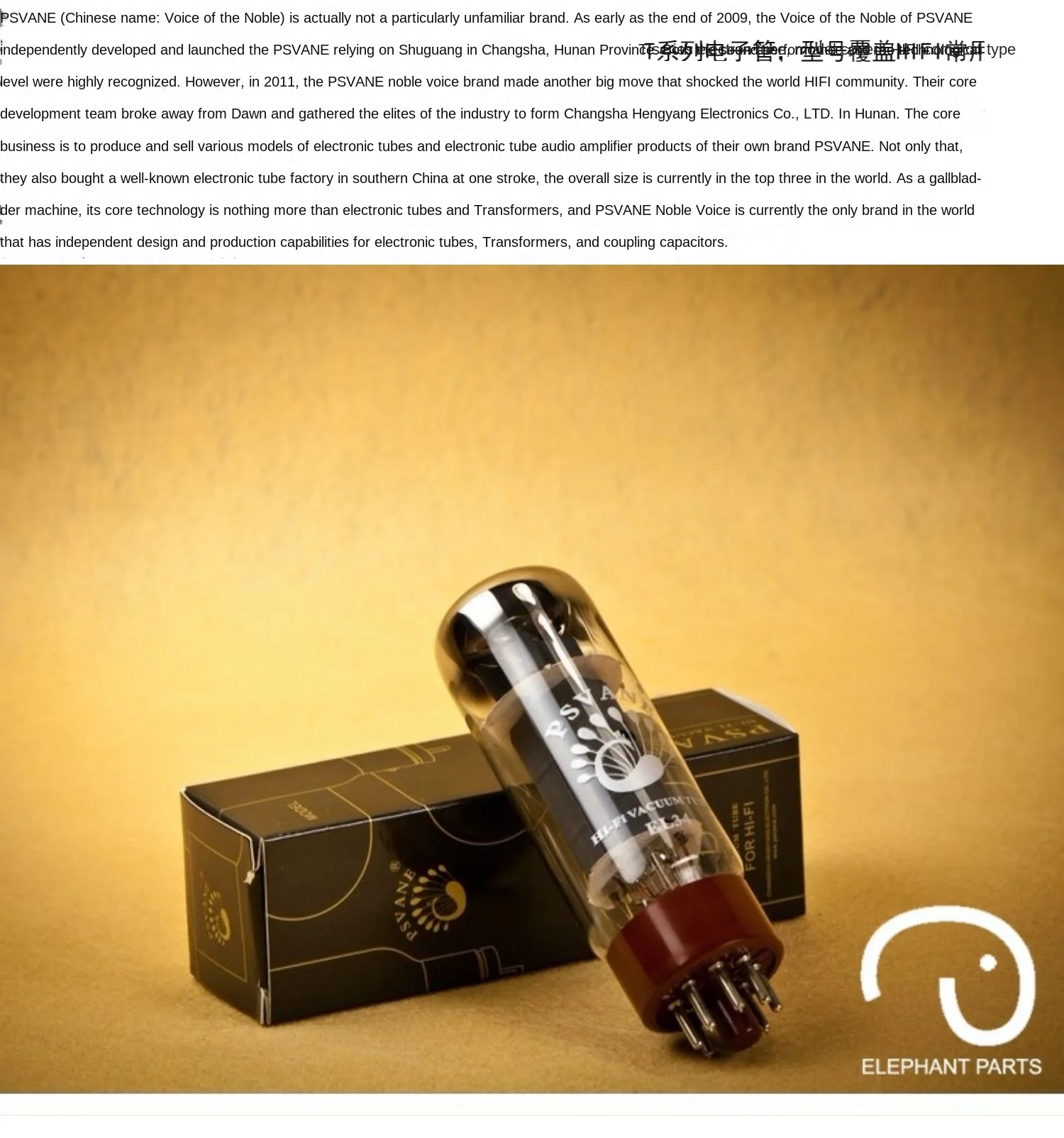

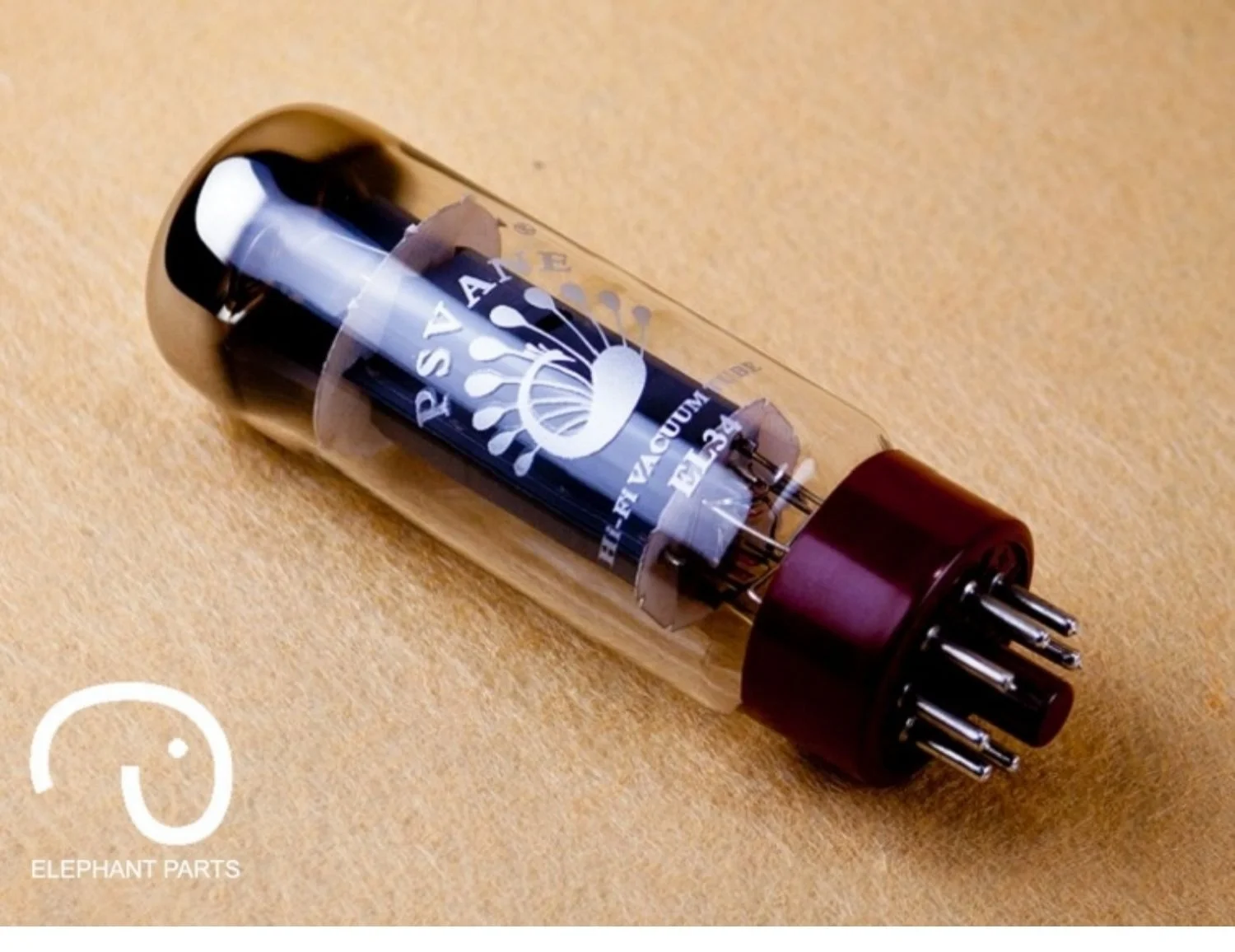

Version 2: Complete Unit (with PSVANE EL34×4 + 6N8P×4 tubes)

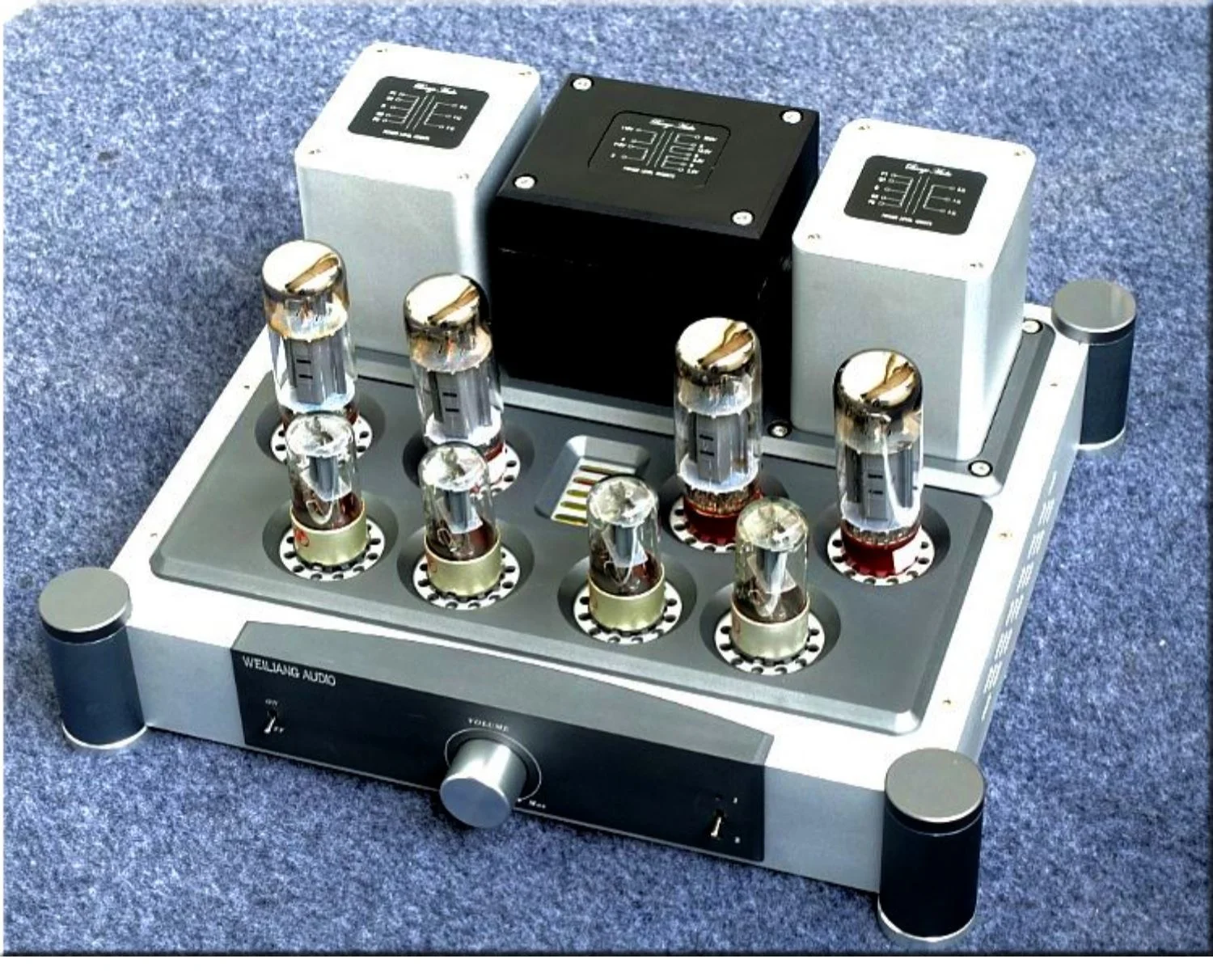

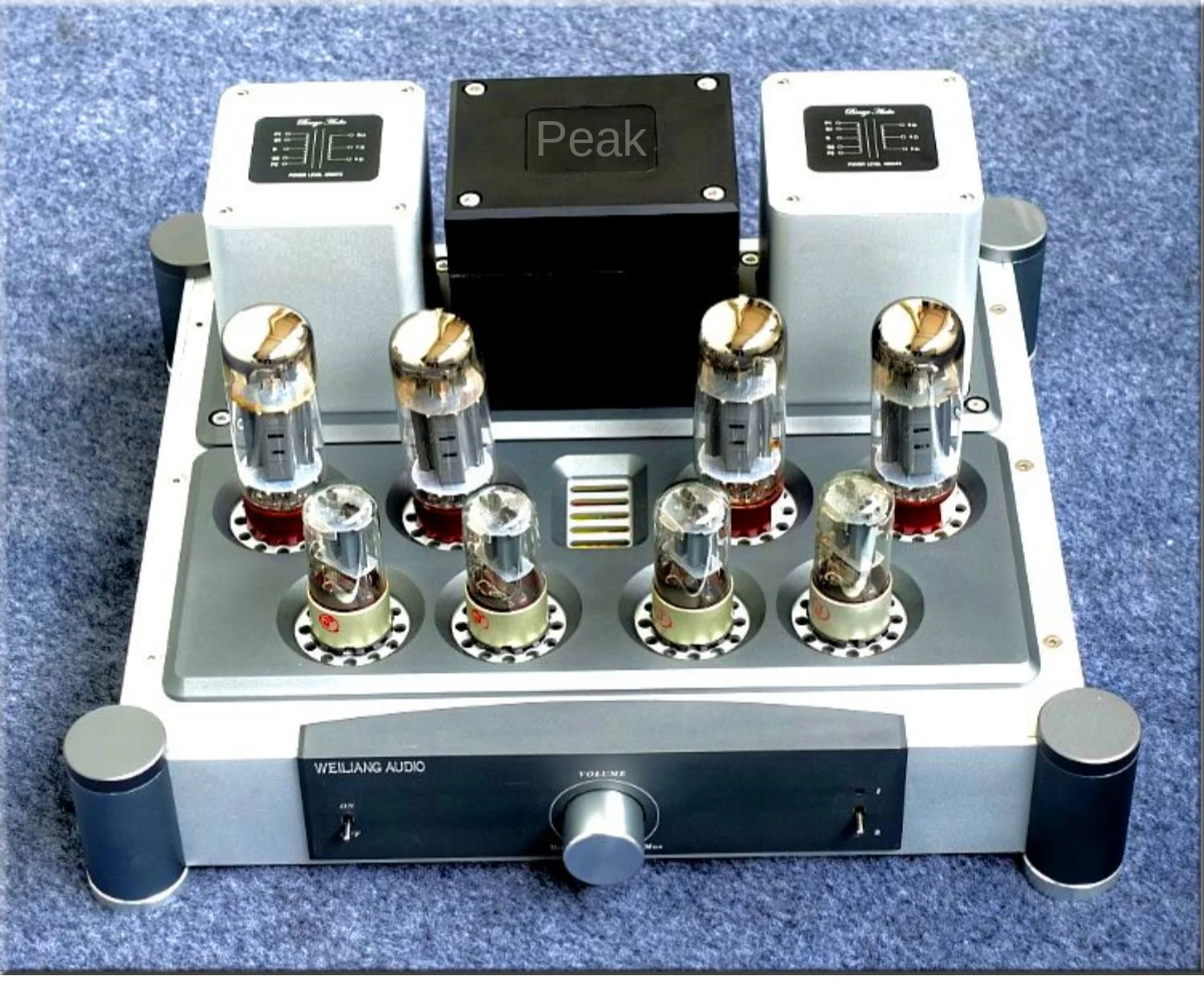

Weiliang A40 Pure Tube EL34 Push-Pull Hi-Fi Amplifier - 40W×2 Power Strong Driving Force
Key Features:
-
Pure vacuum tube design with EL34 power tubes
-
40W×2 high power output with excellent control
-
Specially tuned for vocal performance
-
High-quality components: Japanese Z11 output transformers, ALPS potentiometer
-
Full aluminum alloy casing for better heat dissipation
Product Description:
Experience the authentic warm sound of vacuum tube technology with our Weiliang A40 EL34 Push-Pull Hi-Fi Amplifier. This amplifier delivers 40W per channel of pure tube power, providing exceptional driving force that can handle most home speakers including floor-standing and bookshelf models.
Technical Specifications:
-
Output Power: 40W×2 @ 8Ω (equivalent to 200W digital amplifier)
-
Frequency Response: 20Hz-25kHz
-
Total Harmonic Distortion: 0.6% (1kHz)
-
Input Sensitivity: 500mV-2000mV
-
Input Impedance: 100kΩ
-
Signal-to-Noise Ratio: 96dB
-
Dimensions: 394×181×339mm
-
Weight: 21kg (including packaging)
Premium Components:
-

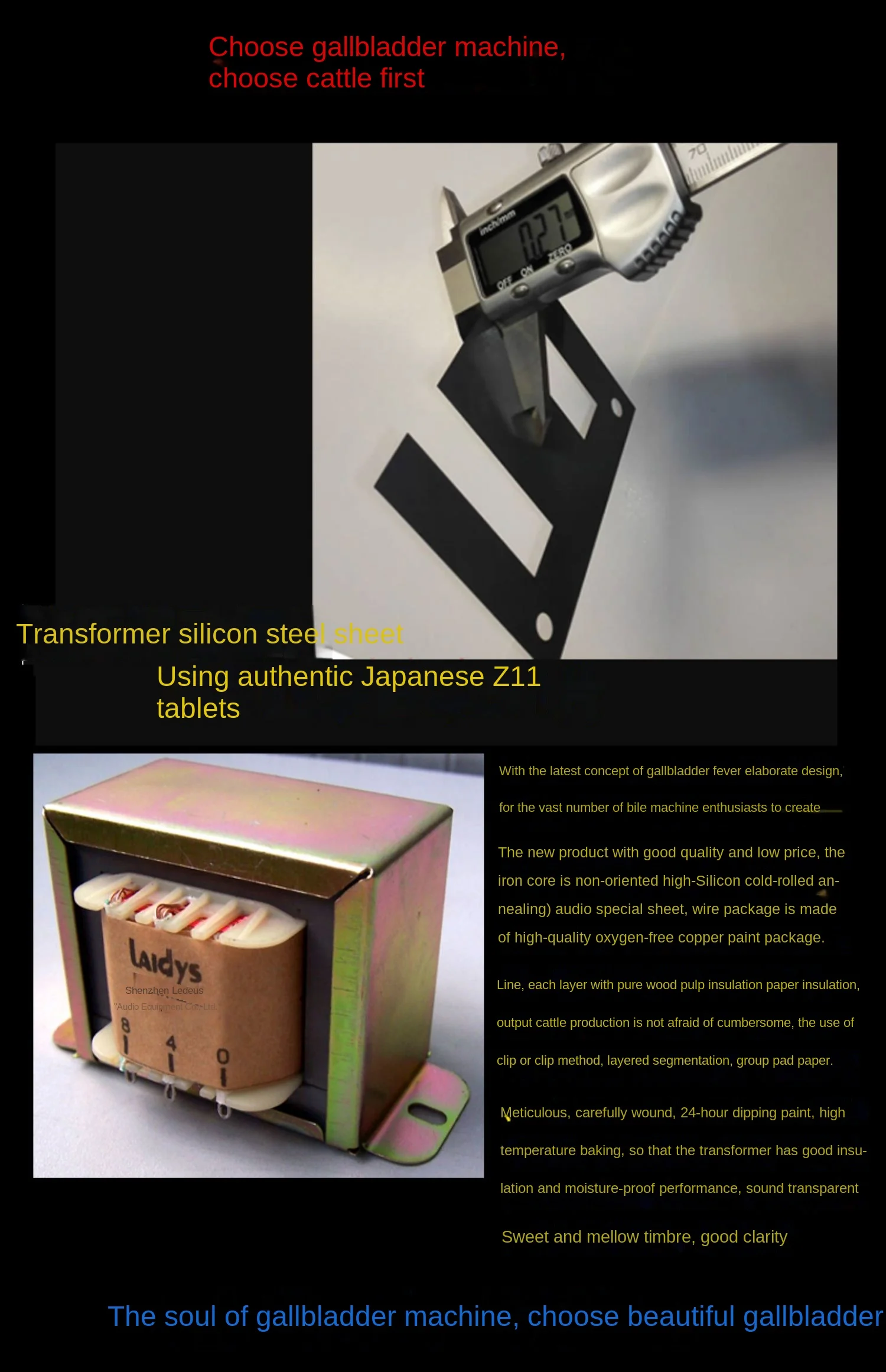

Japanese Z11 output transformers for delicate high-frequency performance
-
400W H18 power transformer
-

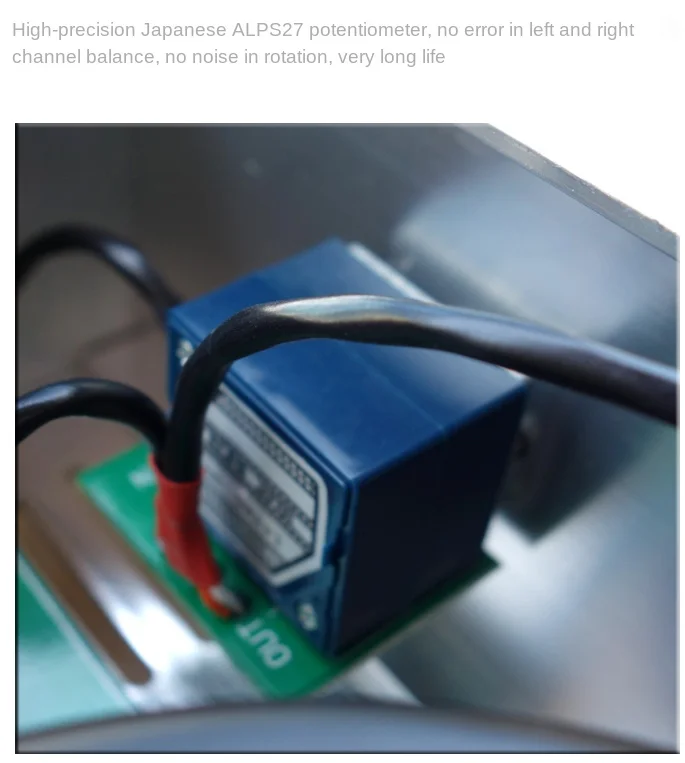

Imported ALPS 27-type potentiometer for precise volume control
-

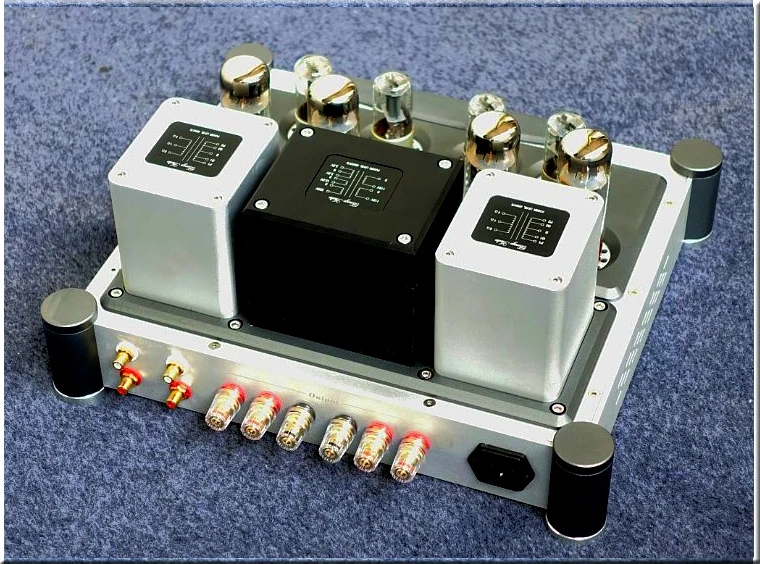

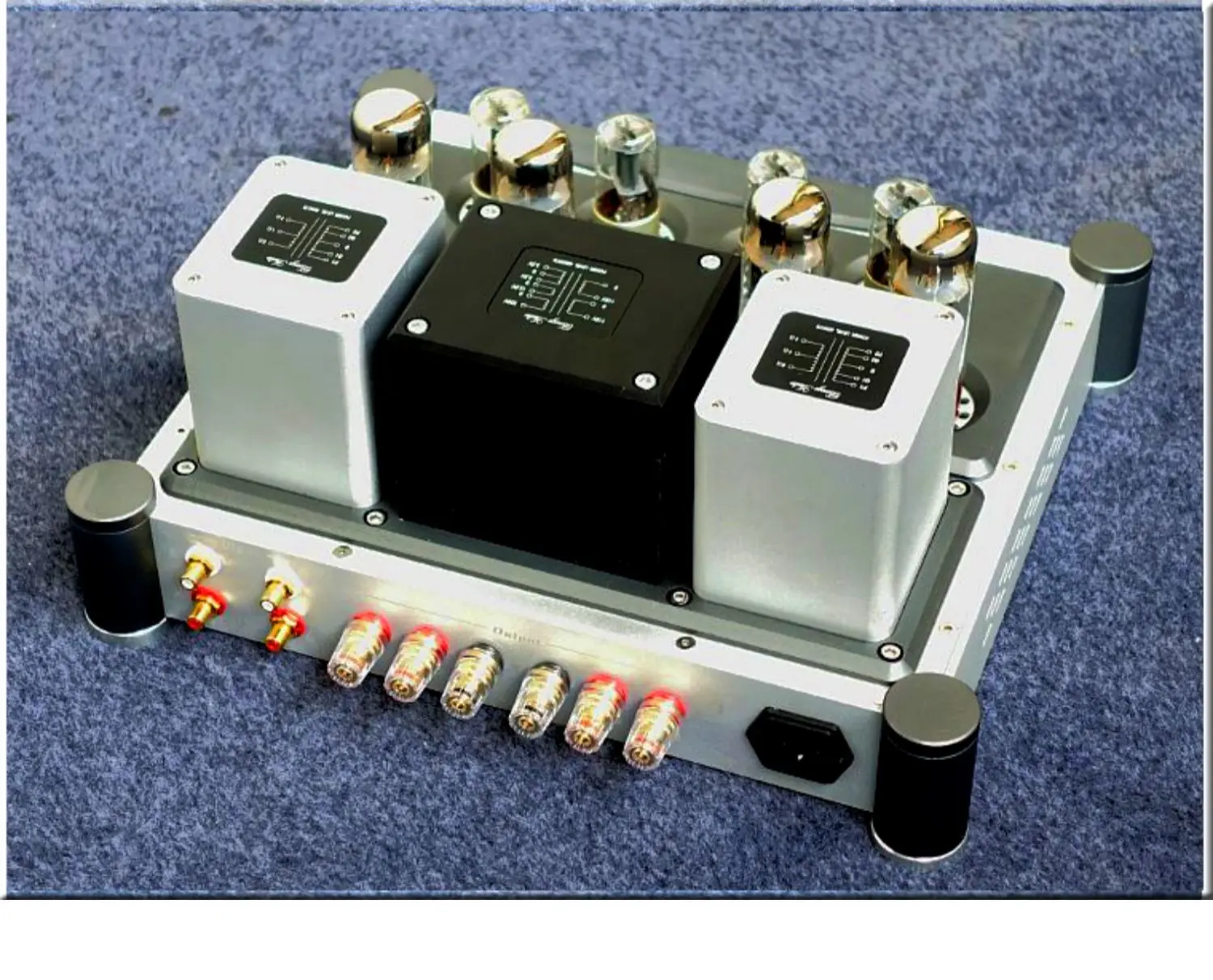

American CMC RCA input terminals
-
Pure copper crystal speaker binding posts
-
Full 7kg aluminum alloy casing for reduced resonance
Protection Systems:
-
DC protection system automatically disconnects speakers in case of circuit issues
-
Impact delay system prevents speaker damage during startup
-
Overheat protection automatically reduces output when temperatures exceed safe limits
Why Choose Our A40 Amplifier?
Unlike cheaper alternatives that use painted steel casings, our amplifier features a full aluminum alloy construction that prevents rust, paint peeling, and deformation from heat. The superior components ensure long-term reliability and outstanding sound quality that will make your favorite music come alive with warmth and detail.
