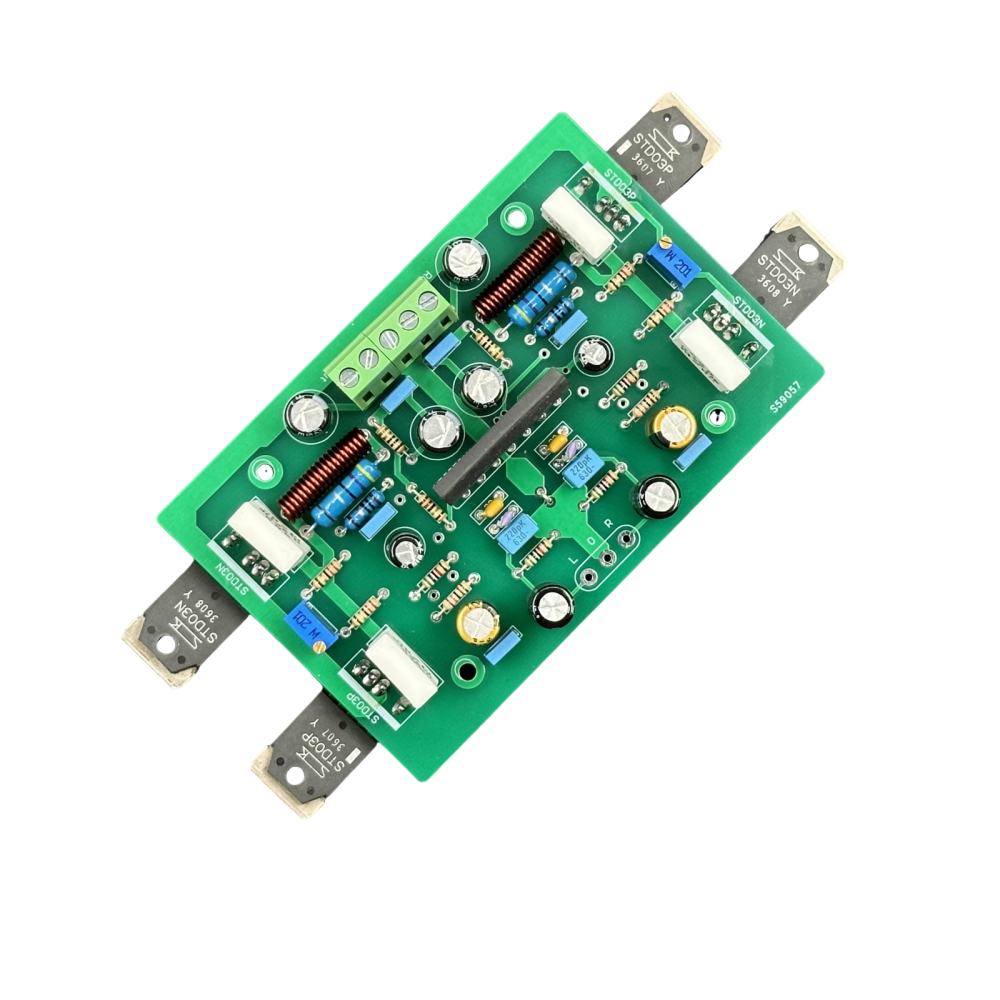

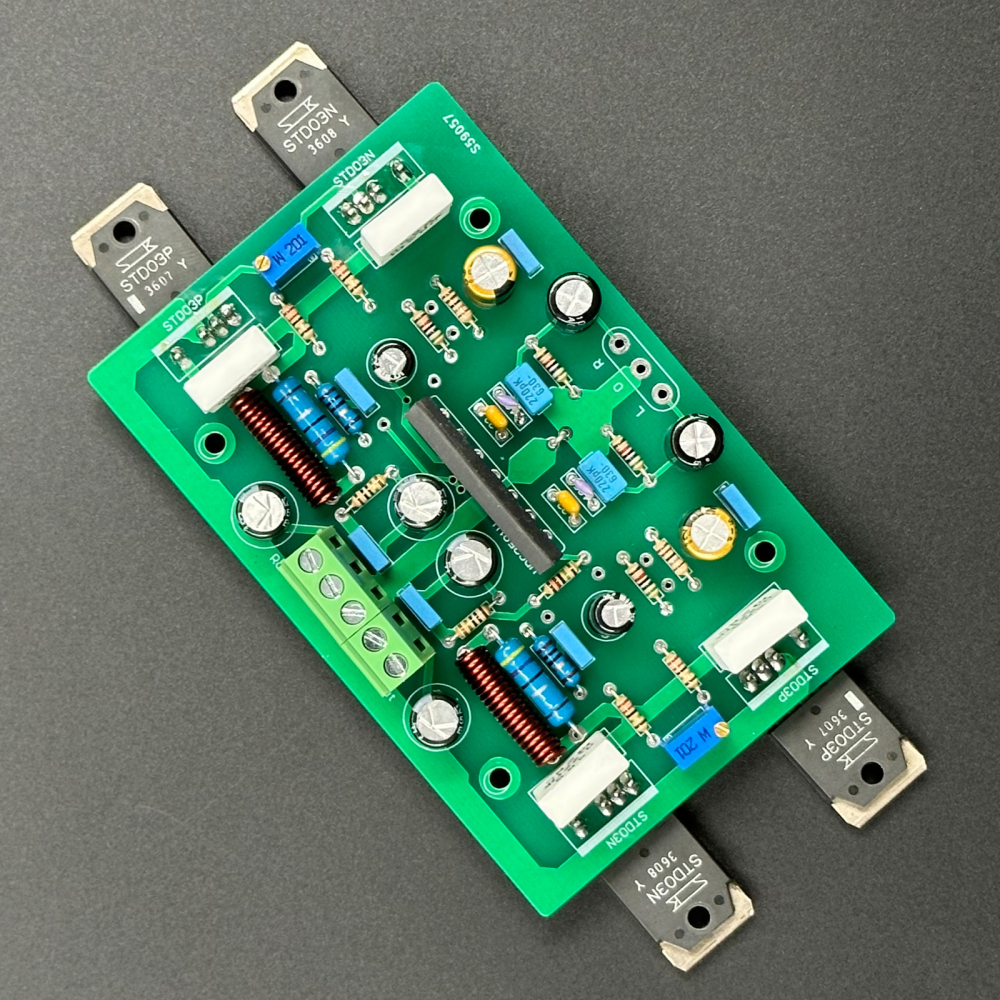

UPC2581-STD03 2 Channel 150W*2 Power Amplifier Board

Line features: UPC2581 to power the STD03NP composite tube; 2-channel amp board, can be connected to the balanced preamp.

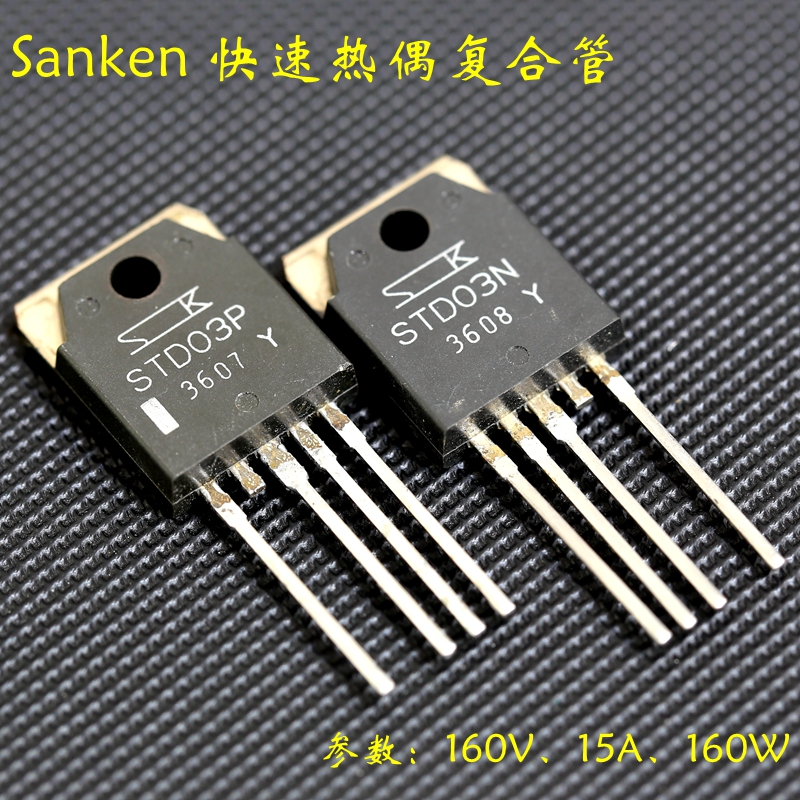

Production materials: all new components; STD03N/P high-speed thermocouple tube, static super stable, 160V, 15A, 160W

2mm thick printing plate, 70um thick copper

Power tube can be installed vertically

Adopt American ALPHA solder wire welding

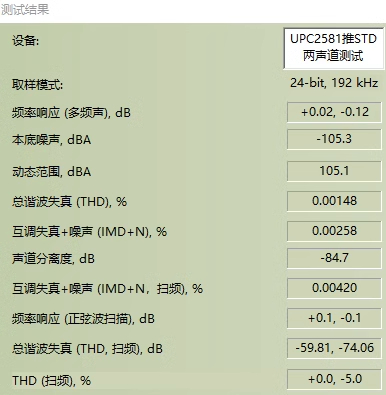

Indicator Parameters

Signal-to-noise ratio: 110dB

Full load distortion：0.002%

Input sensitivity: 750mV

Amplification: 31.3 times

Quiescent current: 200mA initial debugging you can according to your heat sink and voltage and then adjusted larger

Power supply voltage: ±25-±55 Using ±45V, the output of 8 ohms 100W, 4 ohms 150W

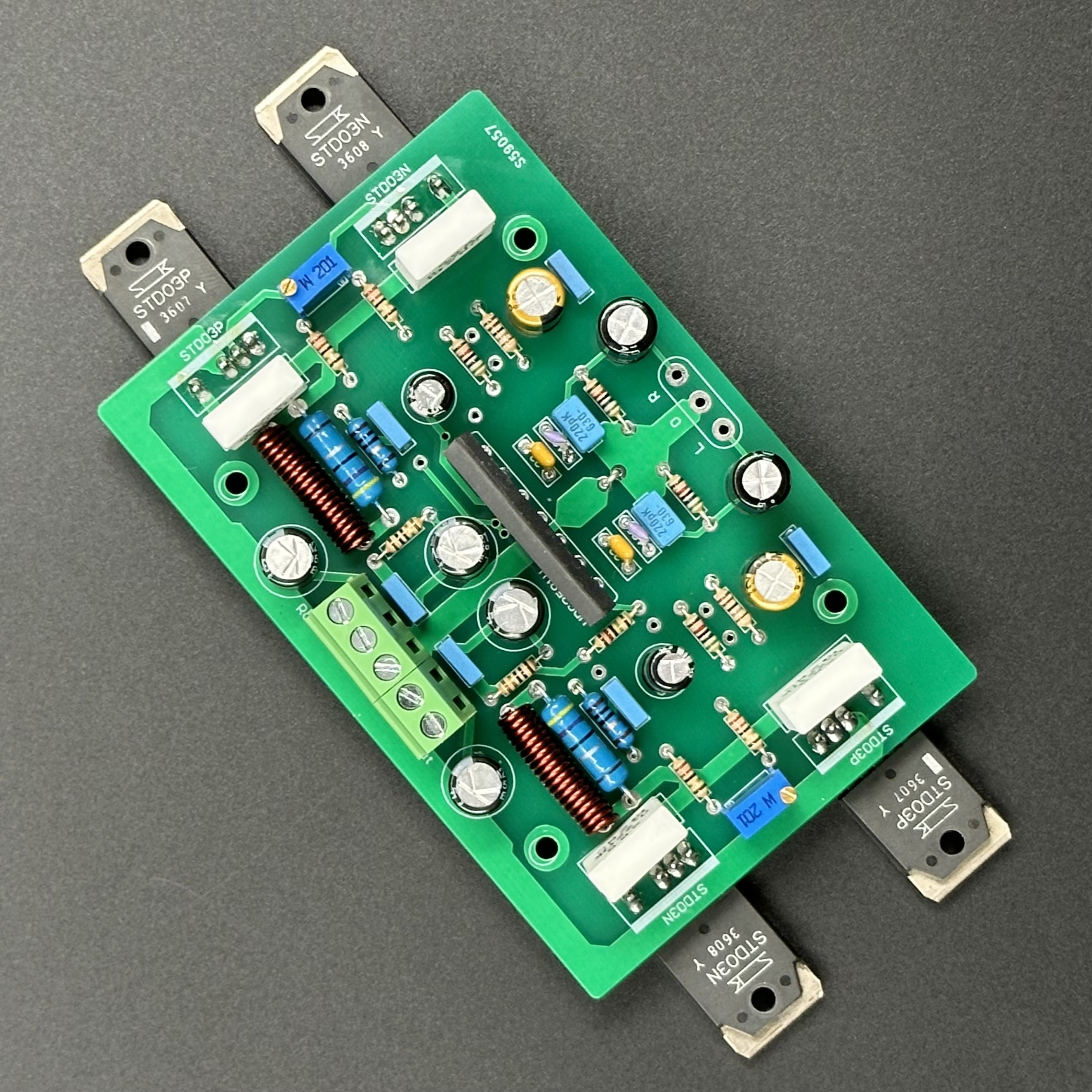

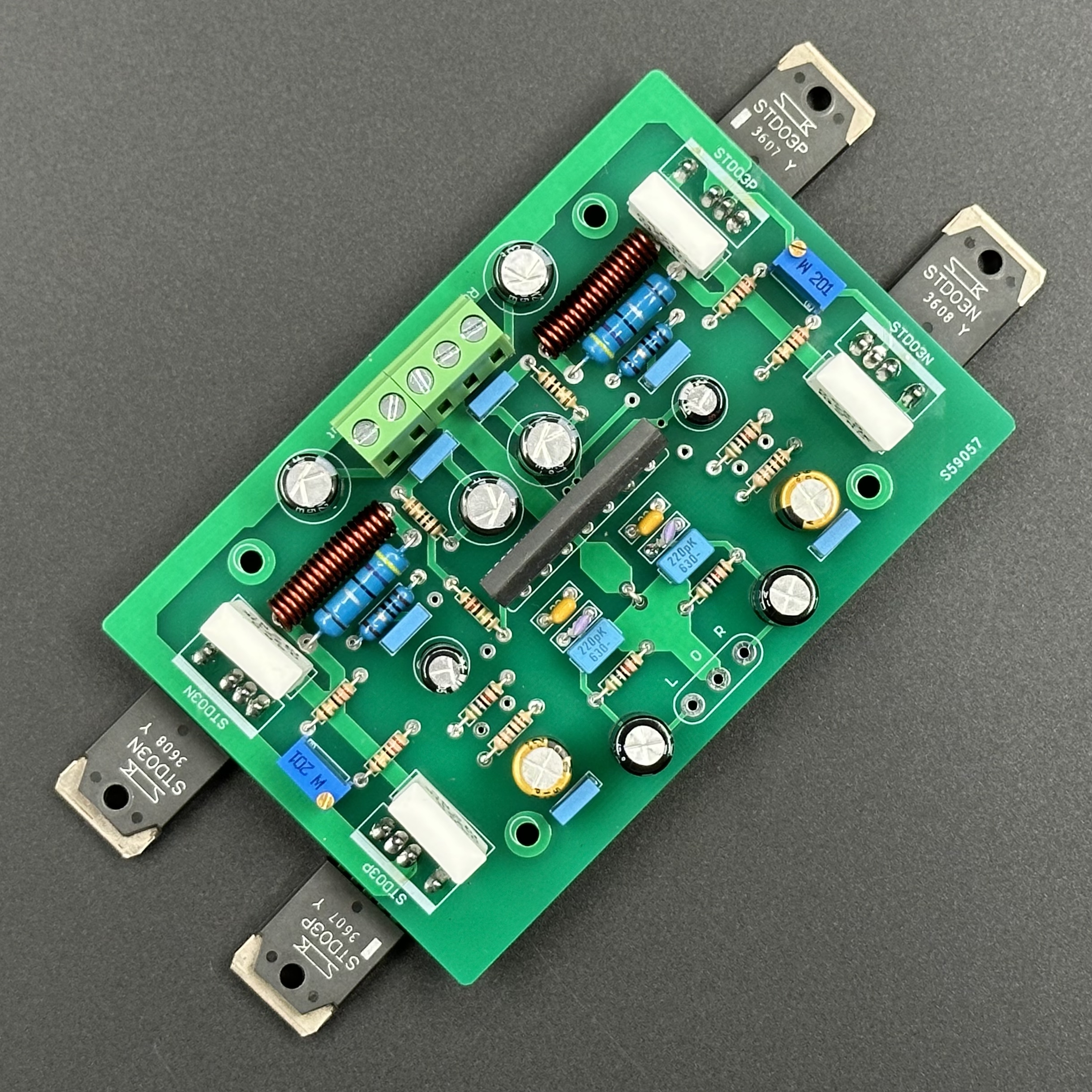

Printed board size: 71 * 109mm as shown in the horizontal installation of large tube 71 * 150mm

After-sales service

Each finished board before shipment to test distortion, noise, midpoint, magnification, etc., qualified before shipment!
