Home > Finished Products > Reference UK LEAK Circuit Retro Germanium Transistor Amplifier Board 15W, 3AD18A OCL Class AB, Tube-Like Sound

1/1

Reference UK LEAK Circuit Retro Germanium Transistor Amplifier Board 15W, 3AD18A OCL Class AB, Tube-Like Sound

Name: Reference UK LEAK Circuit Retro Germanium Transistor Amplifier Board 15W, 3AD18A OCL Class AB, Tube-Like Sound
Brand: Emoryseric | HiFi Music Muse
Price: 69.42 USD
Availability: InStock

0.0 (0 Reviews)

$69.42

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

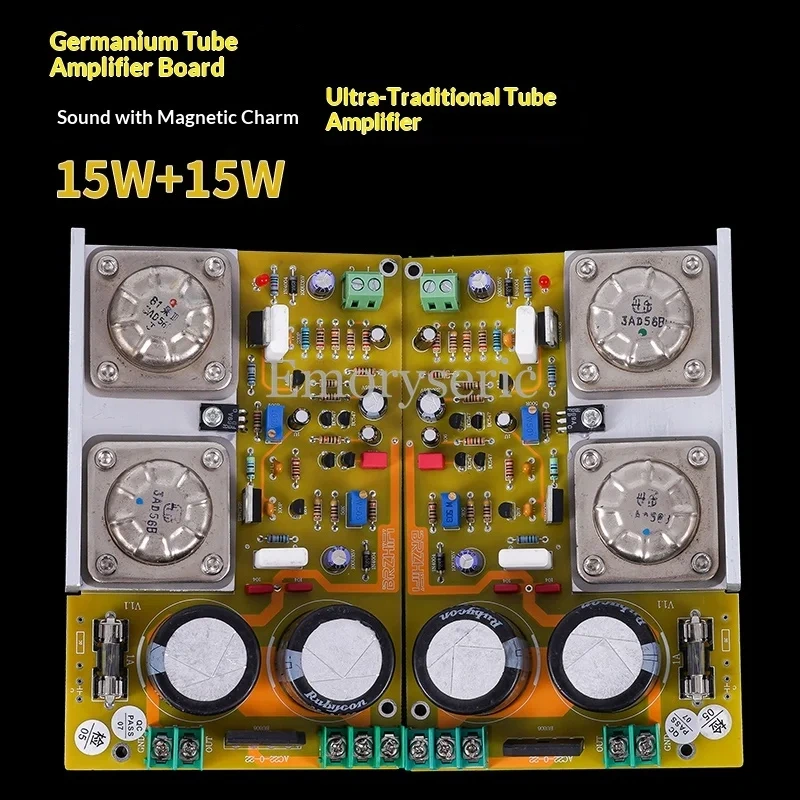

15W+15W Germanium Transistor Amplifier Board
The charm and excellent sound quality of germanium transistors produce a classic British sound, warm and mellow without harshness. This is the flavor of germanium tubes, the flavor of tube amplifiers.

Germanium transistor sound is thicker and softer than silicon transistors. Its appeal also benefits from its so-called AGC capability: the higher the bias voltage (the greater the current), the higher the HFE. This characteristic gives the sound from germanium transistors an extraordinary expansiveness. It cannot be simply described or compared to the more traditional sound of tube amplifiers, as it is an innate quality of germanium transistors.

Specifications:

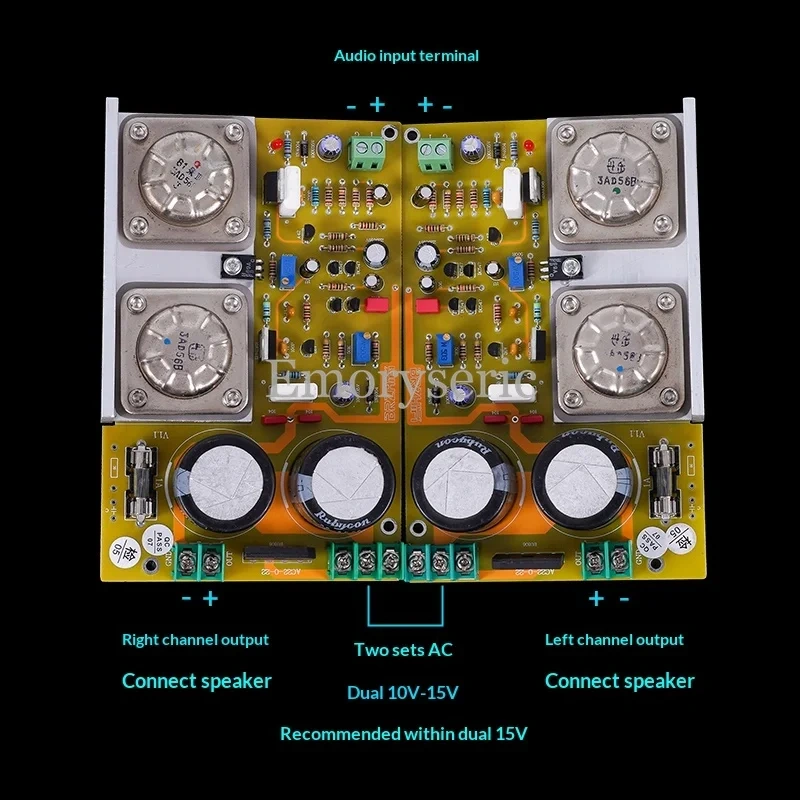

Power Supply Voltage: Two sets of AC dual 10V-15V, dual 15V recommended within this range
Output Power: 15W into 4 ohms

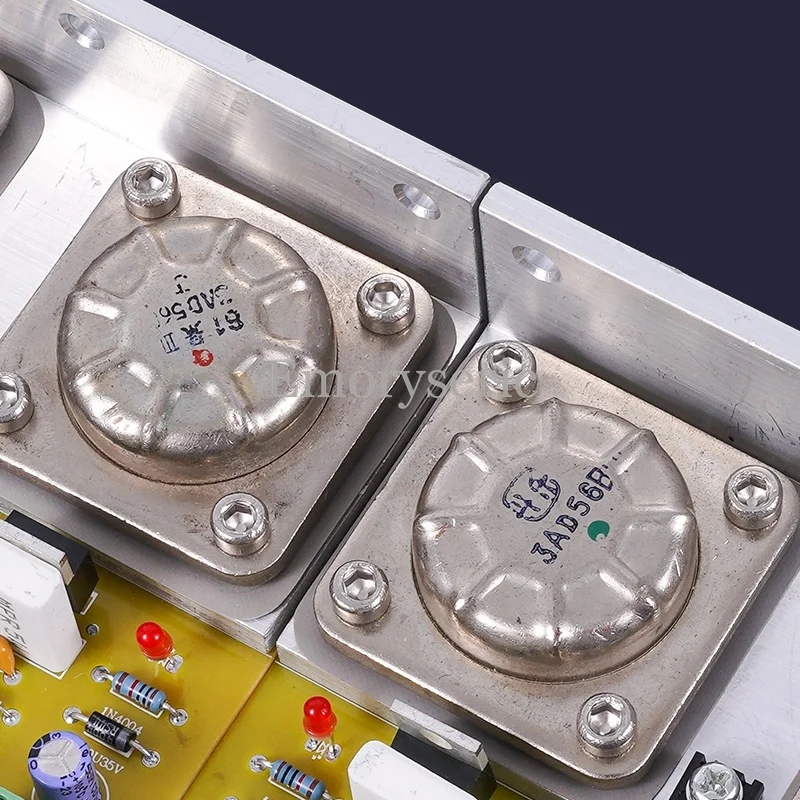

Germanium Power Transistors: 3AD18A
Finished board warranty: 3 months
Recommended transformer power: Around 100W
