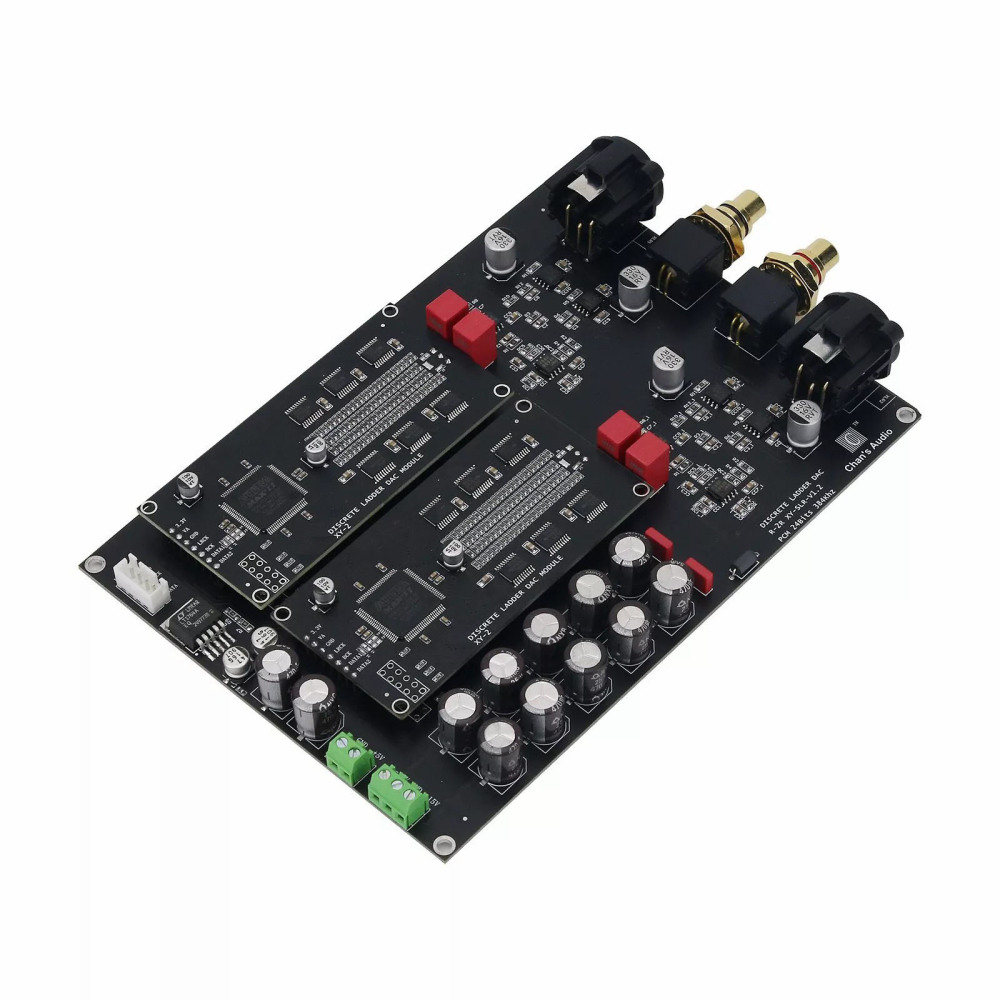

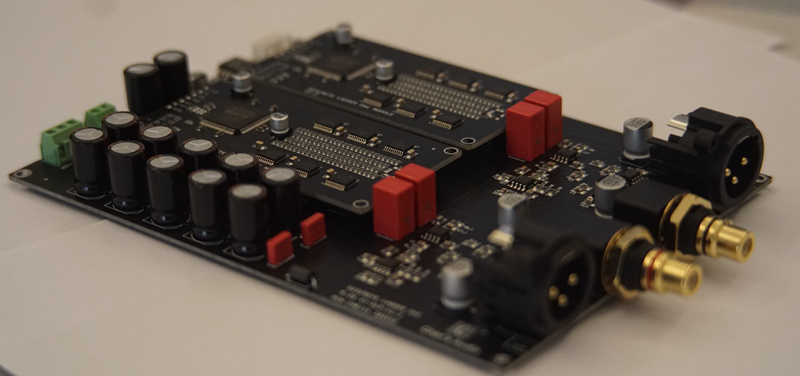

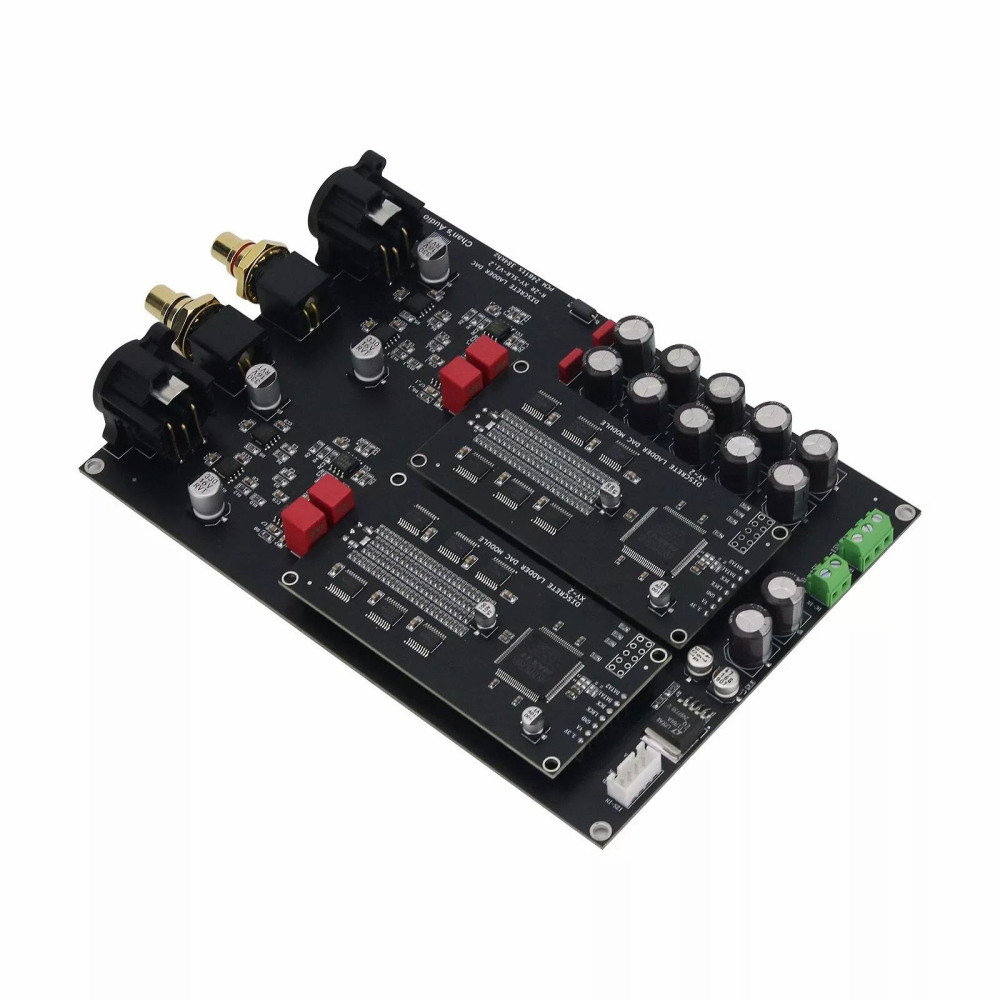

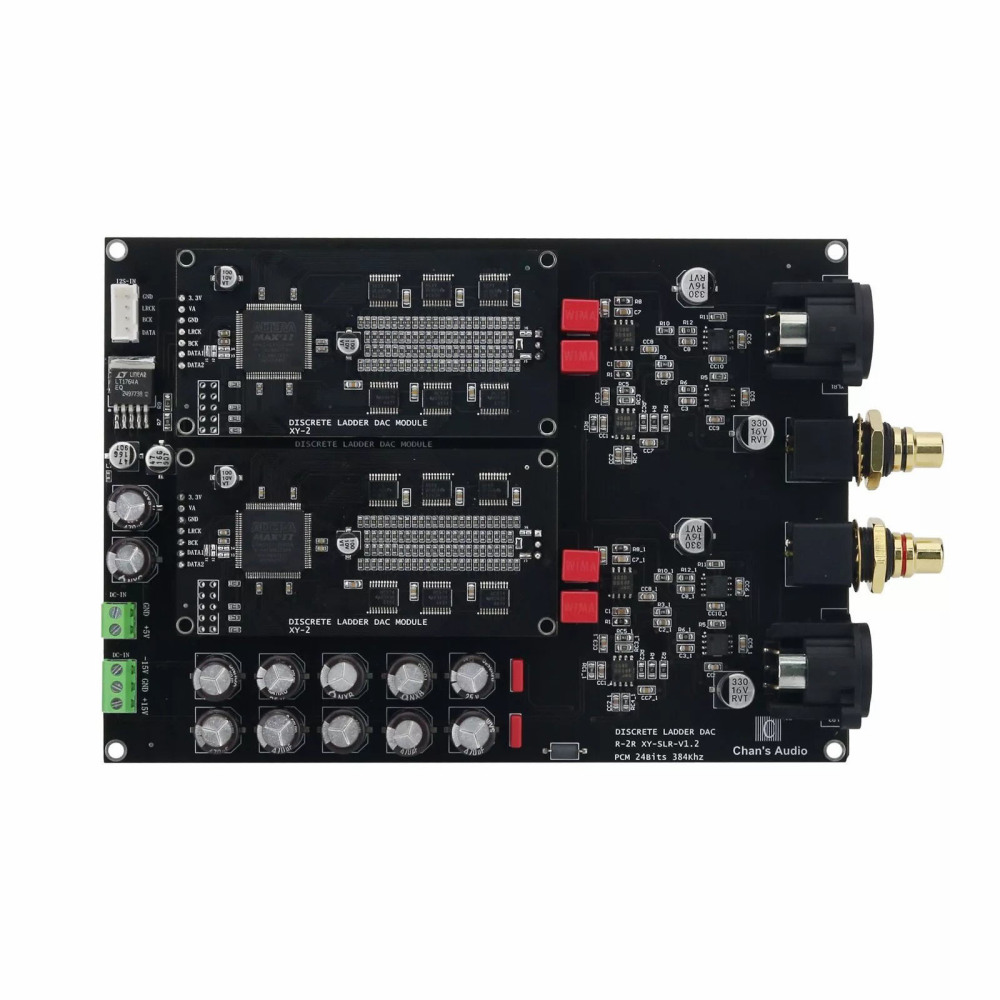

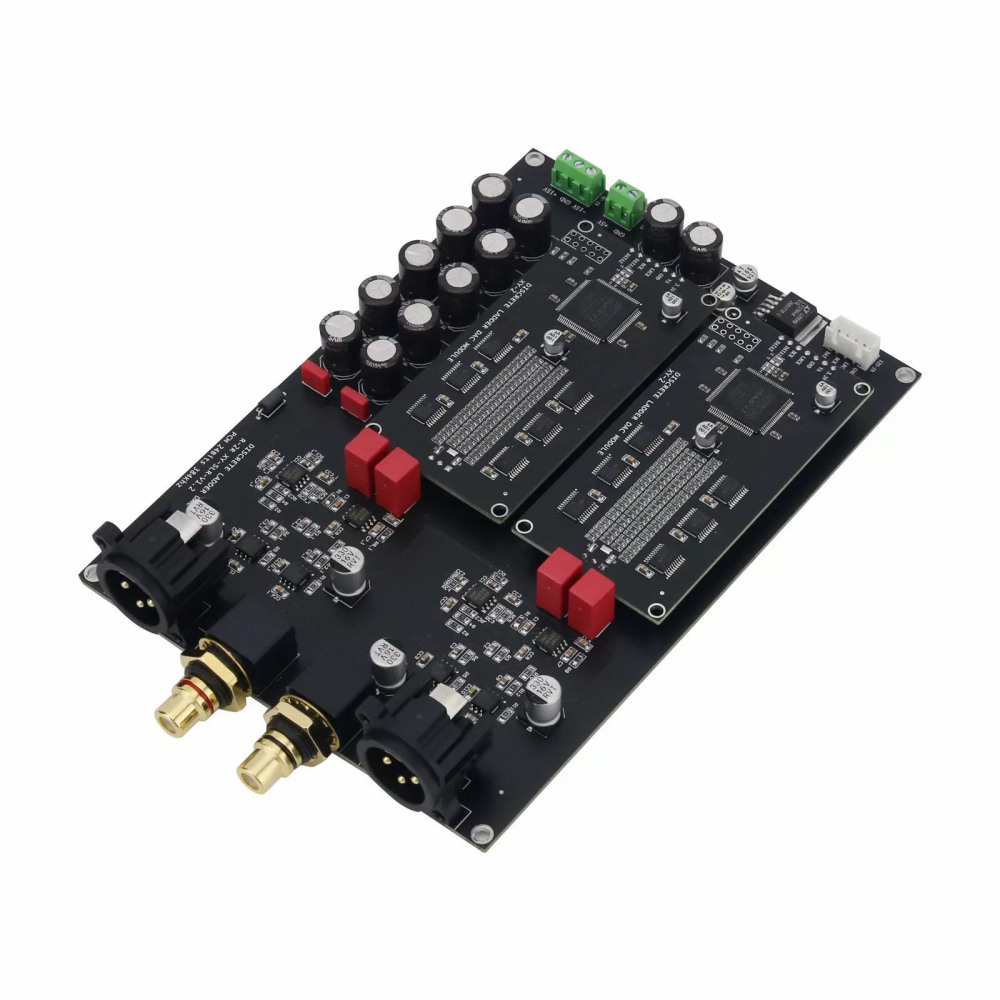

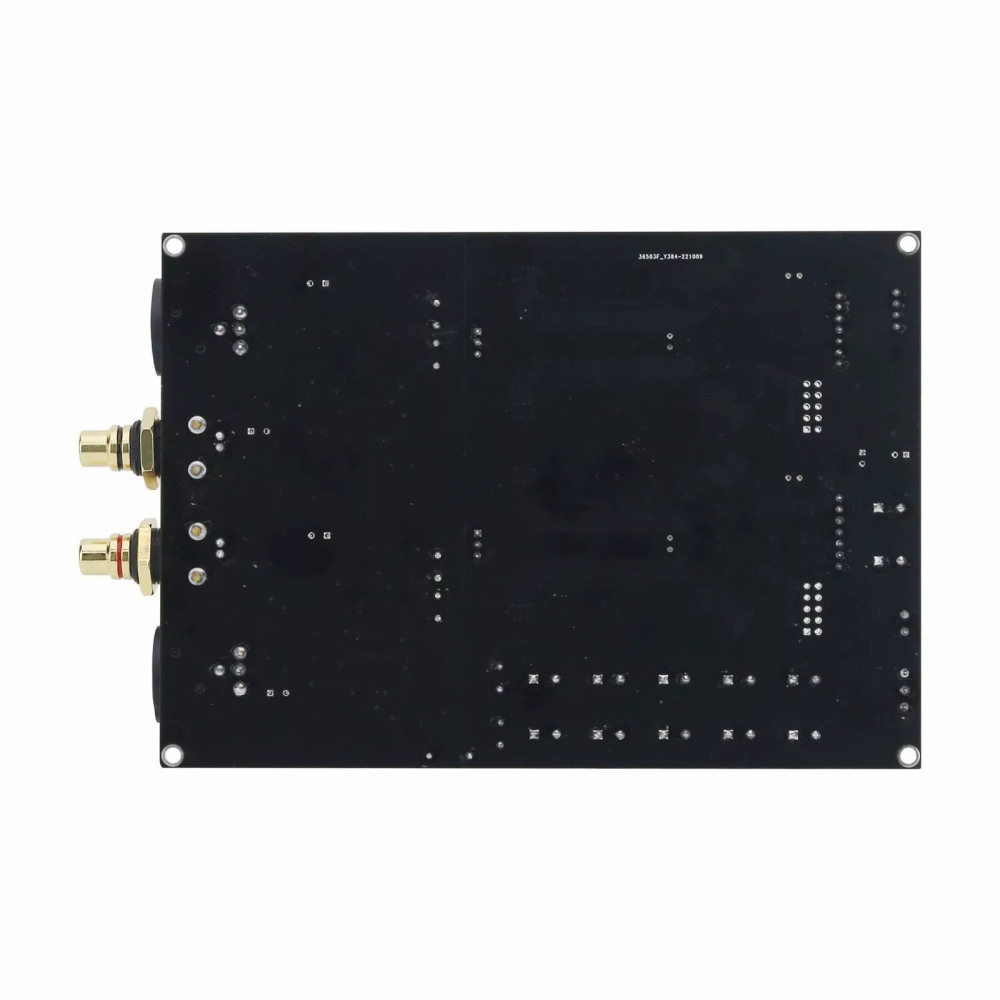

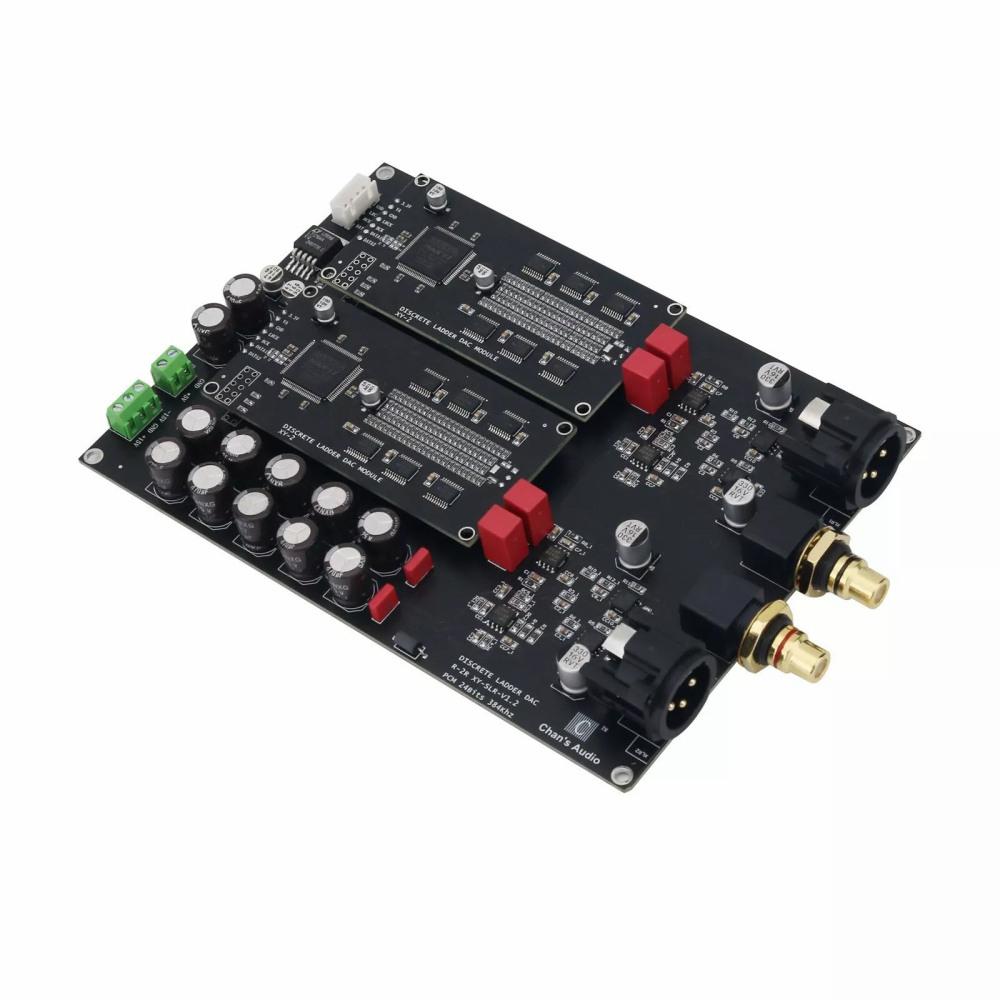

R-2R XY-SLR DAC Board - Discrete Ladder DAC Module | PCM 24Bit 384Khz Decoder | 0.1% Accuracy

**Description:**
This advanced decoding board features four discrete ladder DAC modules arranged in a differential balanced architecture. It incorporates IPF filtering and first-stage buffered amplification for superior sound quality. Inspired by the renowned ROCKNA circuit design, the module ensures high resistance accuracy through precise compensation, delivering exceptional audio performance. Even at -80dB volume with monitor headphones, there is no distortion or noise, outperforming standard R-2R decoding circuits.

The R-2R design is one of the most mature and realistic sound reproduction technologies available, free from digital modifications. Compared to the PCM1704 (known for its realistic sound), this board offers smoother high frequencies without harshness, with an impressive accuracy of 0.1%.

**Key Features:**
- **Differential Balanced Architecture:** Four discrete ladder DAC modules for enhanced audio clarity.
- **High Precision:** 0.1% resistance accuracy for superior sound quality.

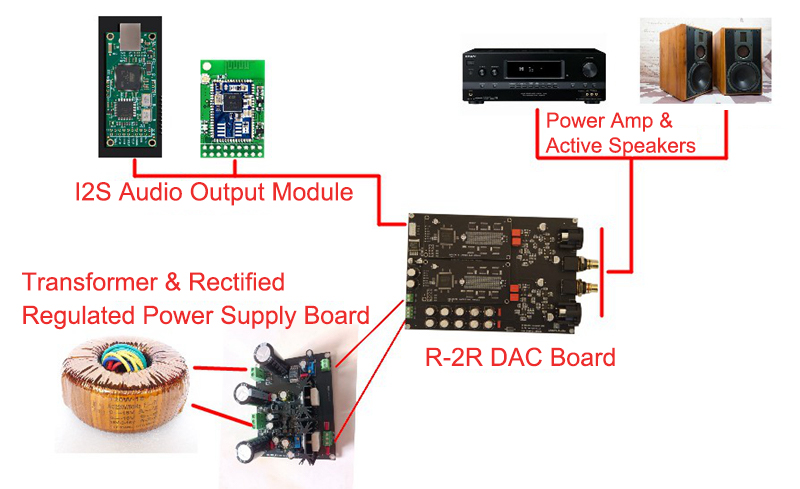

- **Wide Compatibility:** Supports I2S standard interfaces, including Amanero, Bluetooth I2S, XMOS, SA9227, WM8805, and AK4113-AK4118 modules.

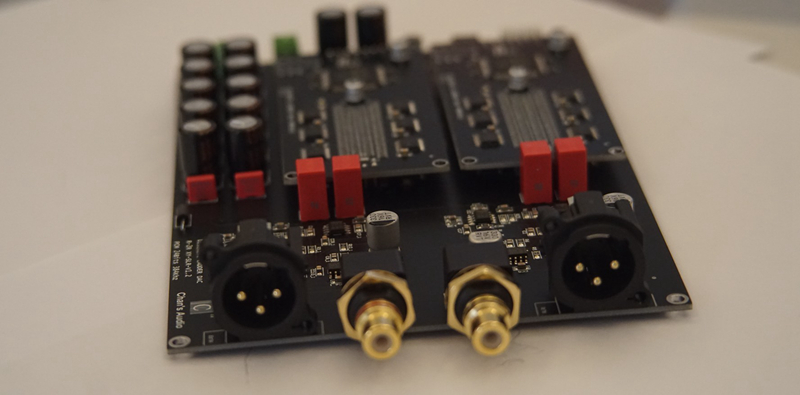

- **Dual Output Options:** RCA (2V amplitude) and XLR (4V amplitude) for versatile connectivity.

**Specifications:**
- **Model:** R-2R XY-SLR
- **Dimensions:** 120 x 170mm (4.7 x 6.7 inches)
- **Net Weight:** 185g (0.4lb)
- **Power Requirements:**
  - Digital Circuit: DC 5V, 1A
  - Analog Circuit: DC ±15V, 500mA
- **Input Interface:** I2S (GND, LRCK, BCK, DATA)
- **Output Interface:** RCA (Left/Right Channels, 2V) and XLR (Left/Right Channels, 4V)

**Package Includes:**
- 1 x R-2R XY-SLR DAC Module

**Note:**
- Items shown in pictures are for demonstration purposes only and are not included. Thank you for your understanding!
