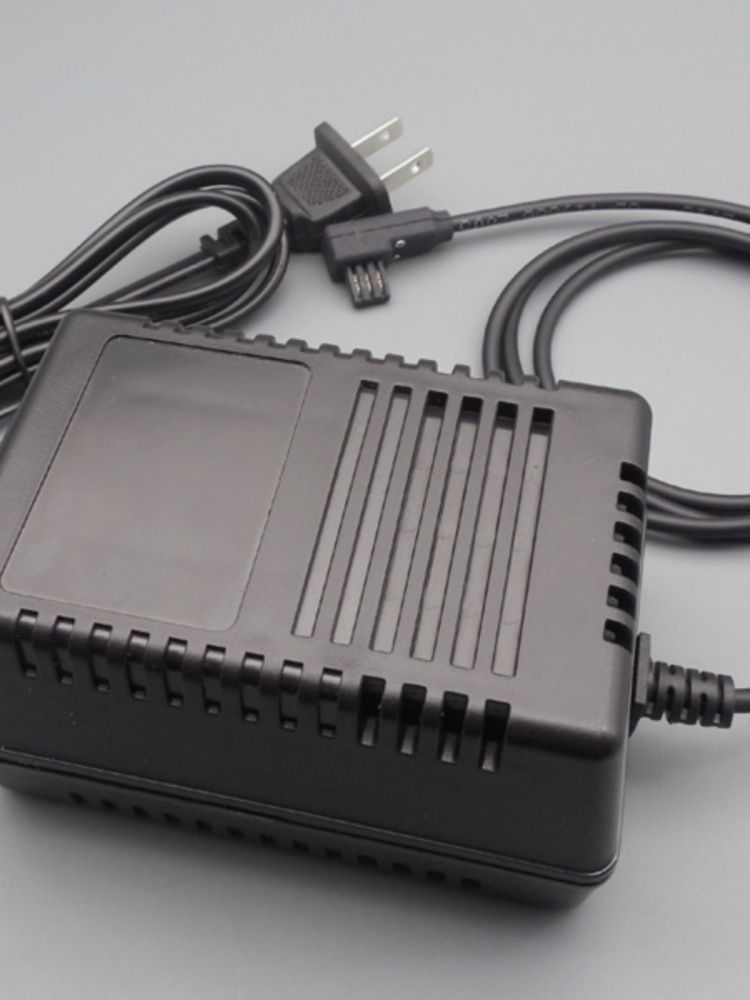

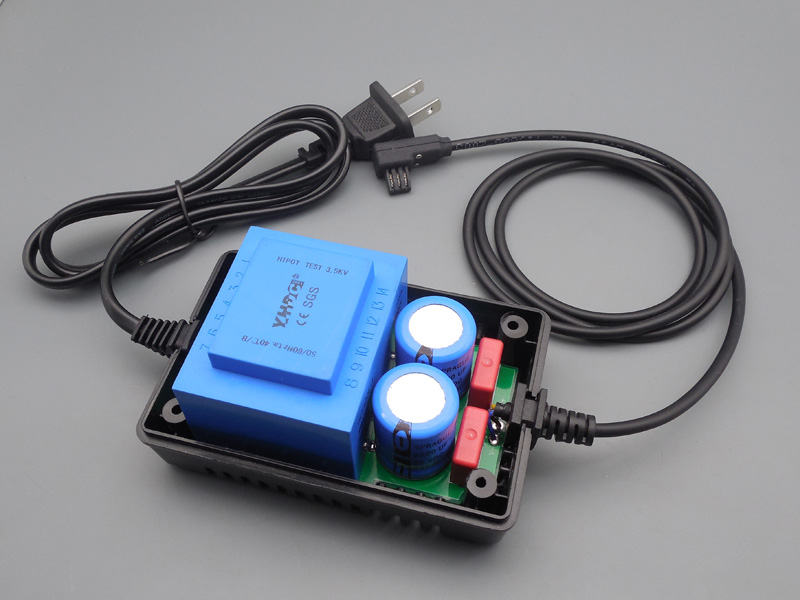

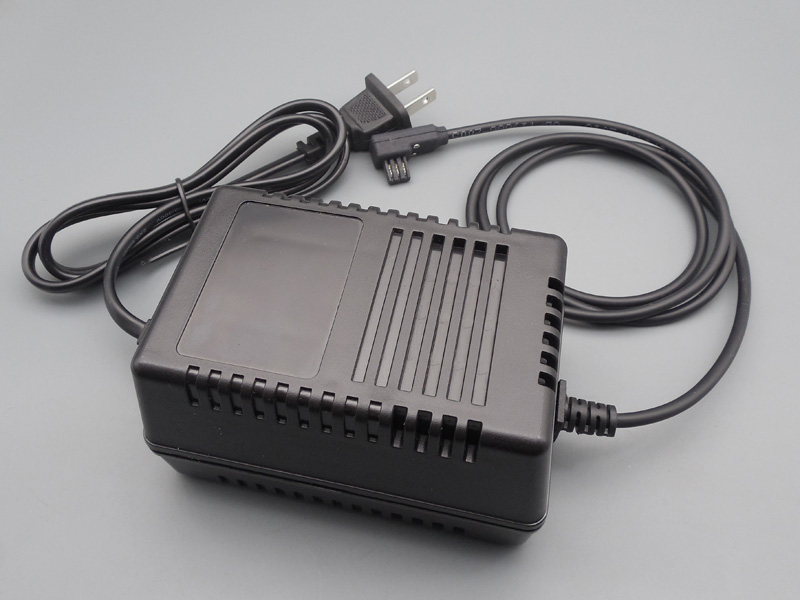

Panasonic Technics SL-XP5/XP7/XP3 Power Supply The Panasonic XP5/XP7/XP3 series is highly regarded by audiophiles for its compact size and excellent sound quality. However, the original power supply, designed for 110V with dual-voltage output, is both expensive (priced at 500+ RMB) and inconvenient for users outside its intended region. To address this, we've developed a **high-performance, cost-effective power supply tailored for domestic use.
While following the original unregulated power supply design, this unit surpasses the original in performance, thanks to its premium components:

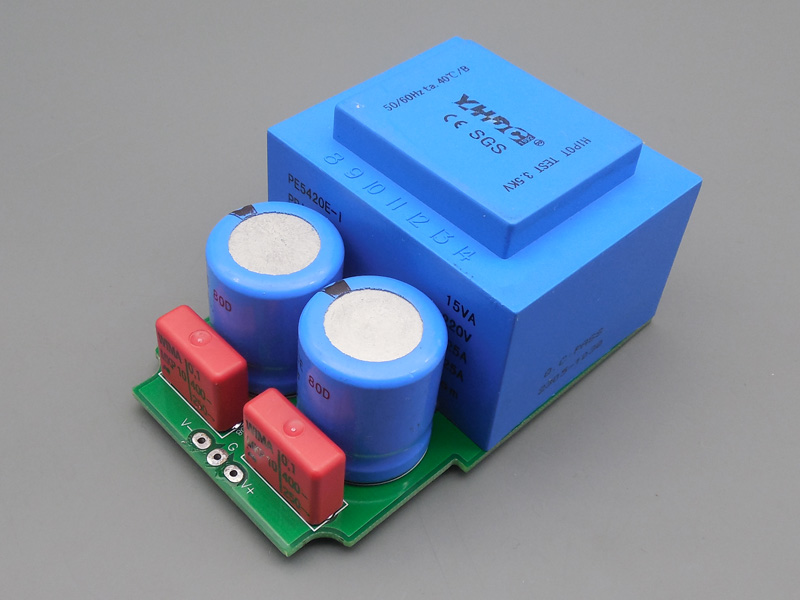

1. Custom-made pure copper encapsulated transformer from a renowned domestic manufacturer.

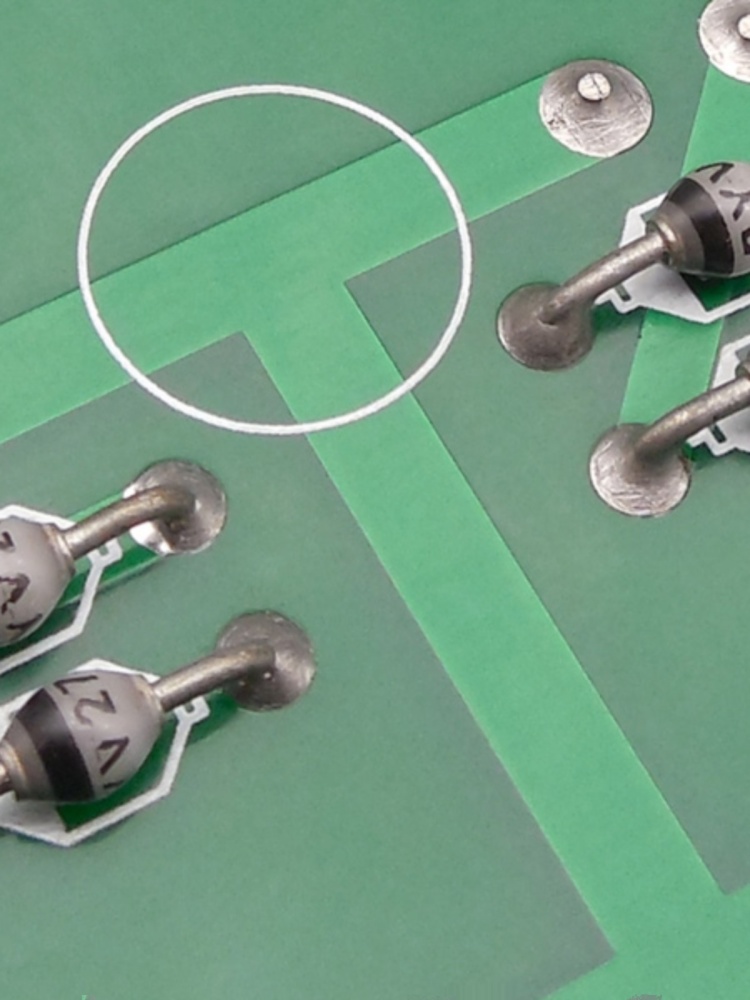

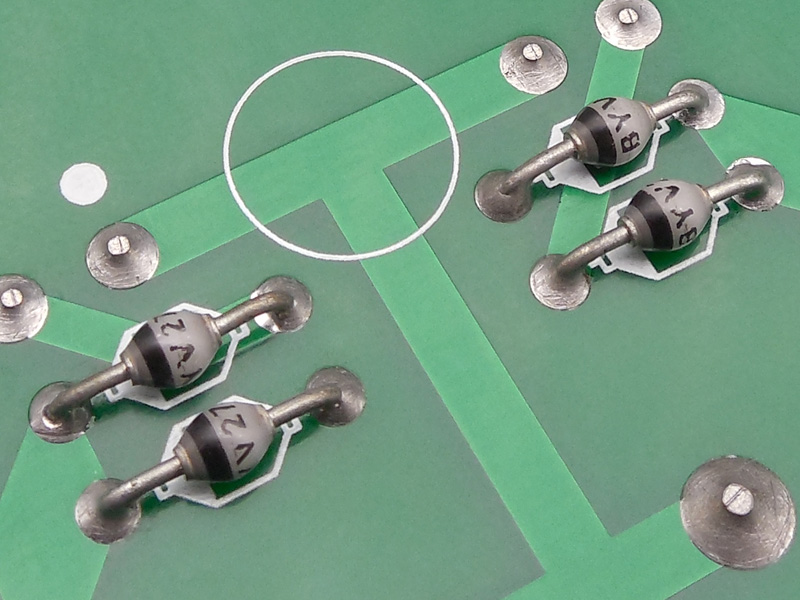

2. Philips fast-recovery diodes for rectification.

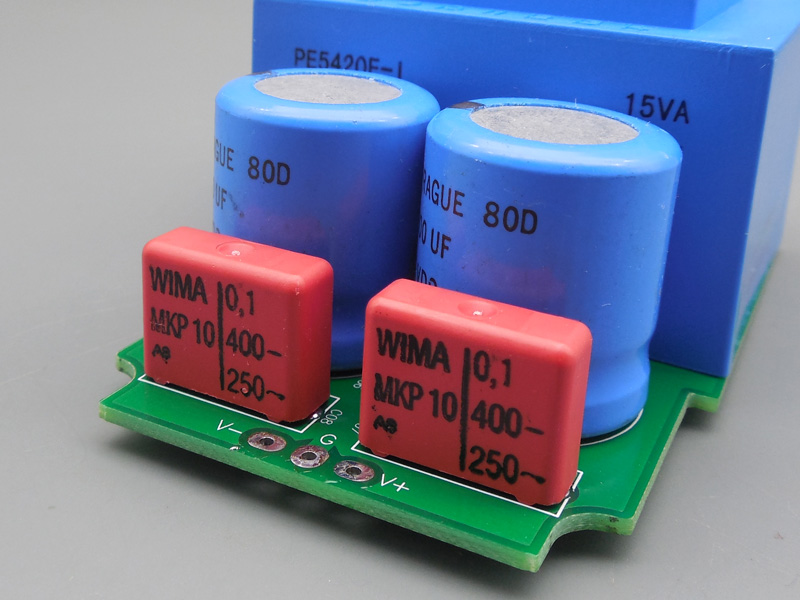

3. Filter capacitors: Sprague red electrolytic capacitors + WIMA MKP10 high-end film capacitors.
4. Output cables: Imported purple copper wire, 0.3mm² per core.
Specifications: - Input Voltage: 220V/50Hz
(Note: Only compatible with 220-240V; no 110V version available. )- Output Voltage: ±7.2V
- Output Current: 1000mA x 2
Note: - Each unit is handcrafted. Orders placed before 3 PM will usually be shipped the same day.
- Due to the high cost of custom components, the listed price is the final price. Your understanding and support are greatly appreciated!
---
This power supply is a perfect upgrade for Technics SL-XP5/XP7/XP3 users, offering superior performance and convenience at an affordable price.
