Name: Marantz 9S2 Replica Dual Channel Mirror Design Pure Power Amplifier PCB, HiFi Audio Bare Board
Brand: Emoryseric | HiFi Music Muse
Price: 24.36 USD
Availability: InStock

0.0 (0 Reviews)

$24.36

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

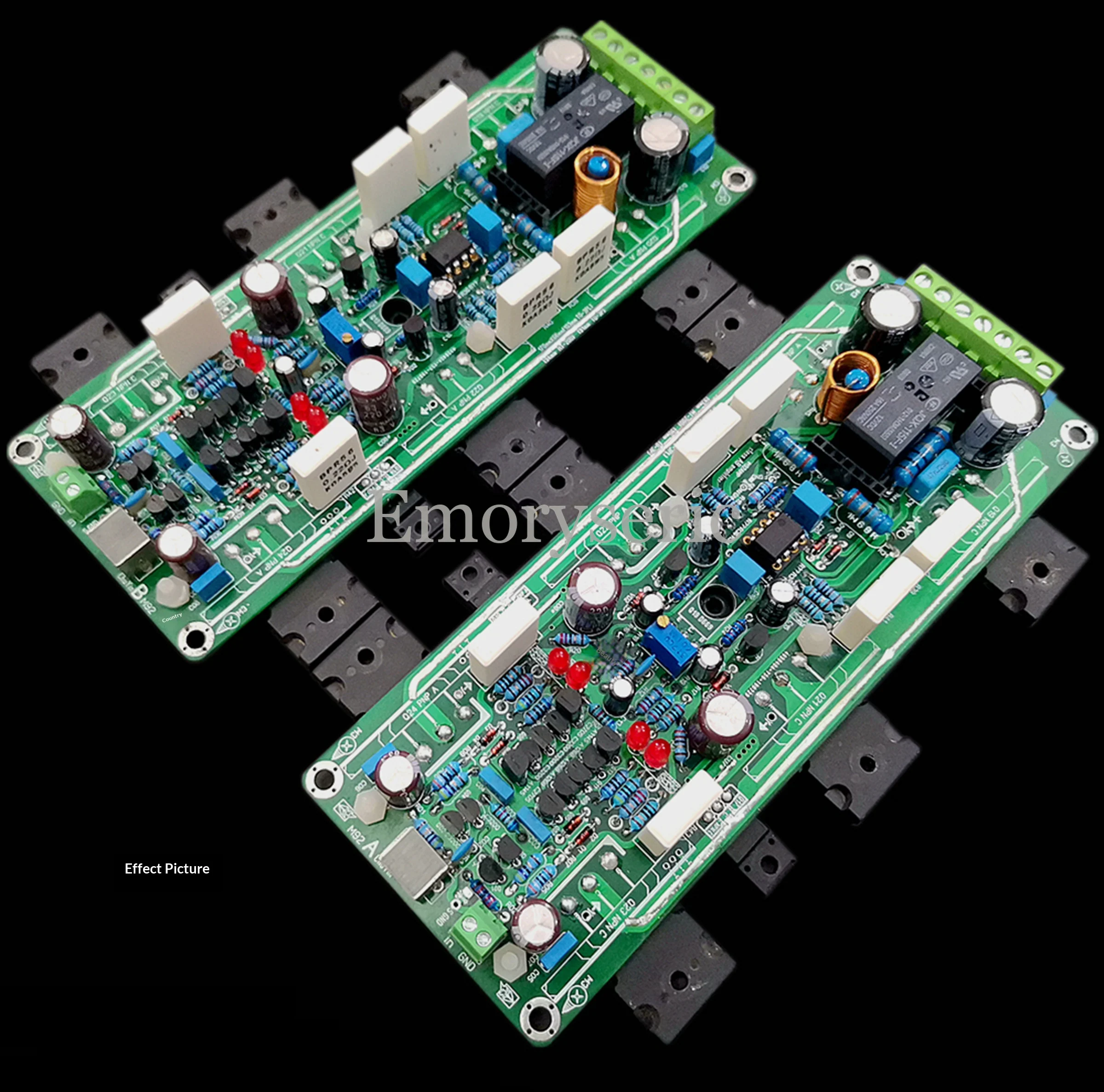

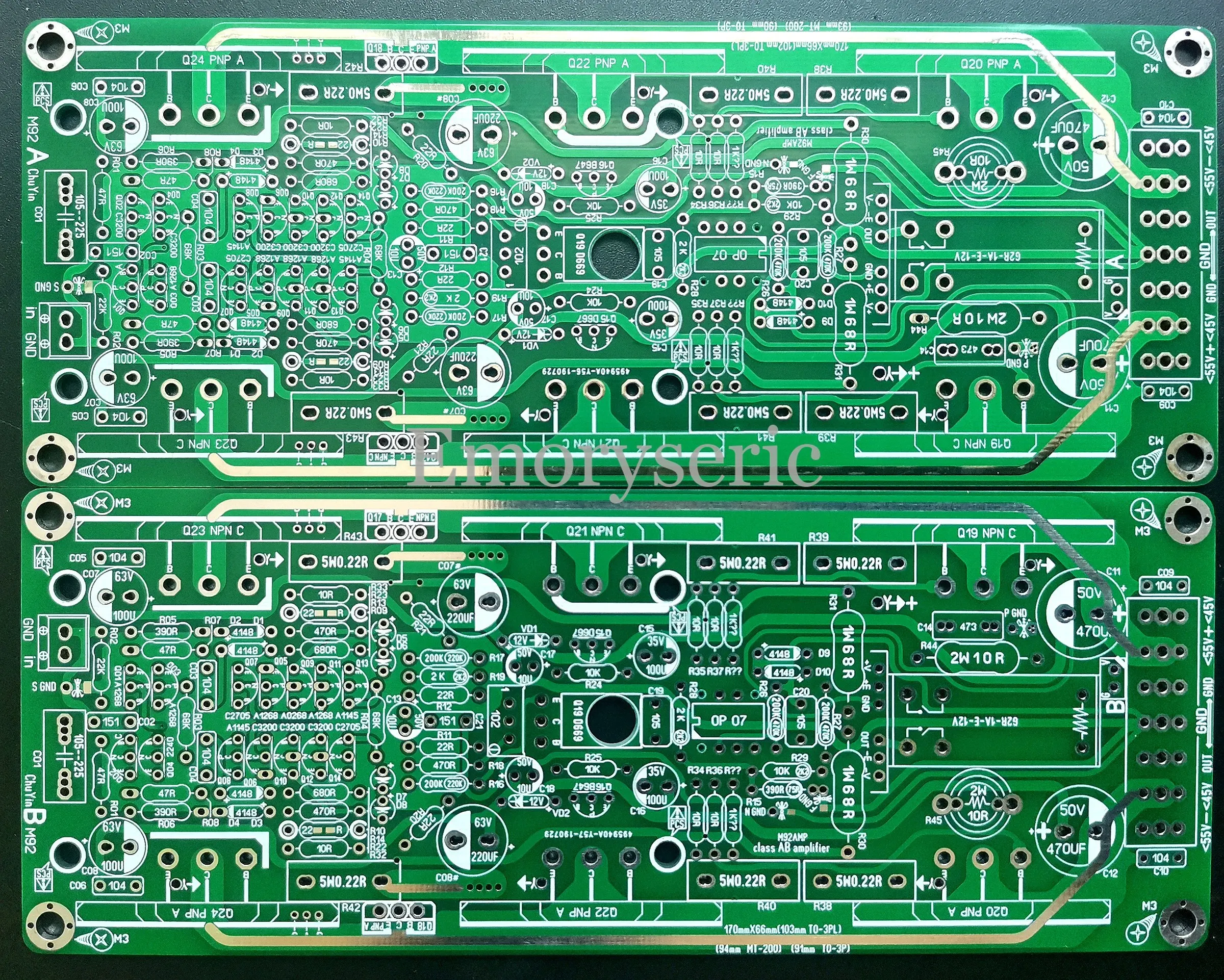

PCB Board
1 set includes 2 mirrored boards

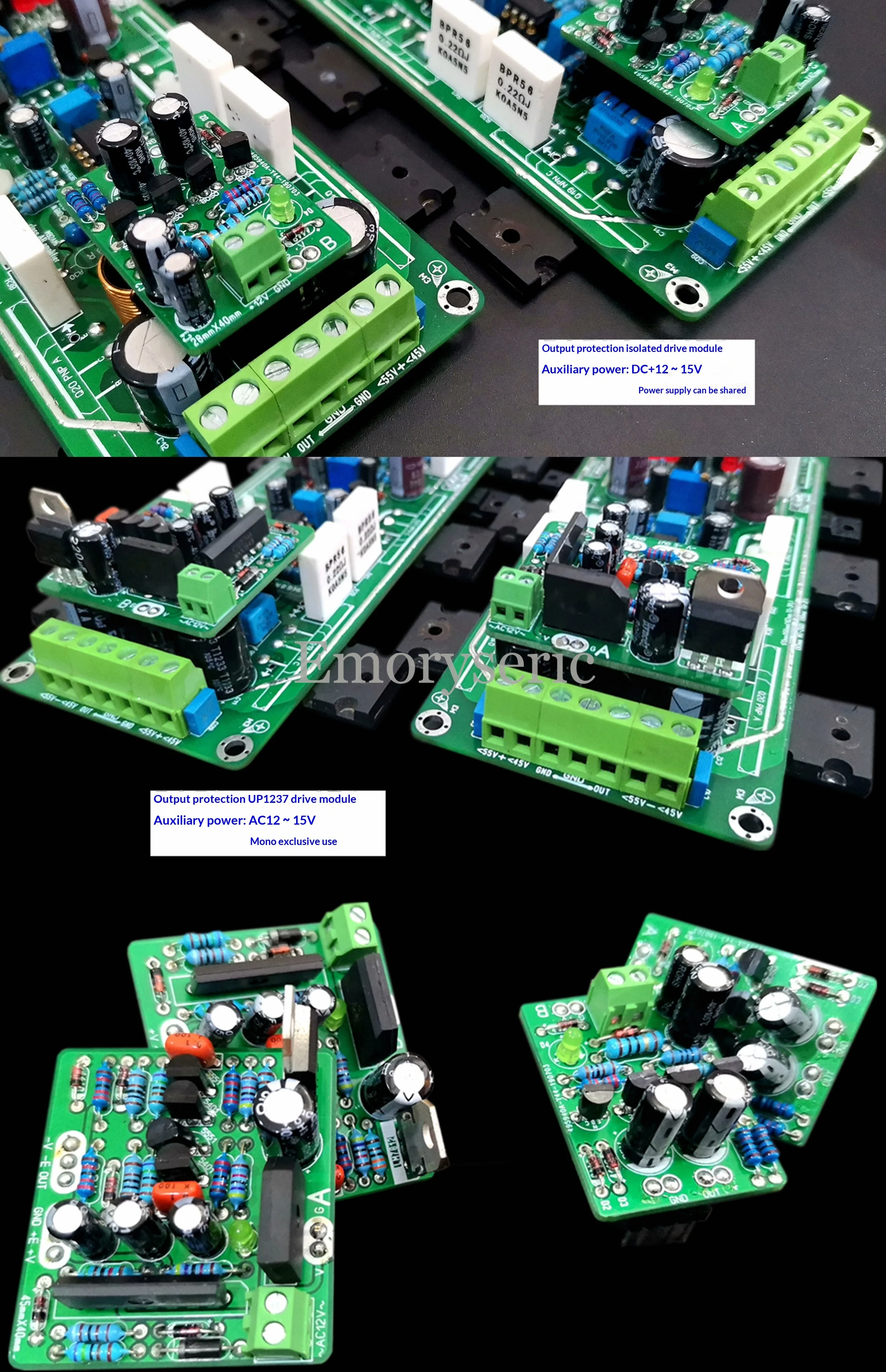

Select 1 set of output protection driver module

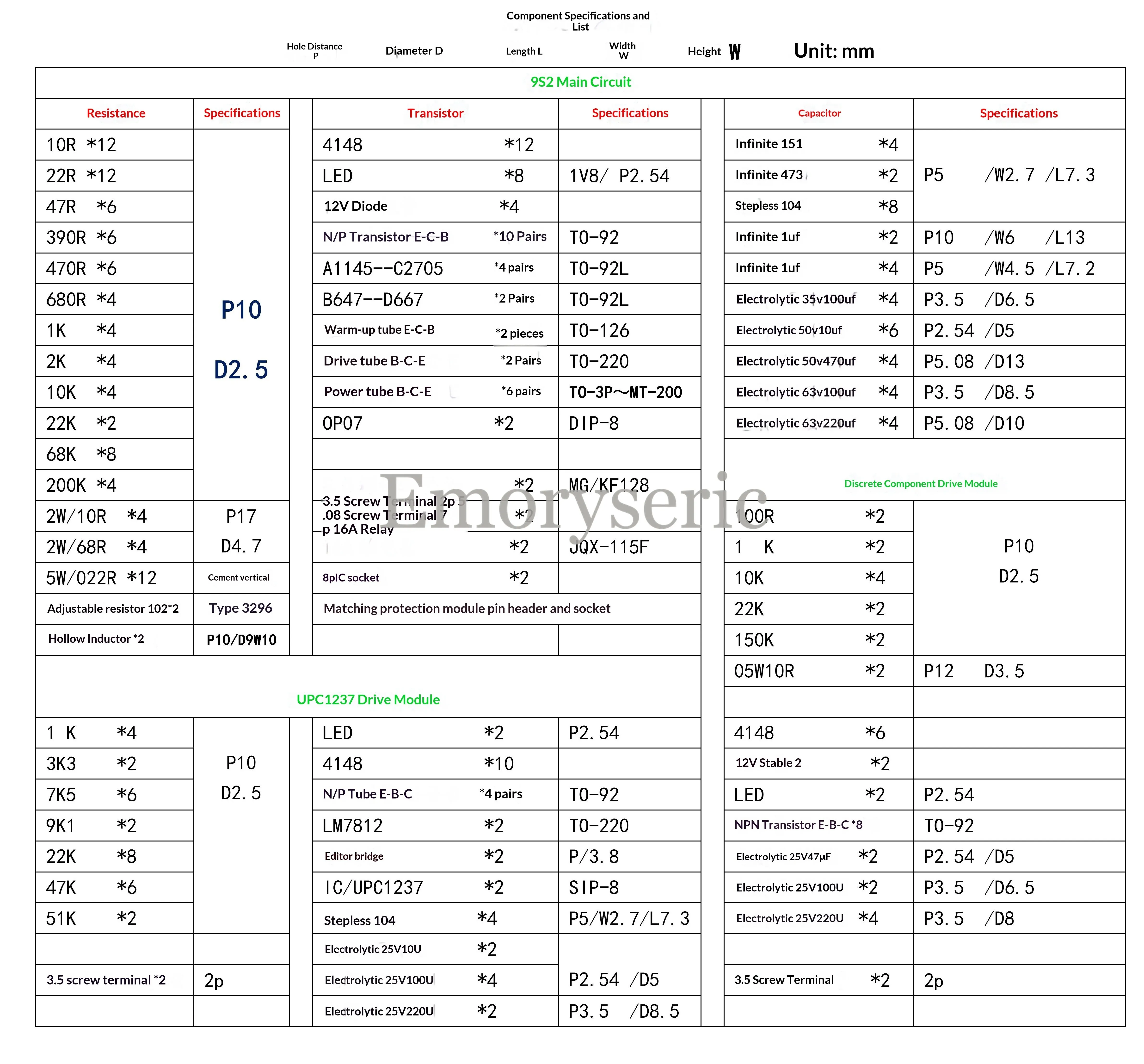

Following the component list and specifications for preparation
Correctly assemble the components to achieve sound output

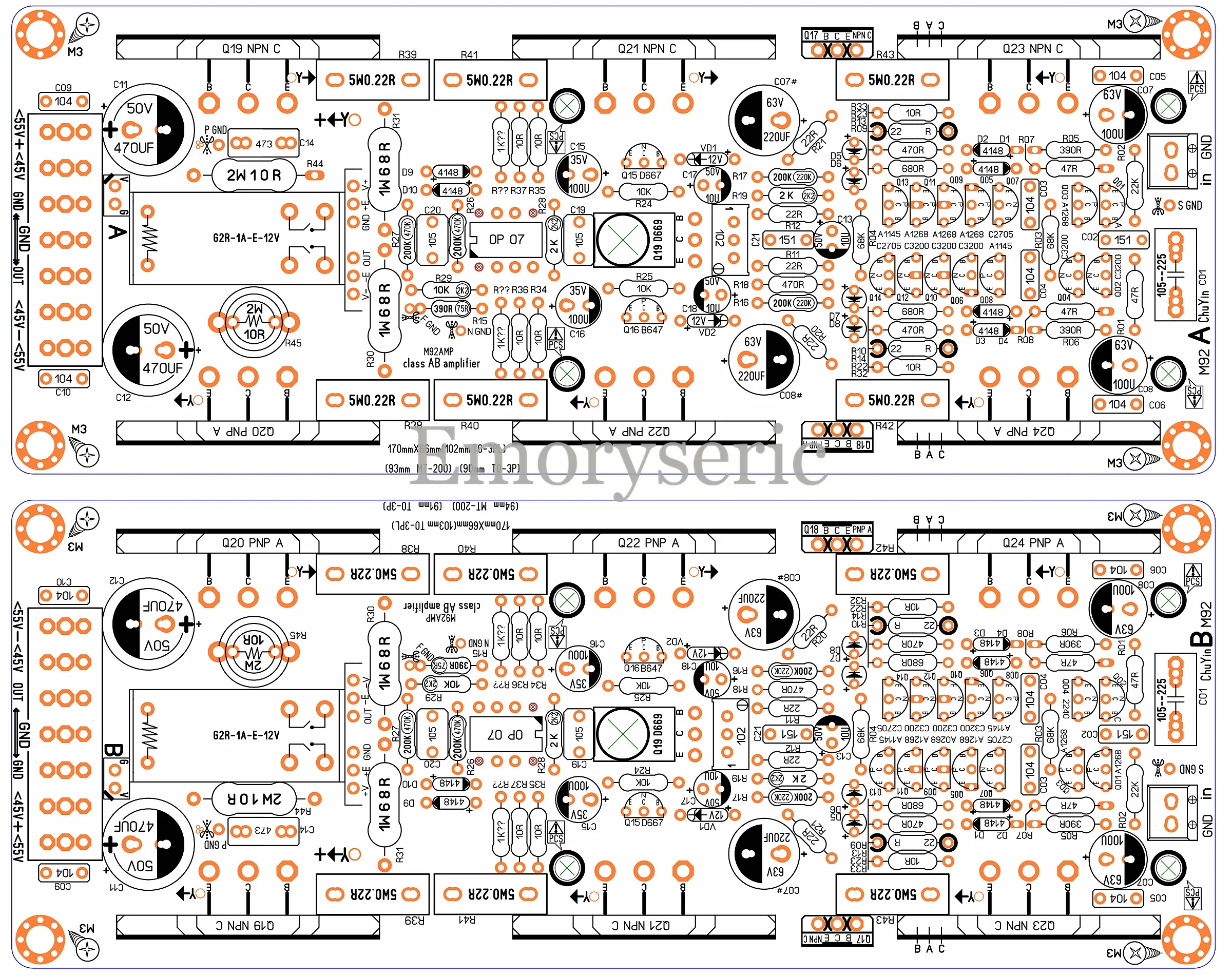

PCB Dimensions: 68x170mm monoblock
Main Power Supply: Voltage ±35V to ±40V, ≥300W monoblock
Supports staged power supply
Auxiliary Power Supply: AC 12-15V or DC 12-15V

Includes DIY detailed electronic manual and comprehensive schematic diagram
