Note:
1. No wiring and hand touching audio inputs under power on.
2. Output try not to idle.
3. To be used under the specified load and voltage

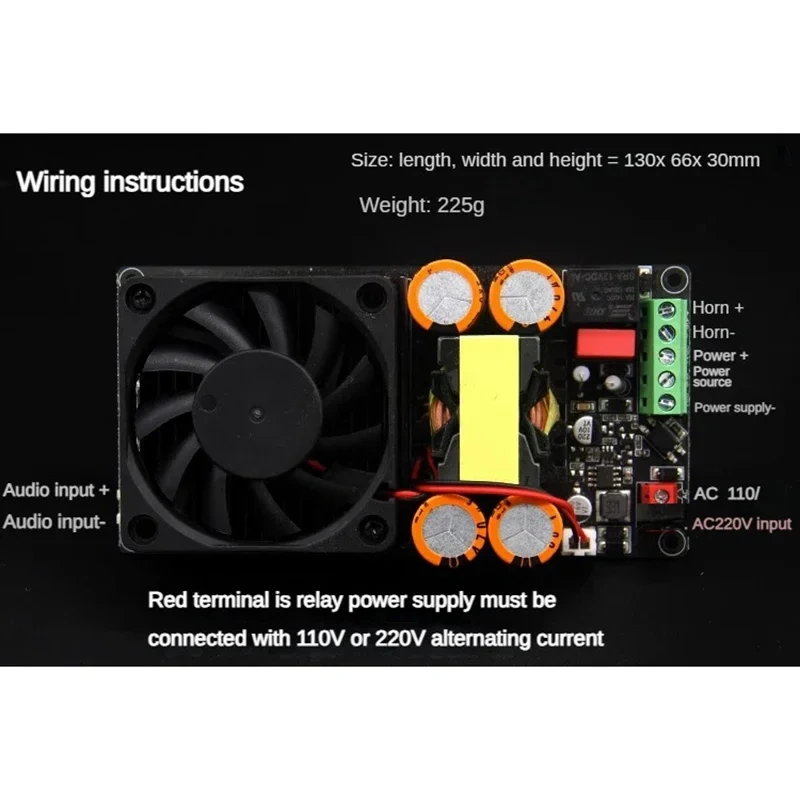

New upgrade, circuit optimization, increased protection of the speaker relay, power-on delay, shutdown instantaneous disconnect, effectively solving the switchboard impact sound, comes with relay power supply, external 110V/220V AC can be
The amplifier is divided into high-voltage and low-voltage two kinds, according to their own needs to buy:

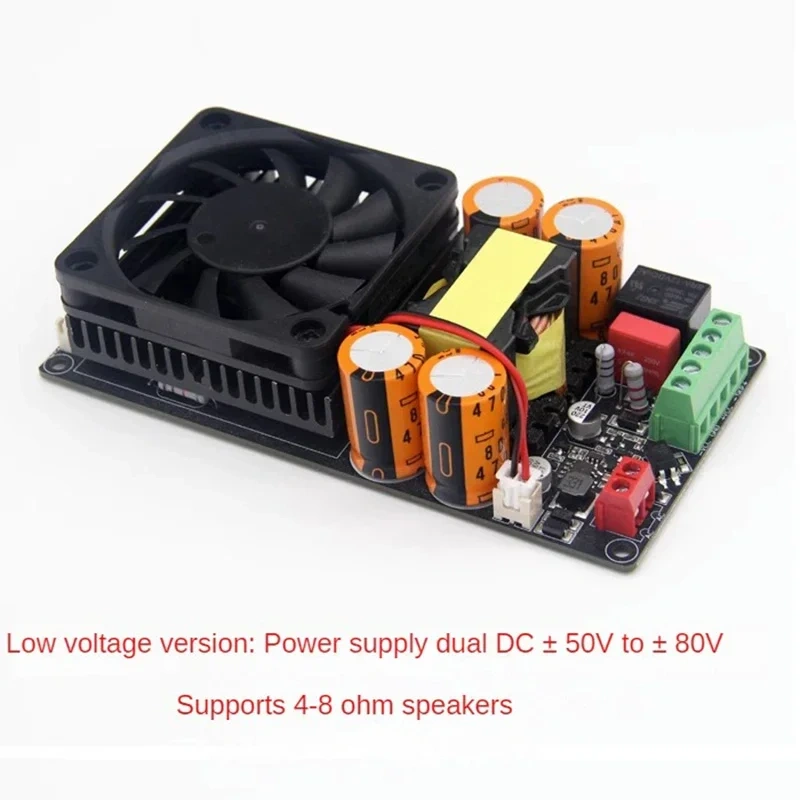

1.Low-voltage version supports 4-8 ohms, power supply range ±50V ~ ± 80V, in ± 80V 4 ohms power 1000W, 8 ohms 500W;

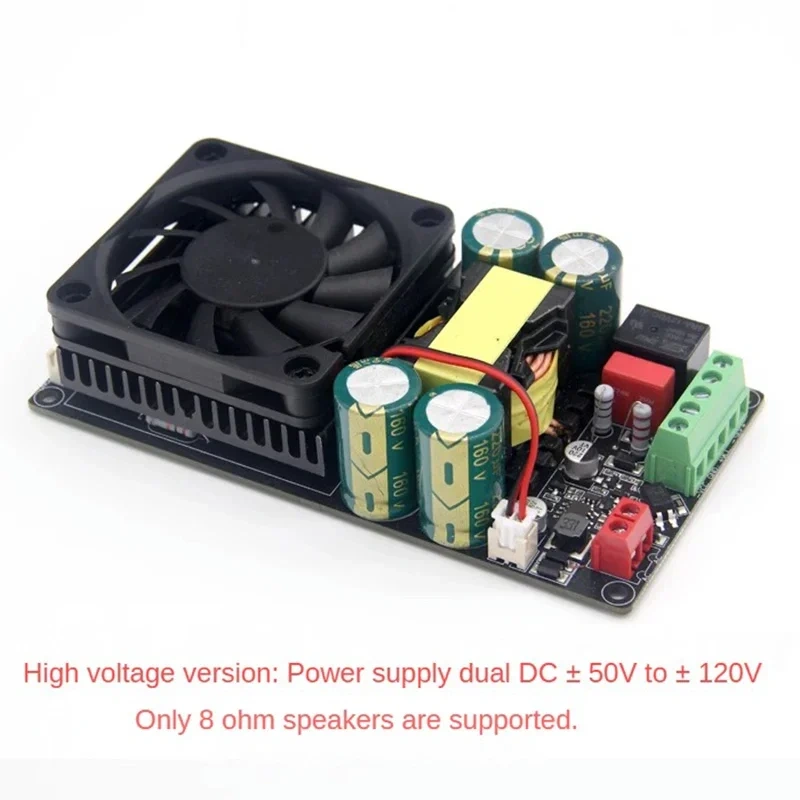

2.High-voltage version only supports 8 ohms (in case you want to connect 4 ohms, the power supply can not exceed ± 80V), power supply range ± 50V ~ ± 120V; in ± 120V, 8 ohms power 1000W
