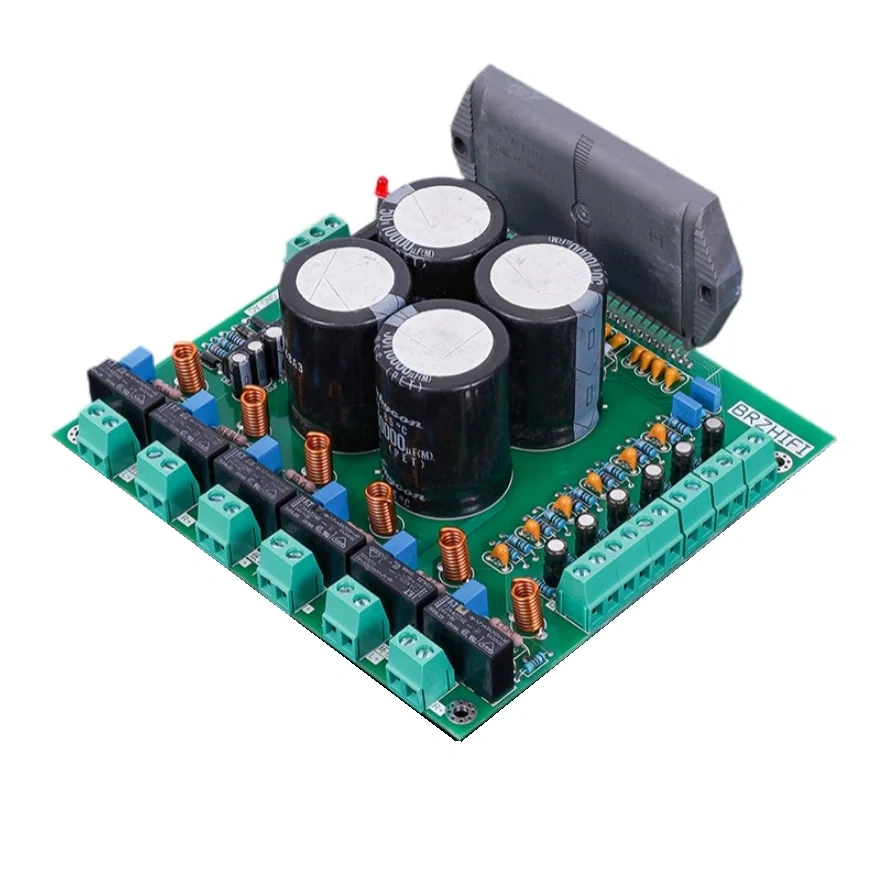

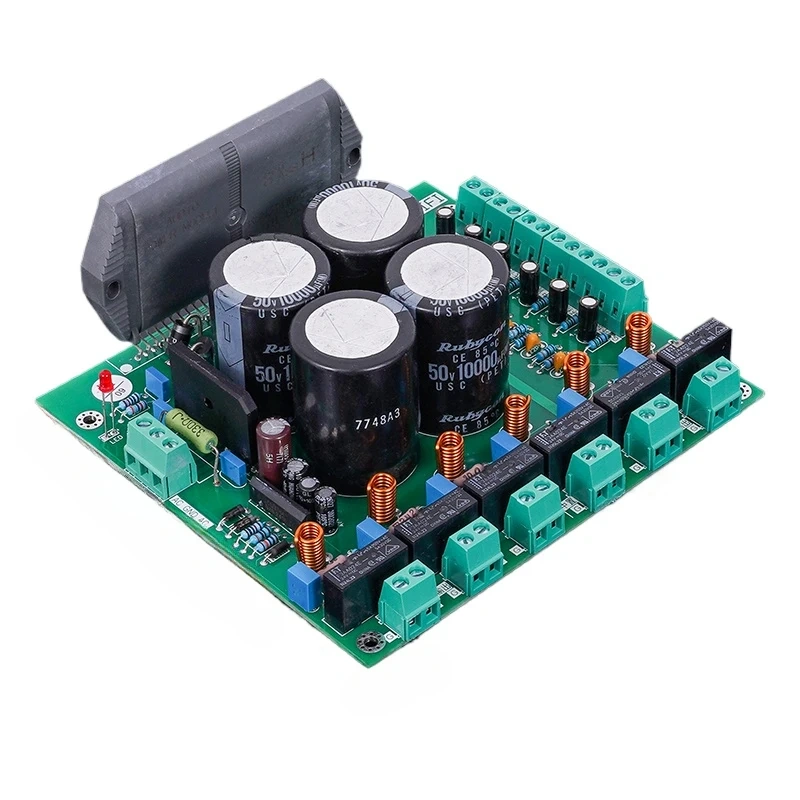

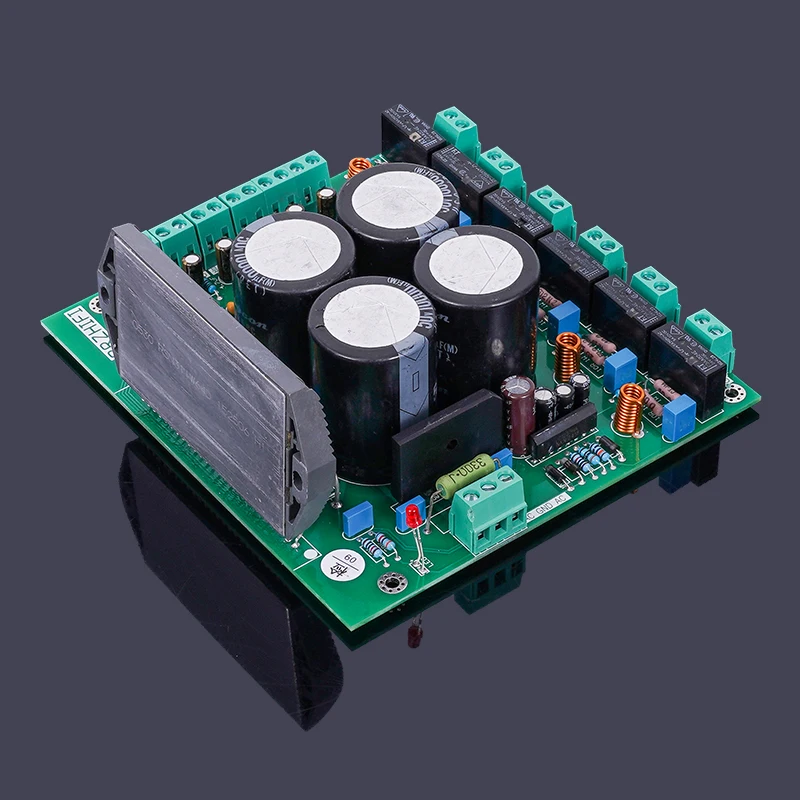

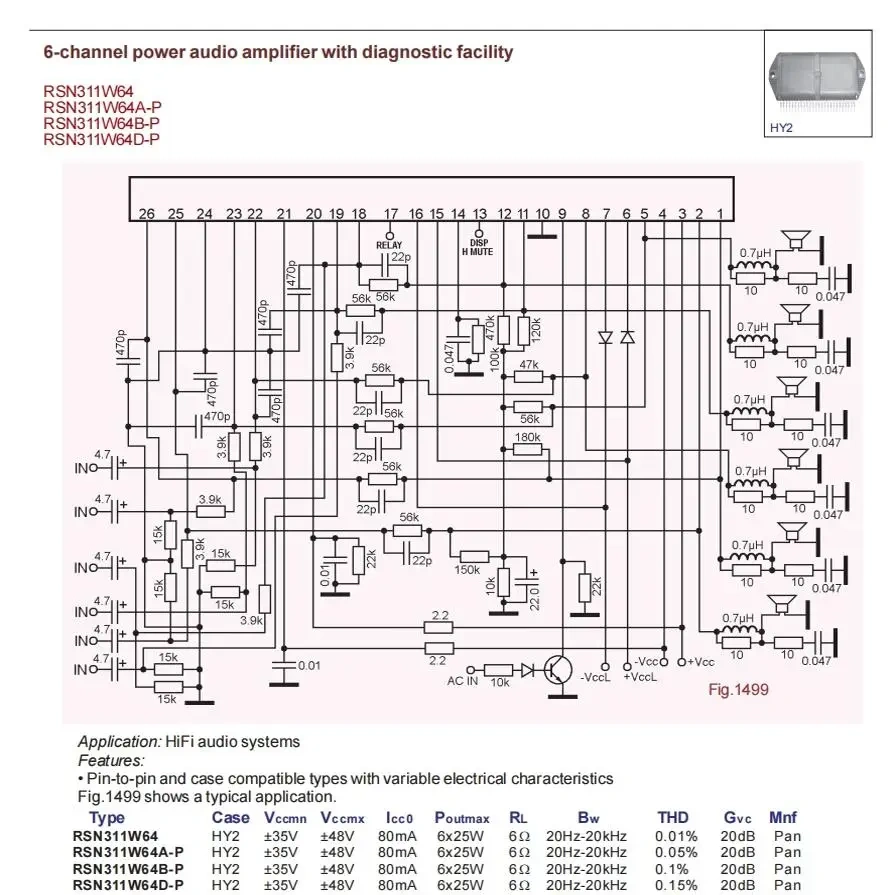

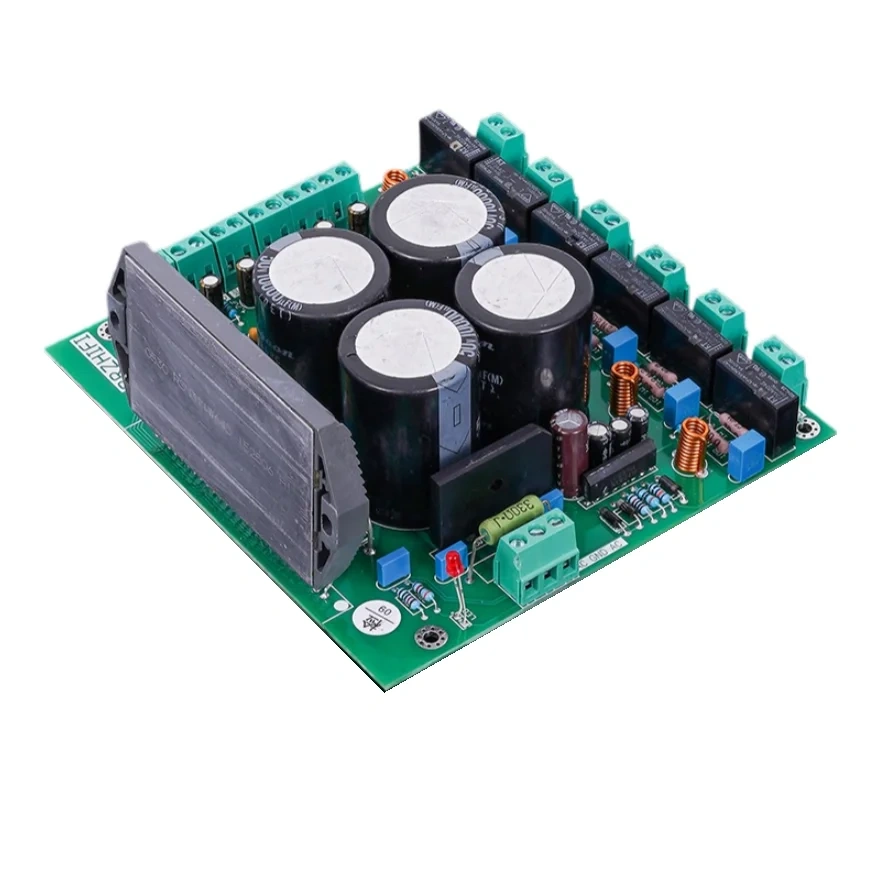

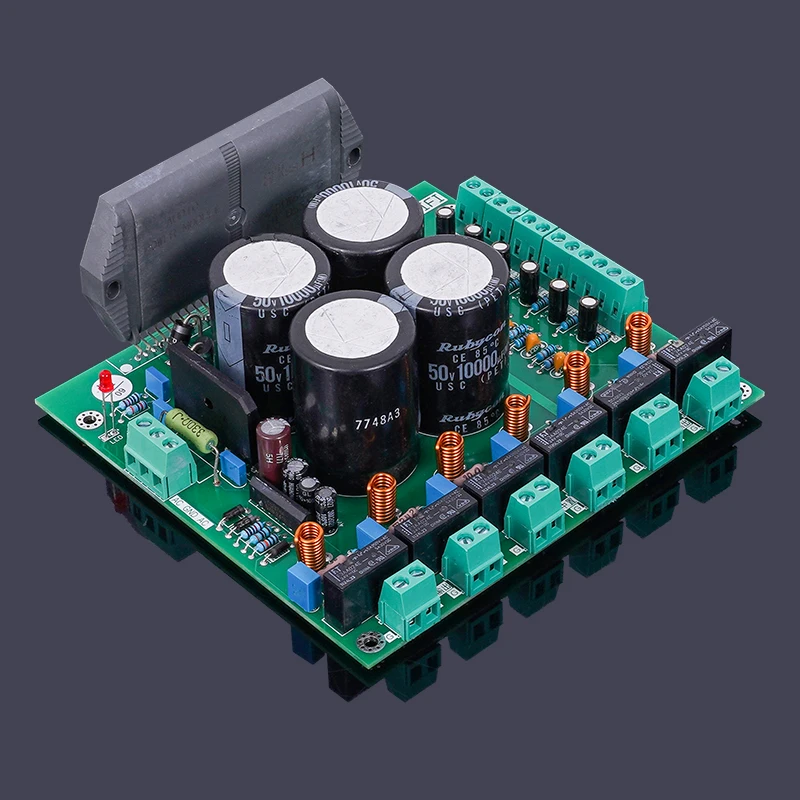

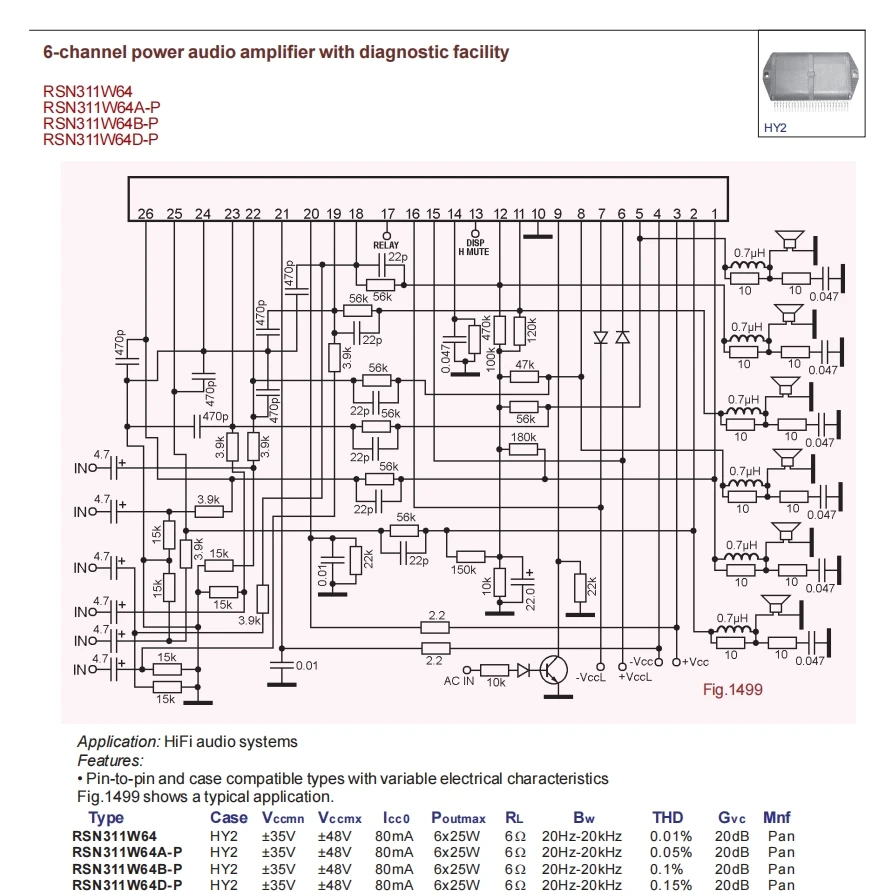

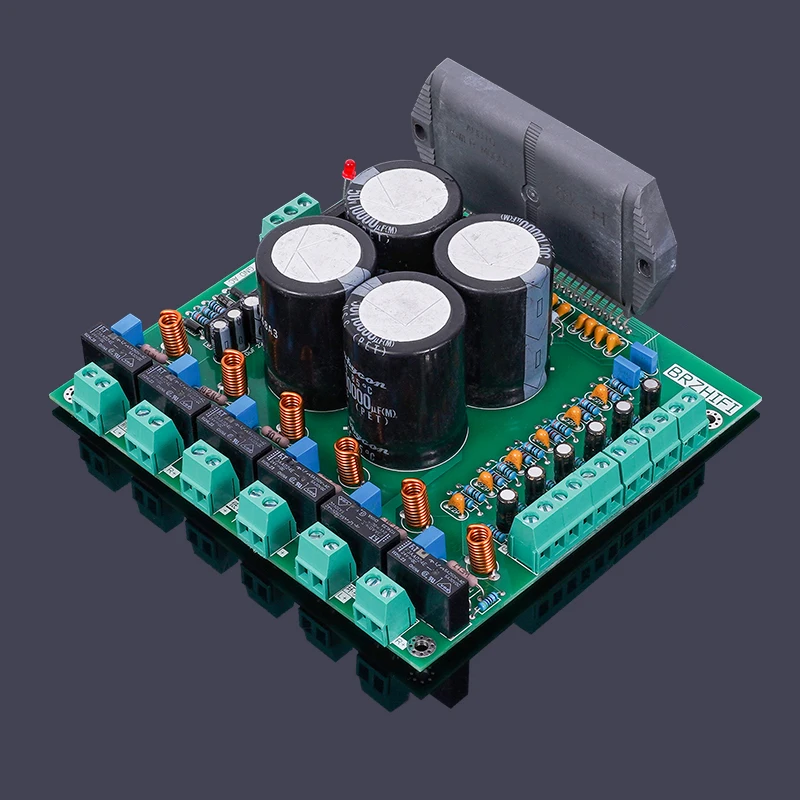

Using the new original RSN311W64D chip.
Module power 25WX6@6 ohm,
Distortion degree THD0.15%.
Panasonic's most classic power amplifier thick film chip, this is a more unique circuit, high parameter indicators, rich sound details are good. This model module is commonly used in Panasonic active subwoofer, bass 6.5 inches, the total power measured up to 300 watts.
Basic parameters:
Power supply voltage: AC double 22V-33V
Output power: 25W x6 channel 8Ω 50W x6 channel 4Ω measured continuous maximum output power
Frequency response: 15Hz-65kHz
Loss of truth: 0.15%

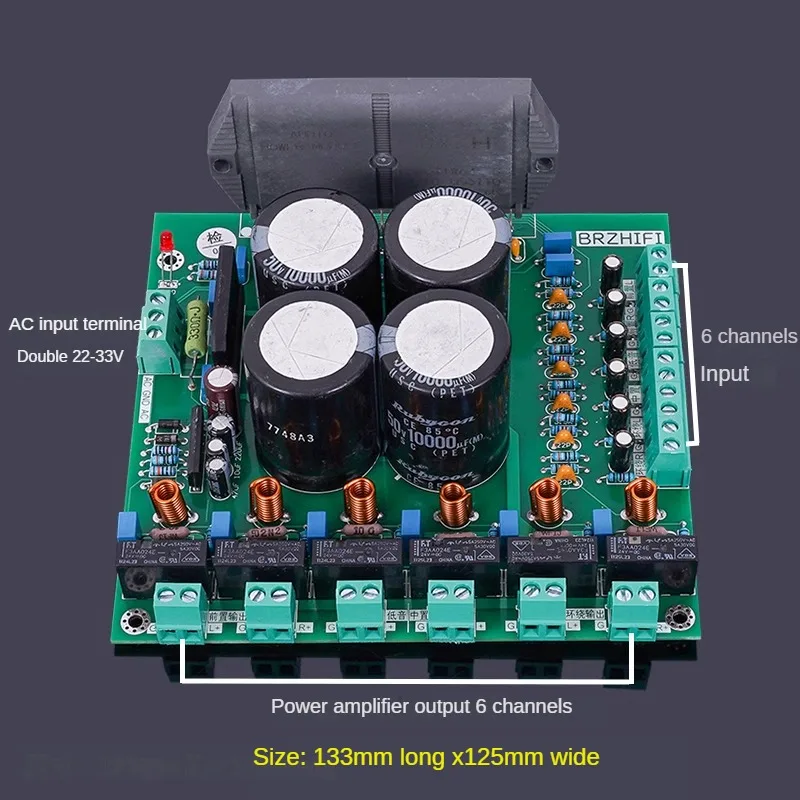

Size: 133 long X wide125MM
Accessories : Copper column nut *4, long screw *2
