Classic EL34 tube sound, warm and soft, fully showcasing the charm of tube amplifiers.
The front-end uses the classic 6SN7 tube cascode amplification circuit, with very wide frequency response, rich harmonics and overtones, very low distortion, and high stability.
The rectifier part uses 5U4G.
The output transformer uses 0.35mm Japanese silicon steel sheets, wound in a 3+2 layered and segmented way.
Production process: Pure handmade point-to-point wiring (搭棚).

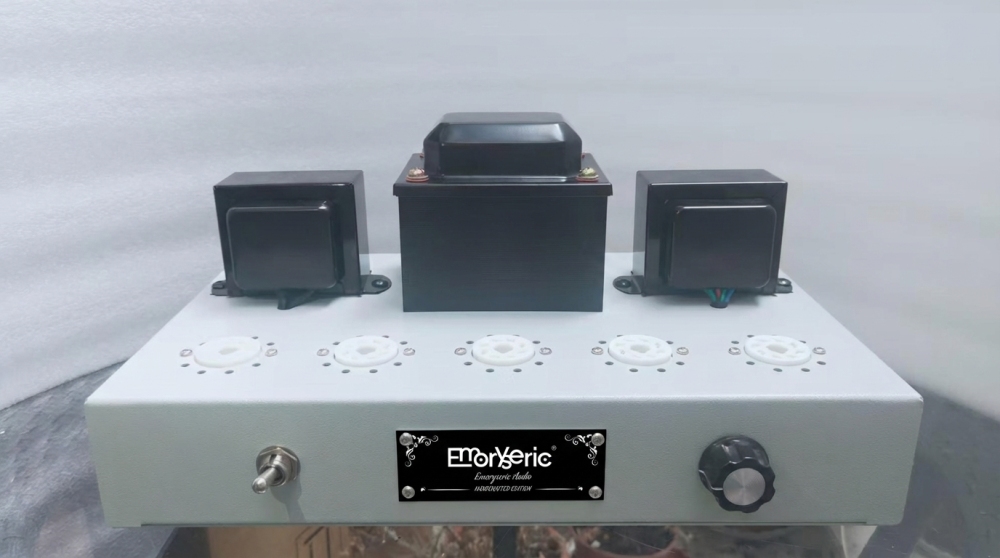

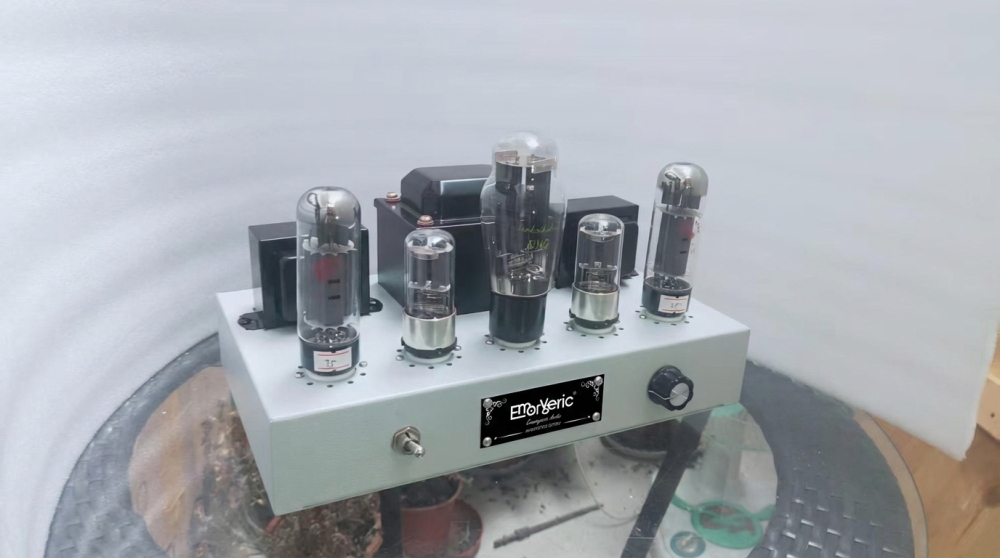

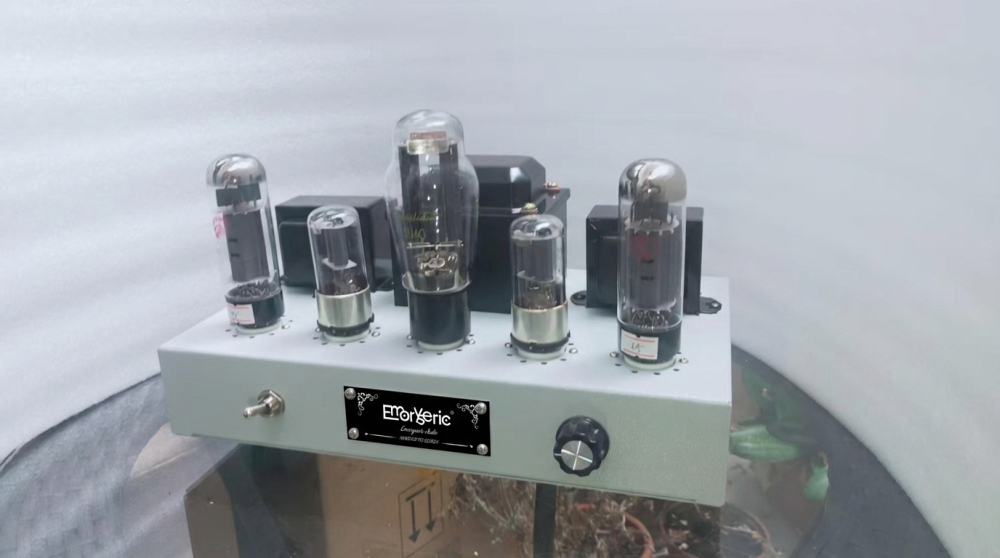

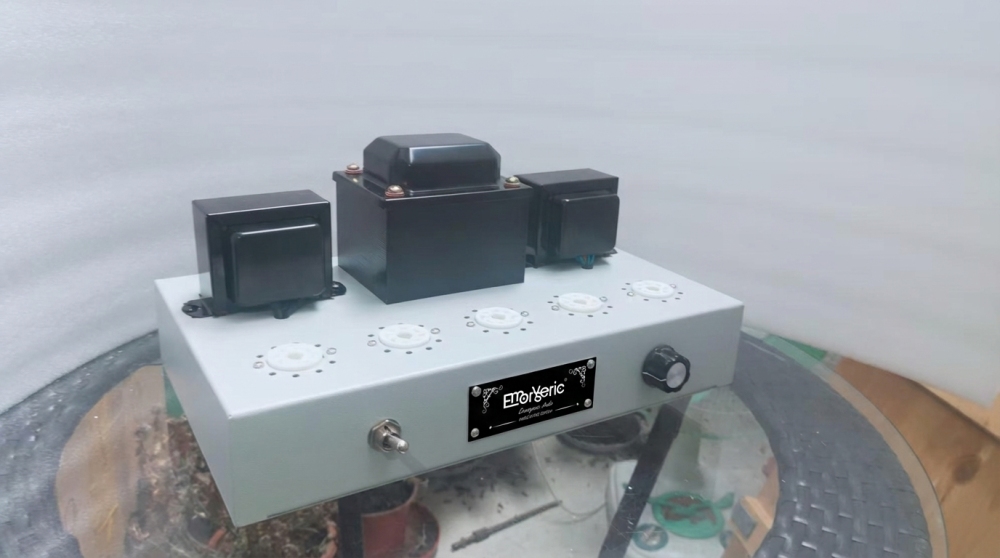

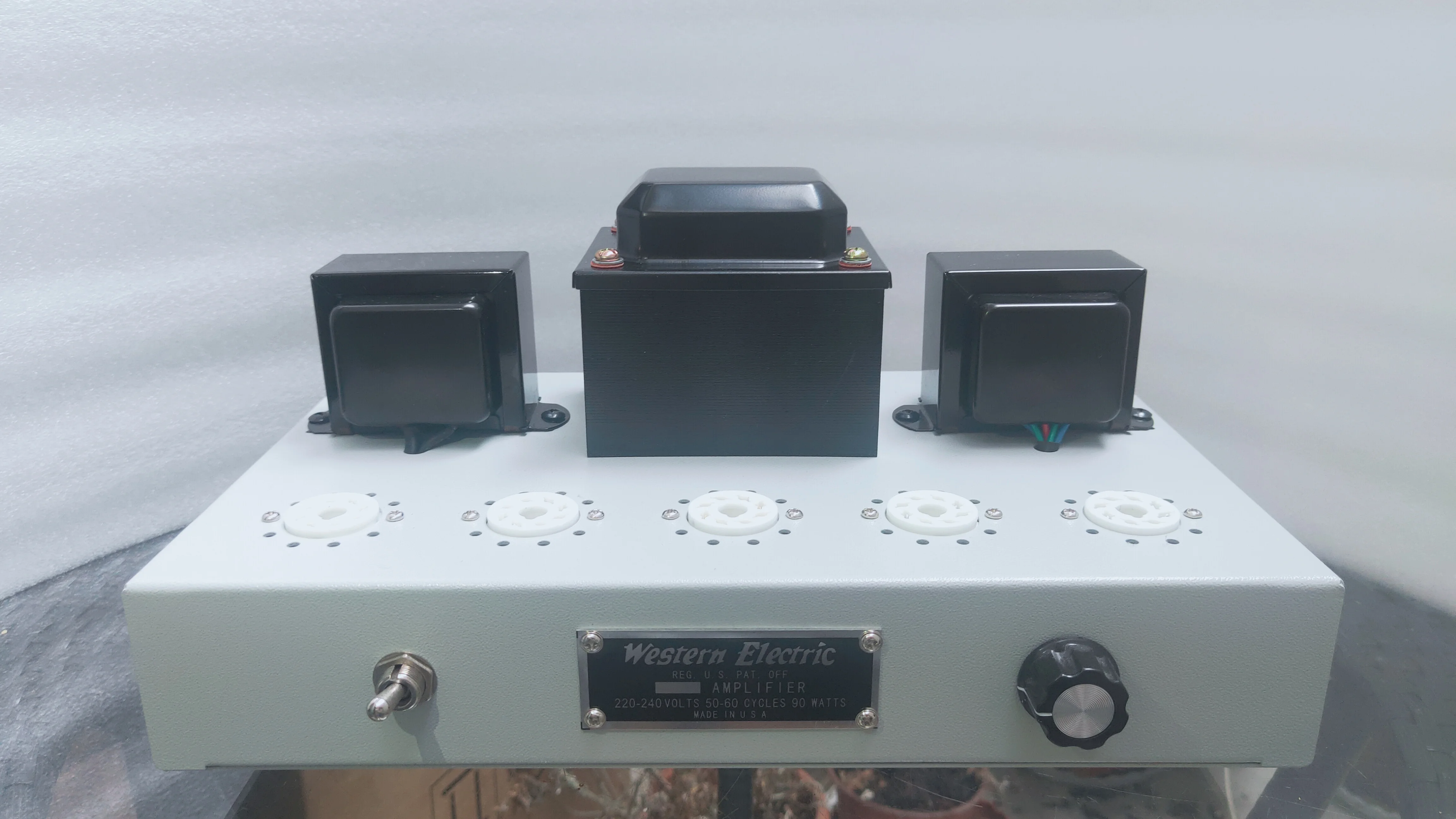

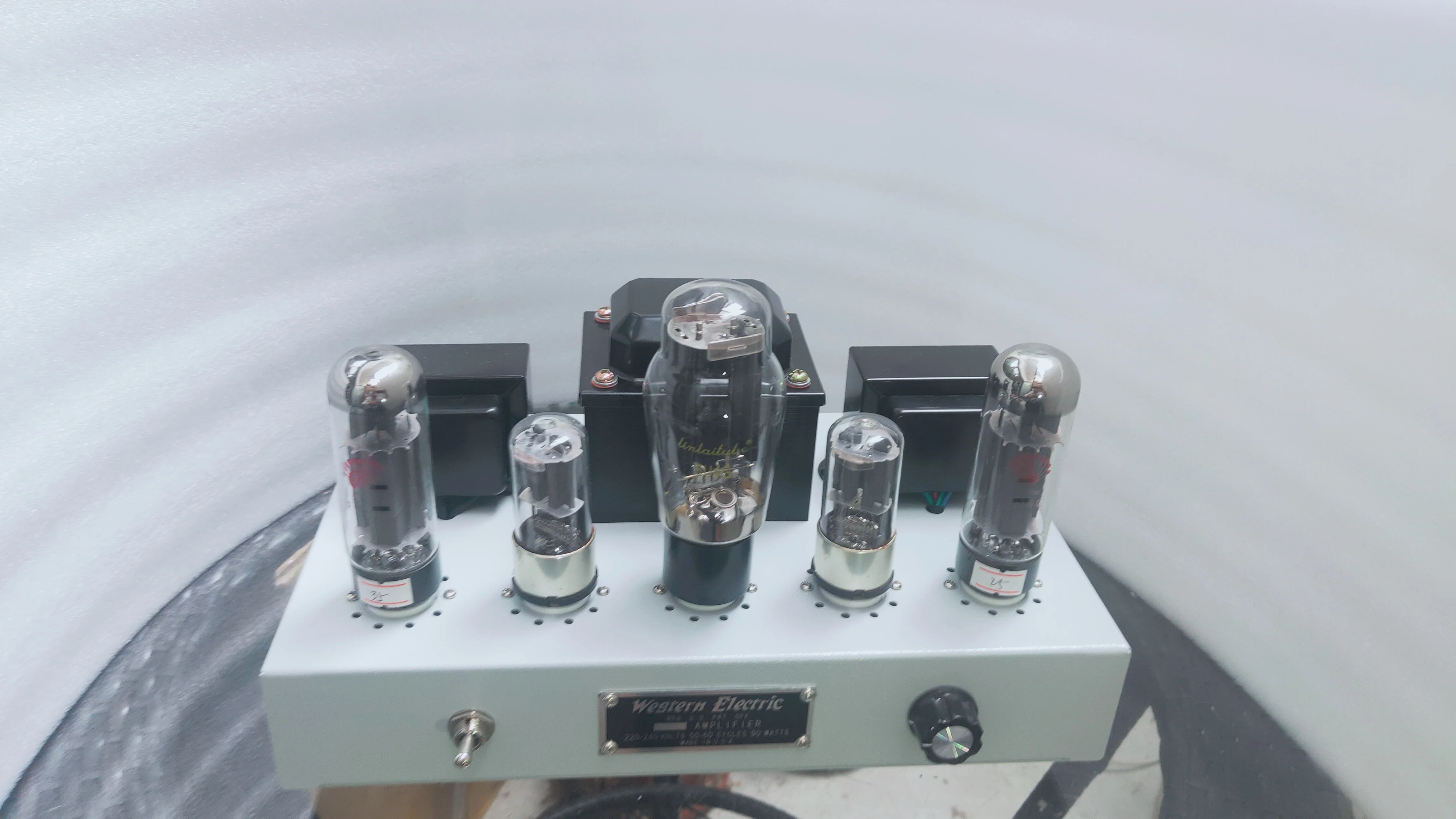

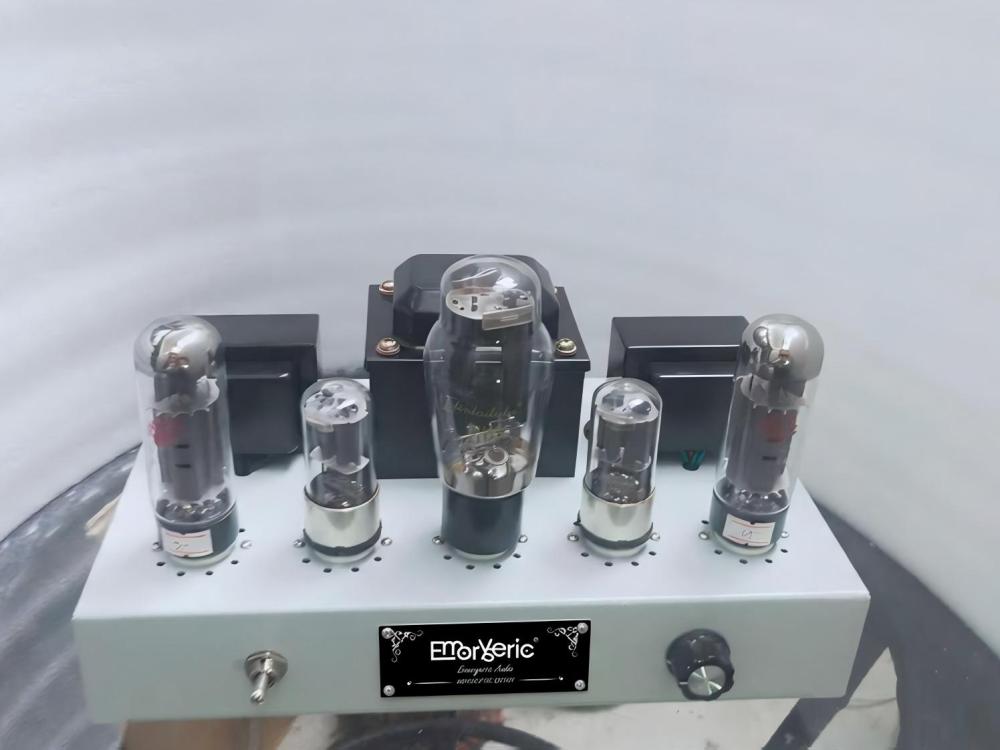

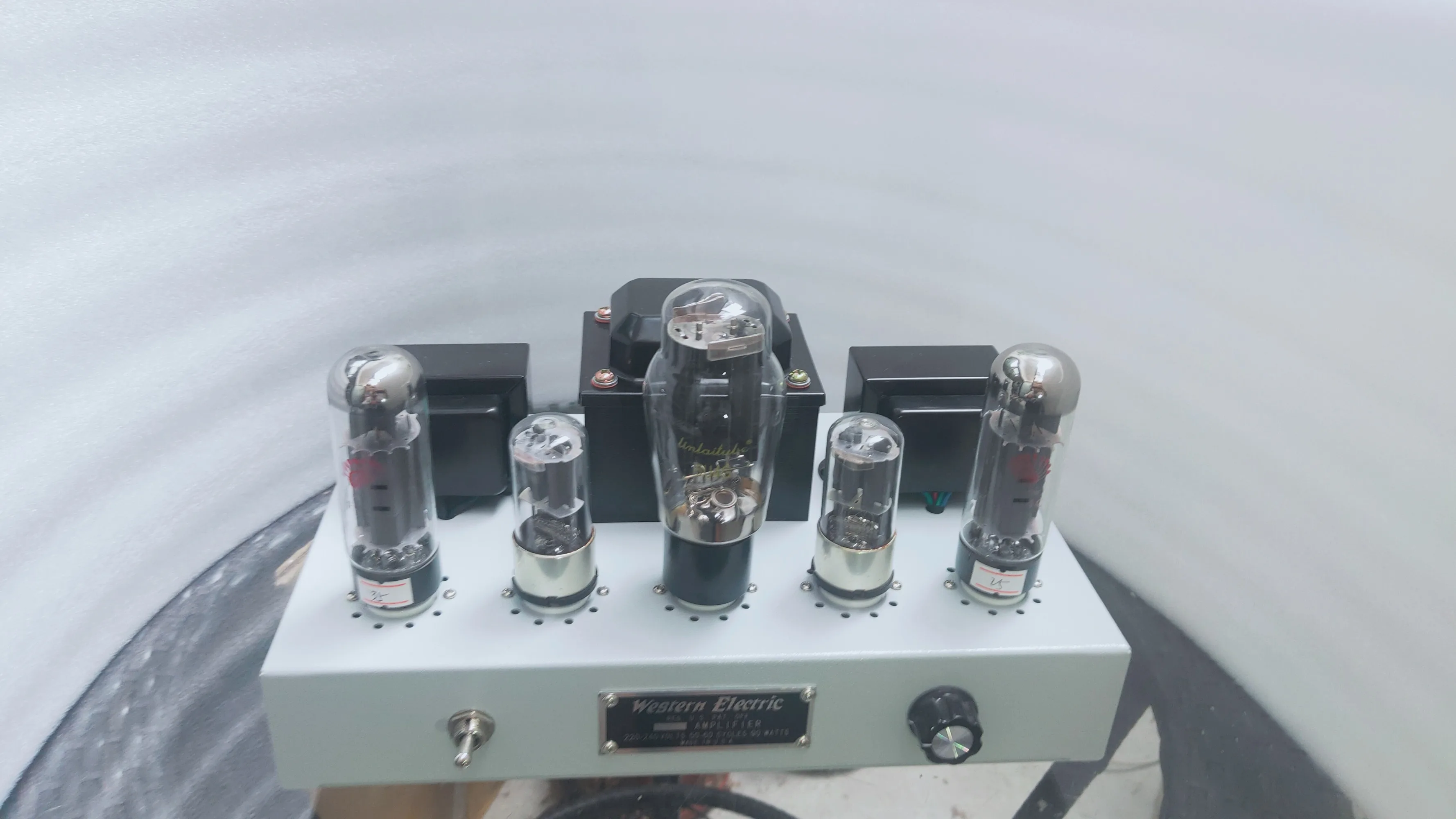

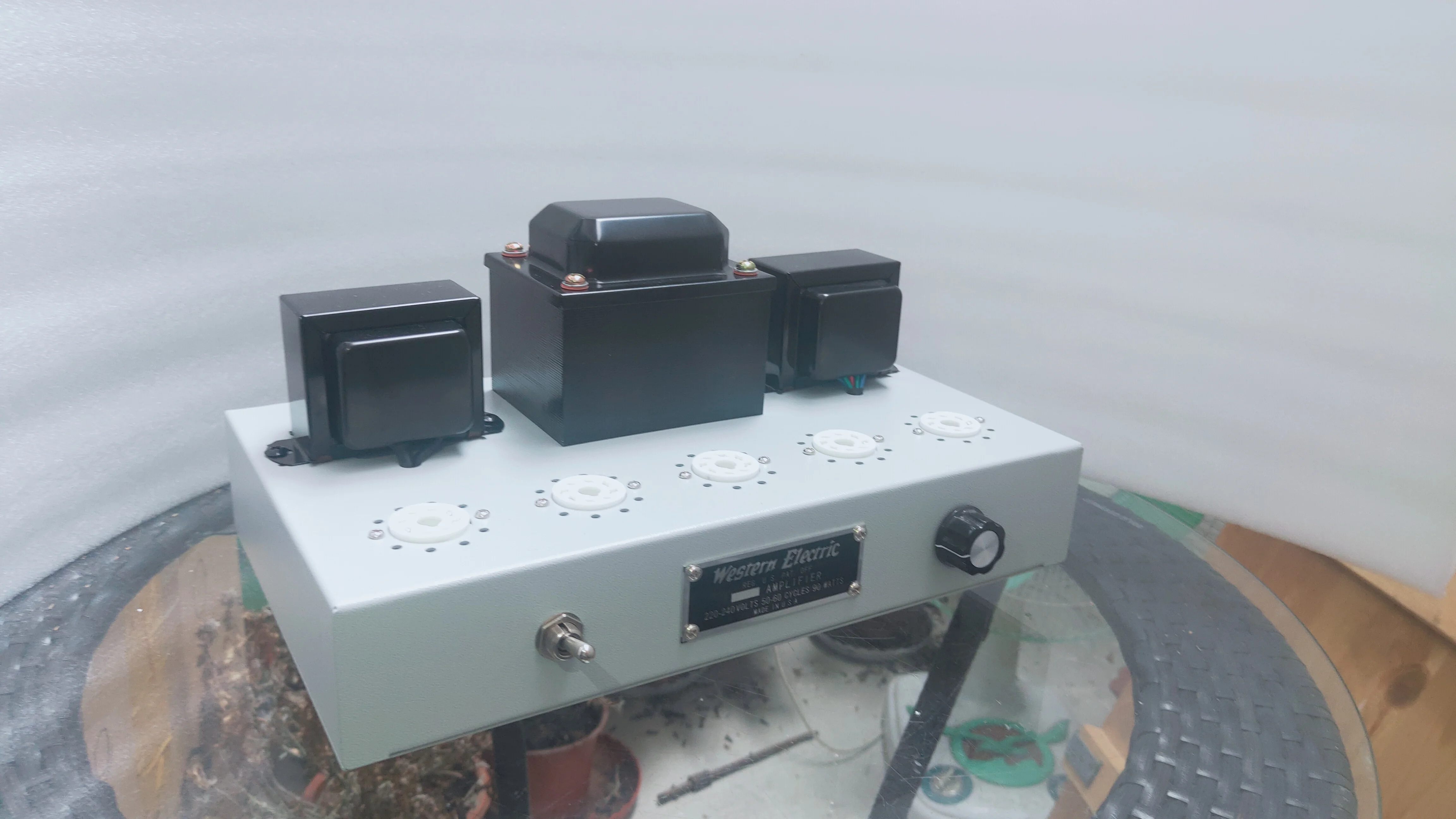

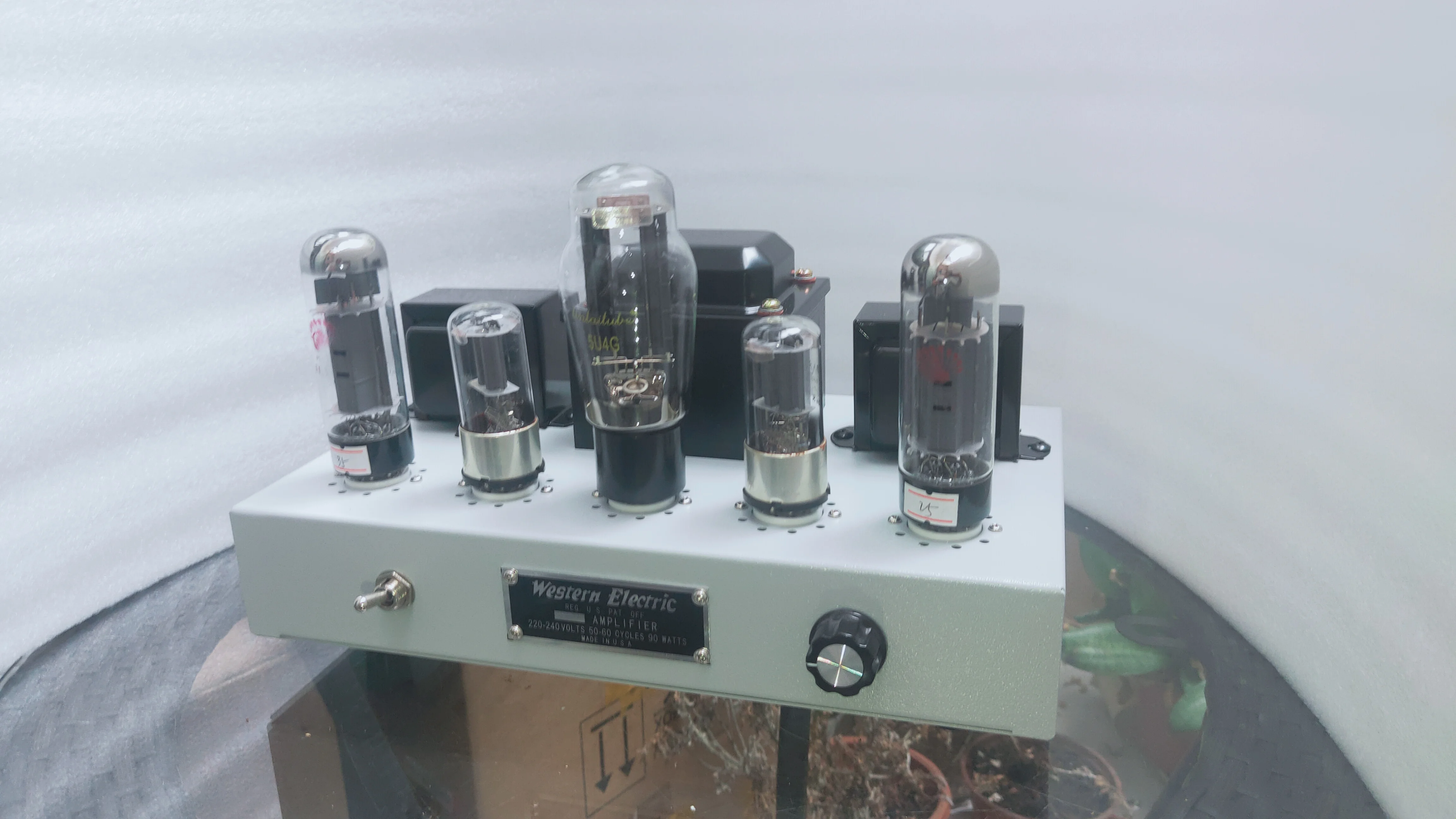

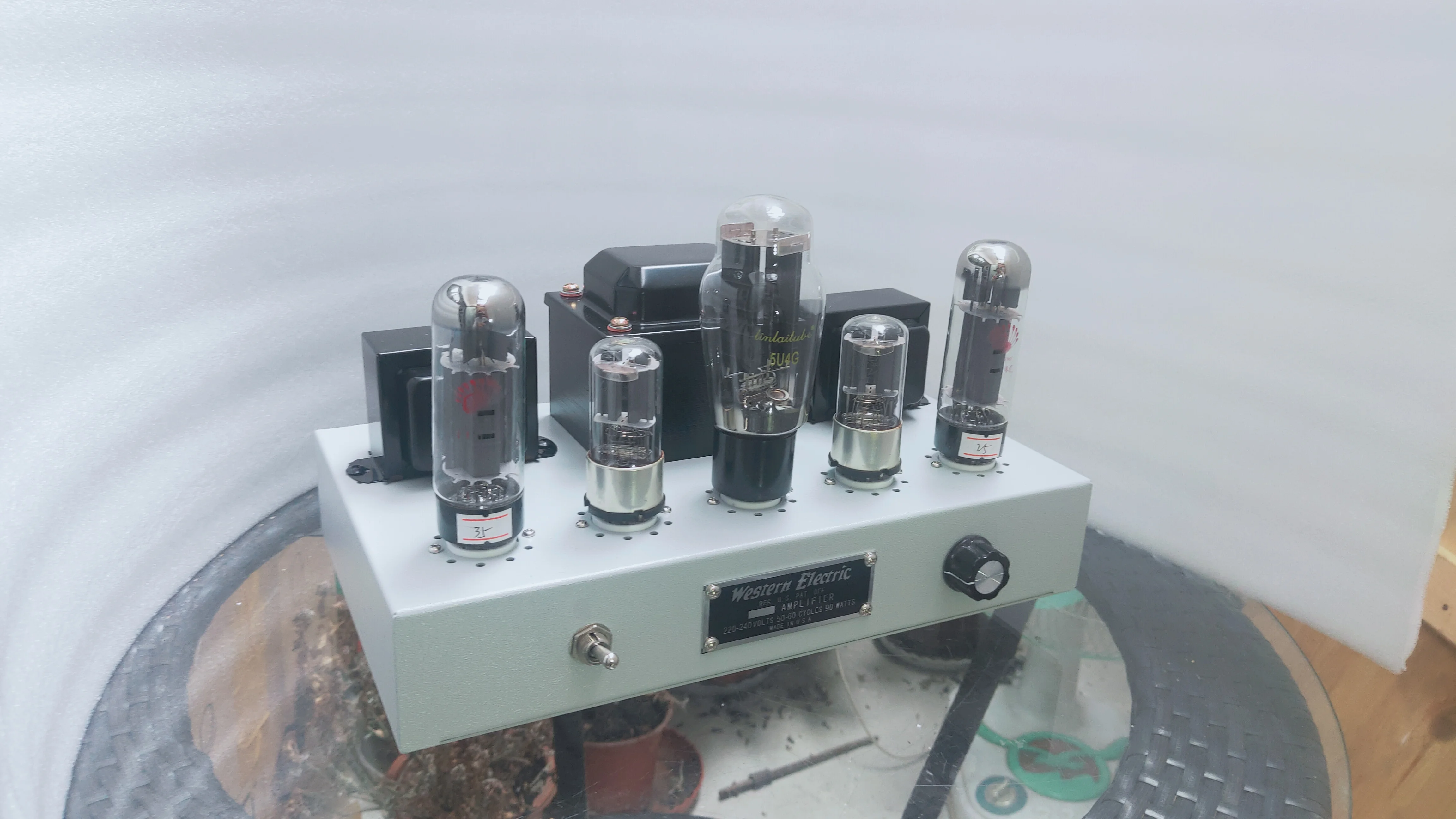

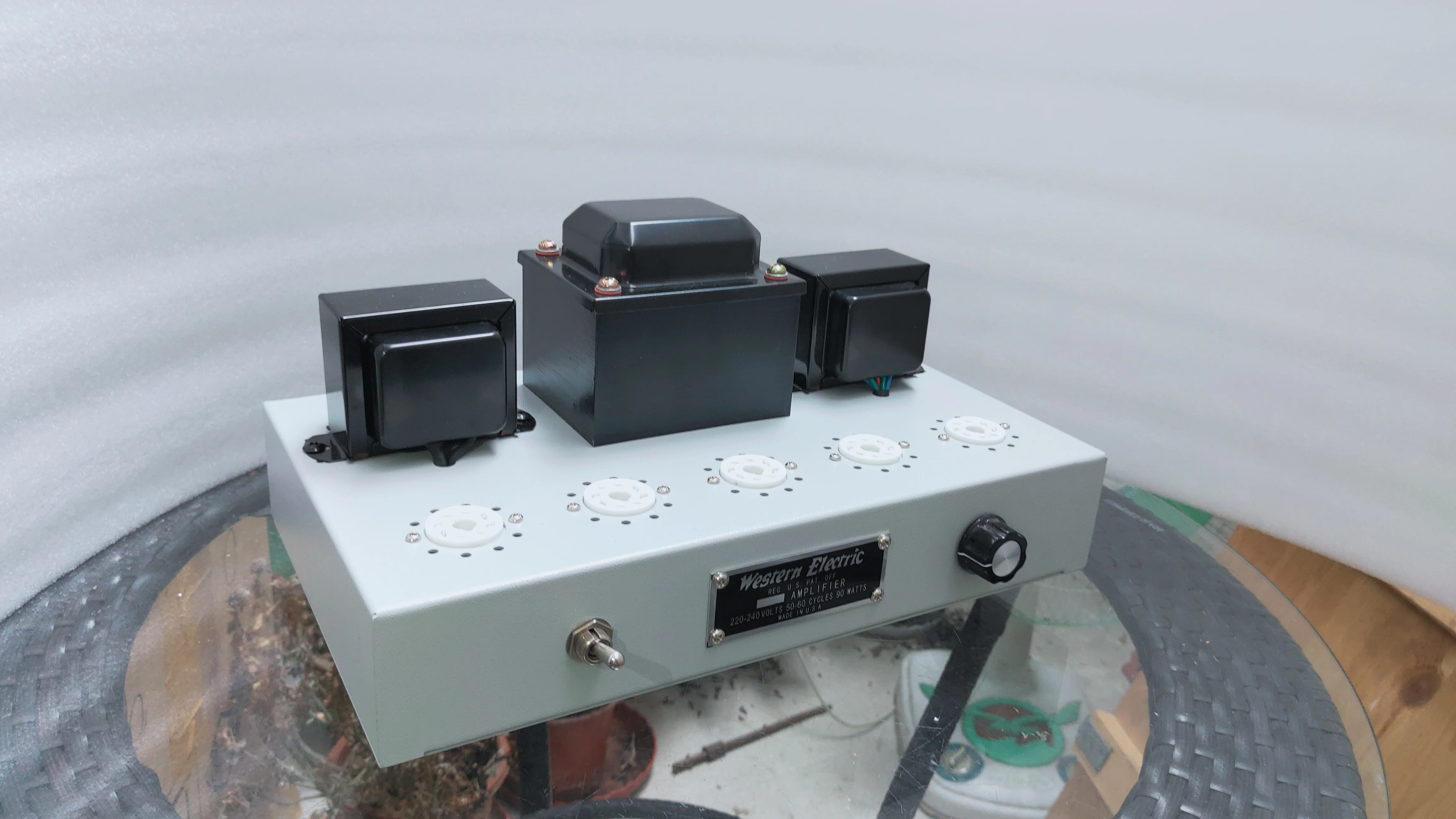

This product is an EL34 Class A Single-Ended Power Amplifier.
It delivers a classic tube sound that is warm and soft, fully showcasing the charm of tube amplifiers. It is suitable for various bookshelf and floor-standing speakers.
The front-end amplification tube uses the classic 6SN7 tube in a cascode circuit. This design provides an extremely wide frequency response, rich harmonics and overtones, very low distortion, and stable performance. The rectifier section uses a 5U4G tube. The output transformers are wound using 0.35mm Japanese silicon steel sheets in a 3+2 layered and segmented winding method, which helps to improve performance.
The amplifier is constructed using pure handmade point-to-point wiring (搭棚). This traditional method is valued for its quality and sound.
Type: EL34 Class A Single-Ended Power Amplifier
Total Machine Weight: ≈ 9 KG
Frequency Response: 19hz ~ 26KHZ
Input Voltage: 115V / 230V
Total Harmonic Distortion: 1% (at 1khz)
Input Impedance: 100kΩ
Input Sensitivity: 600mv ~ 1900mv
Output Power: 7 watts x 2
Output Impedance: 0-4-8 (Ω) x 2
Signal-to-Noise Ratio: 88db
Machine Dimensions: Width 32cm x Length 20cm x Height 15cm.
Power Consumption: 100w
