AP test parameters:
Coaxial connection test

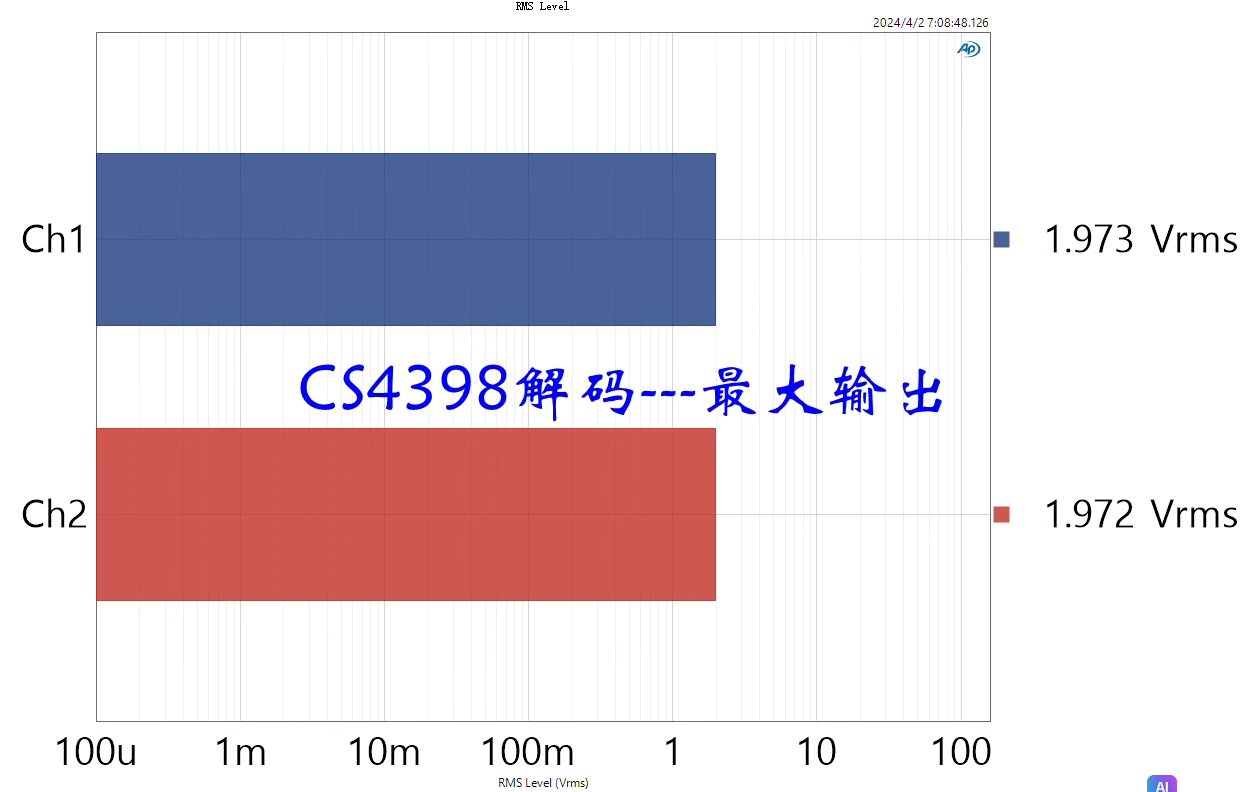

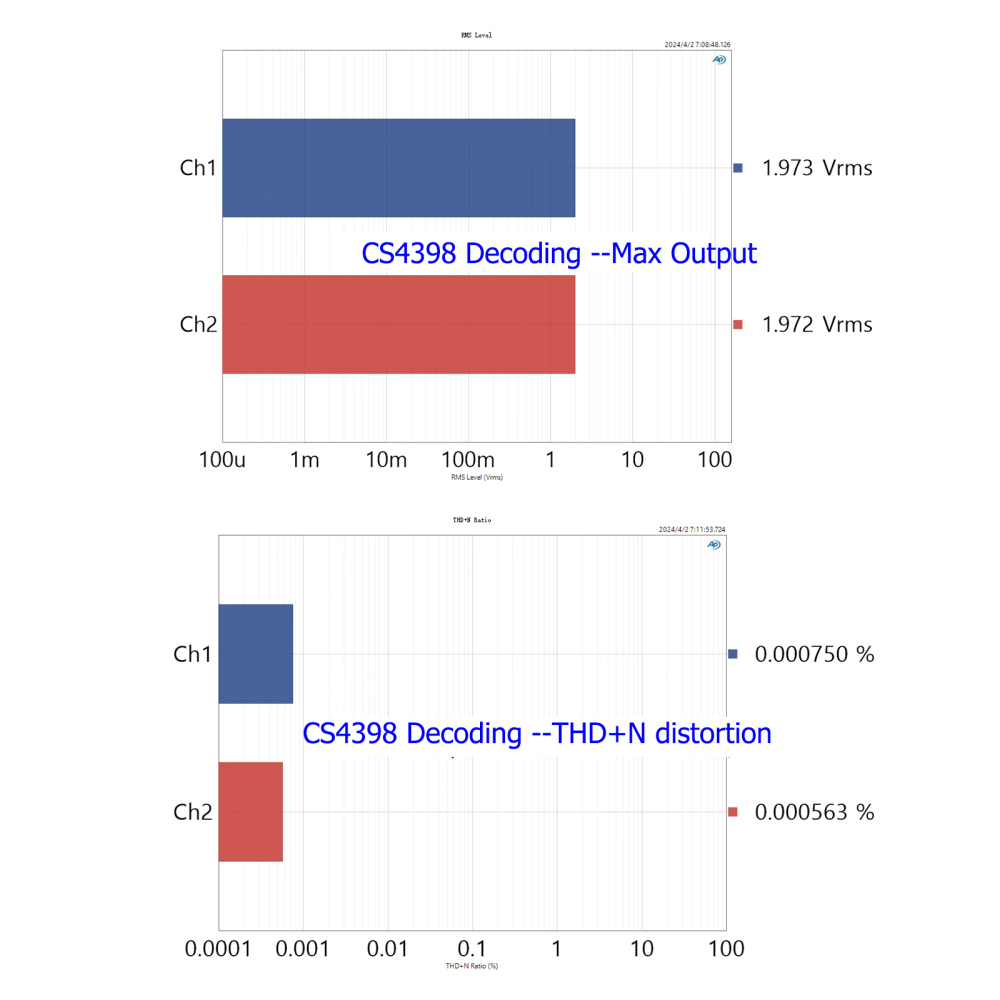

Output RMS: 1.972Vrms

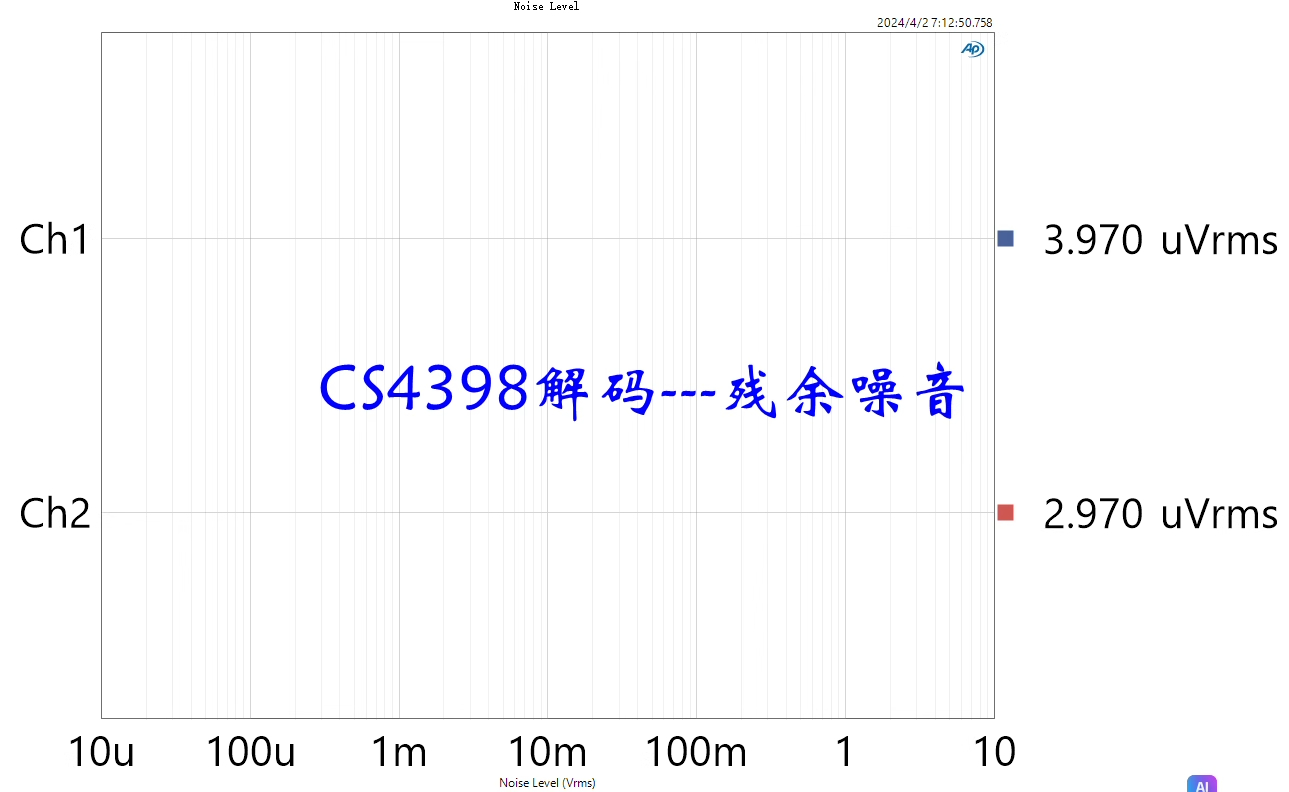

Residual Noise: 3.0uVrms
Signal-to-Noise Ratio: 116.4dB
Dynamic Range: 116.4dB

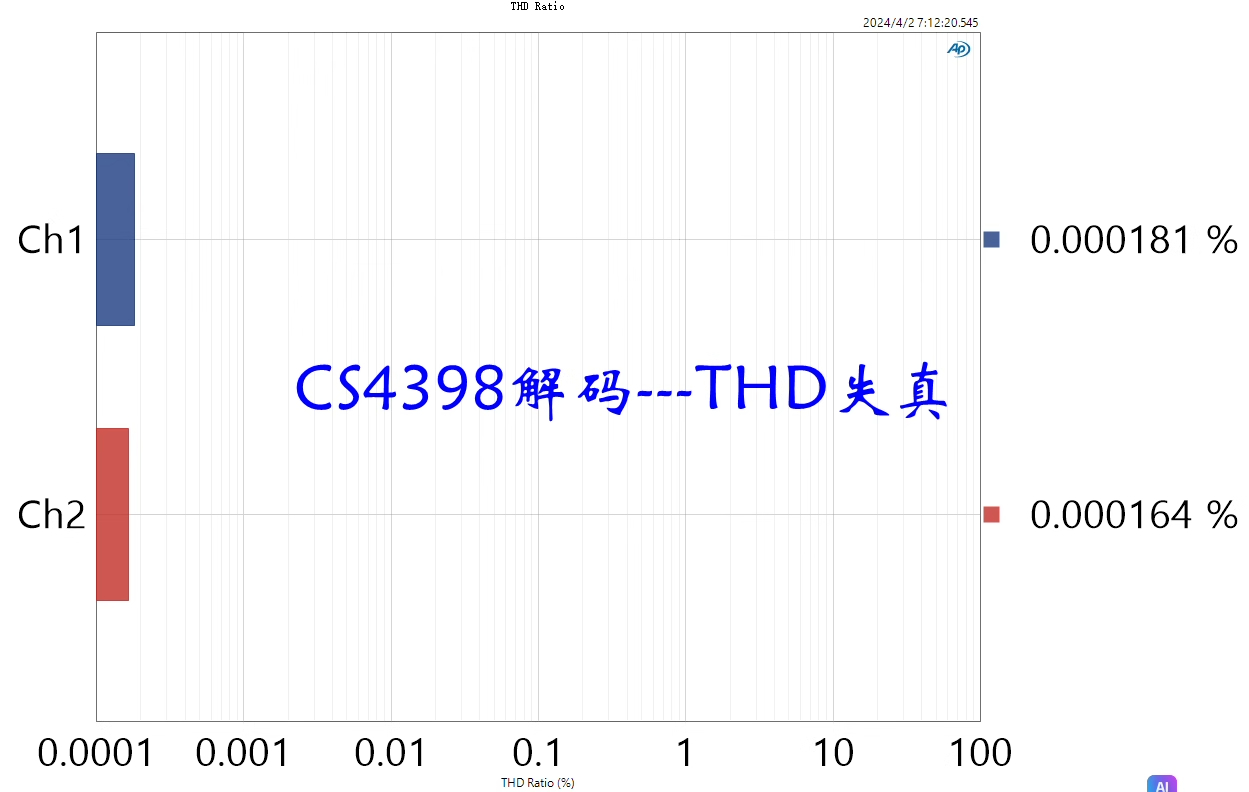

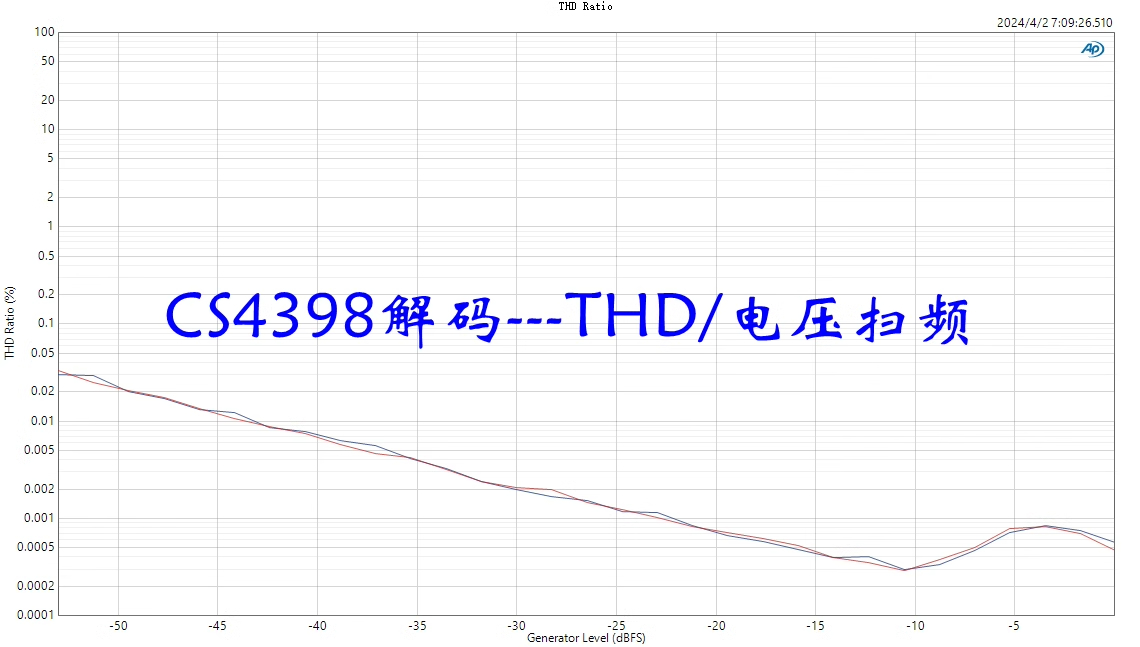

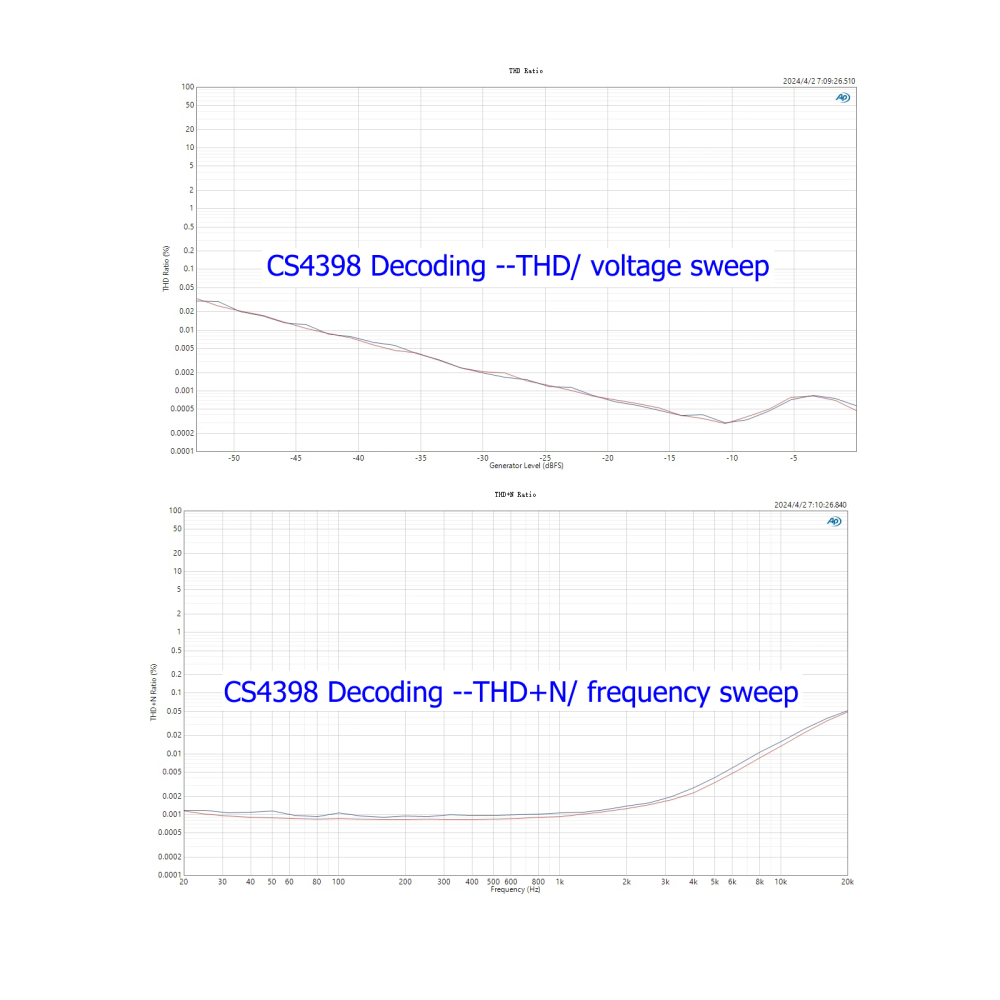

THD distortion: 0.00018%

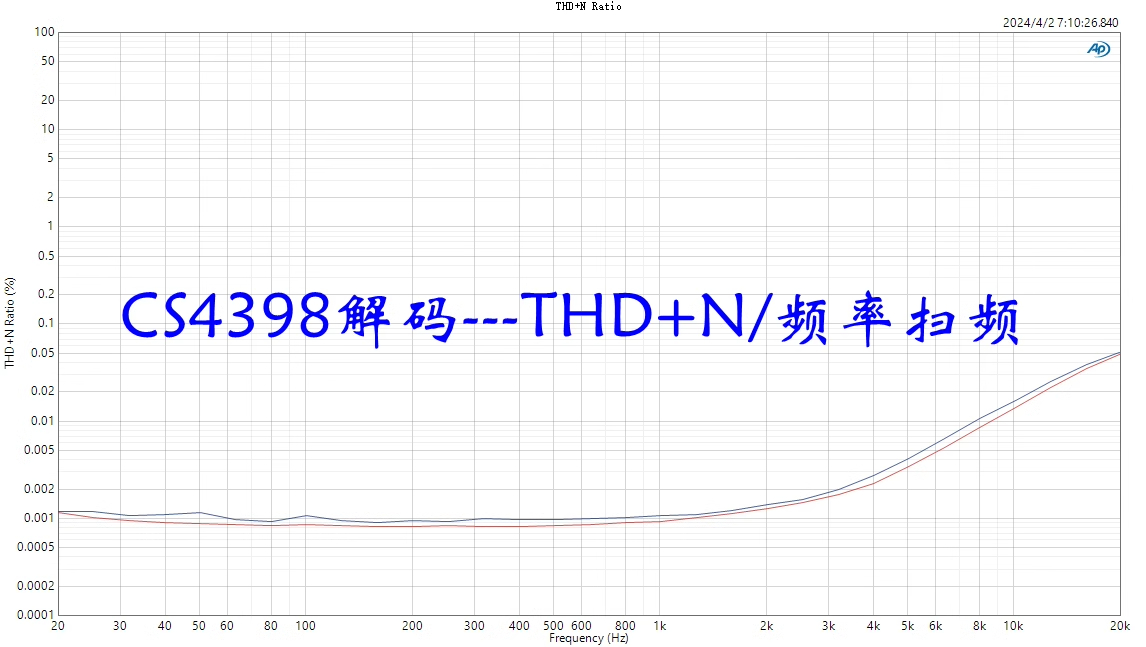

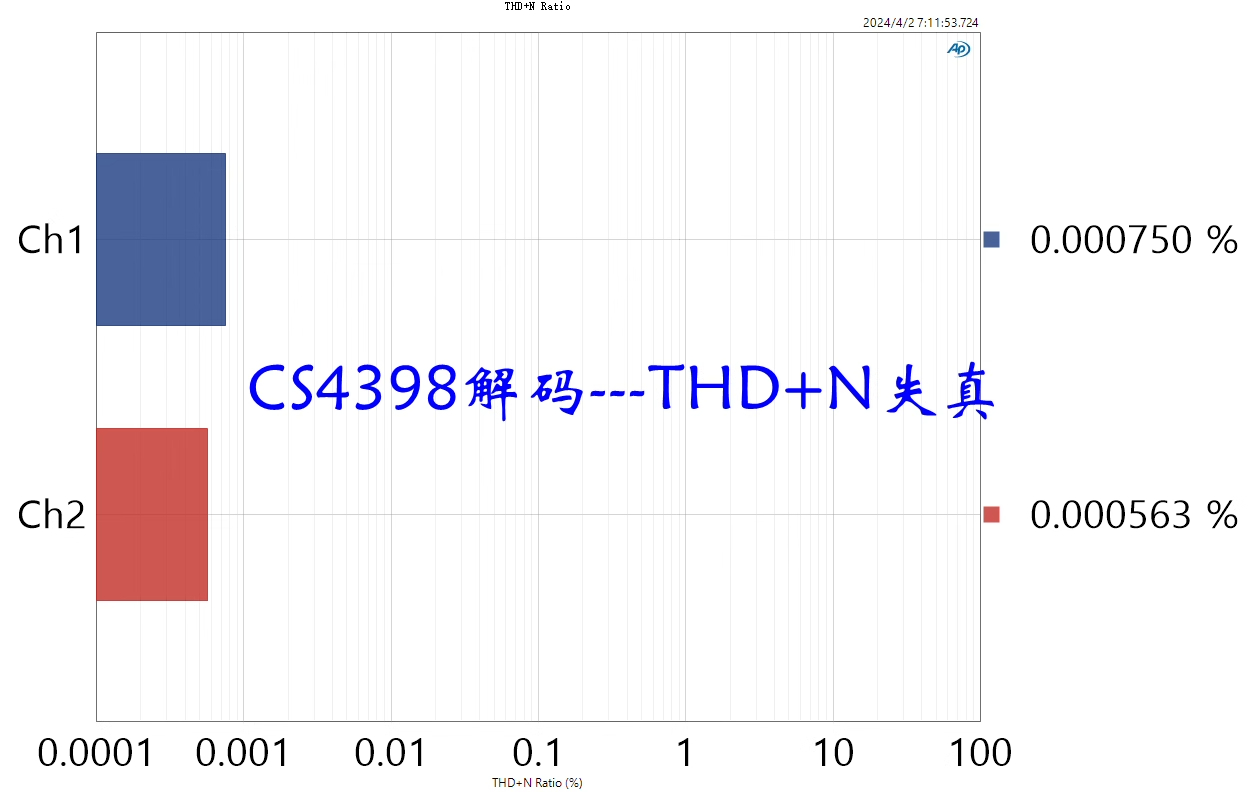

THD+N distortion: 0.00075%

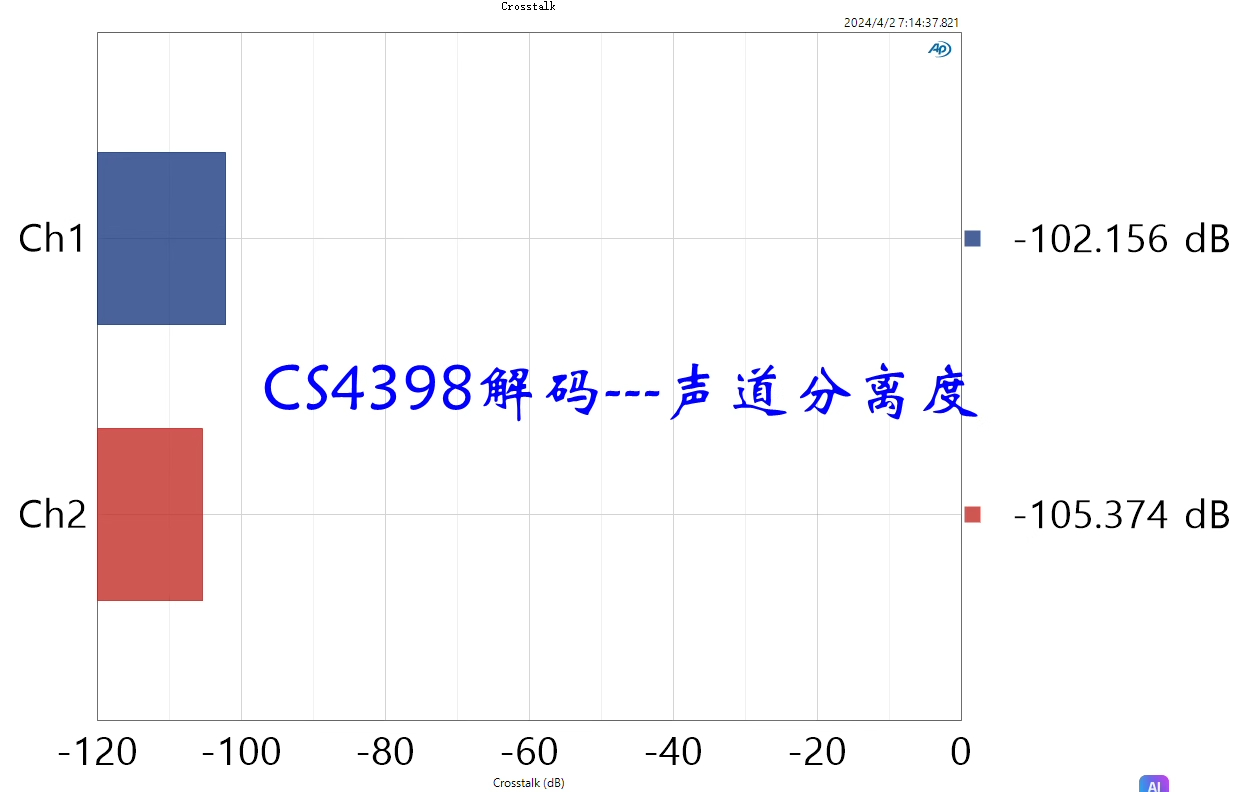

Channel Separation: -105.3dB

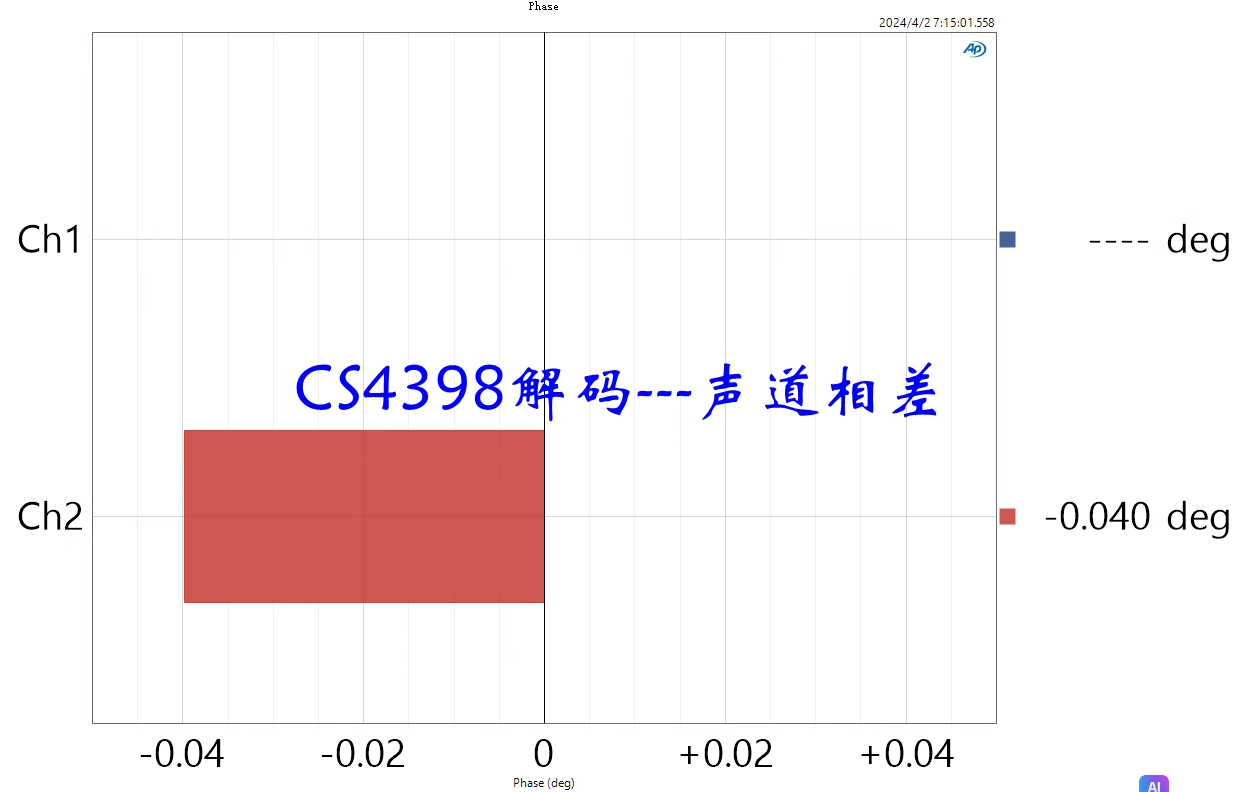

Channel phase difference: -0.04
Basic Parameters

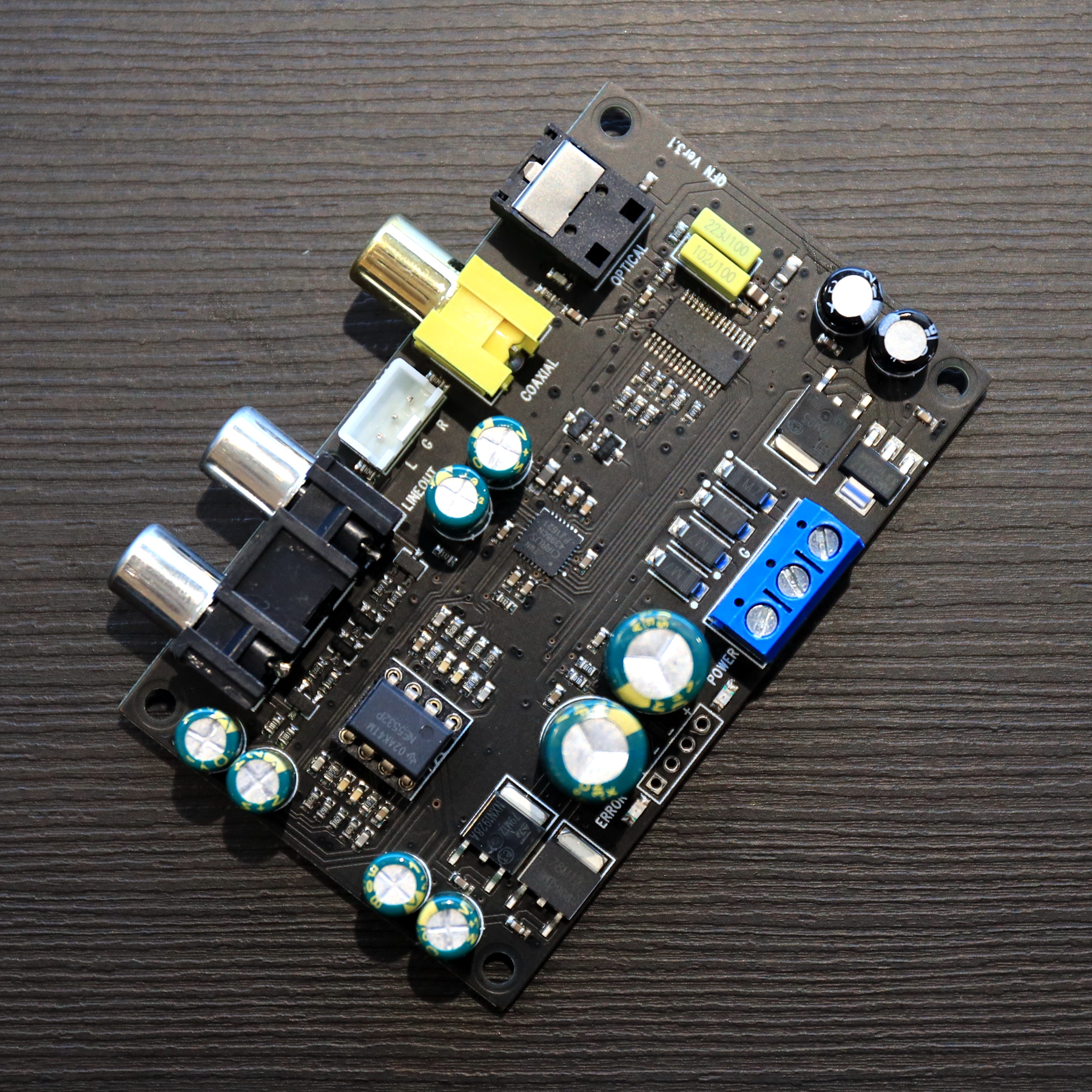

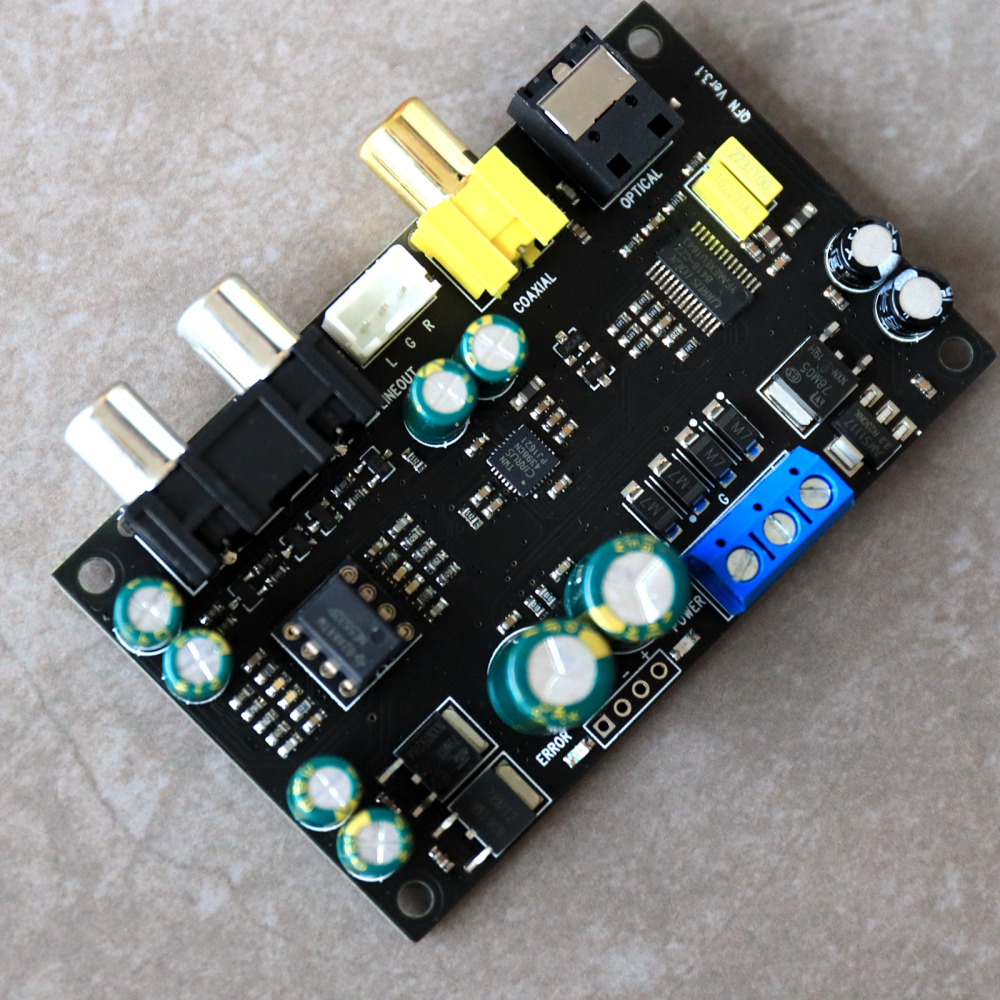

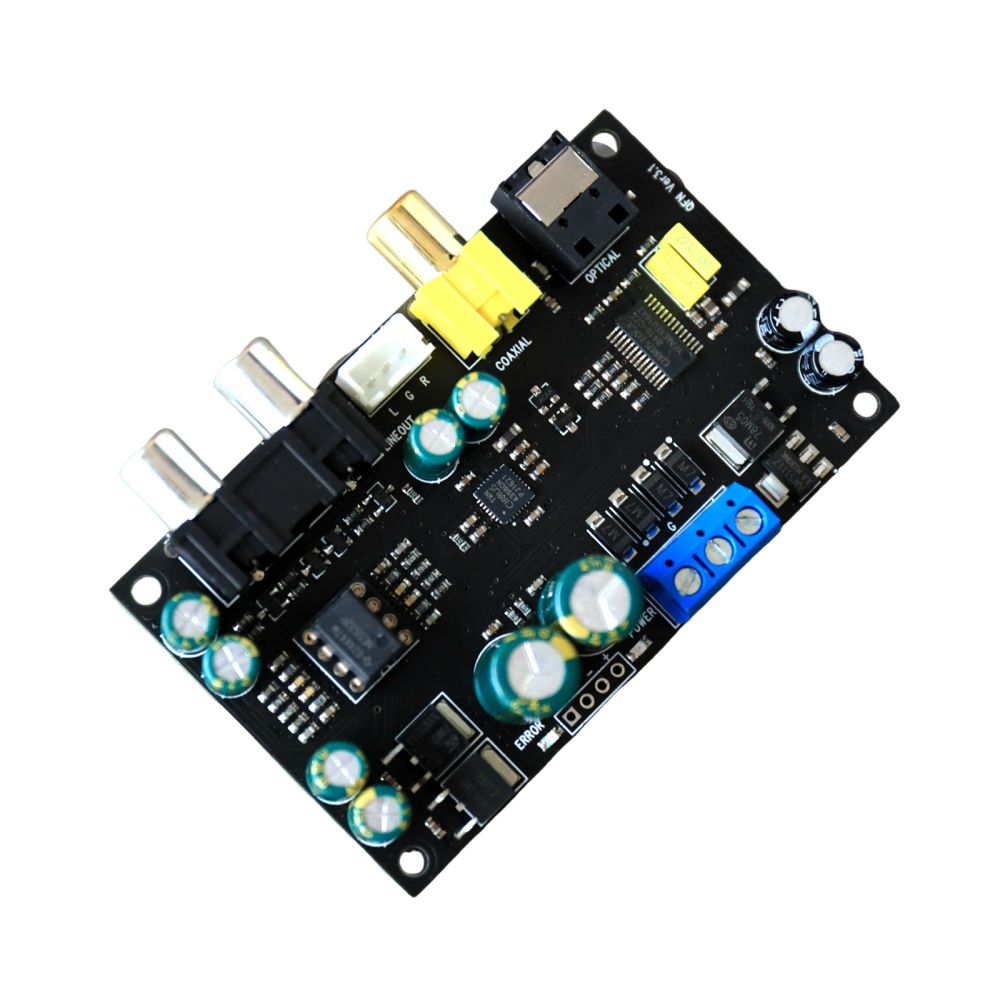

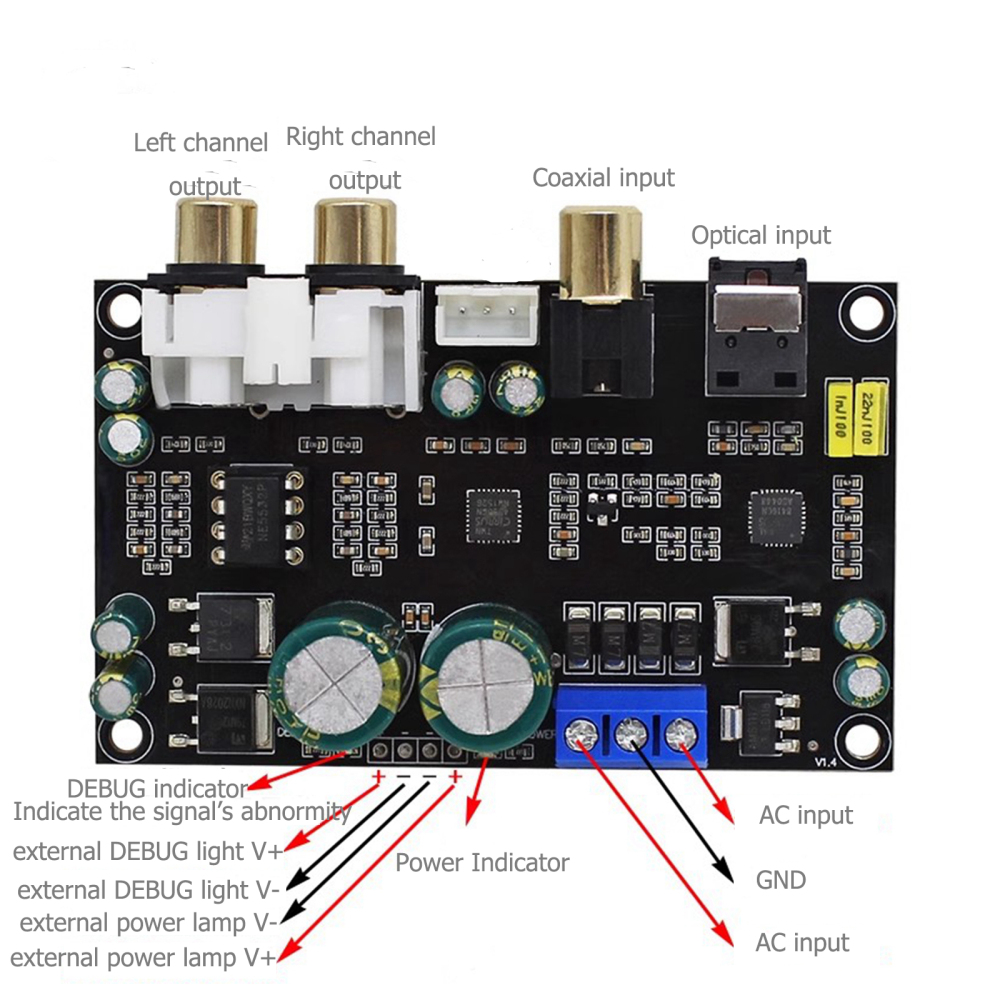

Printed board size: 82*50 mm
22mm high

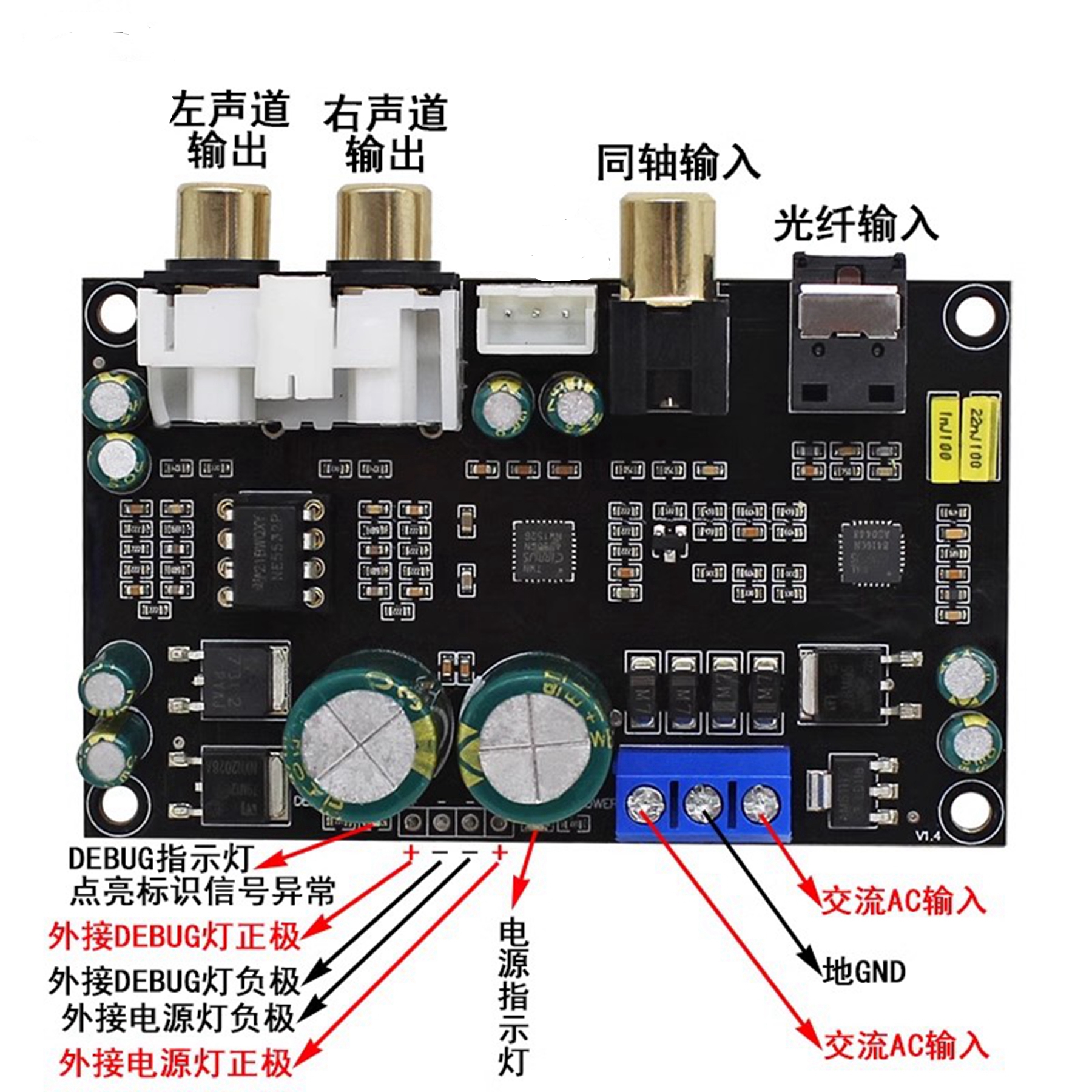

Supply voltage: AC12-15V*2
Recommended AC12V*2
Board weight: 40g
Guarantee and after-sales service
In order to ensure the quality, every finished board will undergo a comprehensive AP test to ensure that it meets the design specifications.

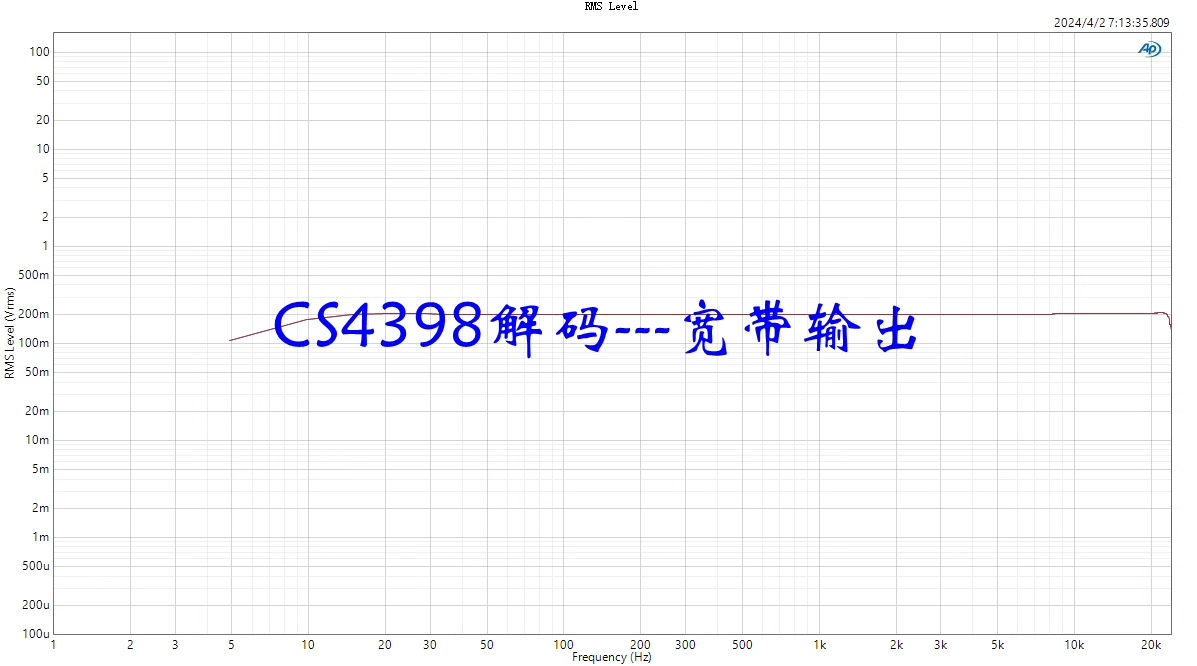

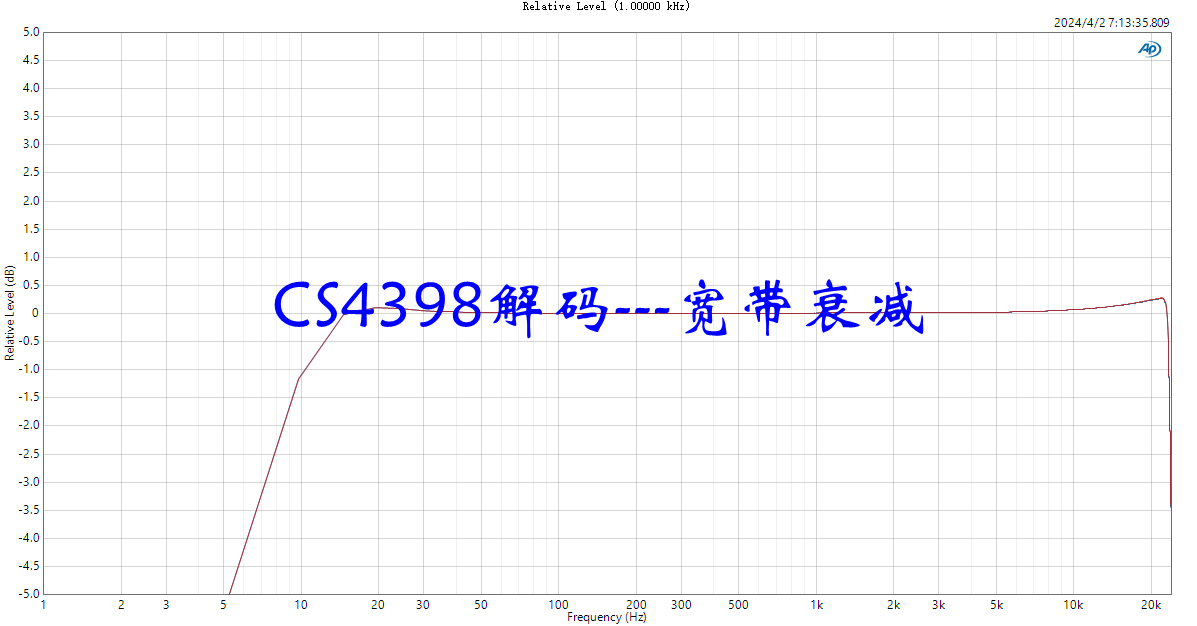

Tests include: bandwidth, noise (signal-to-noise ratio), dynamic range, distortion, intermodulation distortion, channel separation, amplification and so on.
