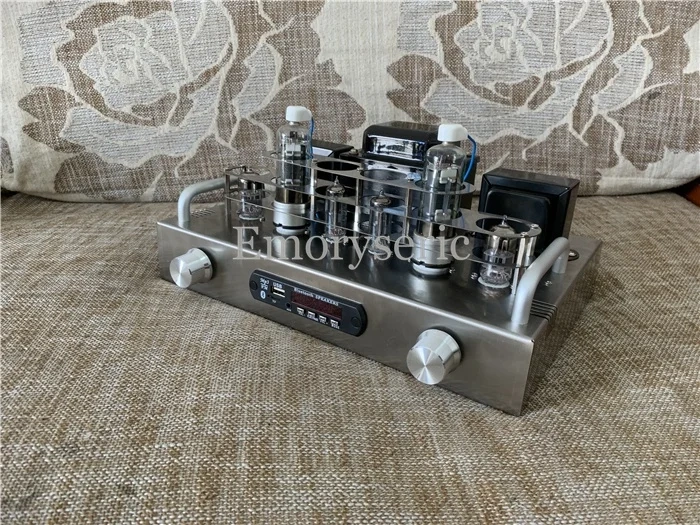

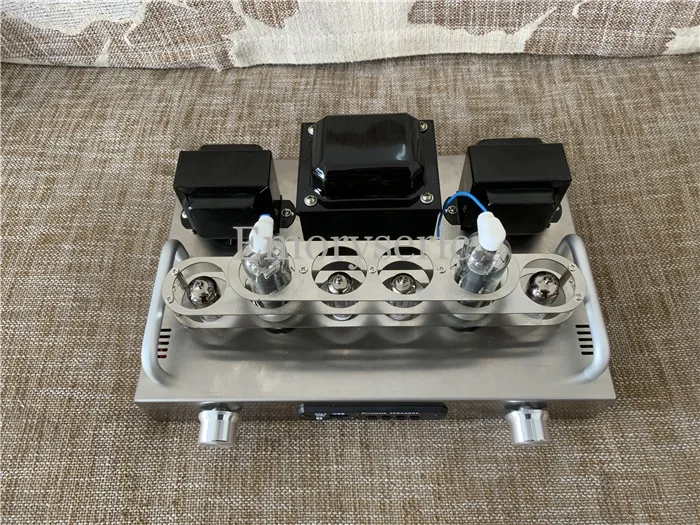

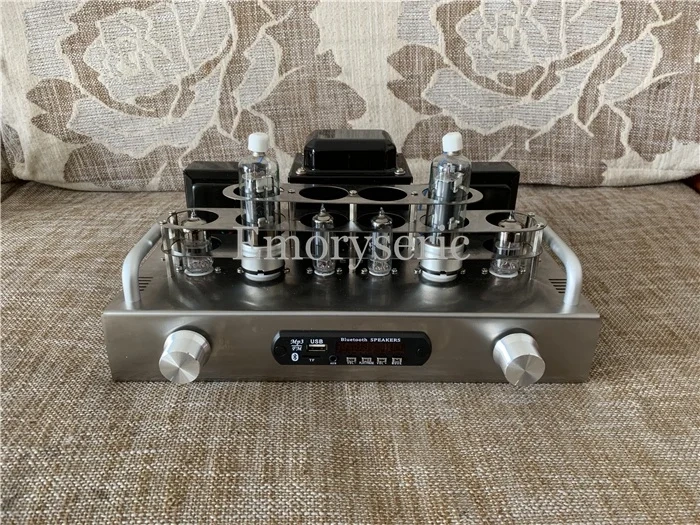

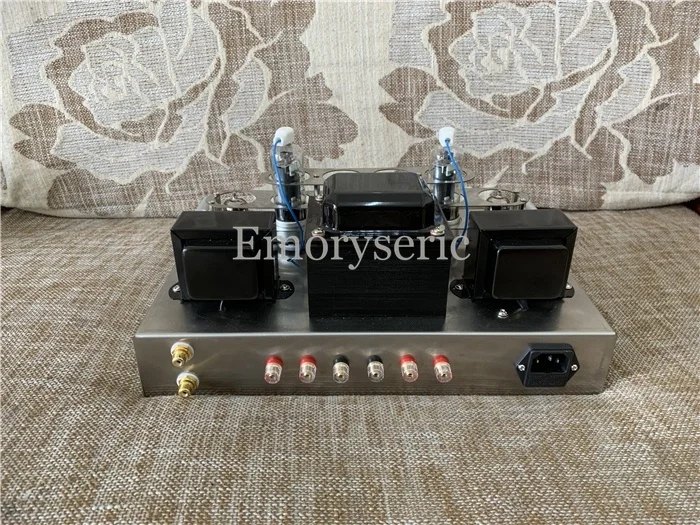

Spartan P1 (6N22+6P13P+6Z42) Tube Amplifier Kit / Finished Product

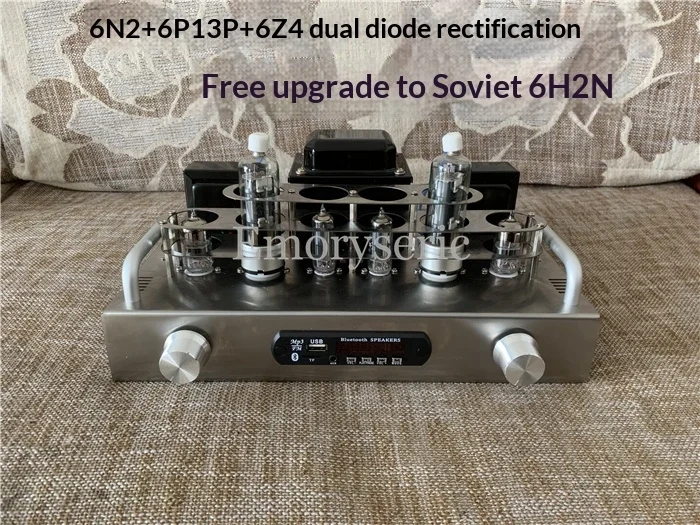

Now Upgraded with Soviet 6H2N Tubes!
In response to strong demand from audiophiles, we proudly present this high-power, high-thrust single-ended tube amplifier, catering to enthusiasts who prefer substantial power. This amplifier upholds the classic advantages of pure tube single-ended design, delivering a warm, rich, and mellow sound that is captivating and enduring.
Effective today, both output transformers have been upgraded to 6645 size. Separate photos will not be provided. This is for your information.
The Bluetooth Deluxe Edition is now available! Features built-in 5.0 Bluetooth supporting lossless transmission, independent power supply to eliminate noise interference, extremely high resolution, and user-friendly operation. Highly recommended!
Specifications:
Power Transformer: 96*60, 185W high power transformer, Brand New Special Grade Laminations * 1
Output Transformer: 66 * 45, 8W, Audiophile 3+2 Winding Method, Brand New Stock Imported Shin-Nittetsu 0.35mm Z11 Laminations * 2
Choke: 57 * 25, 4H, Brand New Special Grade Laminations * 1
Tubes: 6N22 (Upgraded to 6H2N) / 6P13P * 2 / 6Z4 * 2
Output Power: 5.5W + 5.5W
Frequency Response: 20Hz - 20kHz
Output Impedance: 4Ω and 8Ω
Signal-to-Noise Ratio: 90dB
Input Sensitivity: 500mV - 1000mV
Input Impedance: 100kΩ
Harmonic Distortion: 1% (1kHz)
Dimensions: 320mm (L) * 210mm (D) * 160mm (H)
Weight: Net approx. 9KG
Friendly Reminders:
1. Due to the nature of the kit, components cannot be returned or exchanged once soldered. Please check all parts immediately upon receipt. Report any missing or incorrect items within 48 hours. DIY tube amplifier assembly requires basic technical knowledge. We provide circuit diagrams, photos, and comprehensive technical support. If DIY seems challenging, please consider purchasing our finished product.
2. Our products are DIY-oriented and may not achieve absolute perfection. Please contact customer service with any feedback or suggestions, and we will strive to address them.
3. We pack each amplifier with great care. Upon delivery, please inspect the packaging thoroughly first. If damaged, refuse acceptance and contact us immediately. Otherwise, we cannot be held responsible.
4. This tube amplifier does not include a power cord or audio cables.
5. The amplifier MUST be connected to speakers before powering on. The output transformer requires a load; otherwise, it can be easily damaged.
6. Placing an order signifies your agreement to all the above terms and conditions.
