Version Information:
Version 1: 6P1 Dual Meter Premium Edition Kit
Version 2: 6P1 Dual Meter Premium Edition Finished Product
Version 3: Soviet Version 6n1n Dual Meter Premium Edition Kit
Version 4: Soviet Version 6n1n Dual Meter Premium Edition Finished Product
Version 5: 6P1 Dual Meter with Built-in Bluetooth Kit
Version 6: 6P1 Dual Meter with Built-in Bluetooth Finished Product
Version 7: Soviet 6n1n Dual Meter with Built-in Bluetooth Kit
Version 8: Soviet 6n1n Dual Meter with Built-in Bluetooth Finished Product
Version 9: 6P1 with Bluetooth Decoder Board Ultimate Edition Kit
Version 10: 6P1 with Bluetooth Decoder Board Ultimate Edition Finished Product
Version 11: 6P1 Stainless Steel Chassis Kit
Version 12: 6P1 Stainless Steel Chassis Finished Product

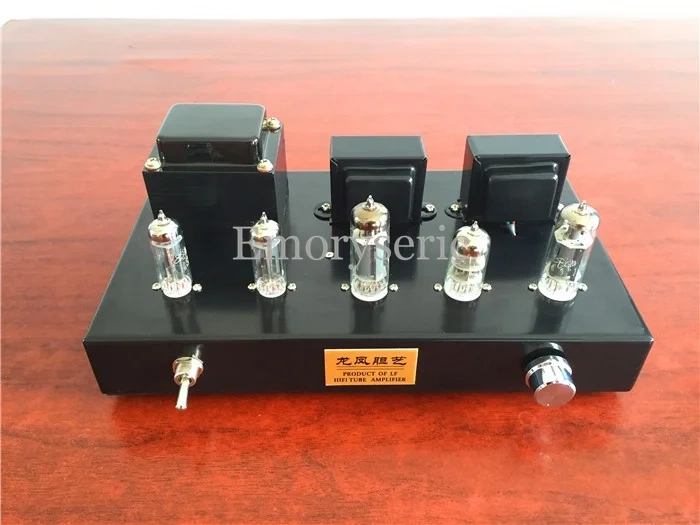

Version 13: 6P1 Black Chassis Kit
Version 14:Soviet Version 6n1n with Bluetooth Ultimate Edition Kit
Version 15:Soviet Version 6n1n with Bluetooth Ultimate Edition Finished Product

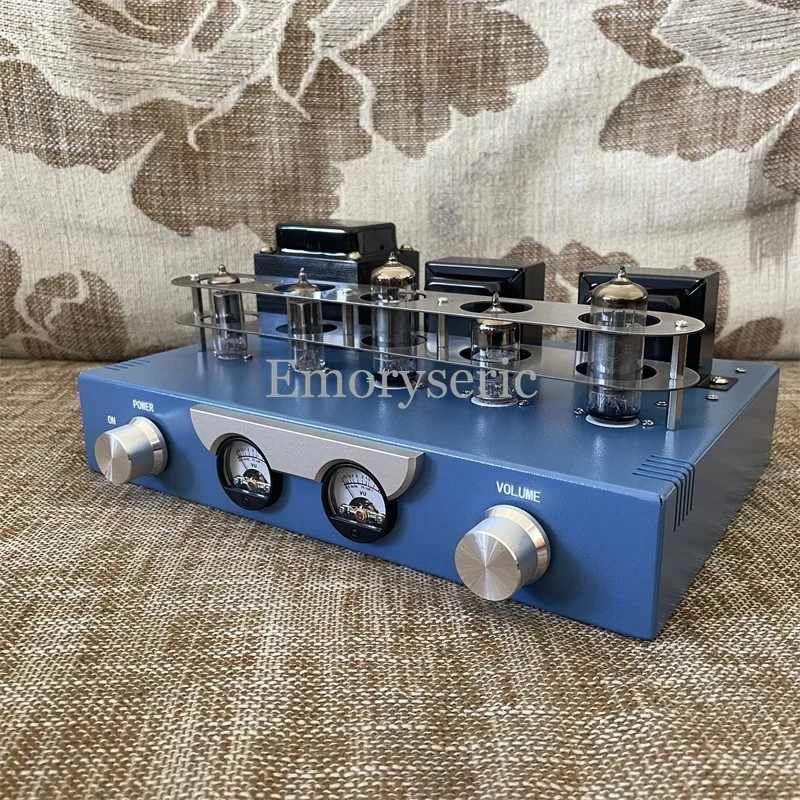

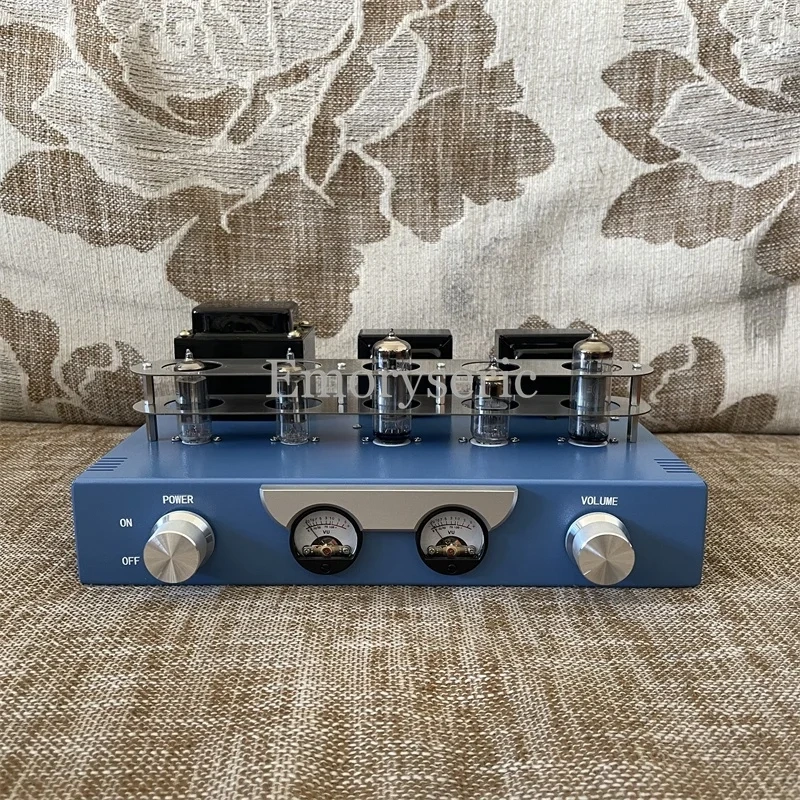

Version 16:Blue Soviet 6n1n Dual Meter No Bluetooth Kit
Version 17:Blue Soviet 6n1n Dual Meter No Bluetooth Finished Product
Version 18:Blue Soviet 6n1n Dual Meter with Built-in Bluetooth Finished Product
Version 19:Blue Soviet 6n1n Dual Meter with Built-in Bluetooth Kit
6N2 Drives 6P1 (Dual 6Z4 Tube Rectification) Kit
6N2 Free Upgrade to Imported Soviet 6H2n (This tube is directly interchangeable with 6N2), Limited Quantity!
Friendly Reminder: 6P1 and 6n1n are directly interchangeable. 6P1 is a domestic tube, while 6n1n is an imported Soviet tube. The 6n1n is superior in both craftsmanship and sound quality.
Soviet Version Tube Set: 6H2n1 + 6n1n2 + 6Z42
Soviet Version with Handle Tube Set: 6H2n1 + 6n1n2

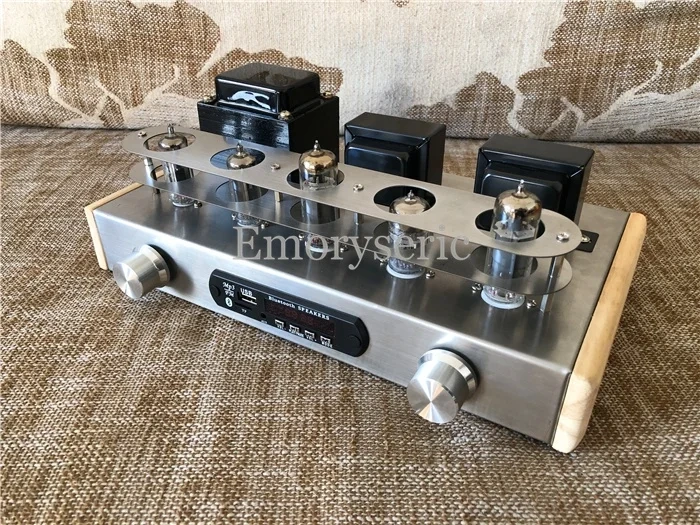

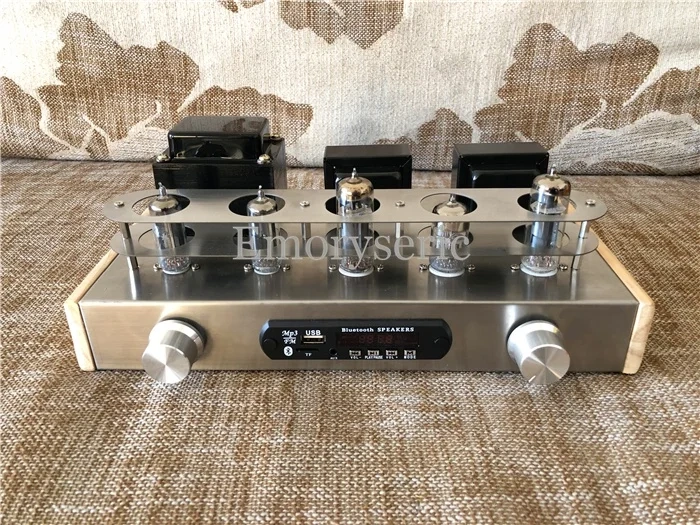

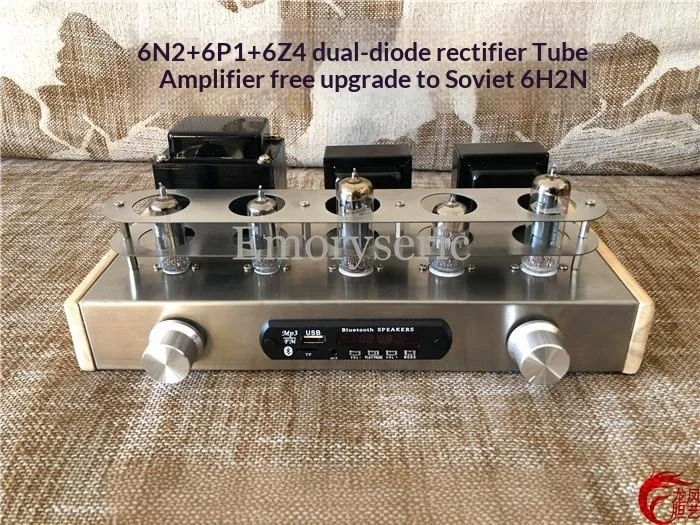

In response to numerous requests from audiophiles, we have deeply collaborated with a Bluetooth manufacturer to co-develop and specially launch a limited edition tube amplifier with a built-in Bluetooth decoder board. This decoder board features independent power supply to eliminate power interference. It supports Bluetooth 5.0 for lossless transmission, lossless decoding (including FLAC, APE, etc.) in USB/TF card mode, AUX (direct audio cable input), and multiple sound effect adjustments. It offers extremely high resolution, outstanding sound quality, and convenient use. Highly recommended!
In response to numerous requests from audiophiles, we now present the Compact Handle Edition 6P1 (Limited Edition), which includes a Bluetooth decoder board.

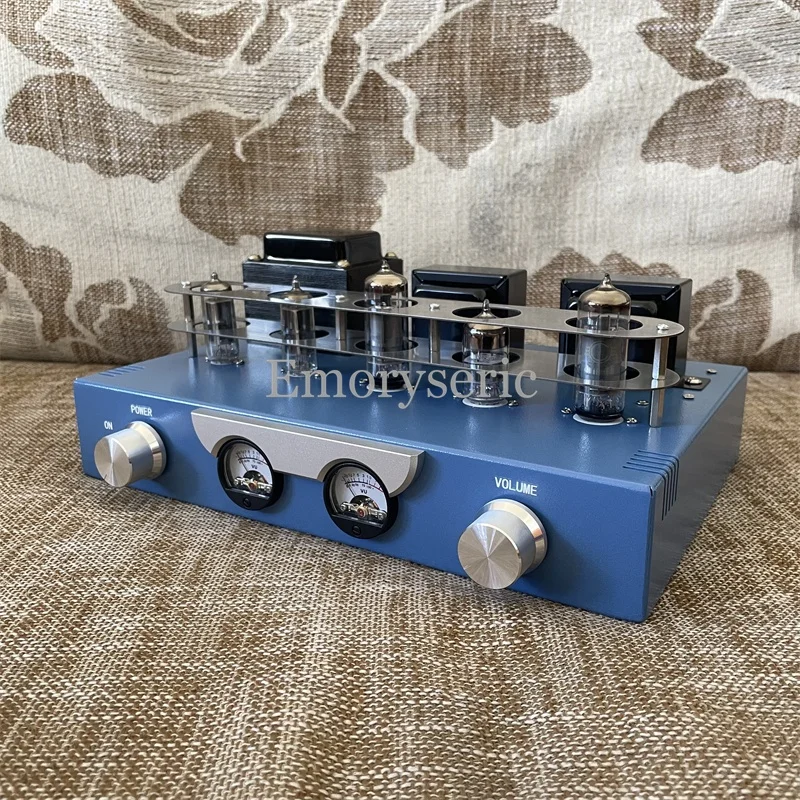

In response to numerous requests from audiophiles, we now present the 6P1 Dual Meter Premium Edition (Limited Edition), aesthetically pleasing, grand, and very beautiful!
Effective today, the side wood panels are upgraded free of charge to rectangular straight panels. The front and back surfaces are finished with high-gloss environmentally friendly varnish, and the cut edges are treated with wood wax oil. This provides a better feel and more distinct lines! Product photos will not be updated separately. Please be informed!
"Tube" refers to the vacuum tube. What people commonly call a "tube amplifier" refers to an amplifier using vacuum tubes, etc. Some tubes are used for amplification, others for tonal enhancement. Tube amplifiers have their unique "tube sound" – warm, easy-listening, with good musicality and atmosphere. Tube amplifiers are the evergreen tree in the audio industry, ancient yet enduring. Their notable advantages are sweet, soft, natural, and intimate sound, especially their large dynamic range and excellent linearity, which are hard to replace with other components.
Characteristics of this unit: The sound features transparent highs, rounded mids, and soft, natural, bass with ample charm.
The transformers used in the kit are all oxygen-free copper (OFC) transformers. The silicon steel sheets are brand-new WISCO special-grade single-crystal steel sheets, resulting in transparent and elegant sound. The coupling capacitors are German Red WIMA audiophile capacitors.
(Friendly reminder: The chassis is DIY with many holes and numerous processes, so minor scratches or dents may occur during machining. Please do not purchase if you are concerned about this.)
The kit consists of separate components that require self-assembly and soldering to function. Please be aware of this.

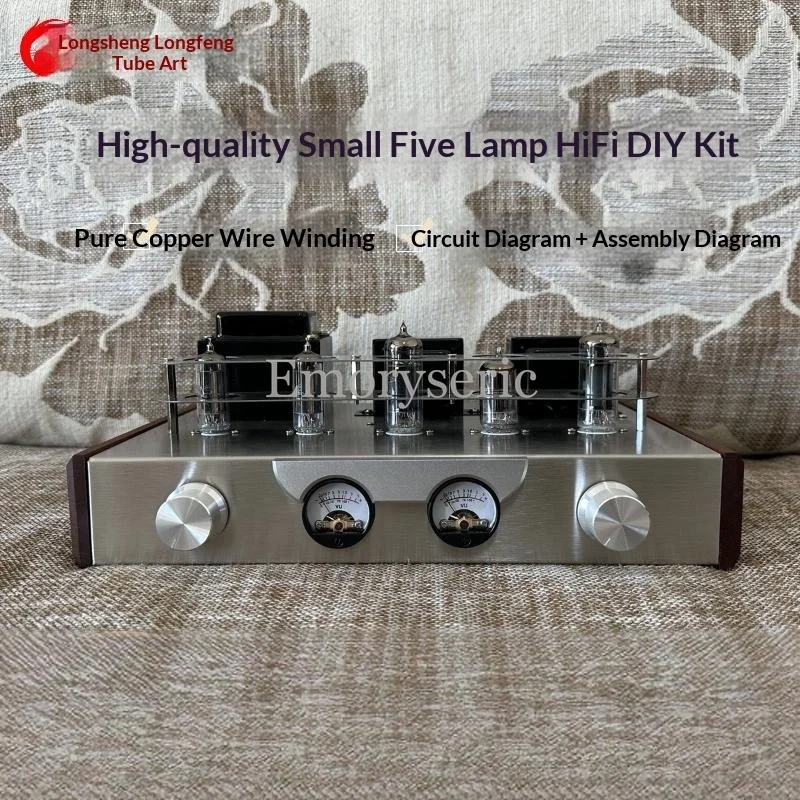

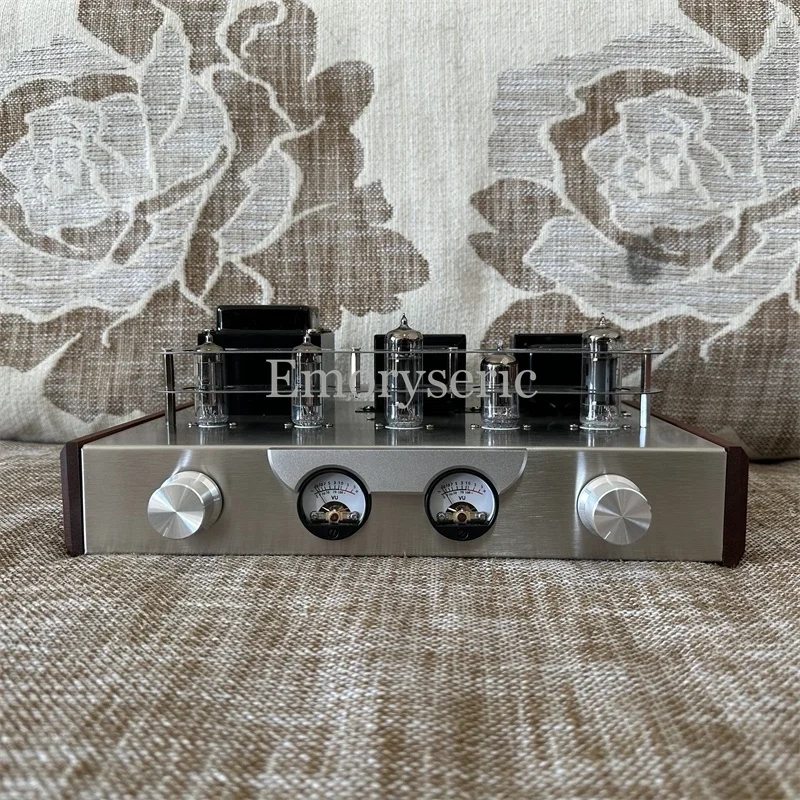

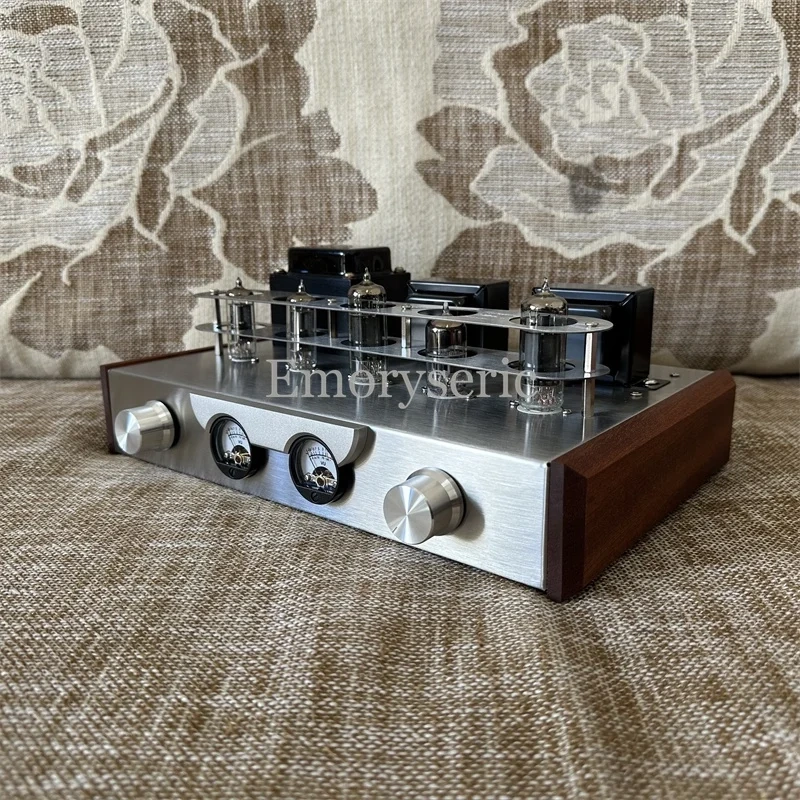

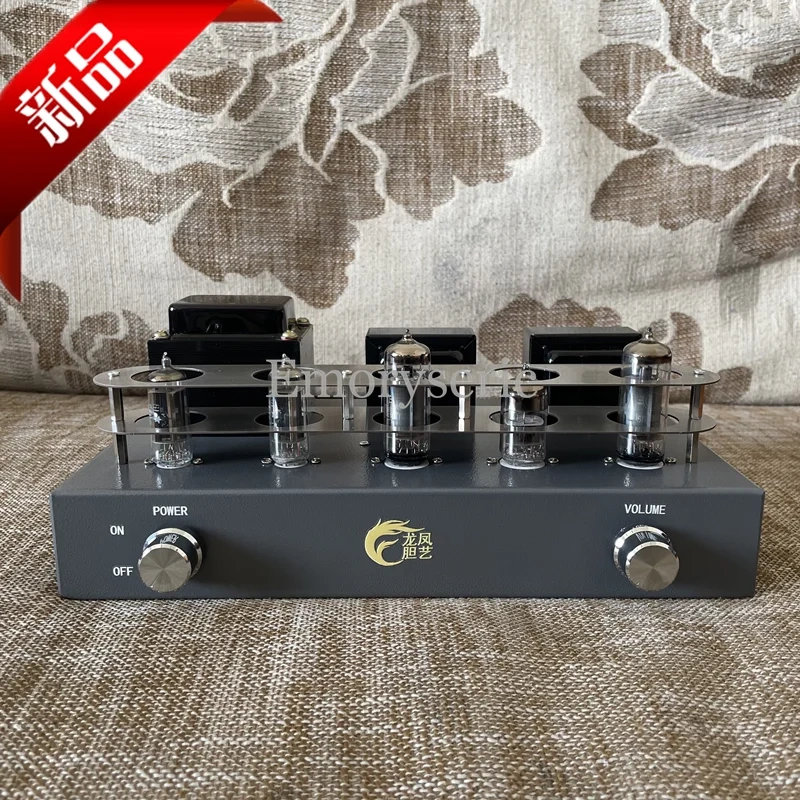

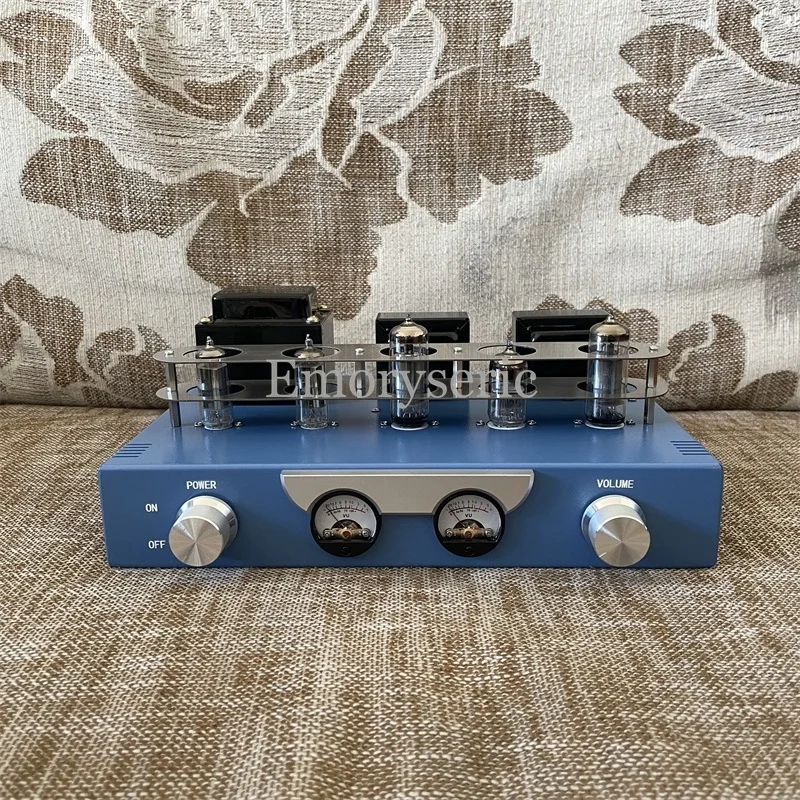

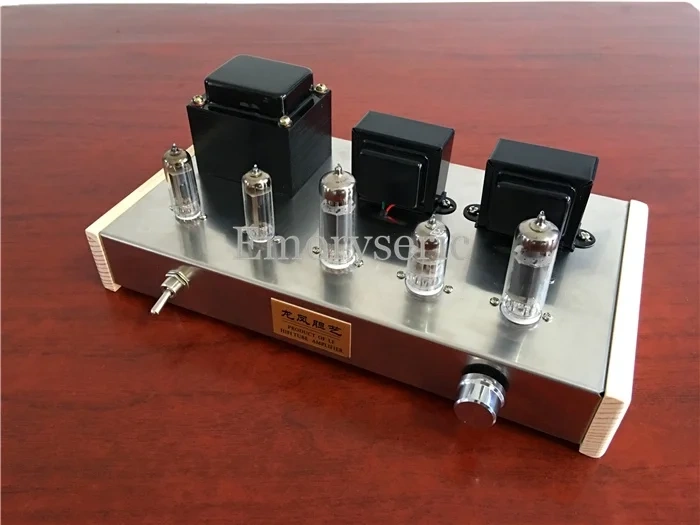

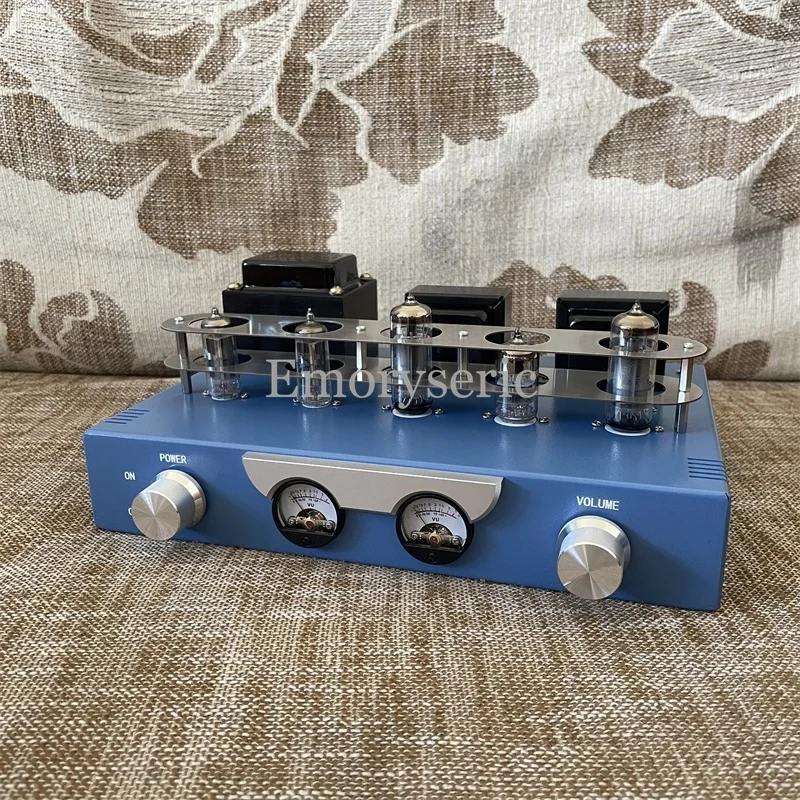

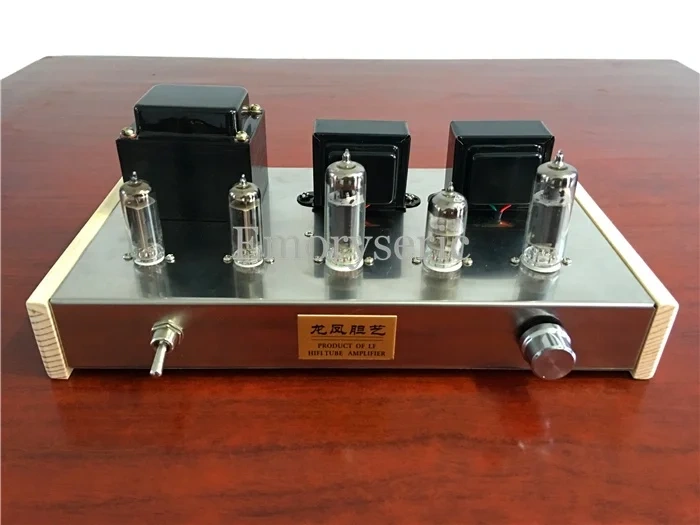

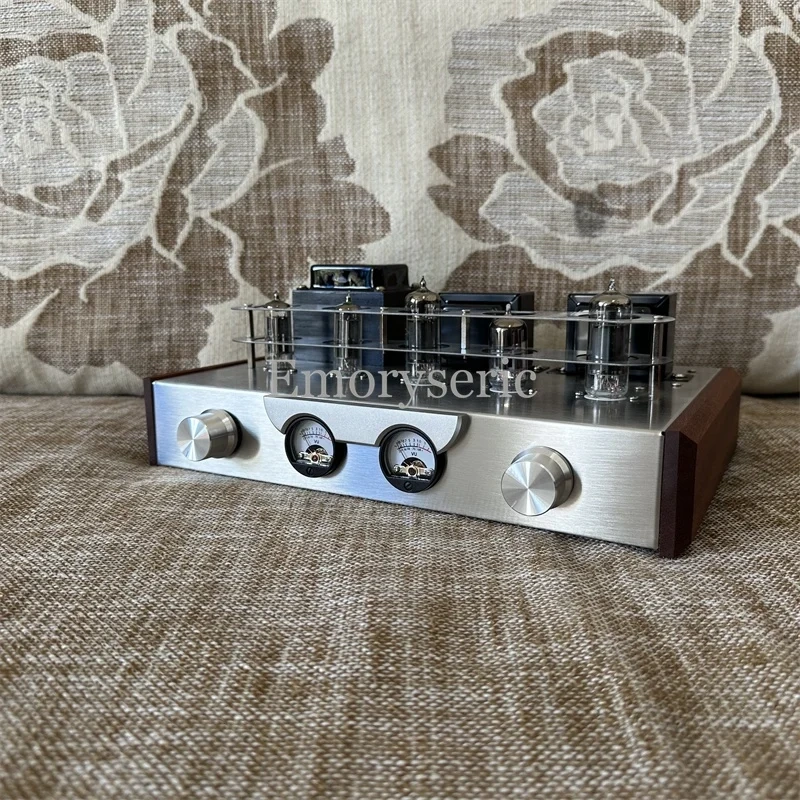

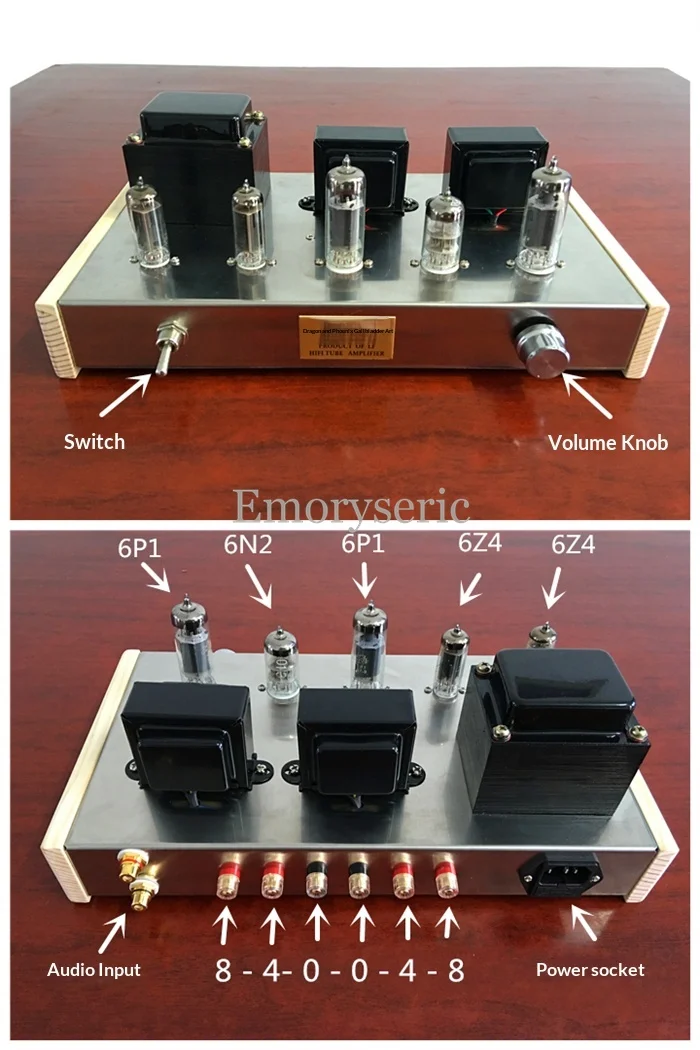

Below is the tube amplifier display:
Kit Components List:
Chassis 1
Chassis Feet 4
Bottom Plate 1
Self-tapping screws (assorted)
Power Transformer 1
Primary: 230v-0v 0.15a / Secondary: 240v-0v 3.15v-0v-3.15v 3a 7650 Power 100W (Rated Power 85W)
Output Transformers 2 (Primary 5k / Secondary: 0-4 Ohm-8 Ohm / Output Power 5W / Special-grade sheets)

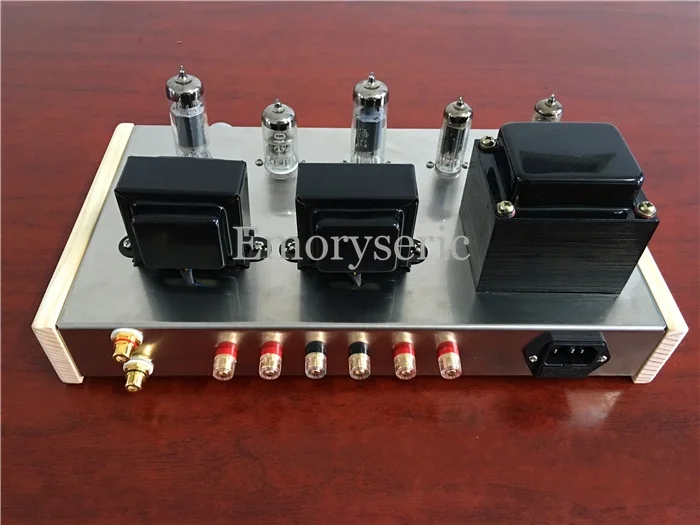

Signal Input Jacks 2
Output Binding Posts 6
Power Socket 1 (with fuse)
Power Cable (to be provided by customer, standard computer power cable)
Switch 1
100K Potentiometer 1
Potentiometer Knob 1
6Z4 Vacuum Tubes 2
6N2 Vacuum Tube 1
6P1 Vacuum Tubes 2
Miniature 7-pin Tube Sockets 2
Miniature 9-pin Tube Sockets 3
0.33uf/450v Capacitors 2
100uf/35v Capacitors 2
220uf/450v Capacitors 2
33uf/250v Capacitors 2
150k Resistors 2
2k Resistors 2
36k Resistors 2
18k Resistors 2
470K Resistors 2
240 Ohm 5W Resistors 4
Dual-core Shielded Cable 30cm
Heat-shrink Tubing 15cm
Solder Wire 2m
3mm, 4mm Screws and Nuts (assorted)
Longfeng Tube Art LOGO 1
Cable Ties 5
-----
Friendly Reminders
1. Due to the special nature of the kit, components cannot be returned or exchanged once soldered. Please check all items immediately upon receipt. Contact customer service within 48 hours for any missing or incorrect items. DIY tube amplifier assembly requires a certain level of foundational knowledge. Our store will provide schematics, photos, and comprehensive technical support. If you find DIY challenging, you may purchase the finished product from our store.
2. Our store sells DIY products, which are difficult to make perfect or extremely flawless. If you have any opinions or suggestions, please contact customer service, and we will strive to resolve them.
3. We will carefully pack each tube amplifier. Upon receiving the goods, please inspect the packaging first. If damaged, refuse delivery and contact our store immediately; otherwise, we may be unable to assist.
4. This tube amplifier does not include a power cable or audio cables.
5. The tube amplifier must be connected to speakers before powering on, as the output transformer requires a load. Otherwise, it is very easy to burn out the output transformer!
6. Placing an order indicates your agreement to the above terms and conditions.
