Version Description:
Version1: Spartan X1 Headless Kit
Version2: Spartan X1 Headless Finished Product

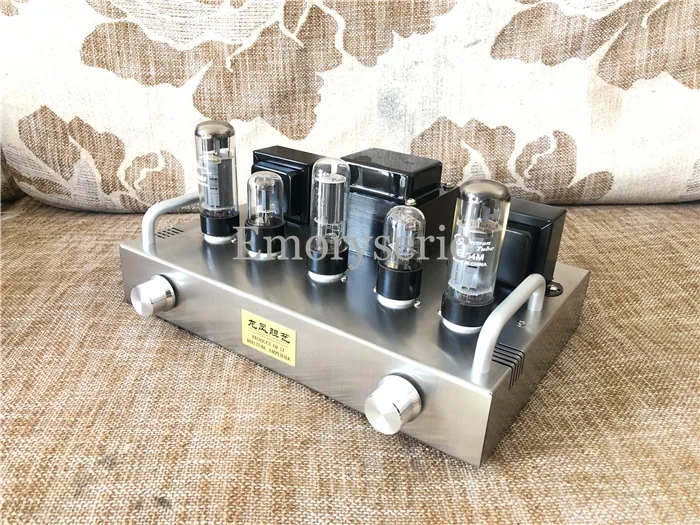

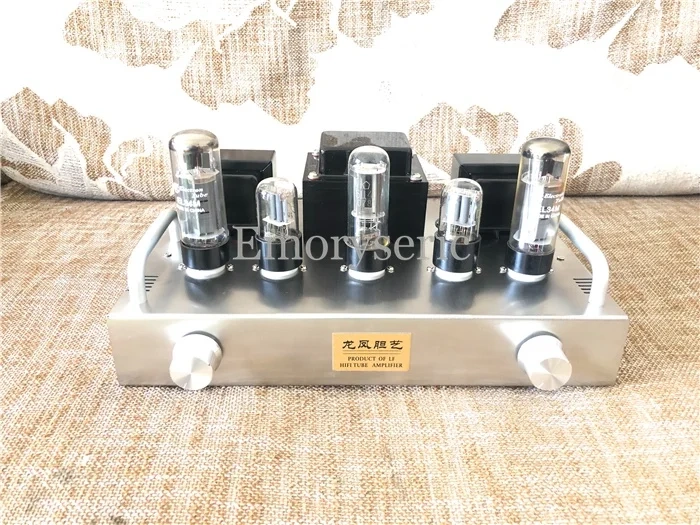

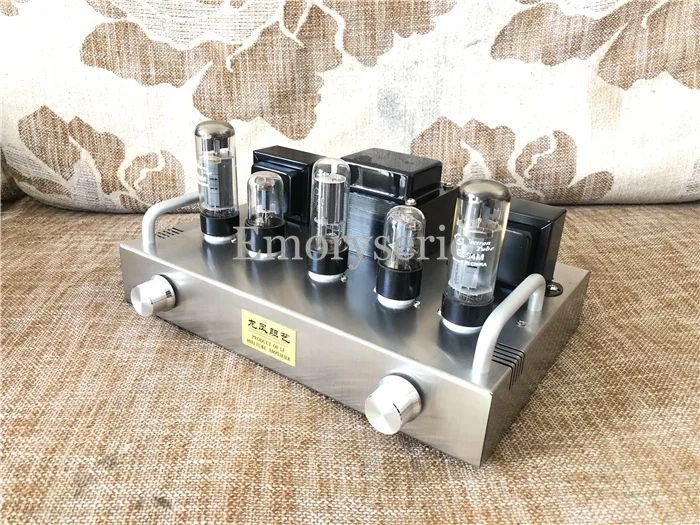

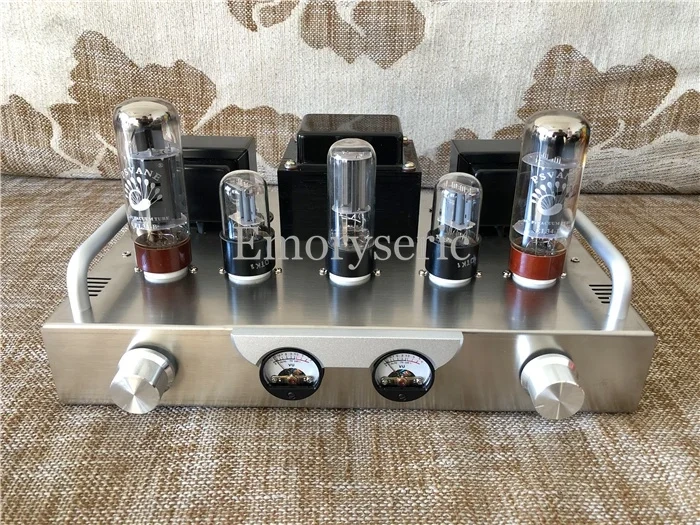

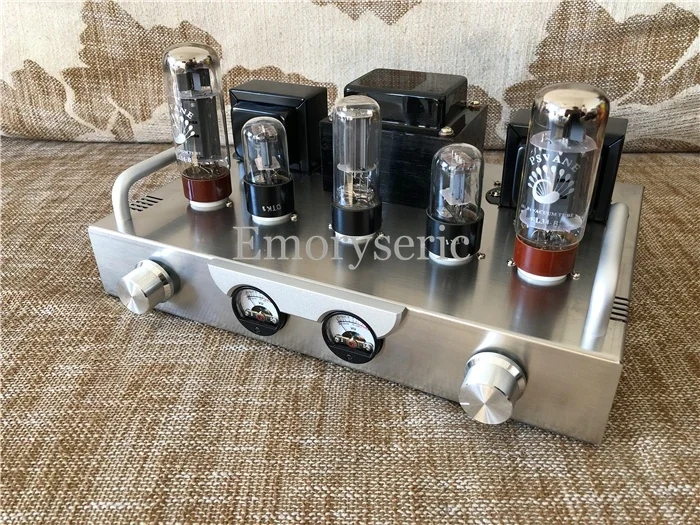

Version3: Stainless Steel Version with Head Kit
Version4: Stainless Steel Version with Head Finished Product

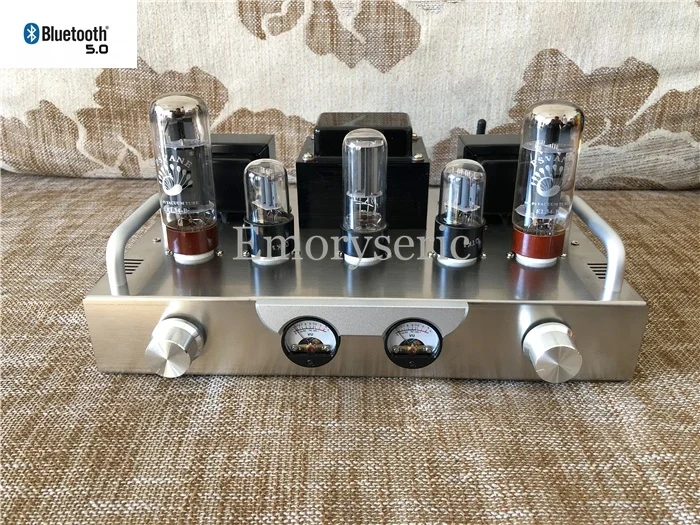

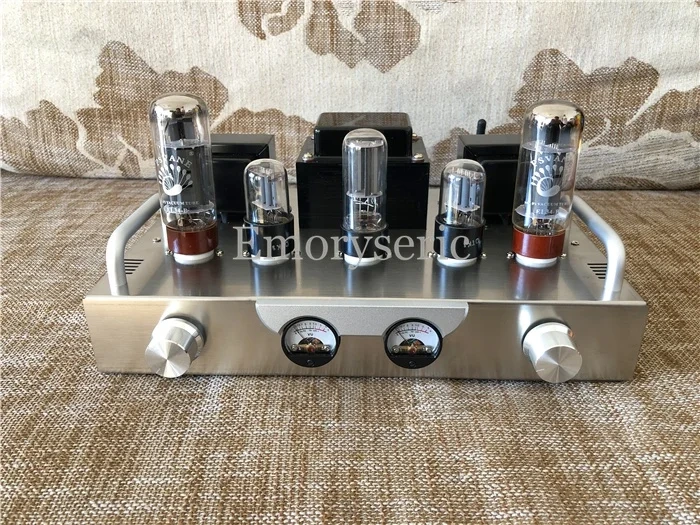

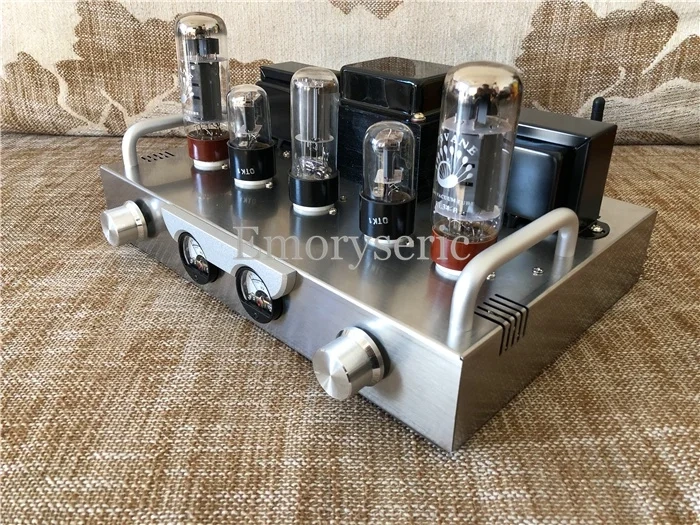

Version5: Built-in 5.0 Bluetooth Version Kit
Version6: Built-in 5.0 Bluetooth Version Finished Product

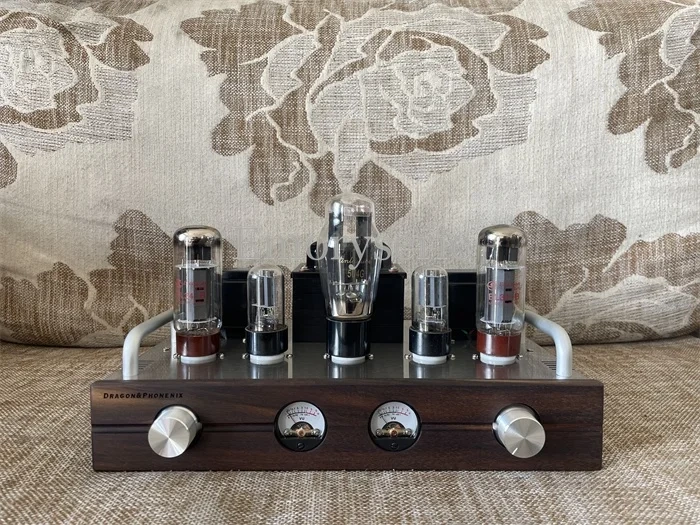

Version7: Retro Premium Version with Head, No Bluetooth Kit
Version8: Retro Premium Version with Built-in Bluetooth Kit
Version9: Retro Version Dual Head, No Bluetooth Finished Product
Version10: Retro Version Dual Head with Bluetooth Finished Product

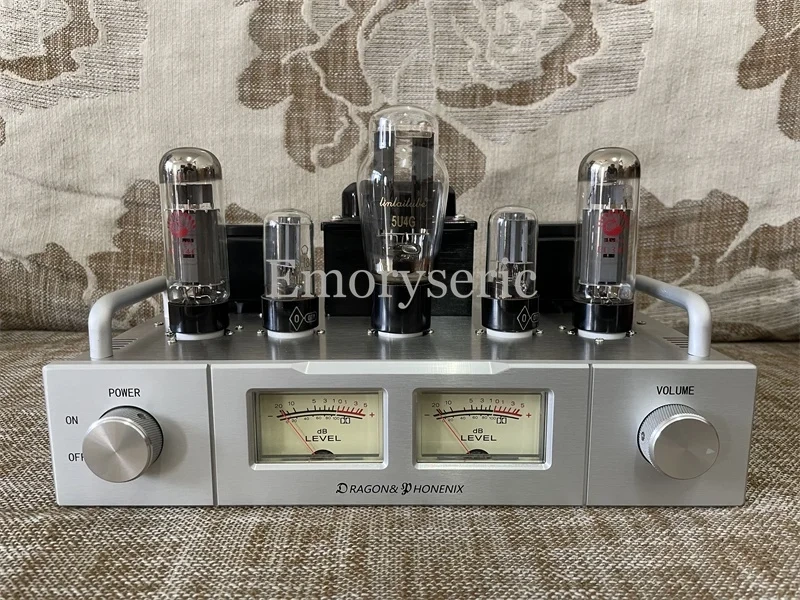

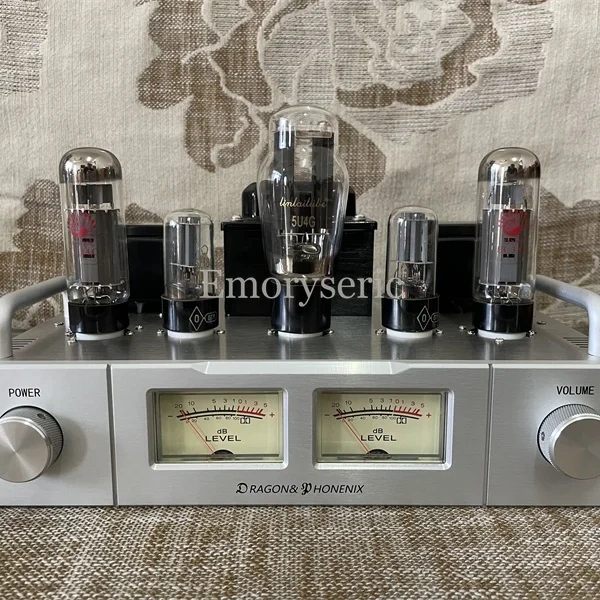

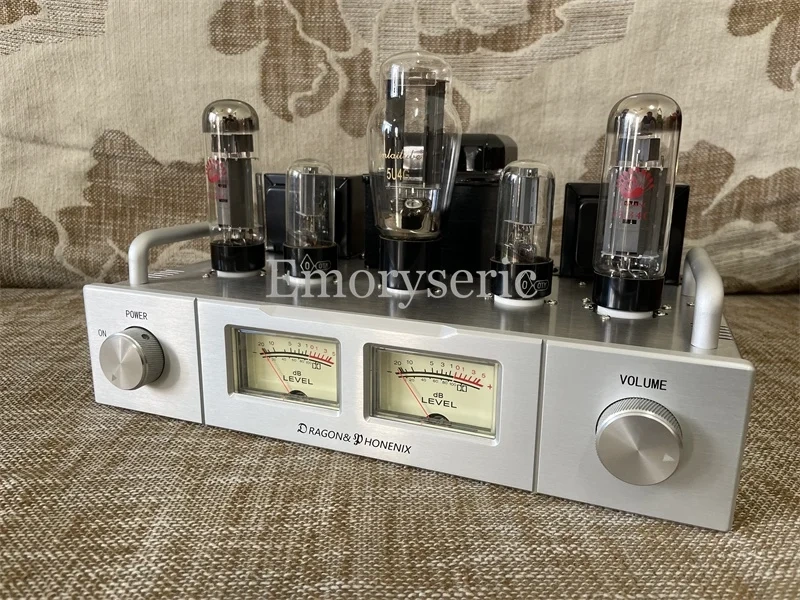

Version11: Square Head Premium Version No Bluetooth Kit
Version12: Square Head Premium Version No Bluetooth Finished Product
Version13: Square Head Premium Version with Built-in Bluetooth Kit
Version14: Square Head Premium Version with Built-in Bluetooth Finished Product

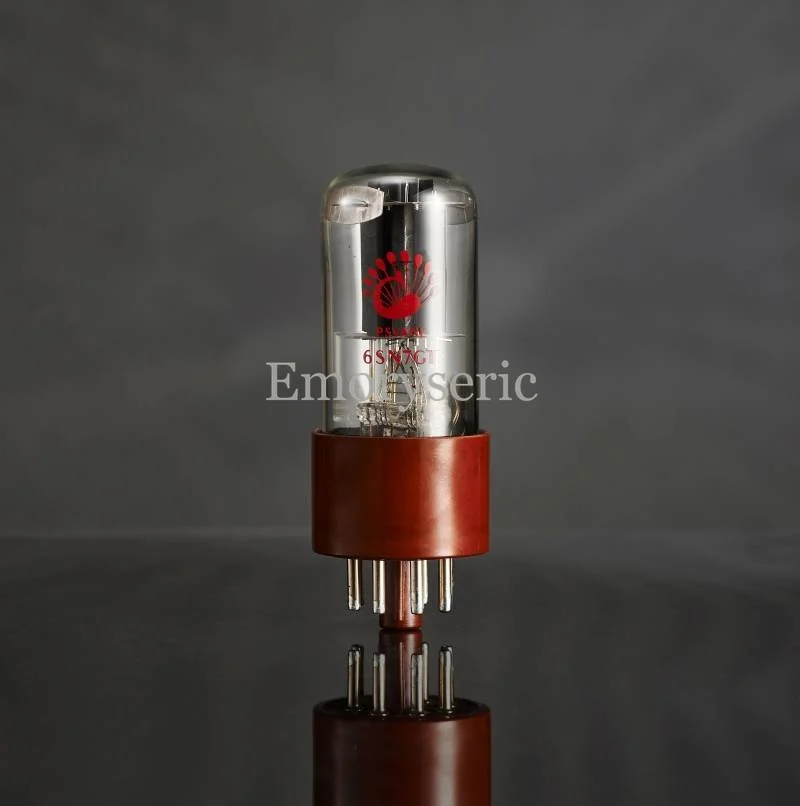

The 6N9P has been upgraded to the Noble 6SN7GT! The rectifier tube straight rod 5U4C is uniformly upgraded to the gourd-shaped 5U4G! The output transformers are upgraded to 6645! No additional photos will be taken, please be informed!
In response to the strong demand from audiophiles, we are launching this high-power, high-drive single-ended tube amplifier to satisfy friends who prefer high-power tube amplifiers. This unit inherits the advantages of pure tube single-ended designs, delivering warm, mellow, and captivating sound that lingers beautifully!

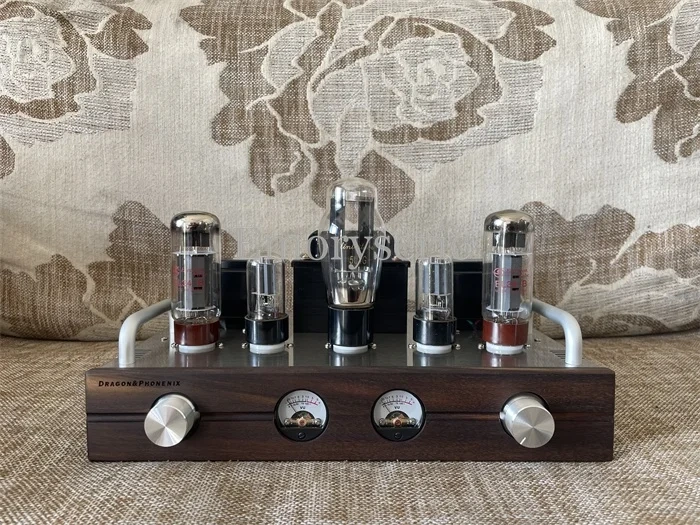

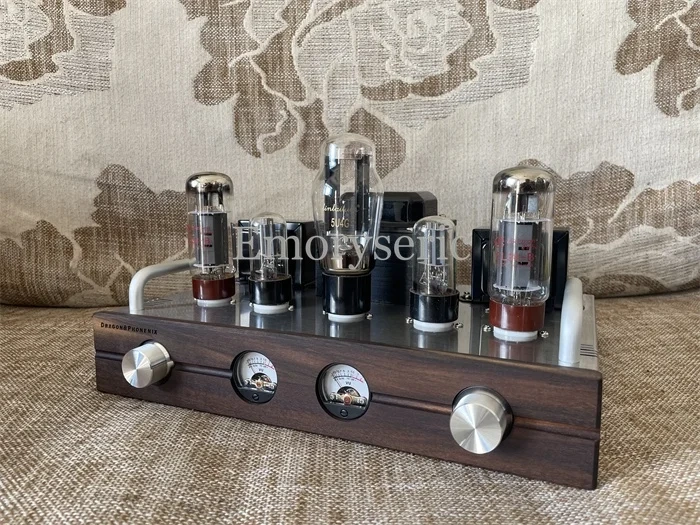

The front panel of the Retro version is made of solid wood. Please note that the color and grain may vary.

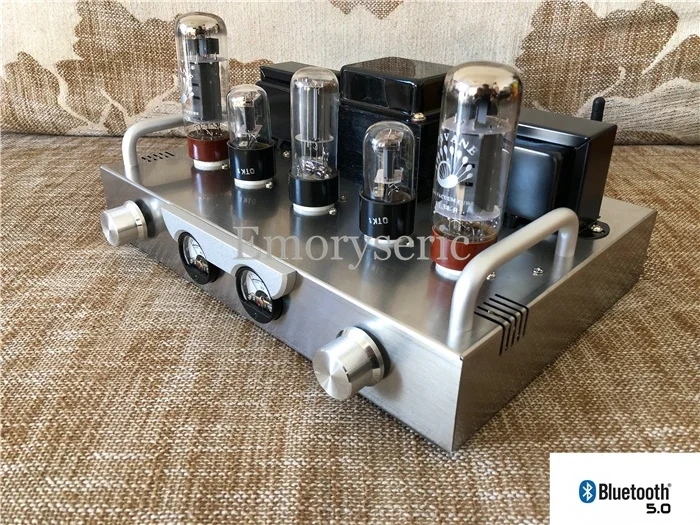

We have now launched the Bluetooth Luxury Edition, featuring built-in 5.0 Bluetooth, support for lossless transmission, independent power supply to eliminate noise interference, extremely high resolution, and convenient use. Highly recommended!
Specifications:
Power Transformer: 9660, 185W super high power transformer , brand new special-grade laminations* 1
Output Transformer: 6645, audiophile 3+2 winding method, brand new stock imported 0.35 Z11 laminations* 2
Choke Coil: 5725, 4H, brand new special-grade laminations*1
Vacuum Tubes: Noble 6SN7GT 2 / EL34 2 (Brands are Psvane and Shuguang, shipped randomly) / 5U4G*1
Output Power: 6.5W + 6.5W
Frequency Response: 20Hz - 20kHz
Output Impedance: 4 ohms and 8 ohms
Signal-to-Noise Ratio: 90dB
Input Sensitivity: 500mV - 1000mV
Input Impedance: 100kΩ
Harmonic Distortion: 1% (1kHz)
Dimensions: 320mm (L) *210mm (D) *160mm (H)
Weight: Net weight approx. 9KG
