Immerse yourself in the legendary sound of the 300B vacuum tube. This stereo amplifier set delivers the warm, lush, and emotionally engaging audio that tube enthusiasts cherish. Meticulously crafted with a split mono block design and pure hand-wiring, it offers an unparalleled pure Class A listening experience that brings your music to life.
Pure Class A Single-Ended Design: The pinnacle of tube amplifier topology, known for its sweet, even-order harmonic distortion and sublime musicality.
Legendary Tube Complement: Utilizes the revered 300B for power output, the 6SN7 for driver duty, and the 5U4G for rectification, creating a classic and highly sought-after sonic signature.
Fully Hand-Wired Point-to-Point Construction: No printed circuit boards (PCB) here. This traditional method ensures superior durability, better heat dissipation, and shorter signal paths for purer sound.
High-Quality Output Transformers: Custom-wound using Japanese Z11 (or equivalent) silicon steel sheets with a 3+2 layered and segmented winding technique, ensuring wide frequency response and powerful, detailed bass.
Split Mono Block Design: Two separate chassis for left and right channels virtually eliminate crosstalk, resulting in a vast soundstage and precise stereo imaging.

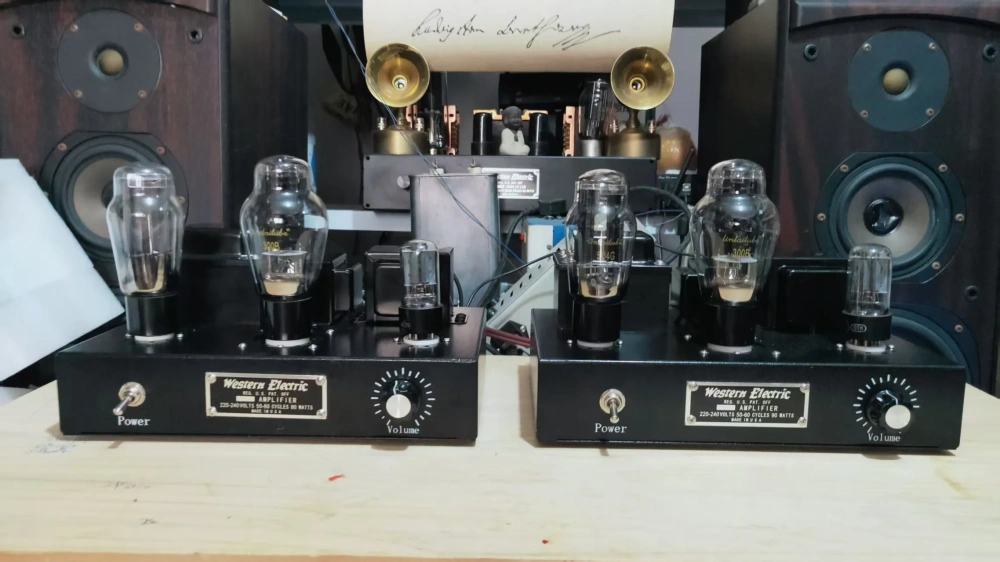

Model: 6SN7 + 300B Single-Ended Class A Stereo Amplifier Set
Output Power: 8 Watts x 2 (RMS)
Output Impedance: 0-4-8 Ohms (x2, one for each channel)
Frequency Response: 19Hz - 26,000Hz
Total Harmonic Distortion (THD): <1% @ 1kHz
Signal-to-Noise Ratio (SNR): >88dB
Input Sensitivity: 600mV - 1900mV
Input Impedance: 100kΩ
Input Voltage: 115V / 230V (Switchable)
Power Consumption: ~200W
Tubes Included: 300B x2, 6SN7 x2, 5U4G x2
Construction: Hand-Wired Point-to-Point (P2P)
Dimensions per Chassis: 29cm (W) x 20cm (D) x 15cm (H)
Weight per Chassis: ~10Kg
Total Shipping Weight: ~22Kg (approx., including packaging)
Packing List:
1 x Left Channel Amplifier
1 x Right Channel Amplifier
1 x Power Cord
