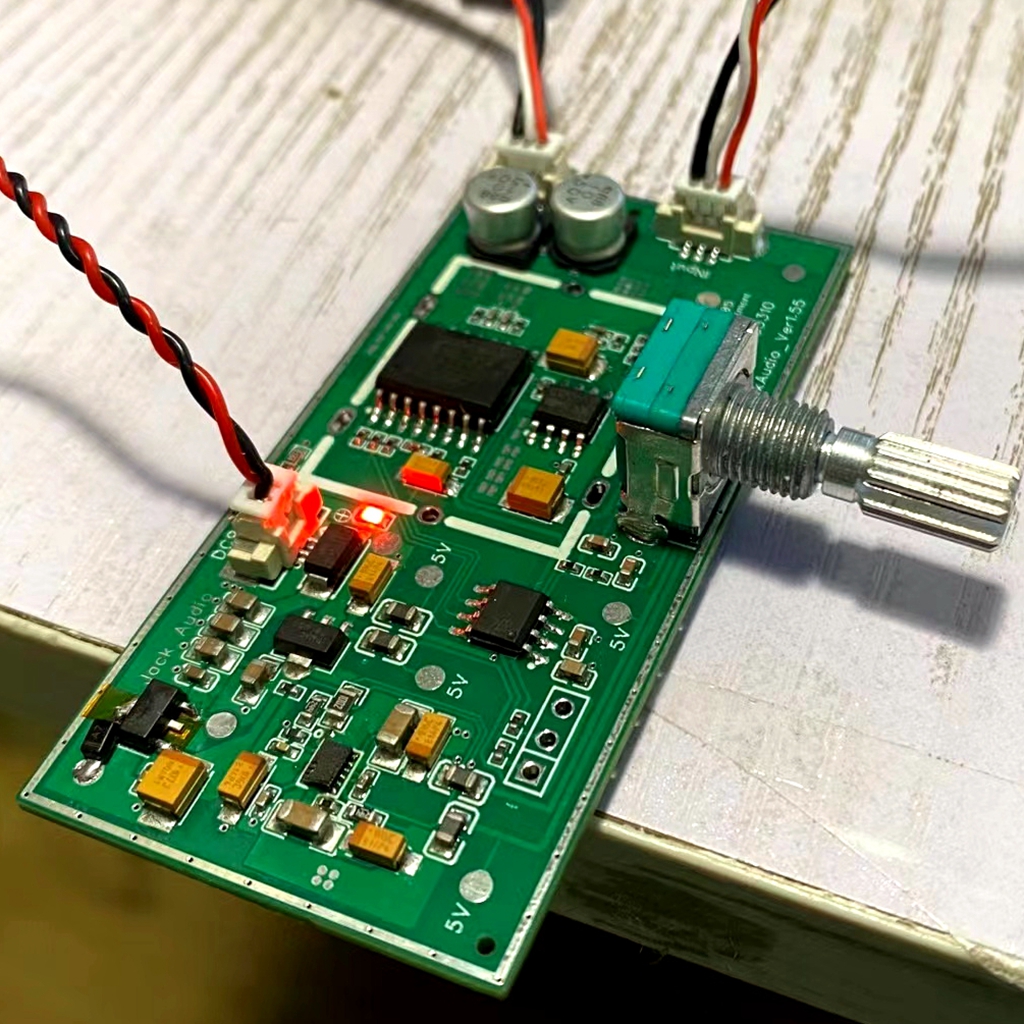

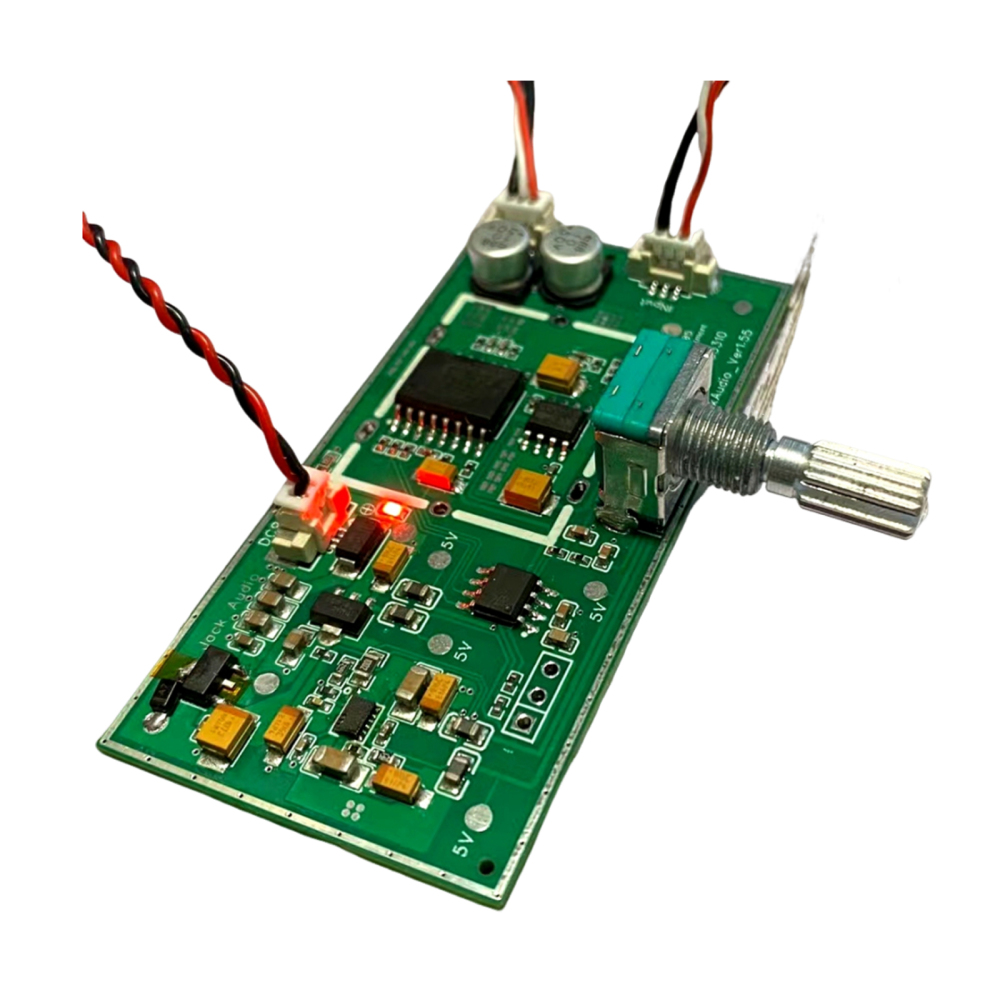

190 Speeds High Precision High Performance Digital Potentiometer

AP Test Parameters Fully open potentiometer test

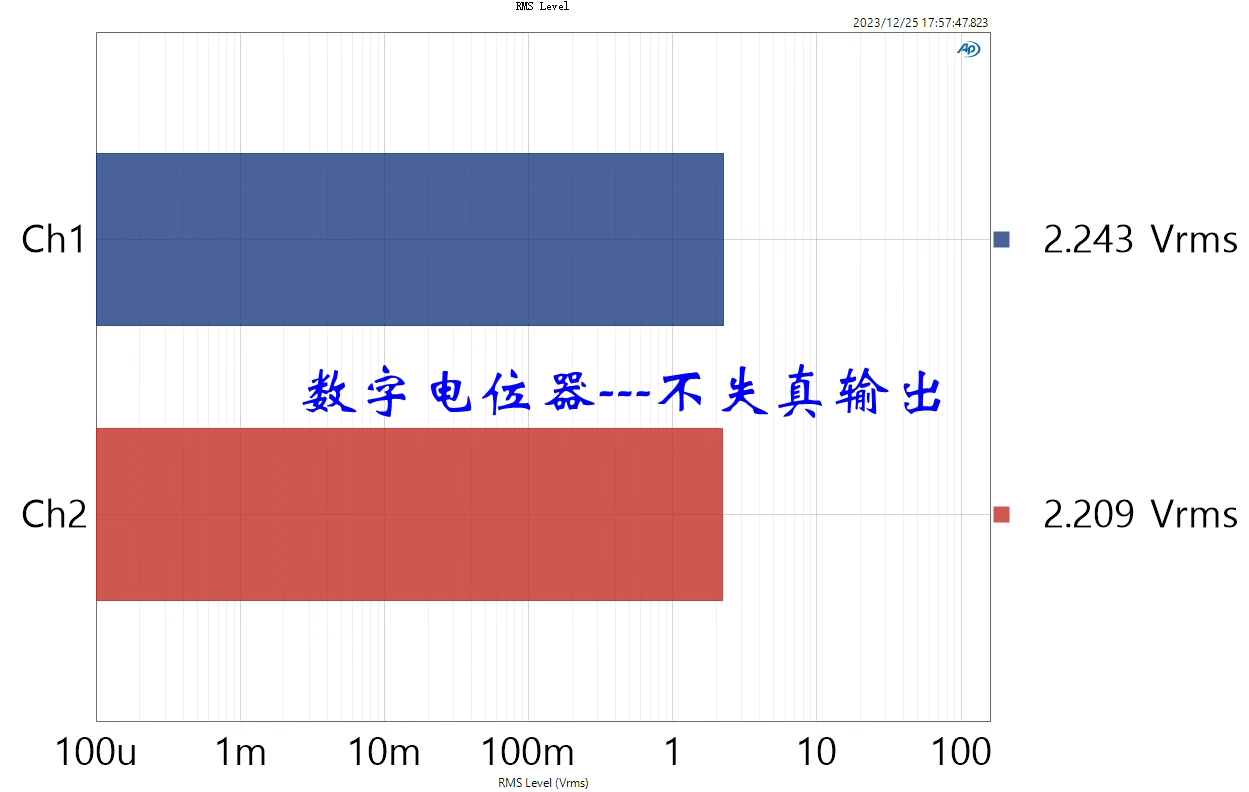

Output RMS: 2.2Vrms

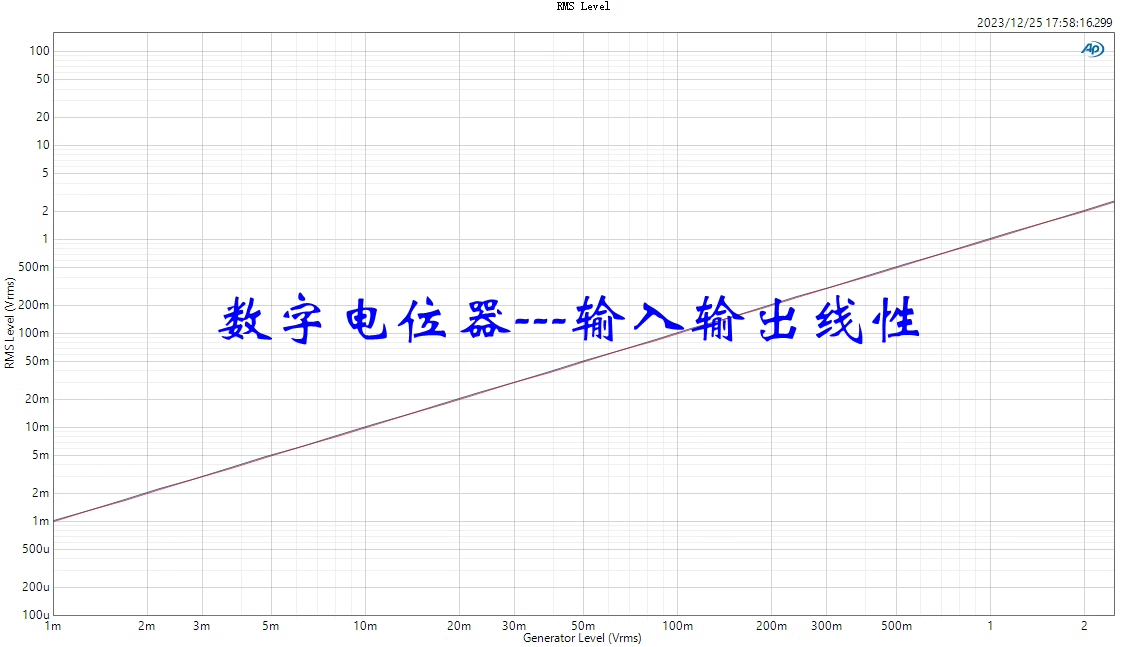

Maximum Input: 2.2Vrms 1% distortion

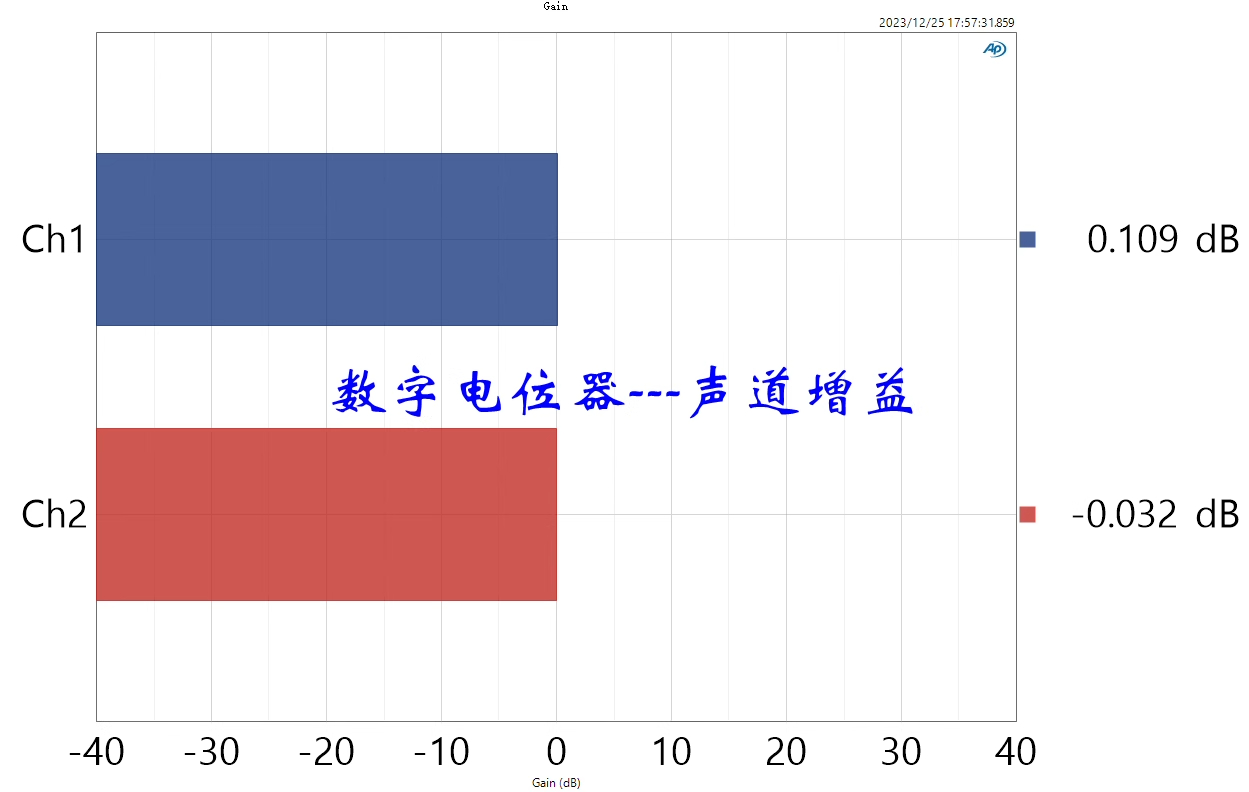

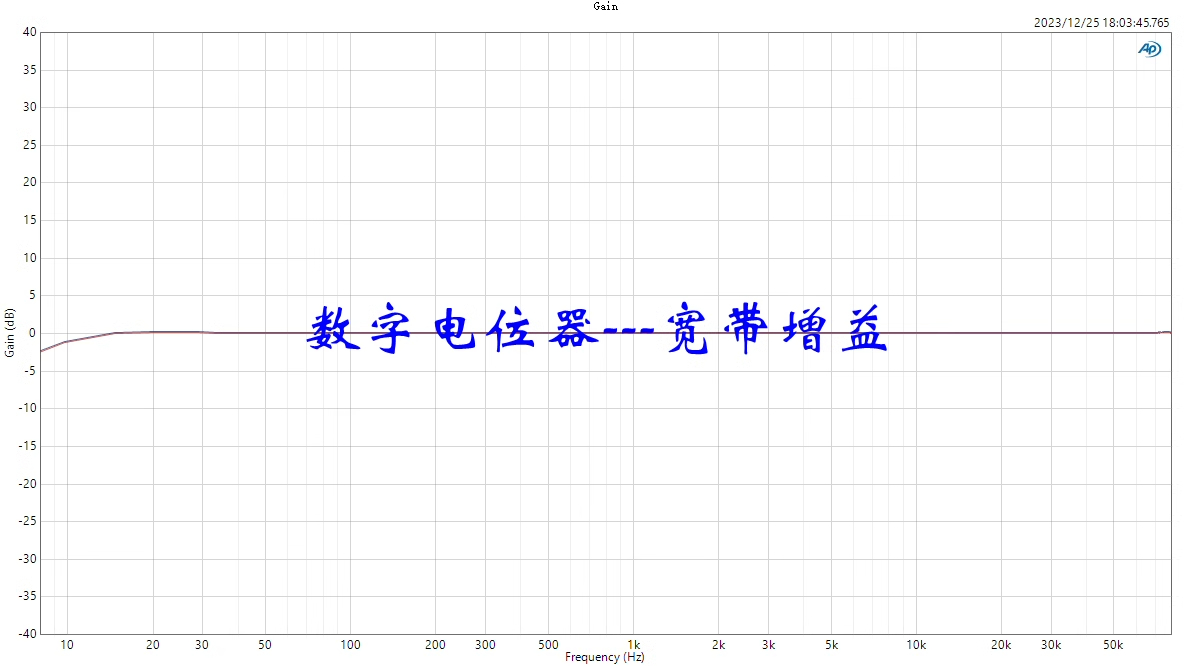

Channel Gain: 0dB fully open 1x

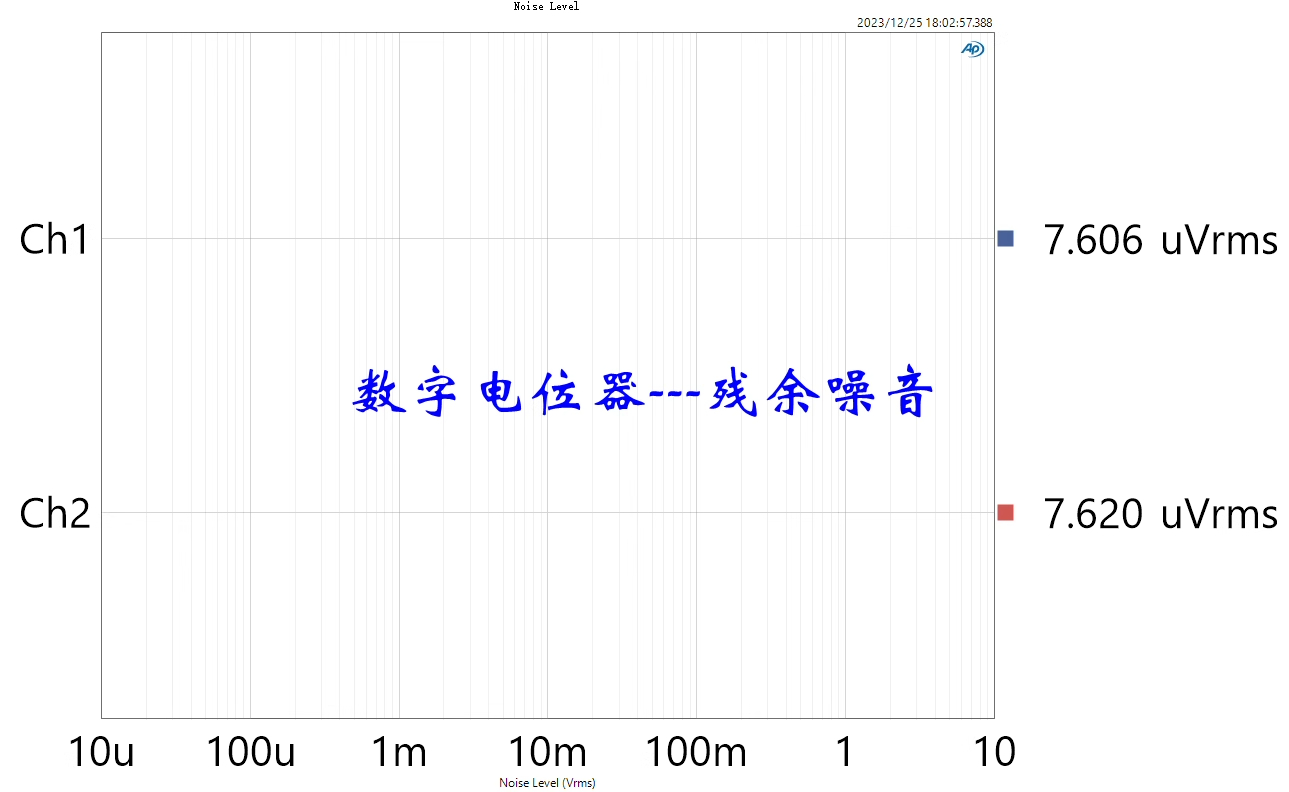

Residual Noise: 7.6uVrms

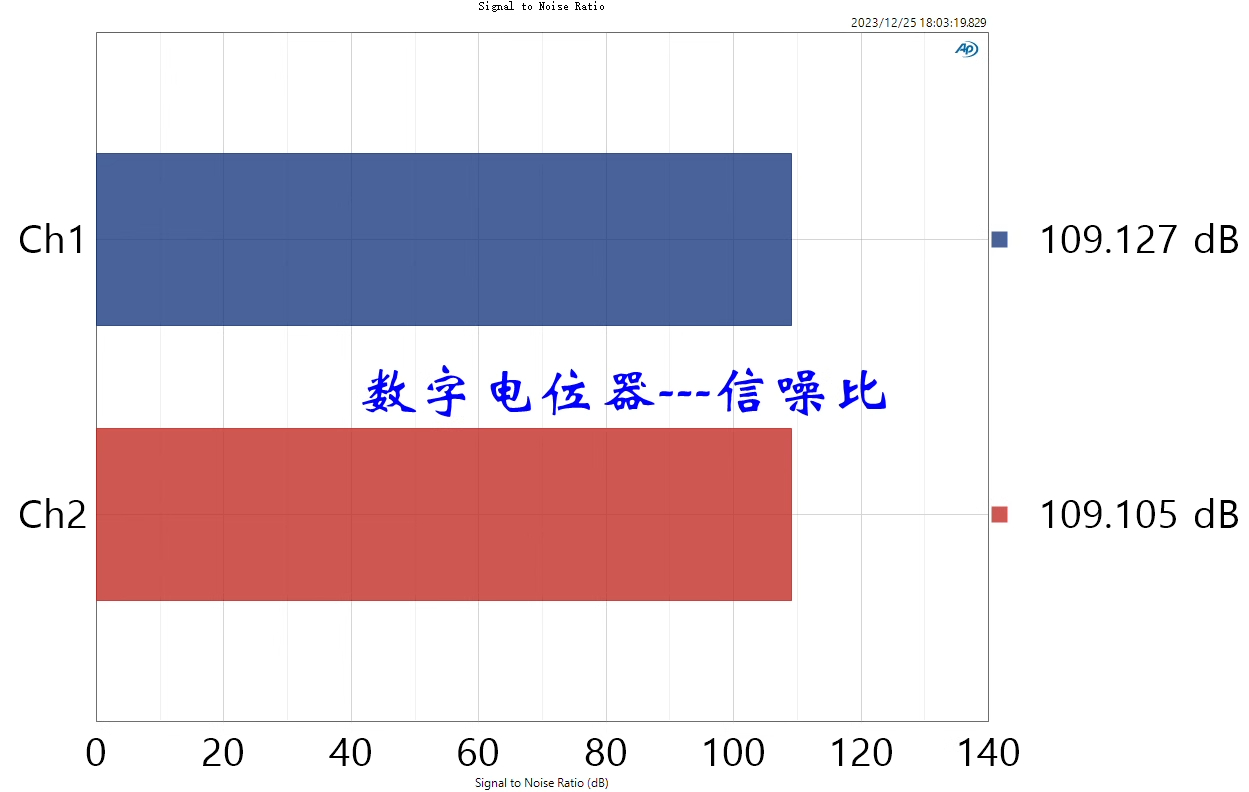

Signal-to-noise ratio: 109.4dB

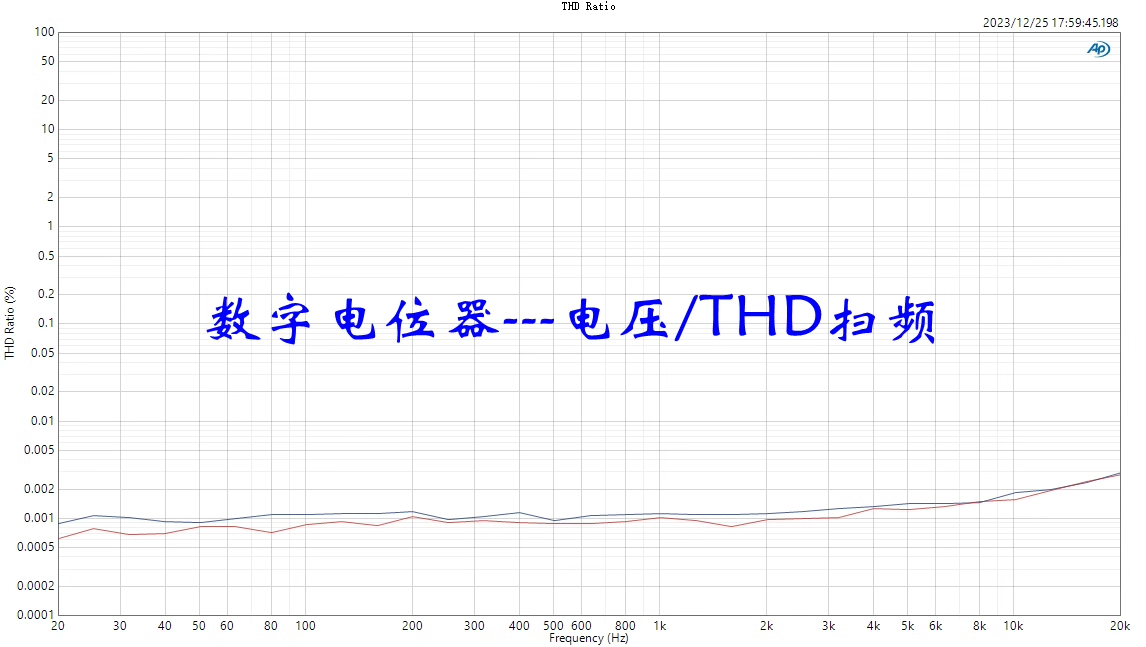

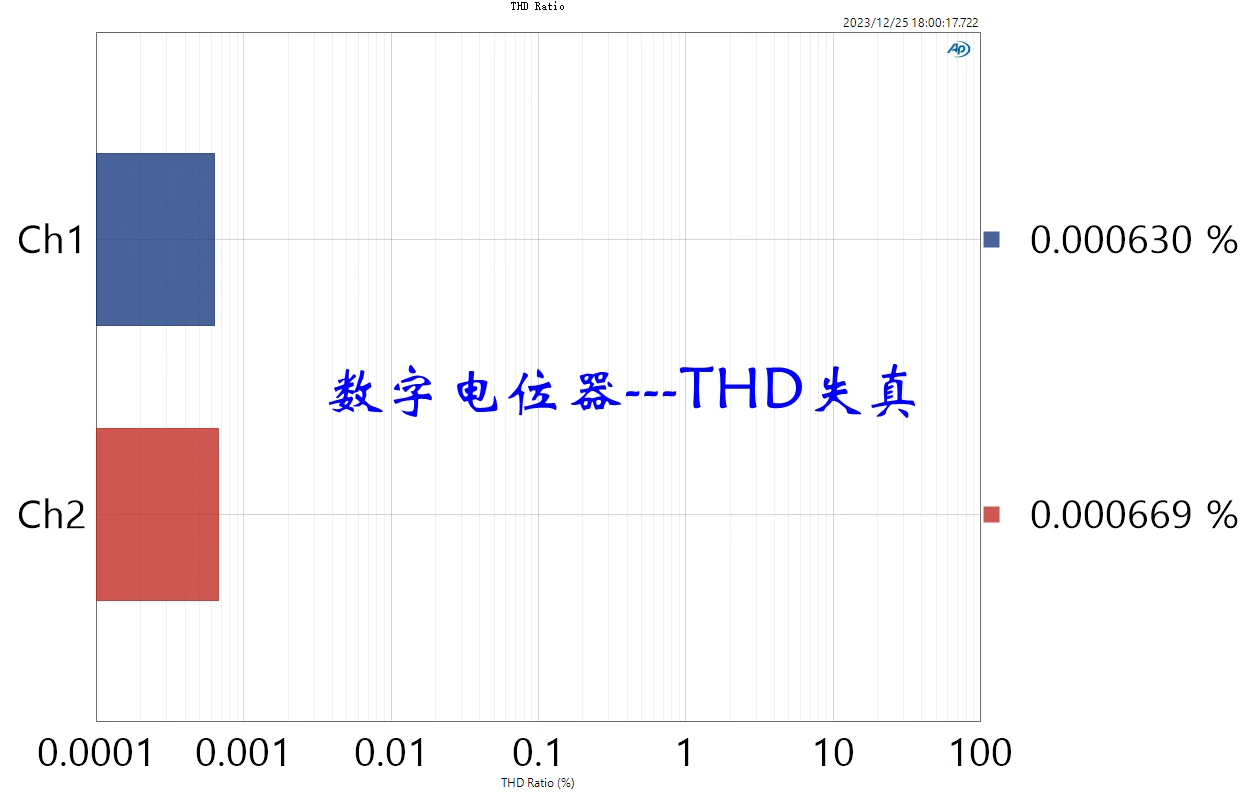

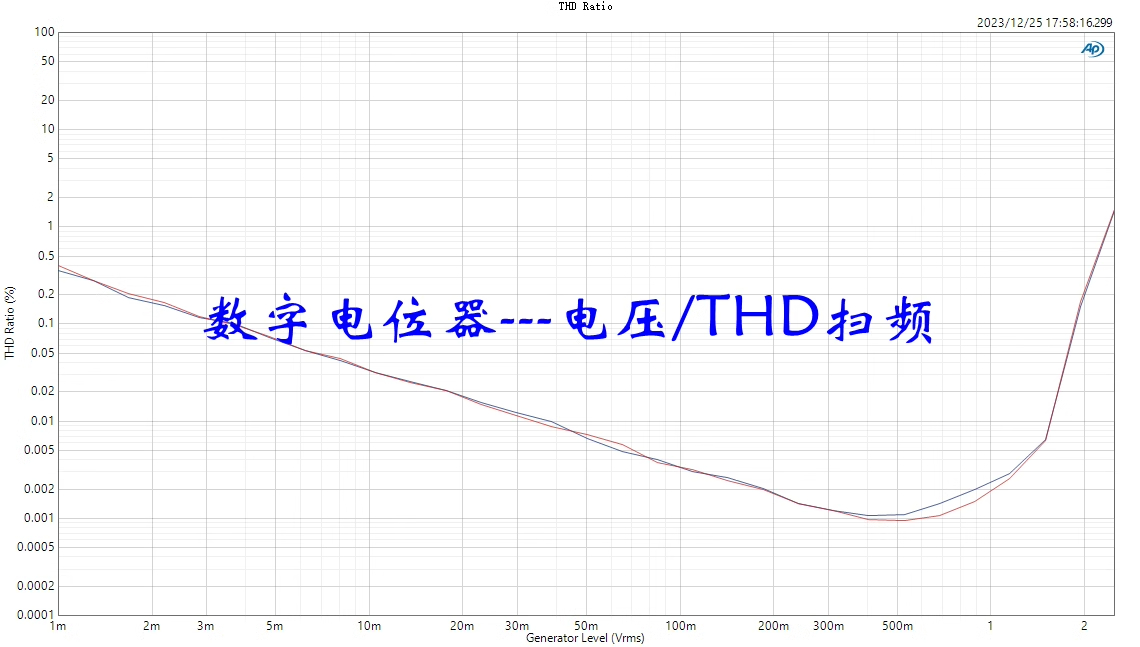

THD distortion: 0.00060

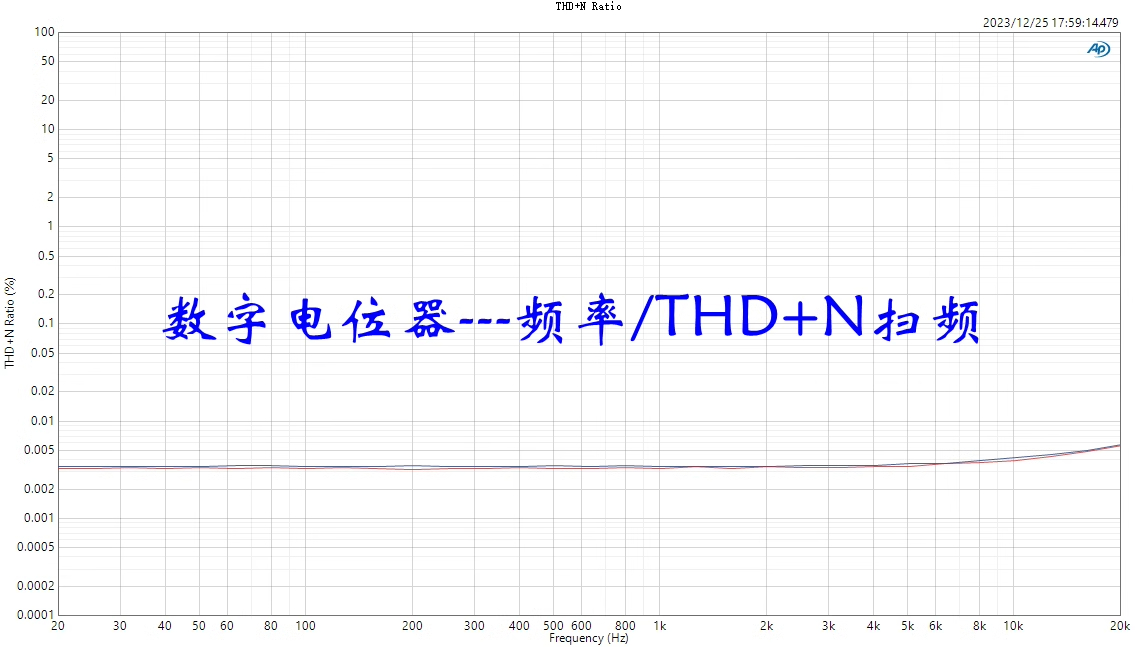

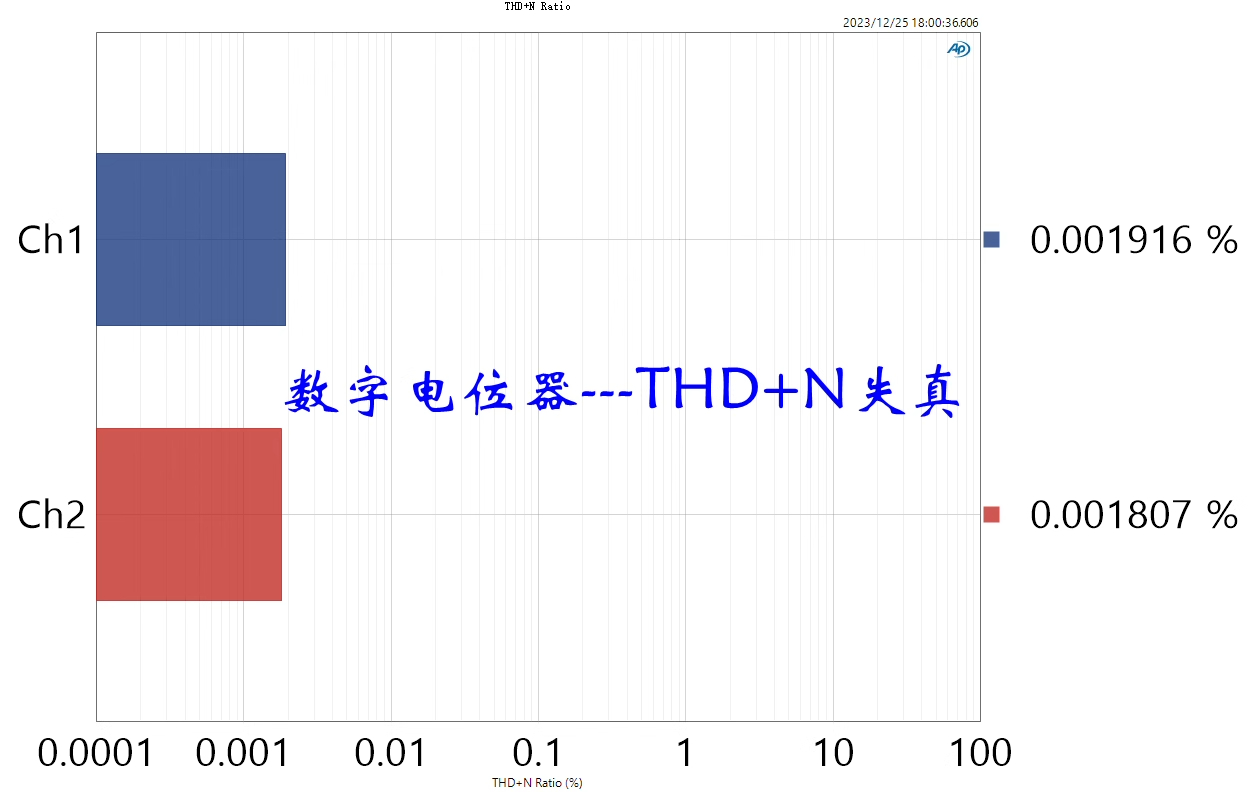

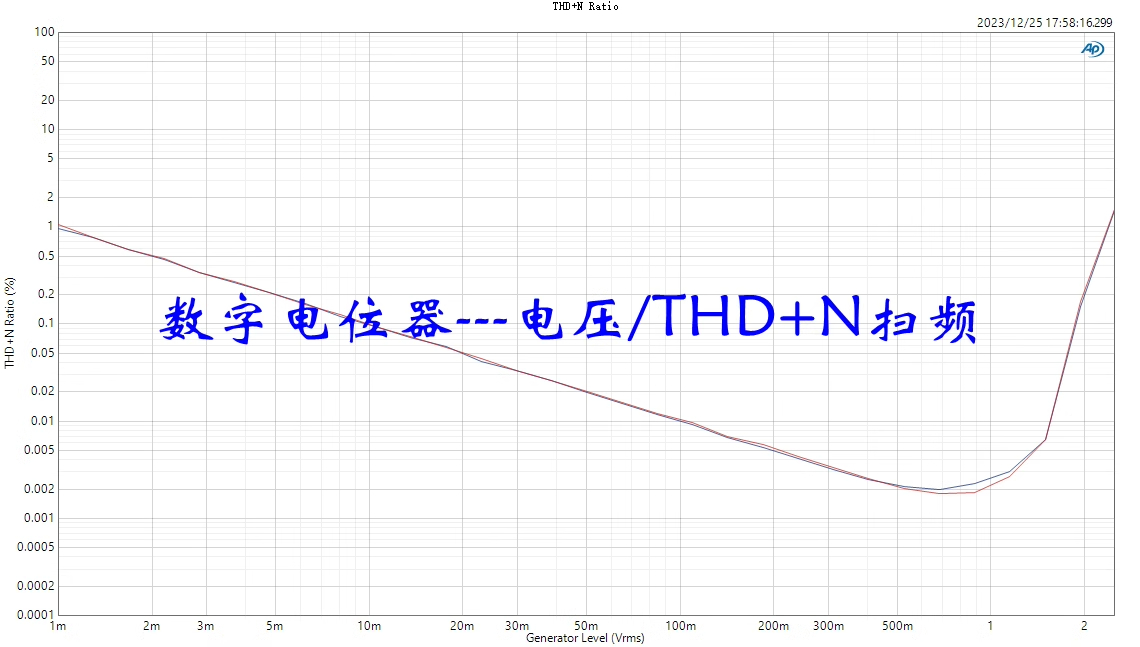

THD+N distortion: 0.0018%

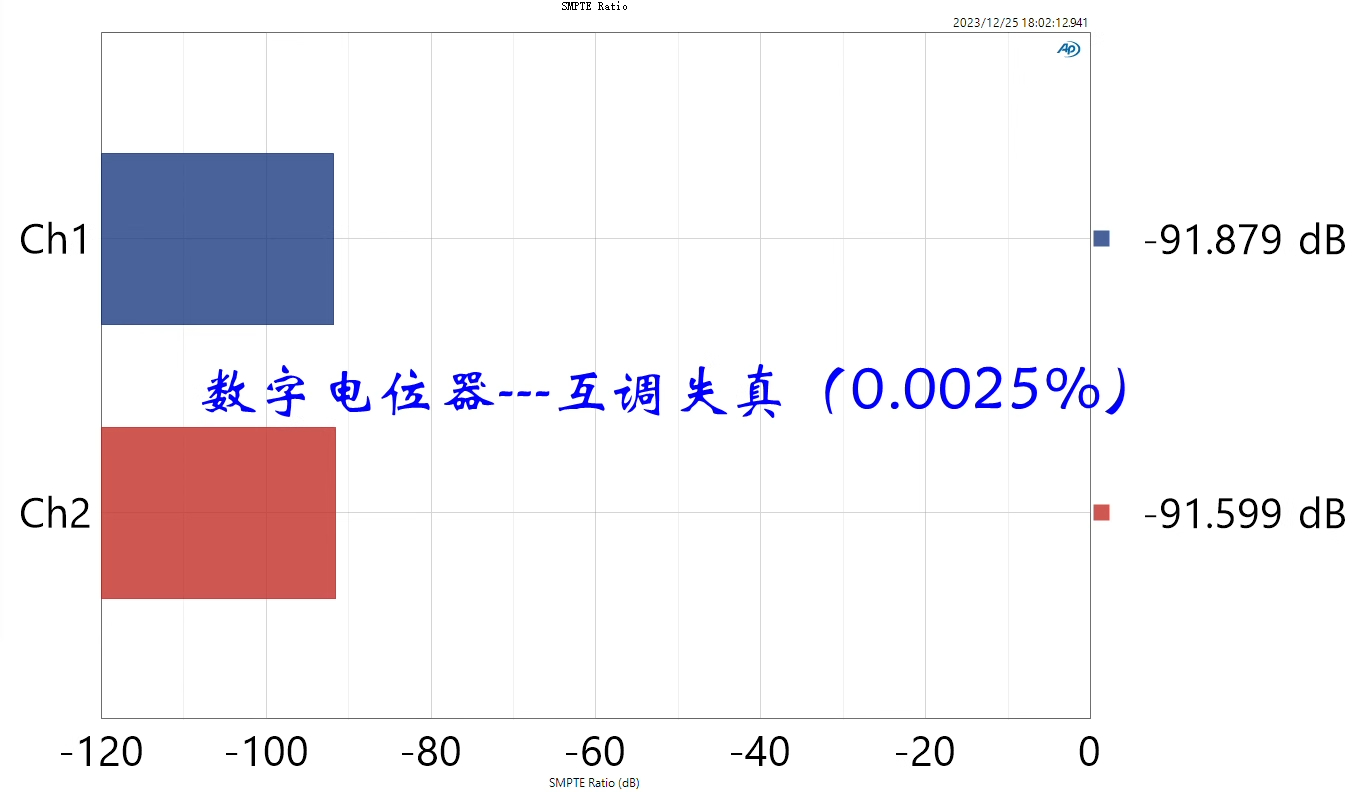

Intermodulation distortion: -91.6dB 0.0025%

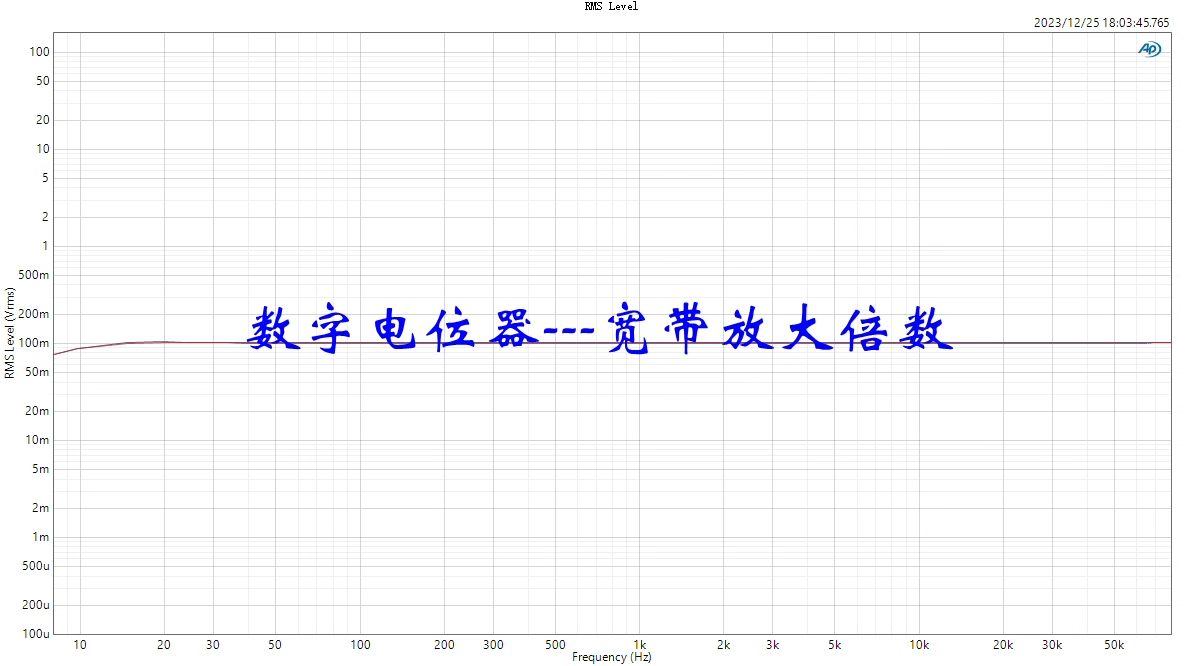

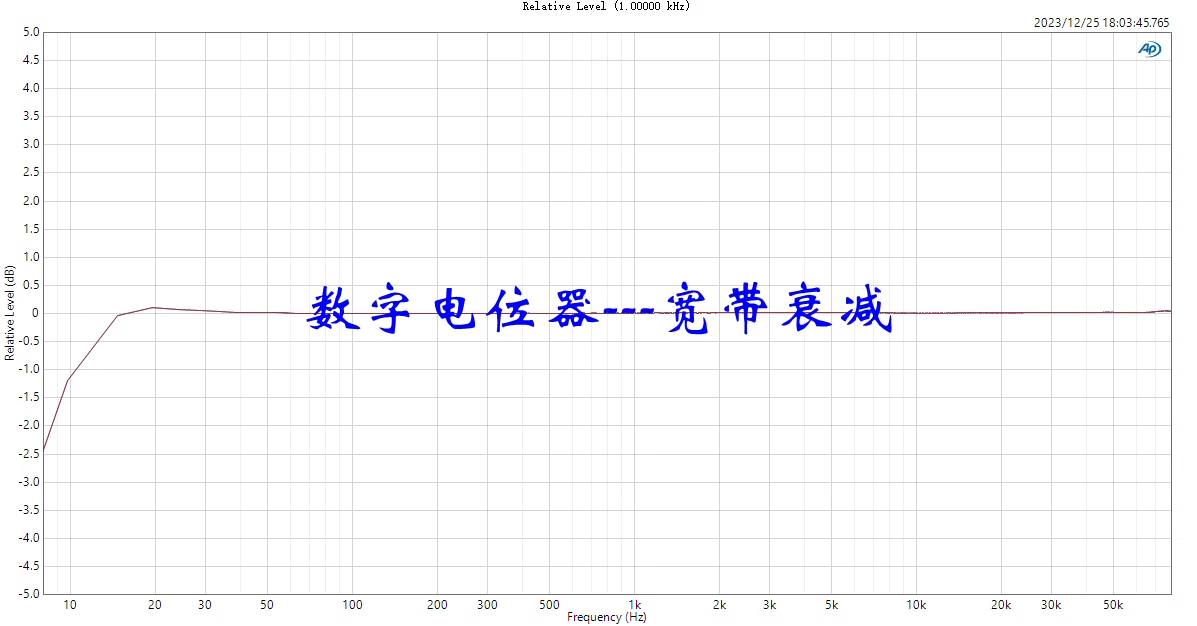

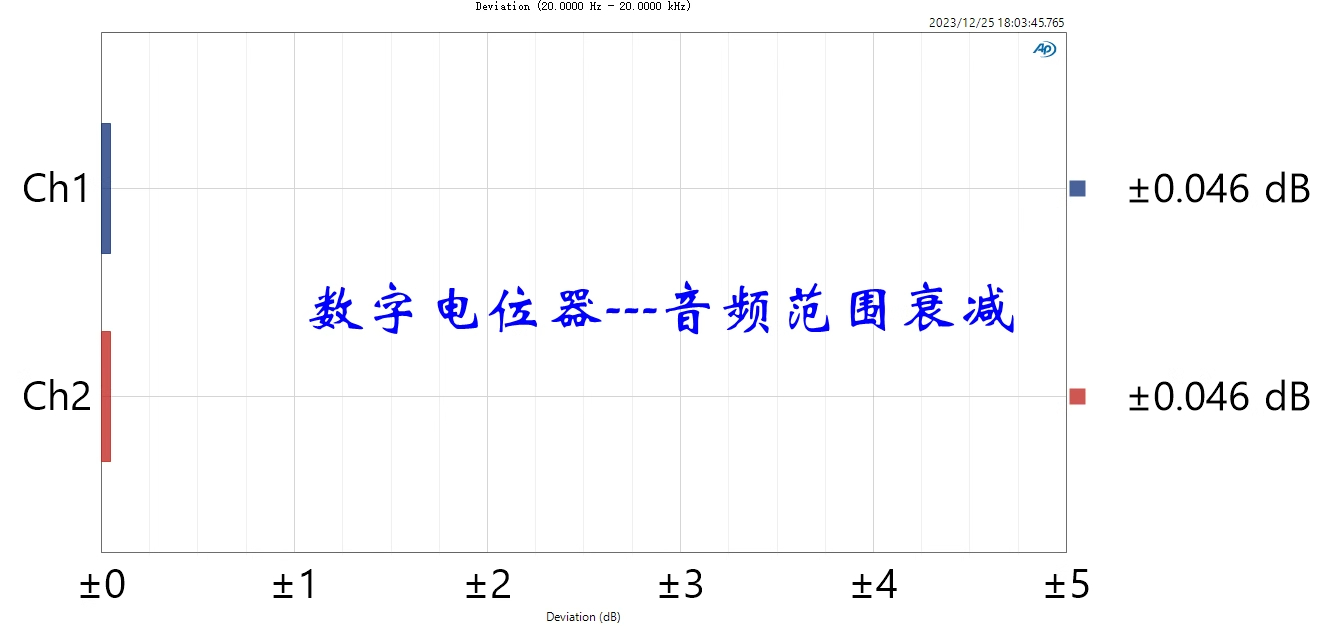

Audio bandwidth attenuation: ±0.046dB

Quality assurance and after-sales service

In order to ensure the quality, every finished board is subjected to a comprehensive AP test to ensure that it meets the design specifications.

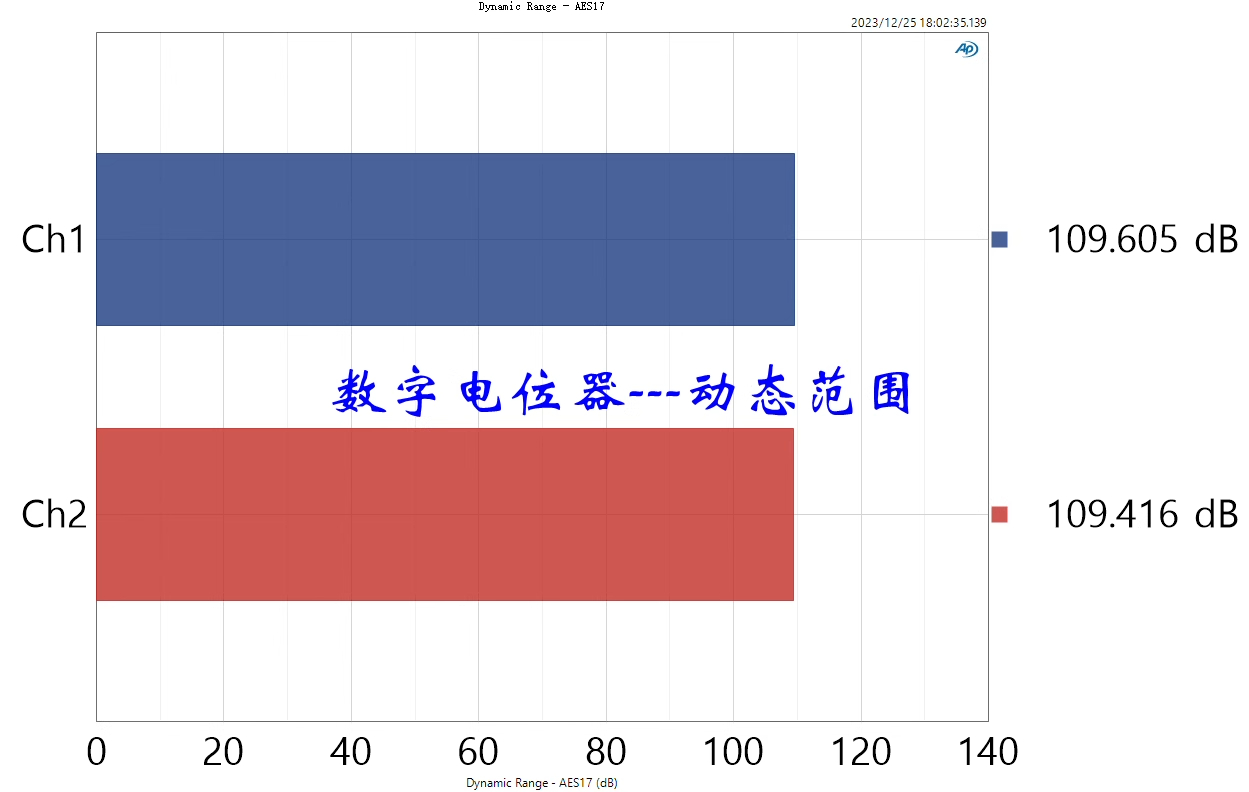

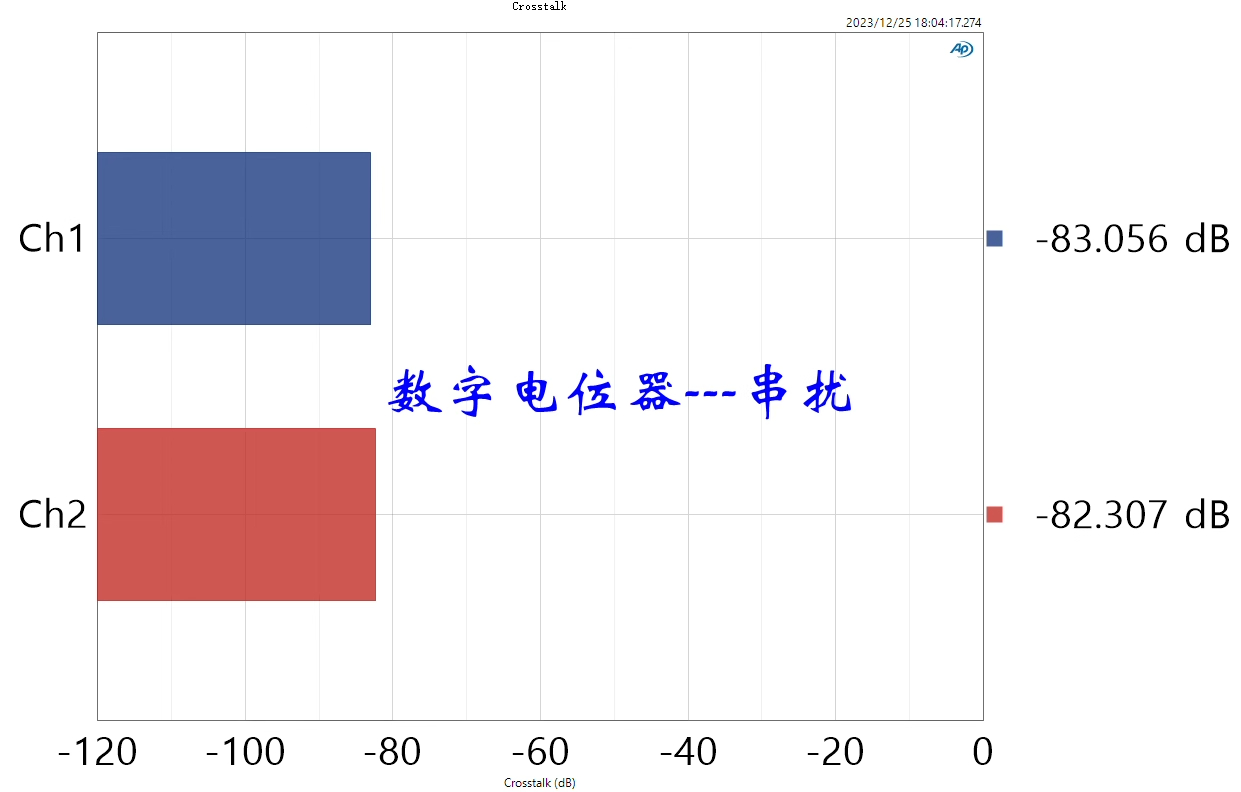

Tests include: bandwidth, noise (signal-to-noise ratio), dynamic range, distortion, intermodulation distortion, channel separation, amplification and so on.

If you need a matching power supply board, please contact us!
